2007 Ford Edge FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Service and Repair

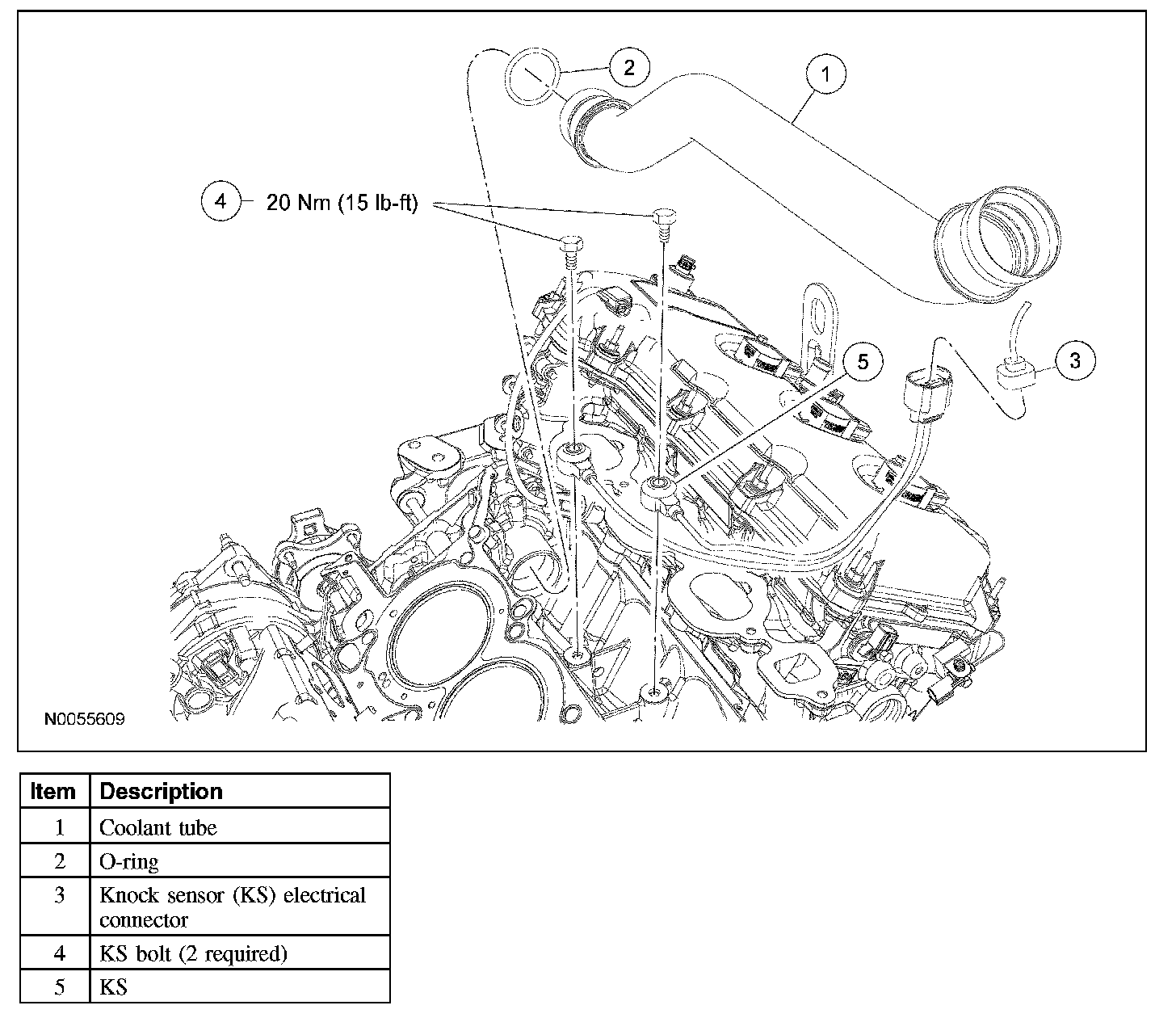

KNOCK SENSOR (KS)
Removal and Installation
1. Remove the thermostat housing.
2. Remove the lower intake manifold.
3. Remove the coolant tube.
- Discard the O-ring.
4. Disconnect the knock sensor (KS) electrical connector.
5. Remove the 2 bolts and the KS.
- To install, tighten to 20 Nm (15 lb-ft).
6. To install, reverse the removal procedure.
- Lubricate the new O-ring with clean engine coolant.
Removal and Installation
1. Remove the thermostat housing.
2. Remove the lower intake manifold.
3. Remove the coolant tube.
- Discard the O-ring.
4. Disconnect the knock sensor (KS) electrical connector.
5. Remove the 2 bolts and the KS.
- To install, tighten to 20 Nm (15 lb-ft).
6. To install, reverse the removal procedure.
- Lubricate the new O-ring with clean engine coolant.
