2007 Ford Edge FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Crankshaft Position Sensor: Service and Repair

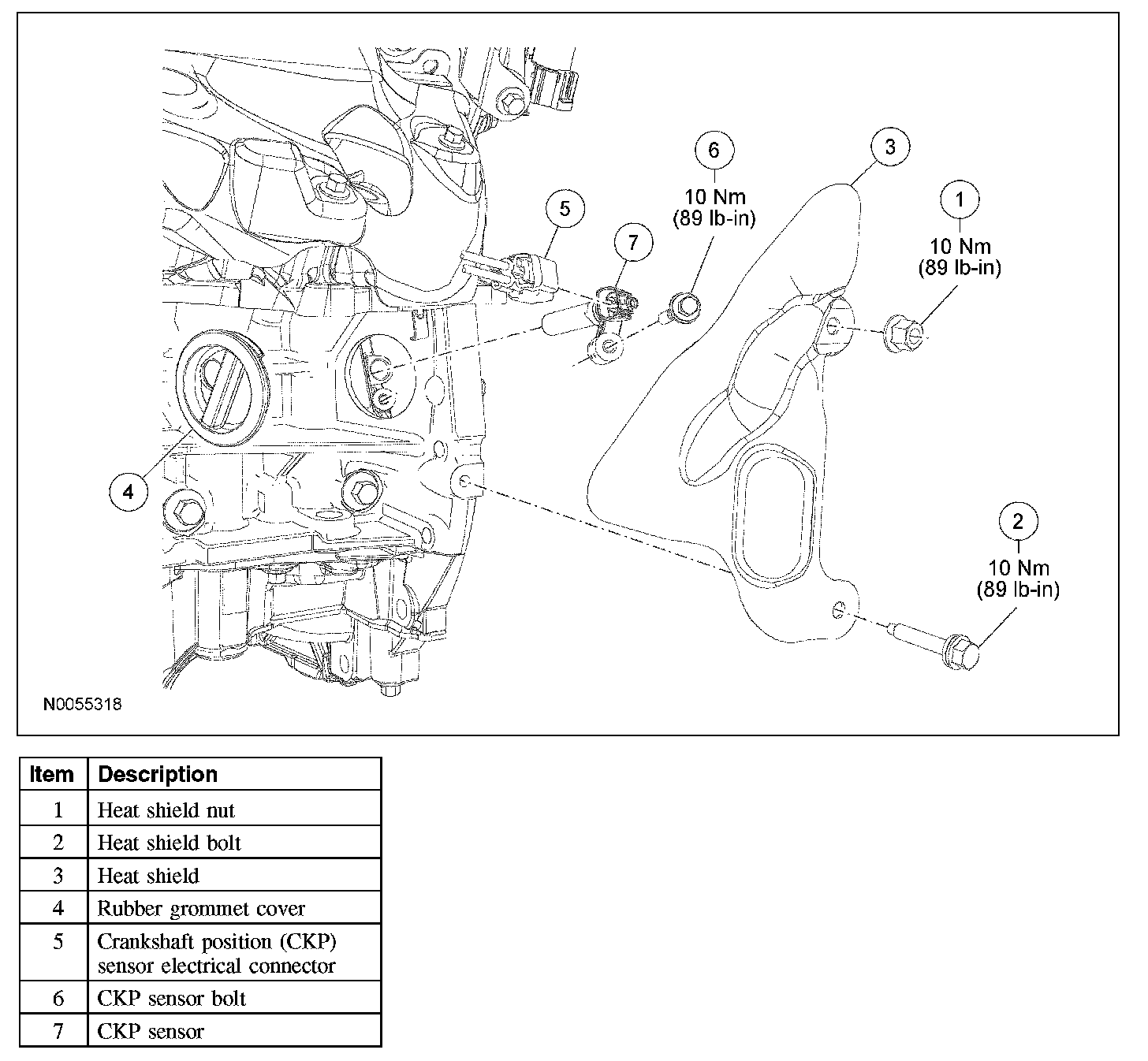

CRANKSHAFT POSITION (CKP) SENSOR
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the LH catalytic converter.
3. Remove the bolt, nut and the heat shield.
- To install, tighten to 10 Nm (89 lb-in).
4. Remove the rubber grommet cover.
5. Disconnect the crankshaft position (CKP) sensor electrical connector.
6. Remove the bolt and the CKP sensor.
- To install, tighten to 10 Nm (89 lb-in).
7. To install, reverse the removal procedure.
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the LH catalytic converter.
3. Remove the bolt, nut and the heat shield.
- To install, tighten to 10 Nm (89 lb-in).
4. Remove the rubber grommet cover.
5. Disconnect the crankshaft position (CKP) sensor electrical connector.
6. Remove the bolt and the CKP sensor.
- To install, tighten to 10 Nm (89 lb-in).
7. To install, reverse the removal procedure.
