2007 Ford Edge FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Control Module HVAC: Service and Repair
CLIMATE CONTROL MODULE

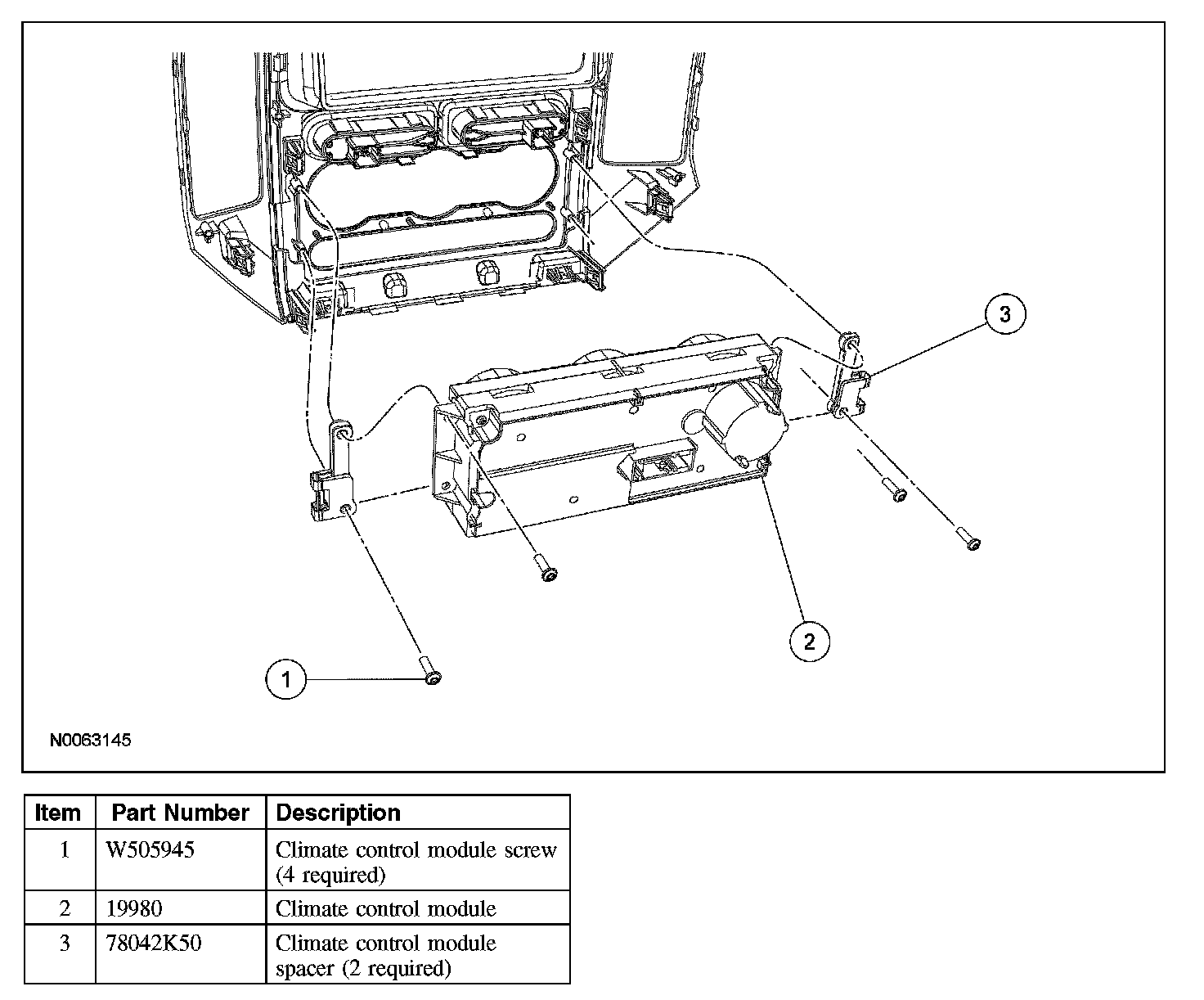

Removal and Installation
1. Remove the center instrument panel finish panel.
2. Remove the 4 climate control module screws.
3. Remove the climate control module.
4. NOTE: Be sure the climate control module spacers are correctly positioned before installing the climate control module.
To install, reverse the removal procedure.
Removal and Installation
1. Remove the center instrument panel finish panel.
2. Remove the 4 climate control module screws.
3. Remove the climate control module.
4. NOTE: Be sure the climate control module spacers are correctly positioned before installing the climate control module.
To install, reverse the removal procedure.
