2007 Ford Edge FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Seat - Exploded View, Front
SEAT - EXPLODED VIEW, FRONT
Removal and Installation
1. For additional information, refer to the procedure.

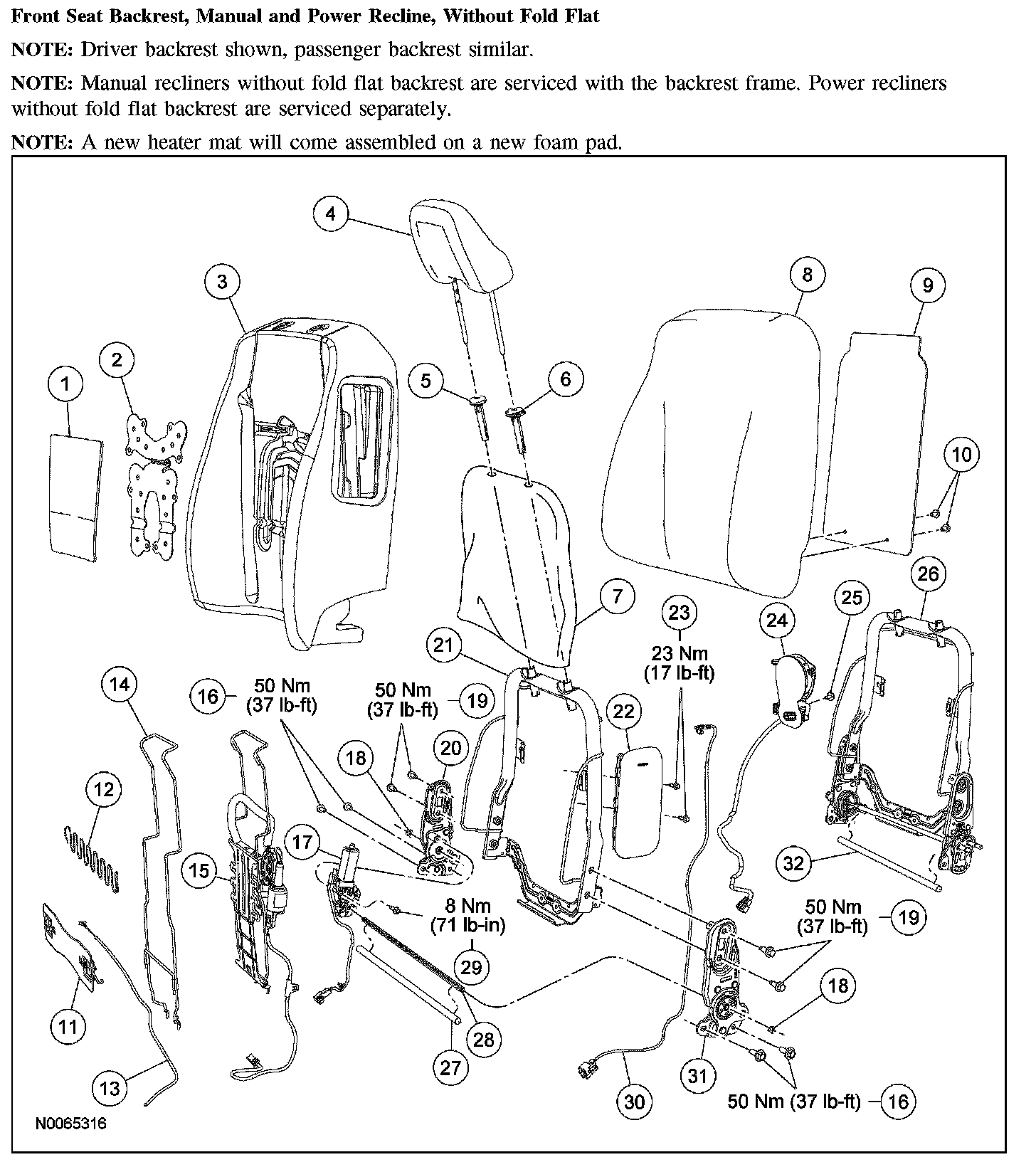

Front Seat Backrest, Manual And Power Recline, Without Fold Flat (Part 1):

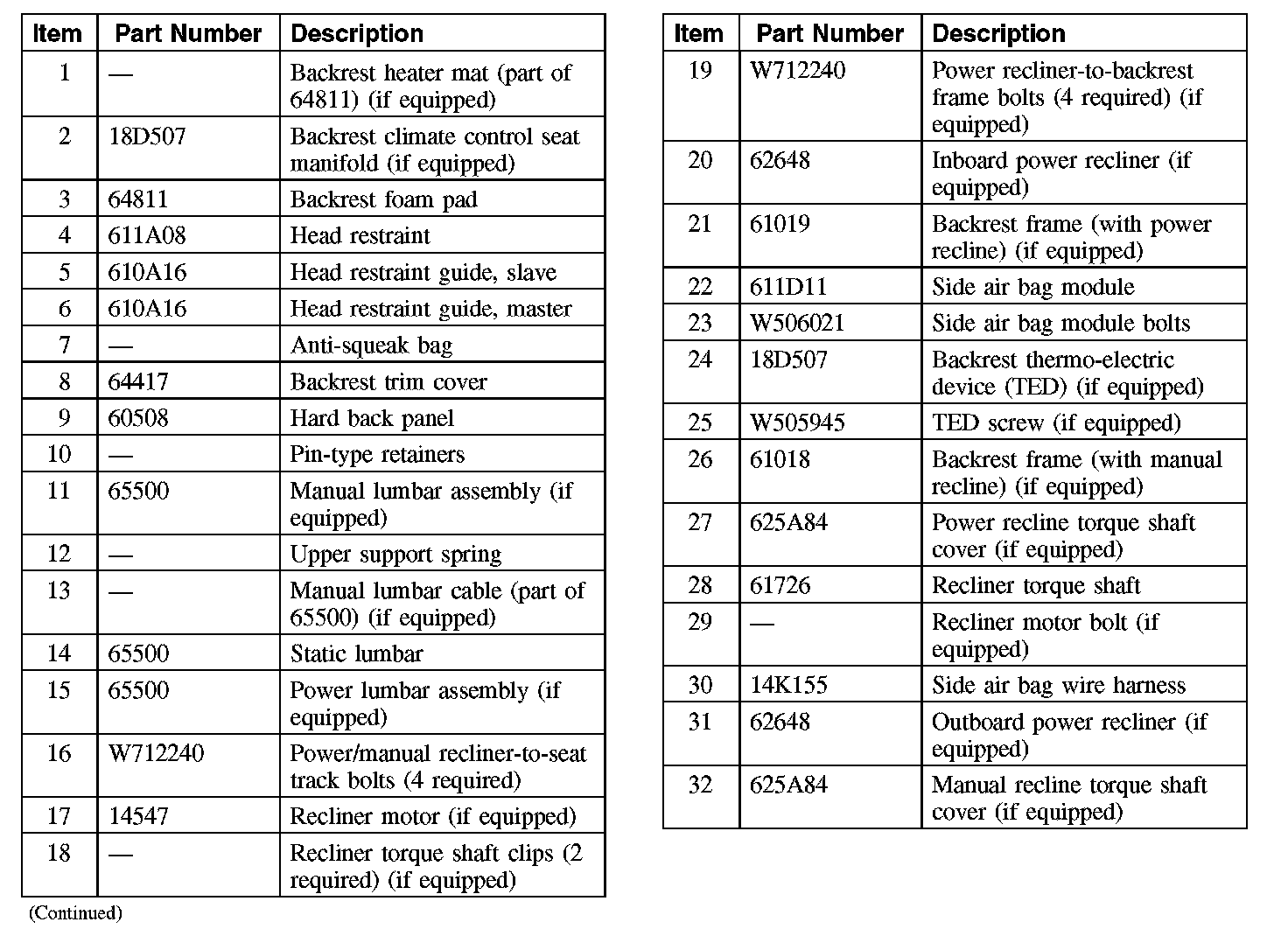

Front Seat Backrest, Manual And Power Recline, Without Fold Flat (Part 2):

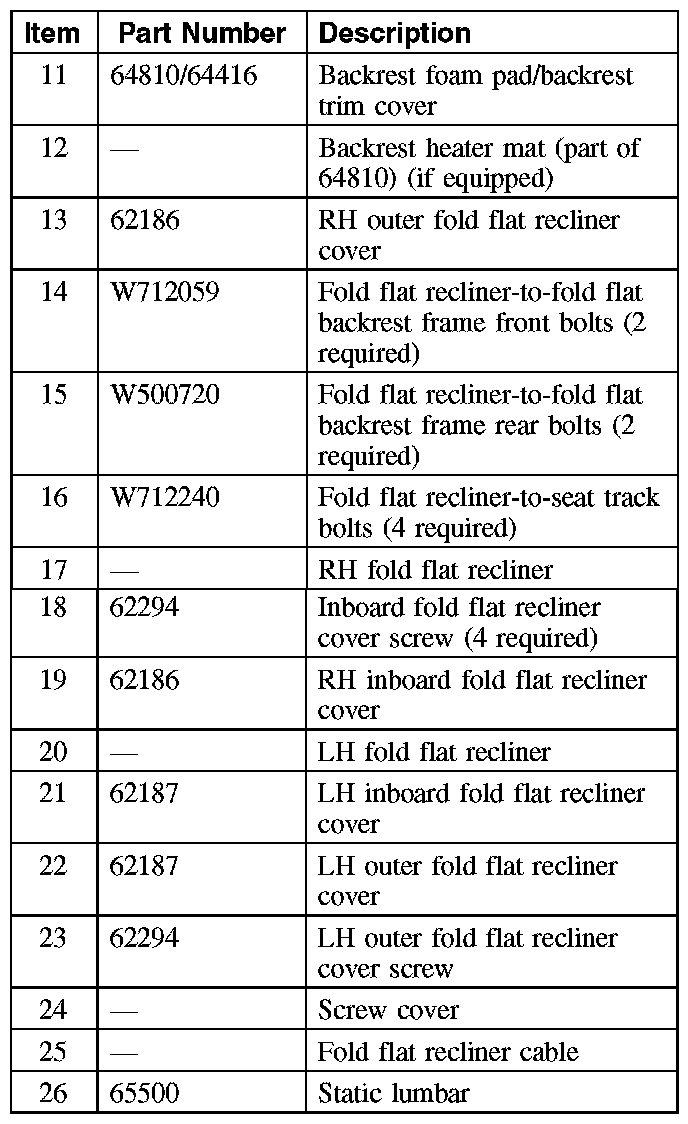

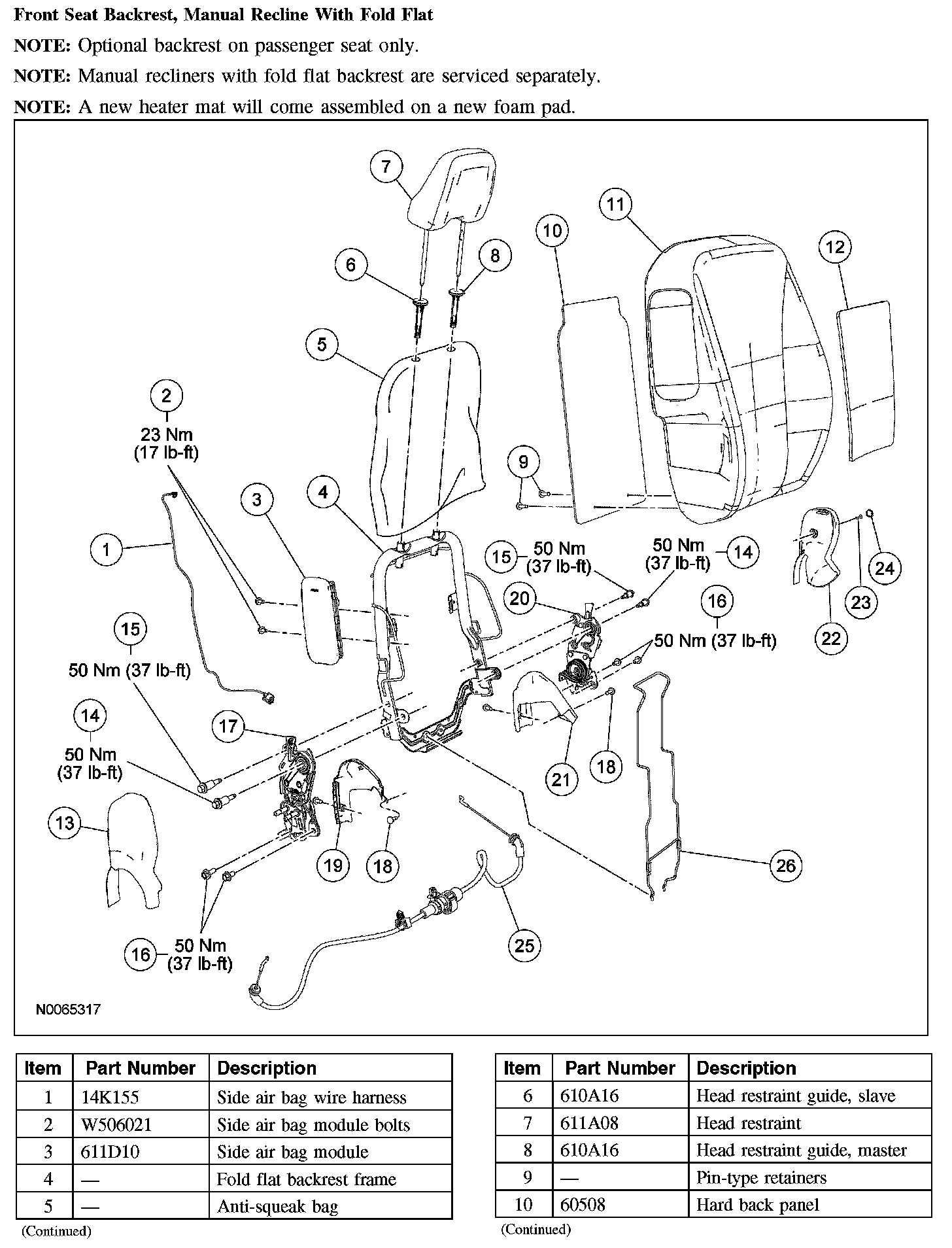

Front Seat Backrest, Manual And Power Recline, With Fold Flat (Part 1):
Front Seat Backrest, Manual And Power Recline, With Fold Flat (Part 2):

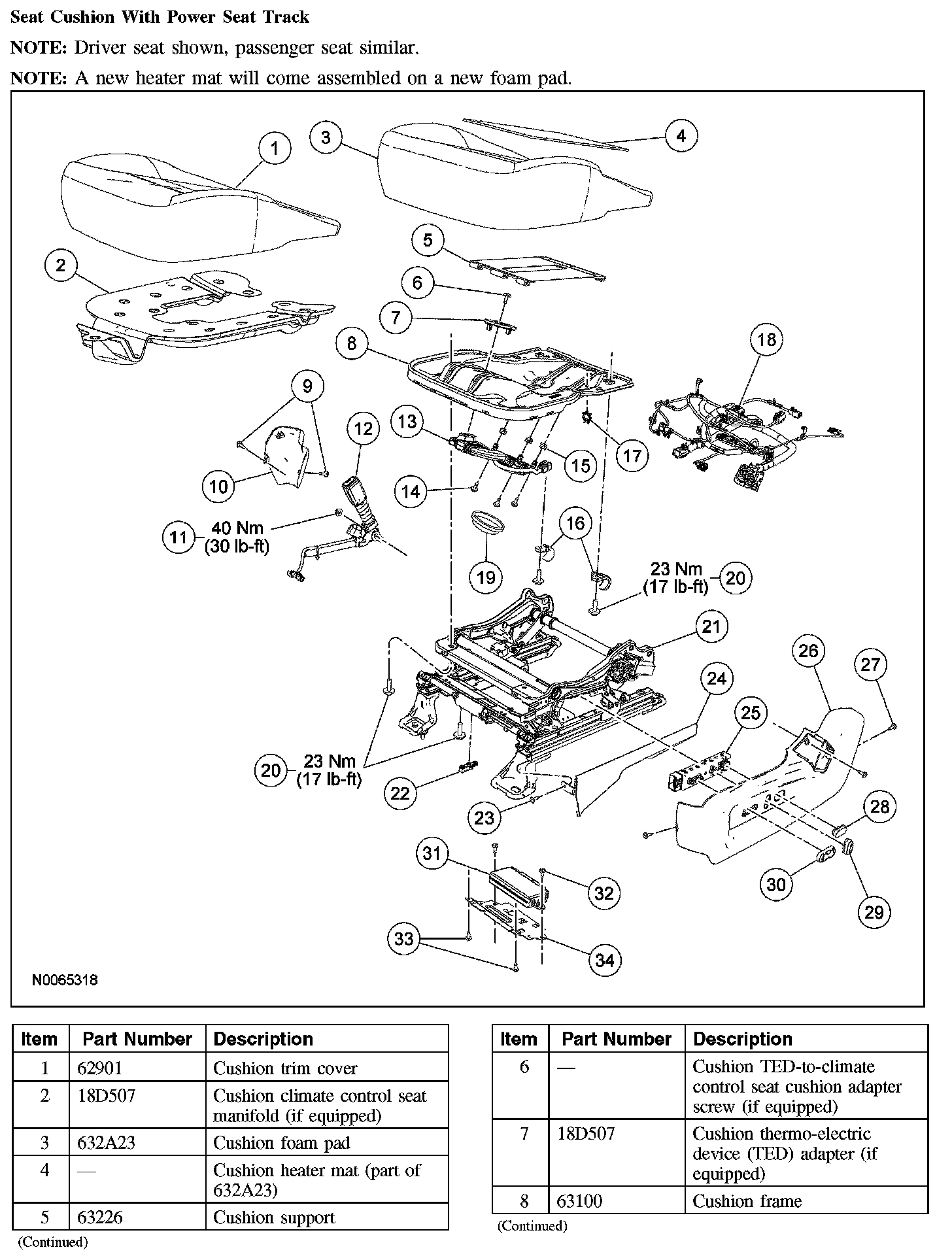

Seat Cushion With Power Seat Track (Part 1):

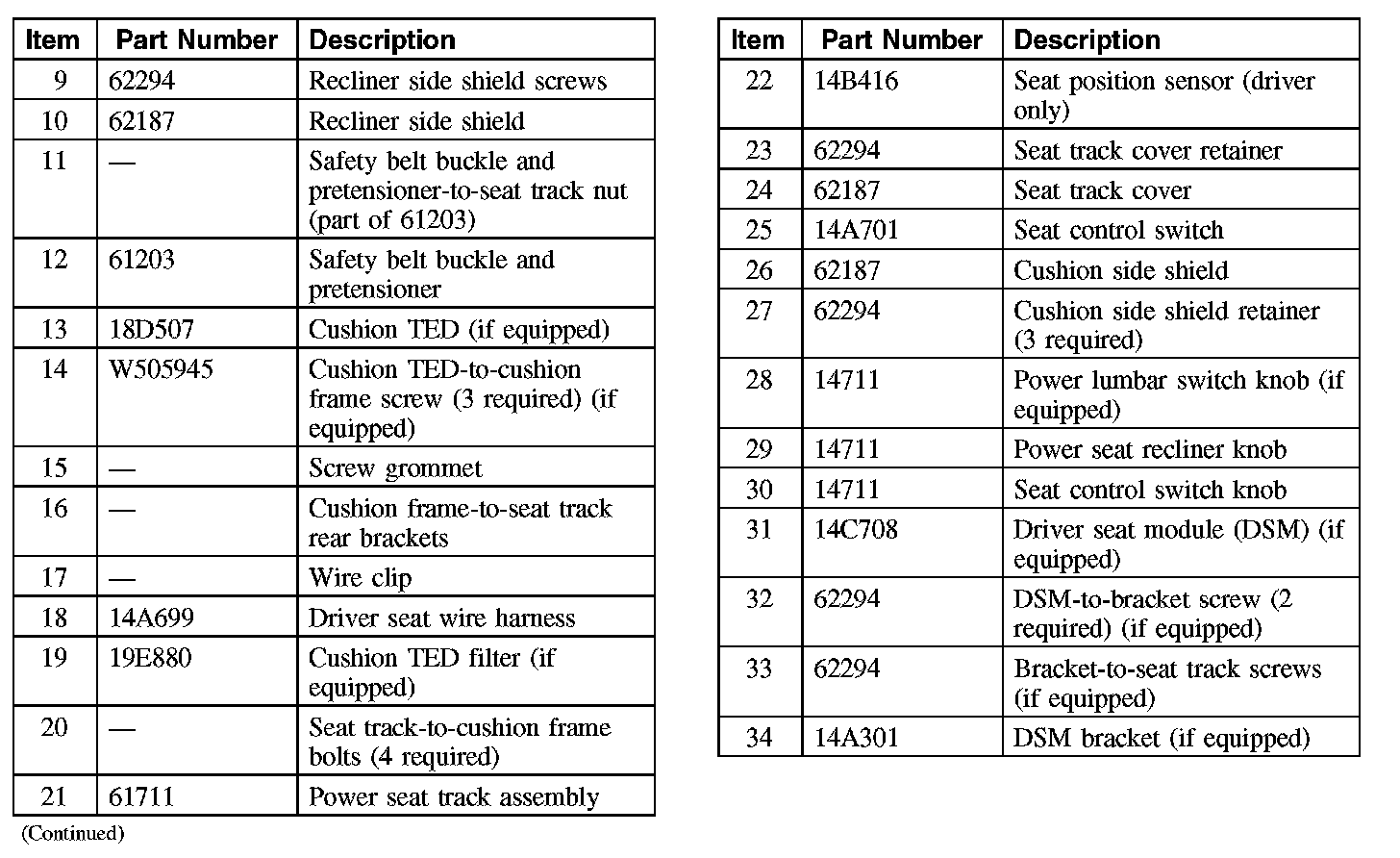

Seat Cushion With Power Seat Track (Part 2):

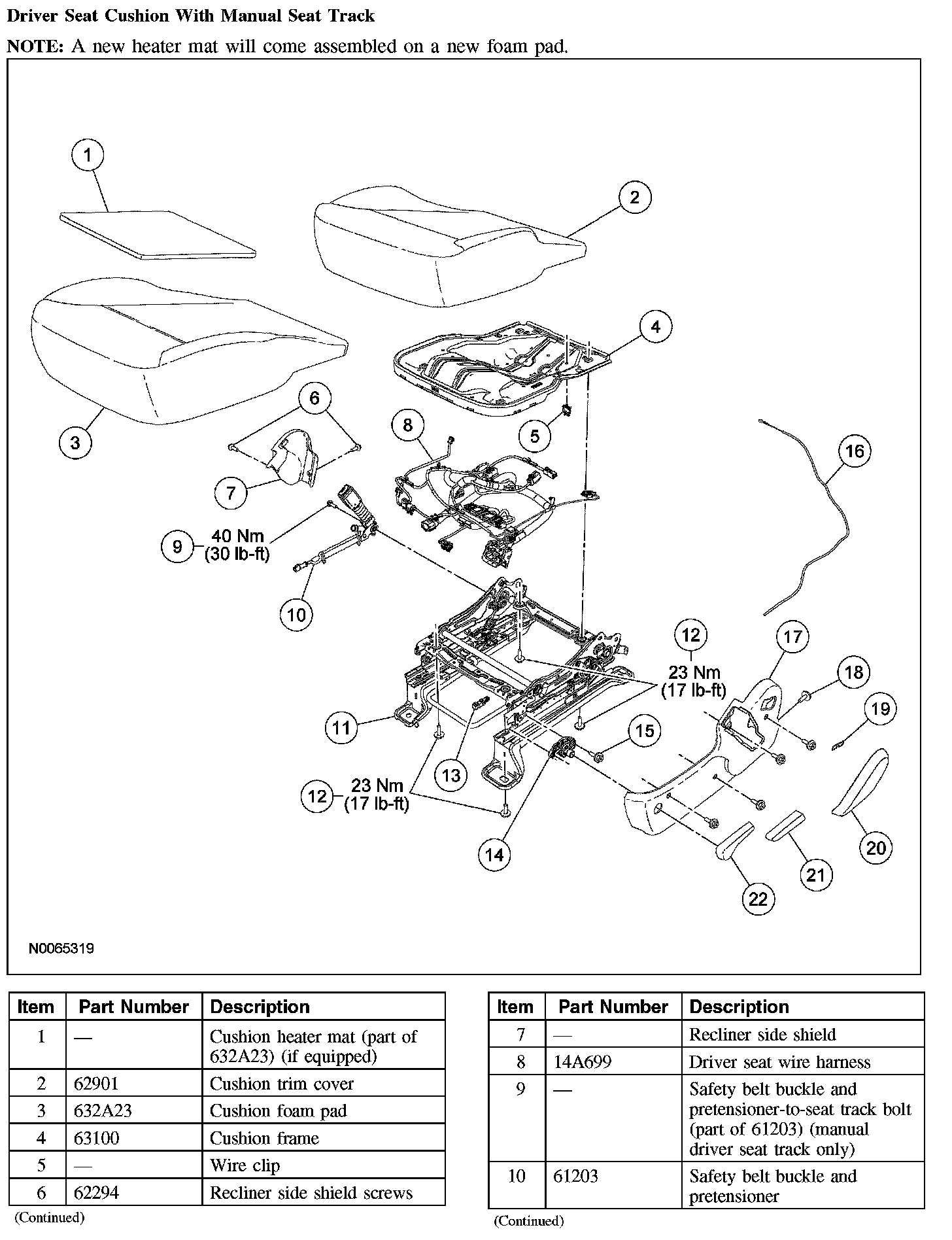

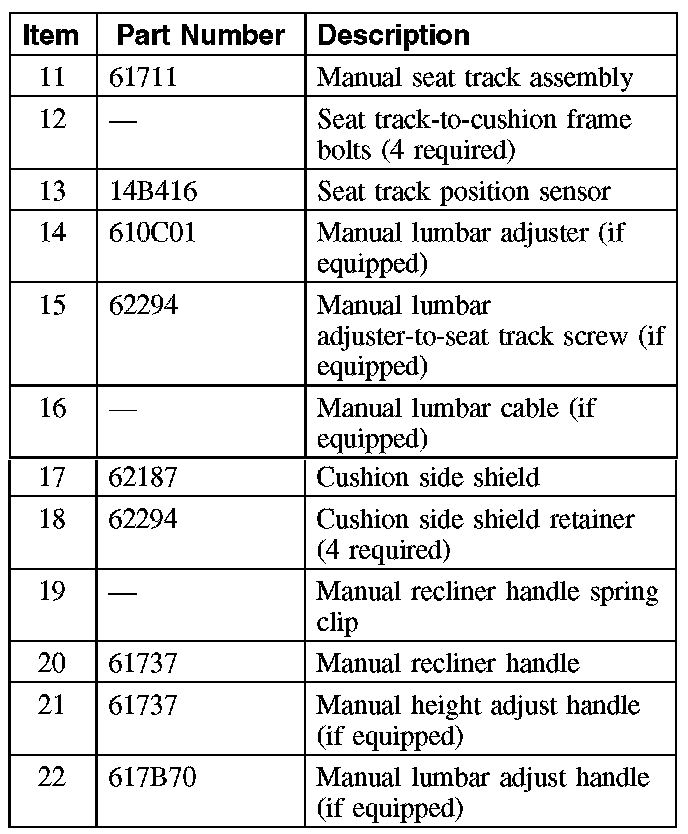

Driver Seat Cushion With Manual Seat Track (Part 1):

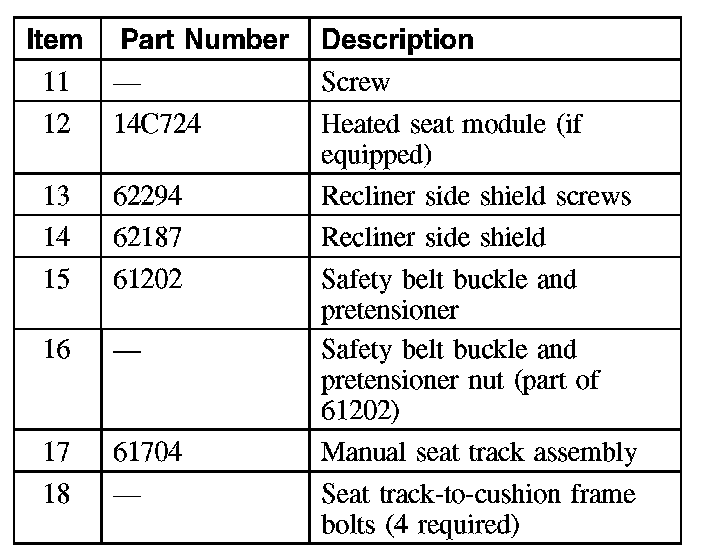

Driver Seat Cushion With Manual Seat Track (Part 2):

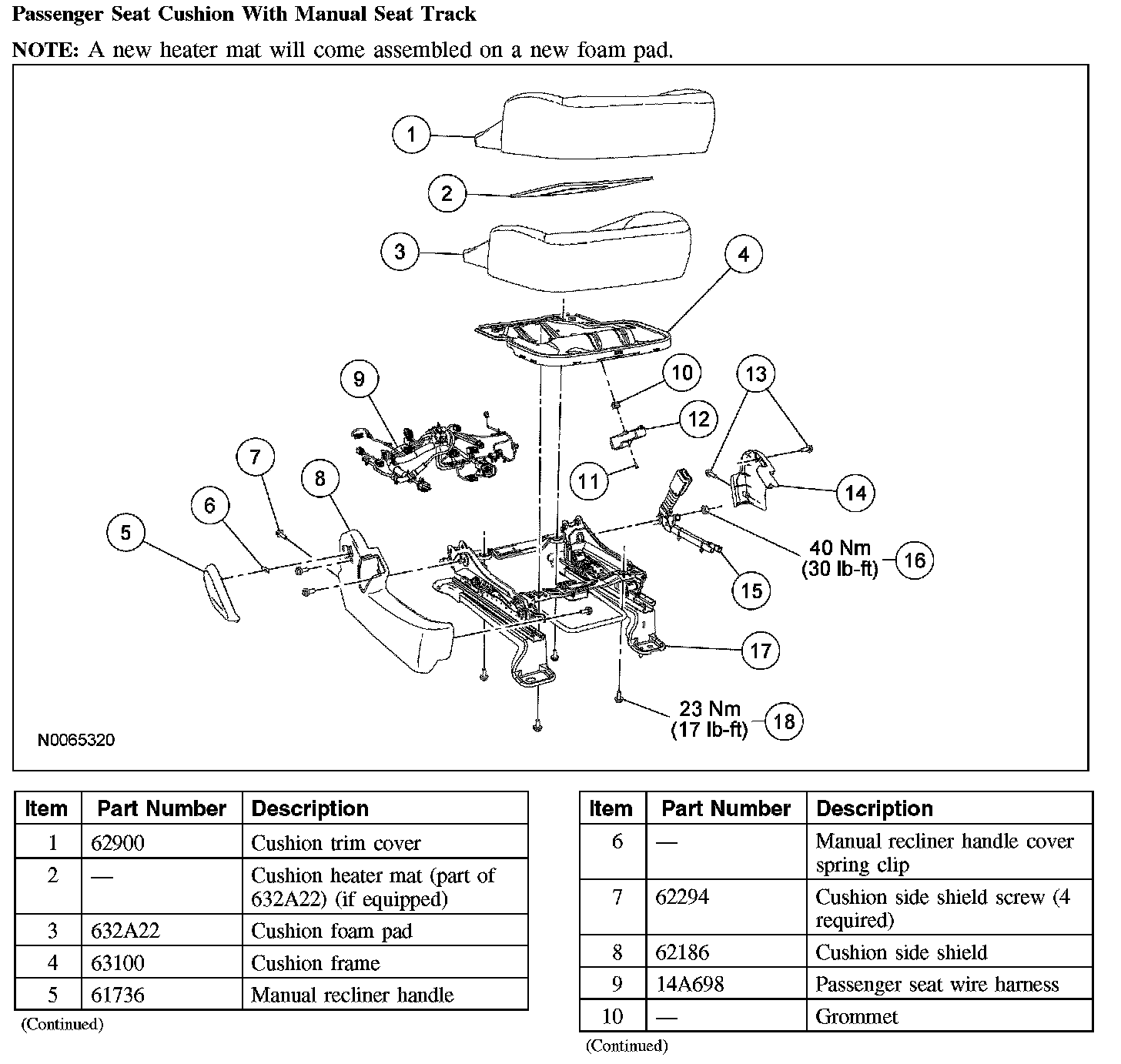

Passenger Seat Cushion With Manual Seat Track (Part 1):
Passenger Seat Cushion With Manual Seat Track (Part 2):

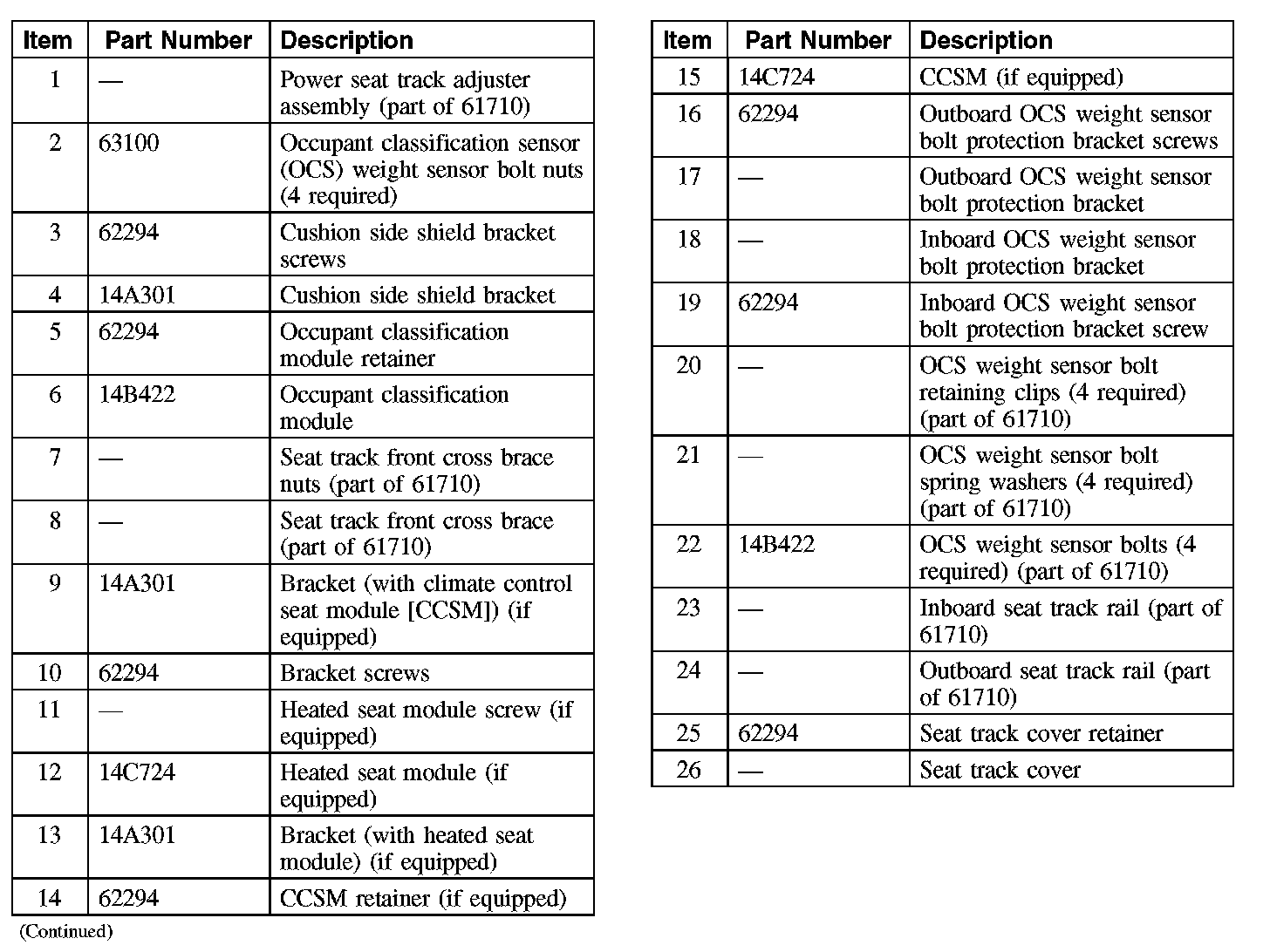

Passenger Power Seat Track (Part 1):
Passenger Power Seat Track (Part 2):
Removal and Installation
1. For additional information, refer to the procedure.
