2007 Ford Edge FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Climate Controlled Seat Module
CLIMATE CONTROLLED SEAT MODULE

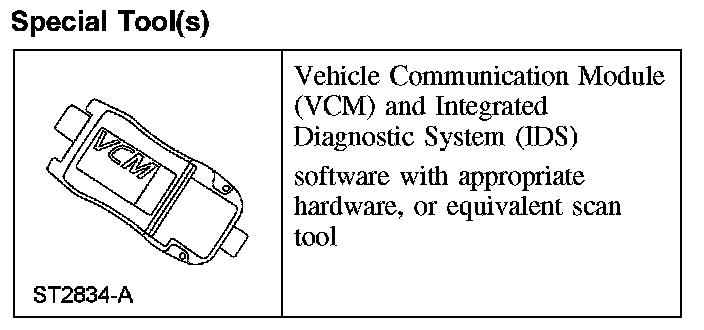

Special Tool(s)
Removal and Installation
WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an airbag module. This will reduce the risk of injury in the event of an accidental deployment.
- To reduce the risk of personal injury, do not use any memory saver devices.
NOTE:
- The air bag warning lamp illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- When installing a new climate control seat module (CCSM), it is necessary to carry out programmable module installation (PMI).
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
1. Before removing the climate control seat module (CCSM), carry out the appropriate steps in the programmable module installation (PMI) procedure.
2. Position the front passenger seat to access all the seat track-to-floor bolts and the safety belt retractor belt anchor nut.
3. Depower the SRS.
4. Remove the front passenger seat.
5. Remove the CCSM.
- Disconnect the 3 electrical connectors.
- Remove the 2 screws.
- Remove the CCSM.
6. To install, reverse the removal procedure.
7. Install the front passenger seat and repower the SRS. Do not prove out the SRS at this time.
8. Carry out the Occupant Classification Sensor (OCS) System Zero Seat Weight Test and prove out the SRS.
9. Install the CCSM software data. Carry out the appropriate steps in the PMI procedure.
Special Tool(s):
Special Tool(s)
Removal and Installation
WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an airbag module. This will reduce the risk of injury in the event of an accidental deployment.
- To reduce the risk of personal injury, do not use any memory saver devices.
NOTE:
- The air bag warning lamp illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- When installing a new climate control seat module (CCSM), it is necessary to carry out programmable module installation (PMI).
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
1. Before removing the climate control seat module (CCSM), carry out the appropriate steps in the programmable module installation (PMI) procedure.
2. Position the front passenger seat to access all the seat track-to-floor bolts and the safety belt retractor belt anchor nut.
3. Depower the SRS.
4. Remove the front passenger seat.
5. Remove the CCSM.
- Disconnect the 3 electrical connectors.
- Remove the 2 screws.
- Remove the CCSM.
6. To install, reverse the removal procedure.
7. Install the front passenger seat and repower the SRS. Do not prove out the SRS at this time.
8. Carry out the Occupant Classification Sensor (OCS) System Zero Seat Weight Test and prove out the SRS.
9. Install the CCSM software data. Carry out the appropriate steps in the PMI procedure.
