2007 Ford Edge FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Diagnostic Trouble Code Descriptions
DIAGNOSTIC TROUBLE CODE (DTC) CHART

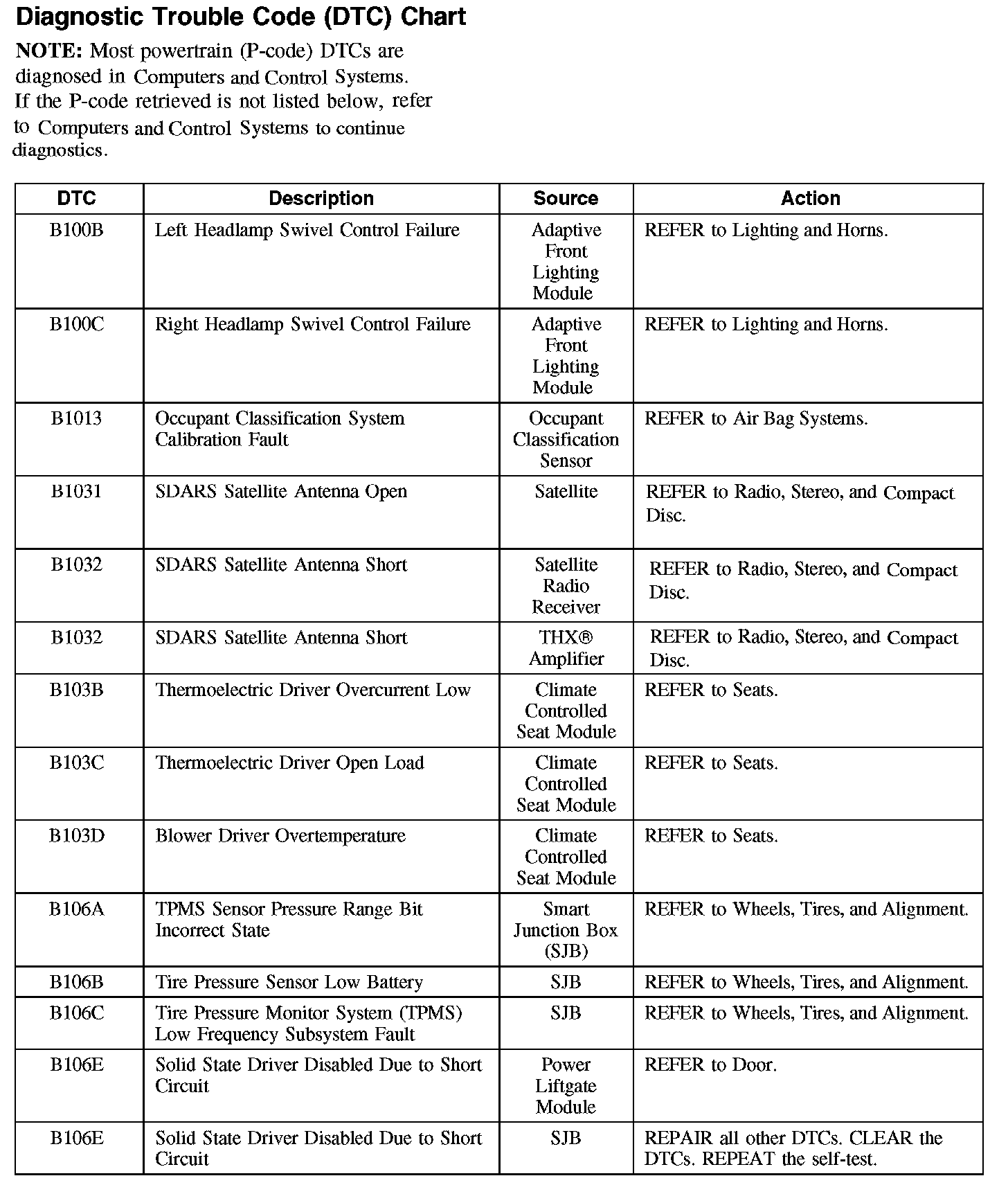

B100B-B106E:

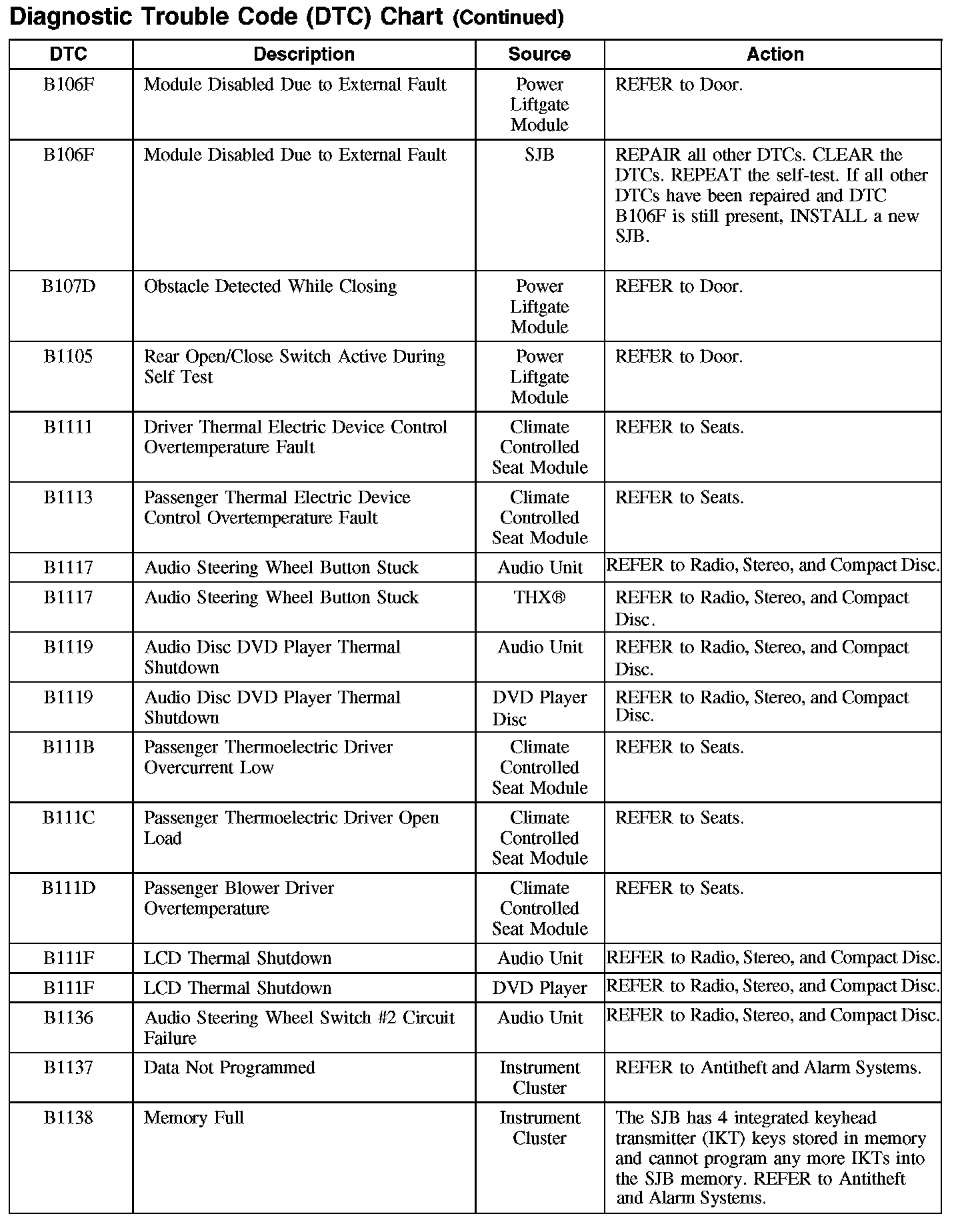

B106F-B1138:

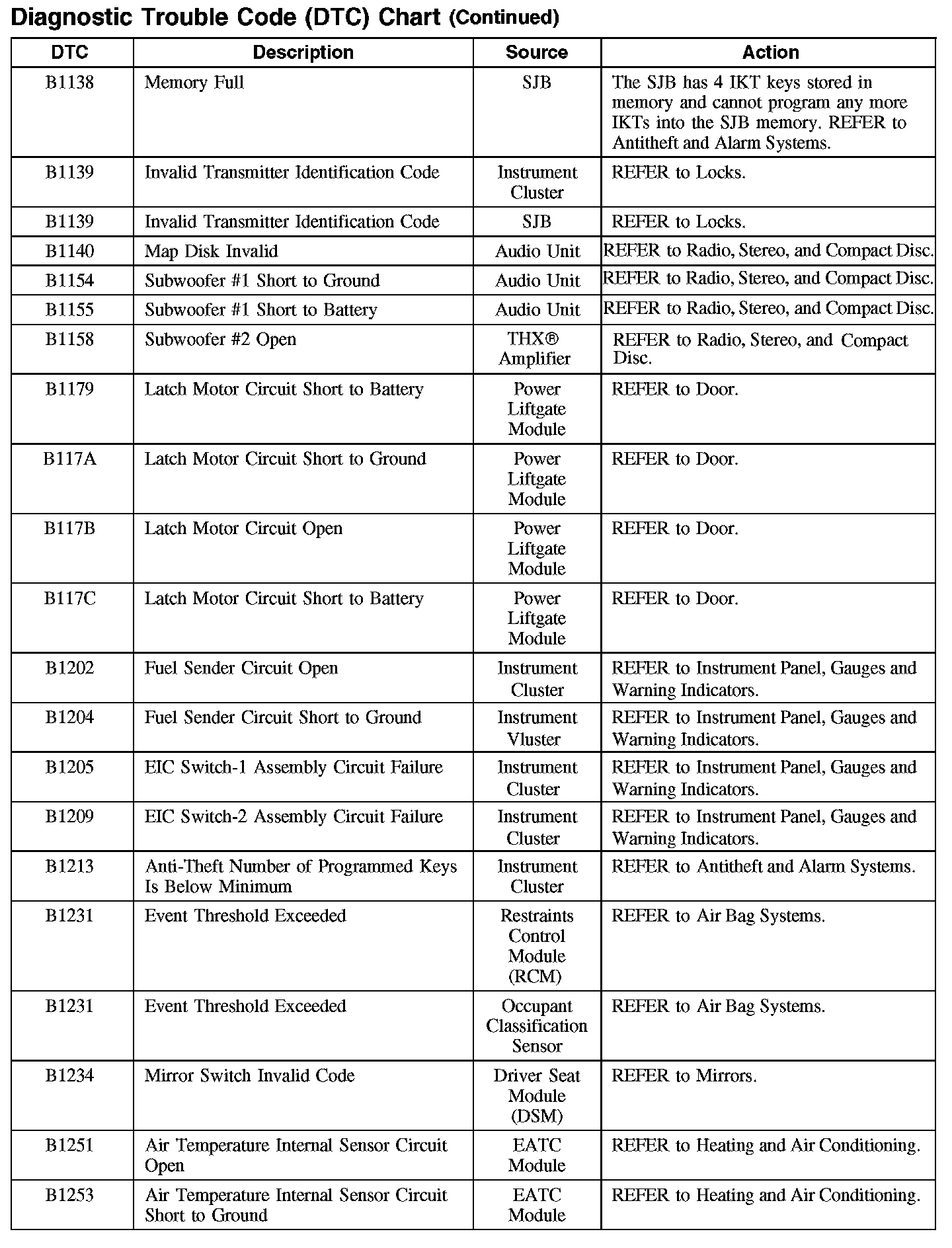

B1138-B1253:

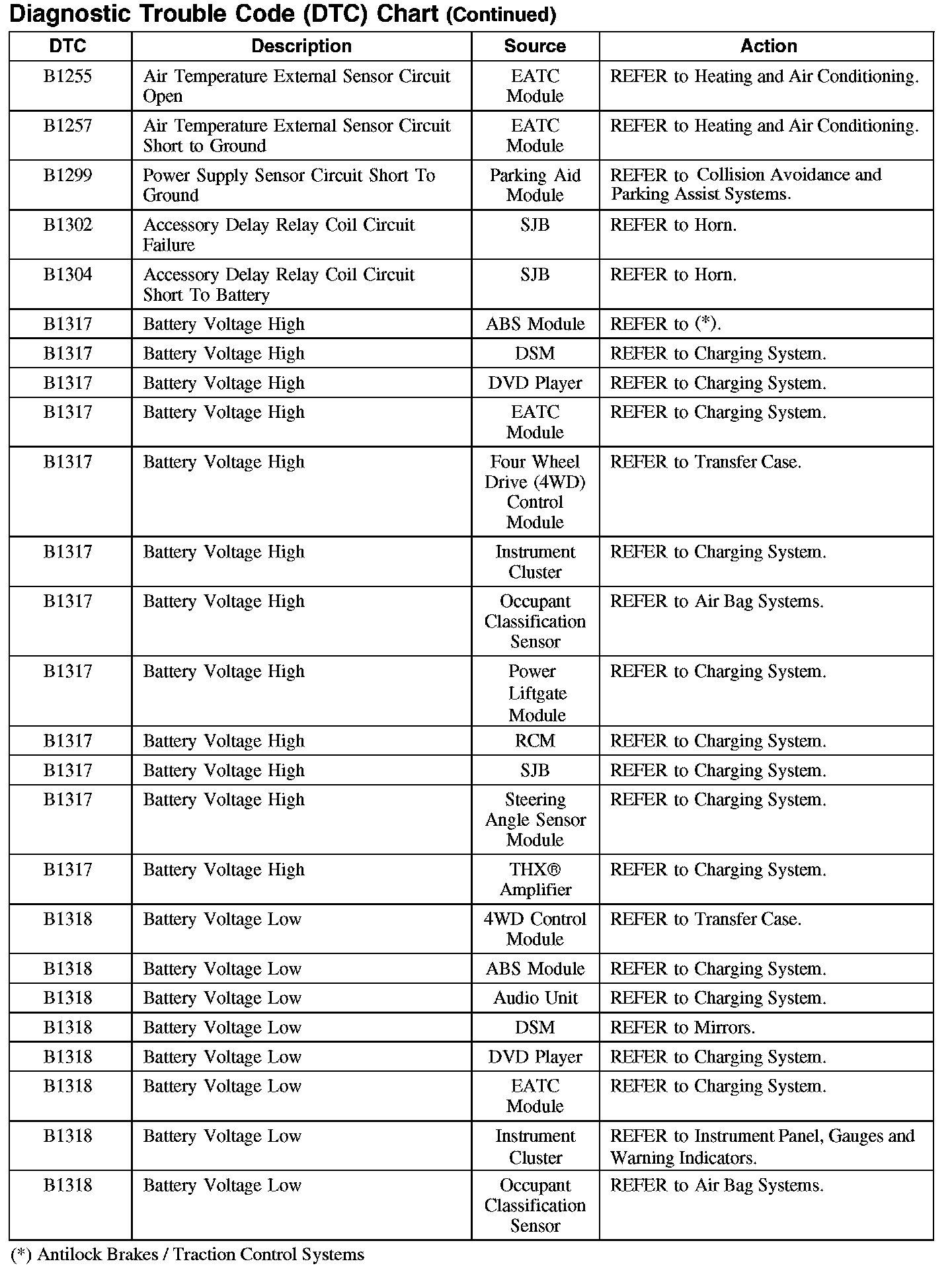

B1255-B1318:

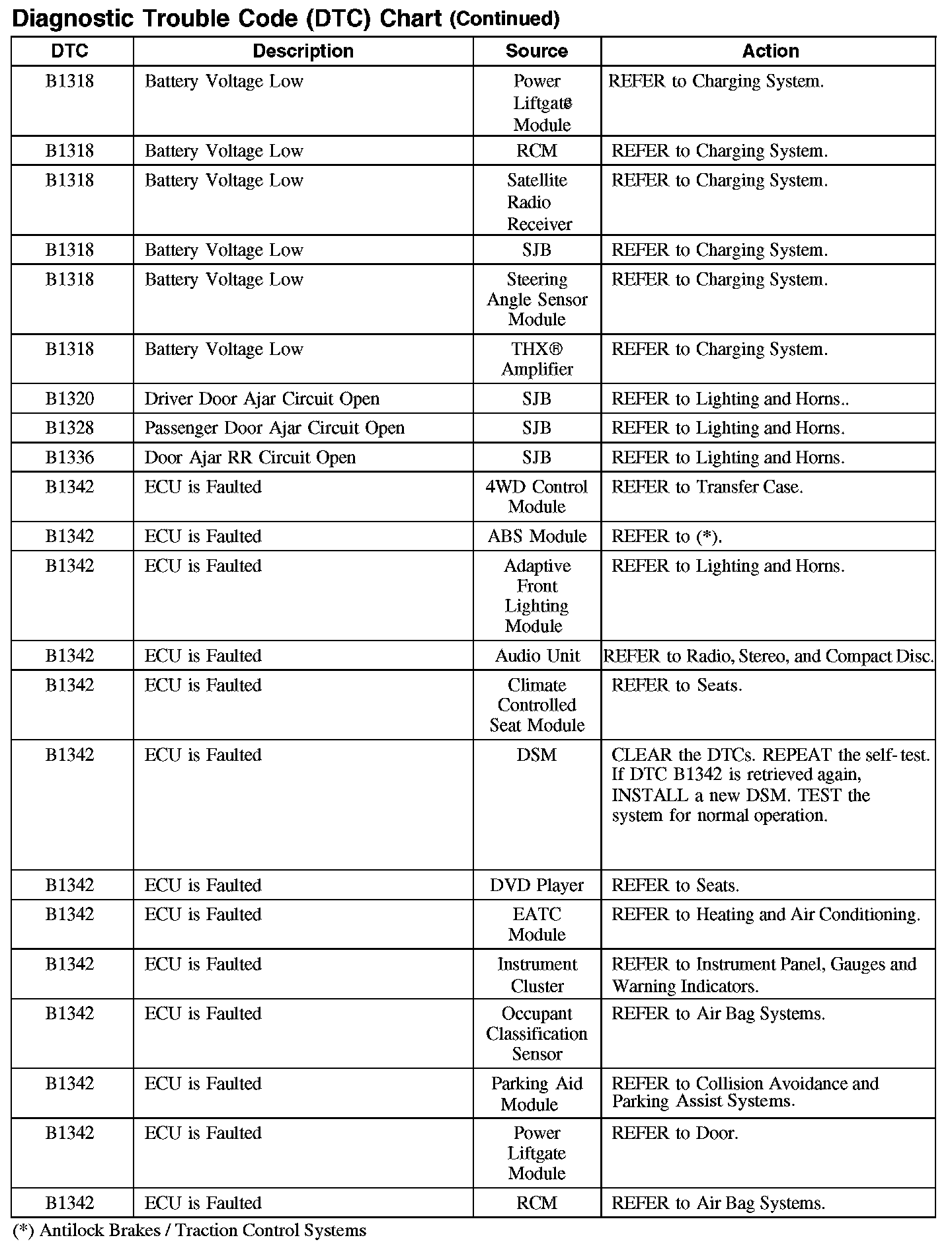

B1318-B1342:

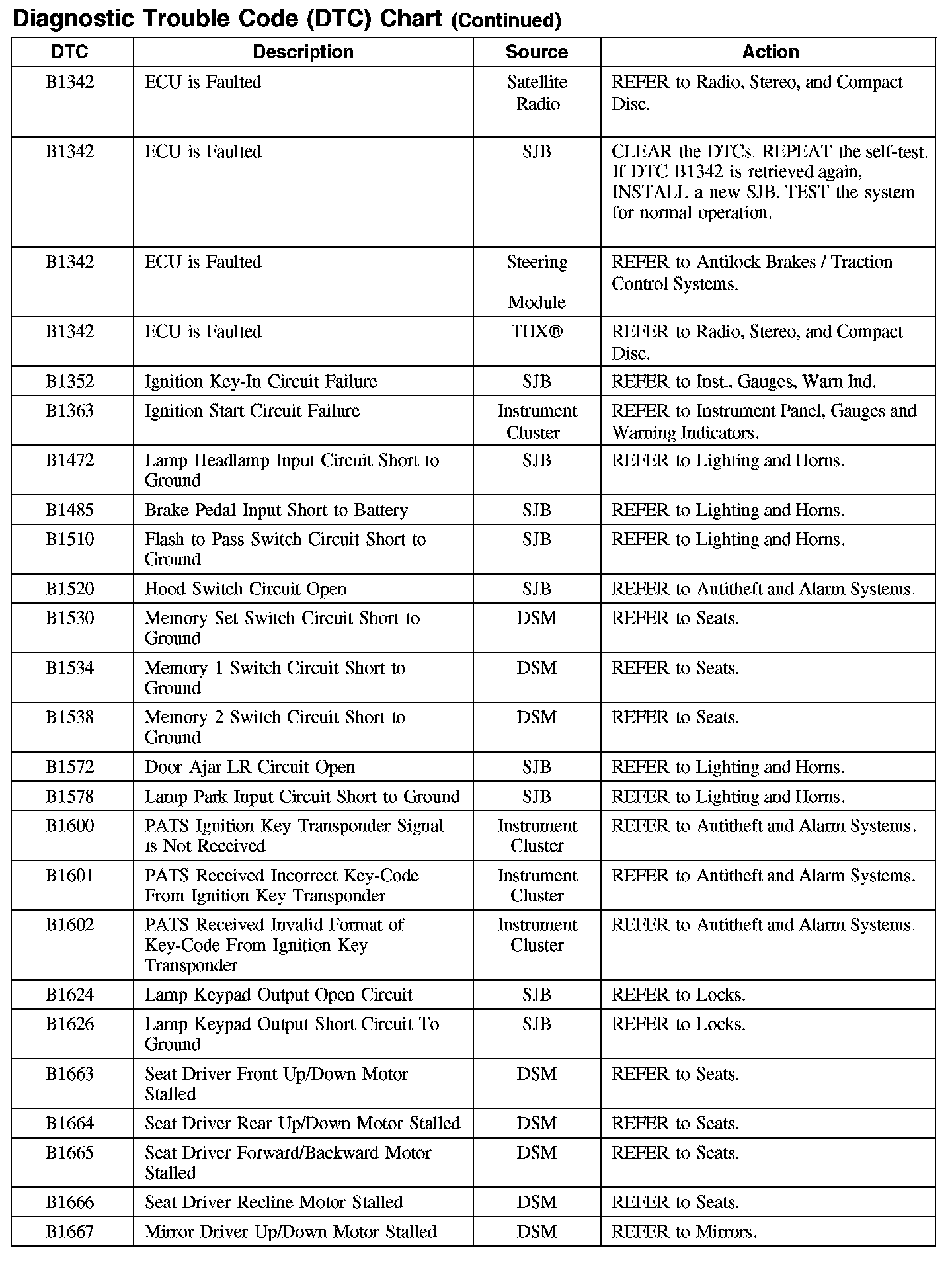

B1342-B1667:
B1668-B1957:

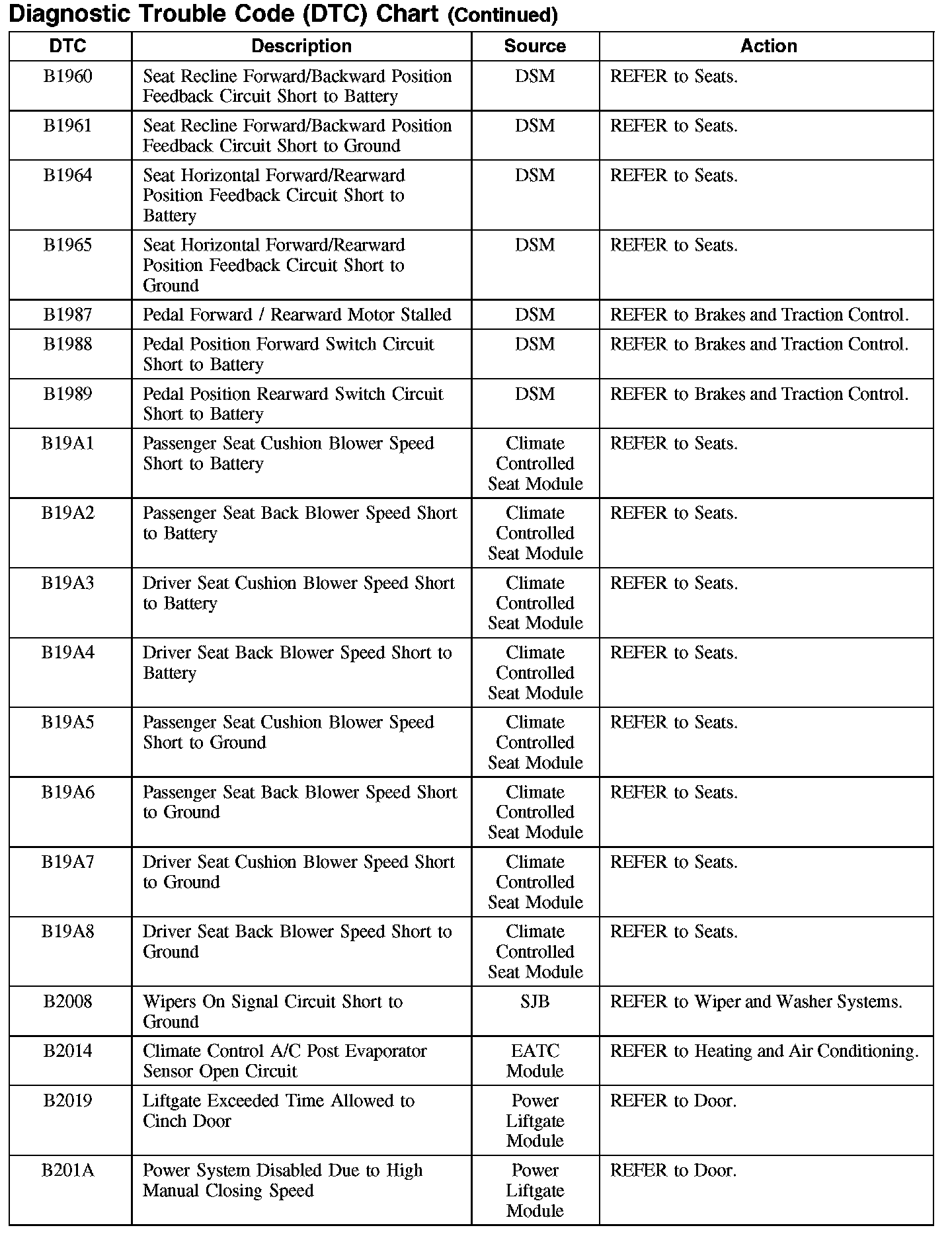

B1960-B201A:

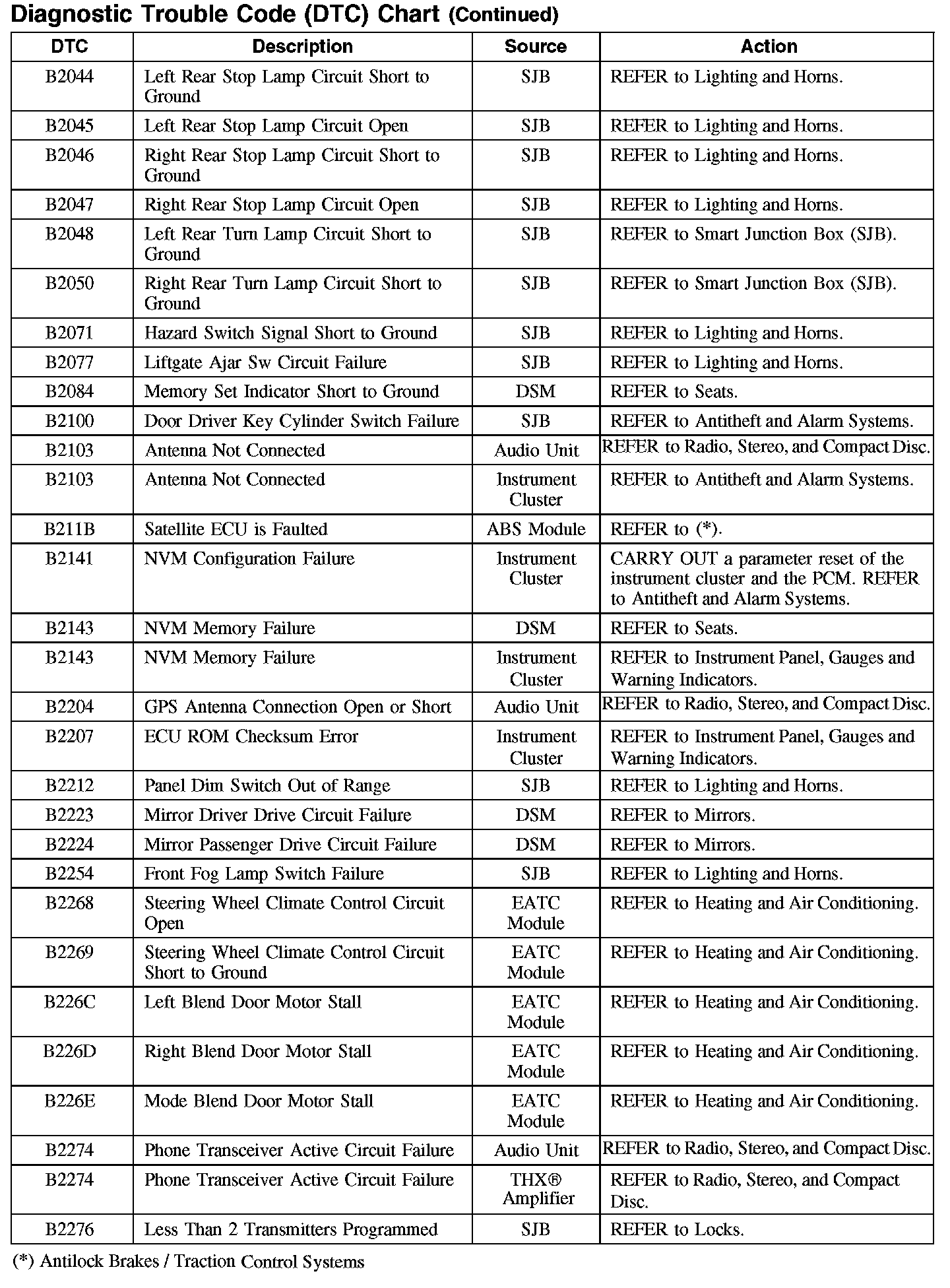

B2044-B2276:

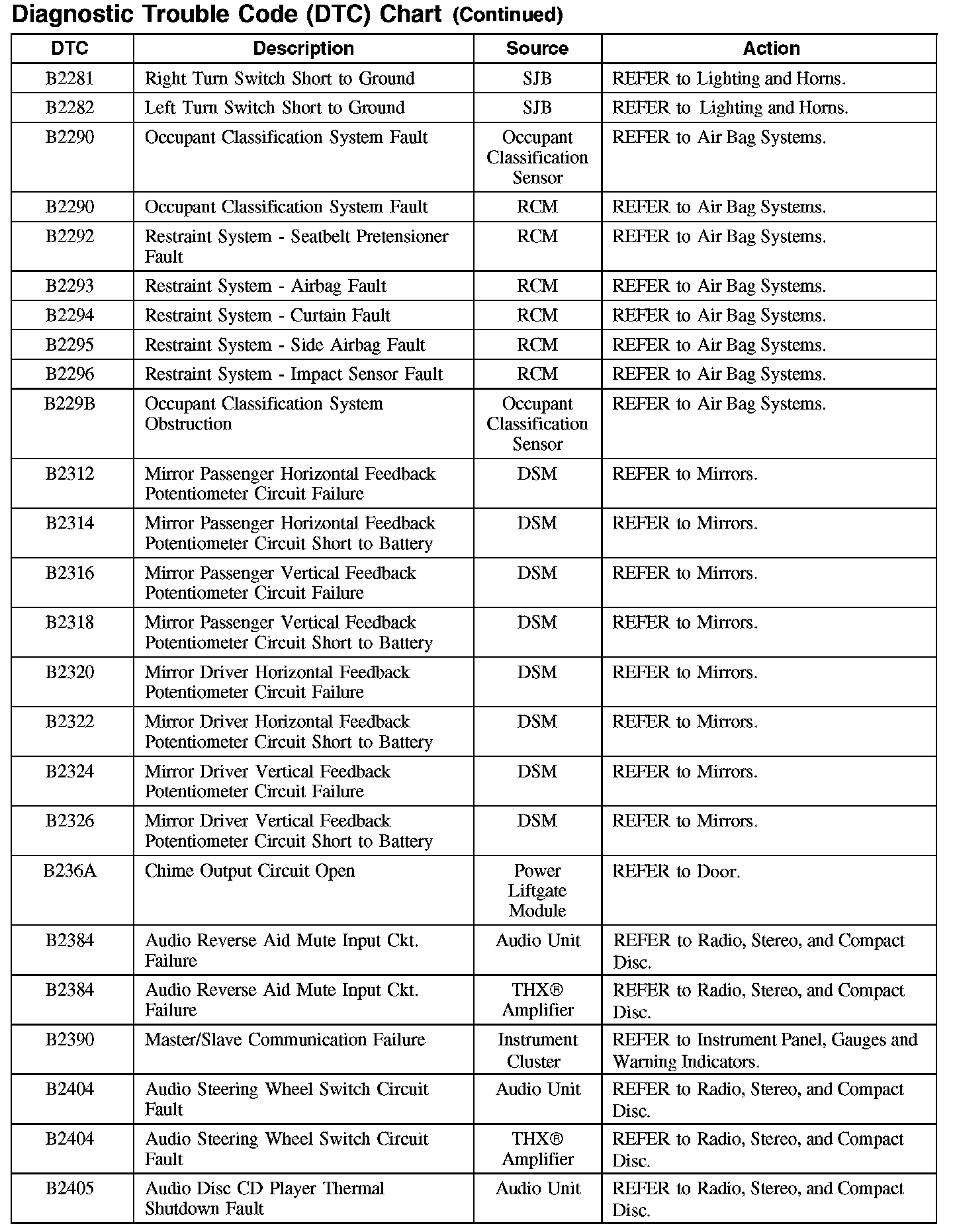

B2281-B2405:

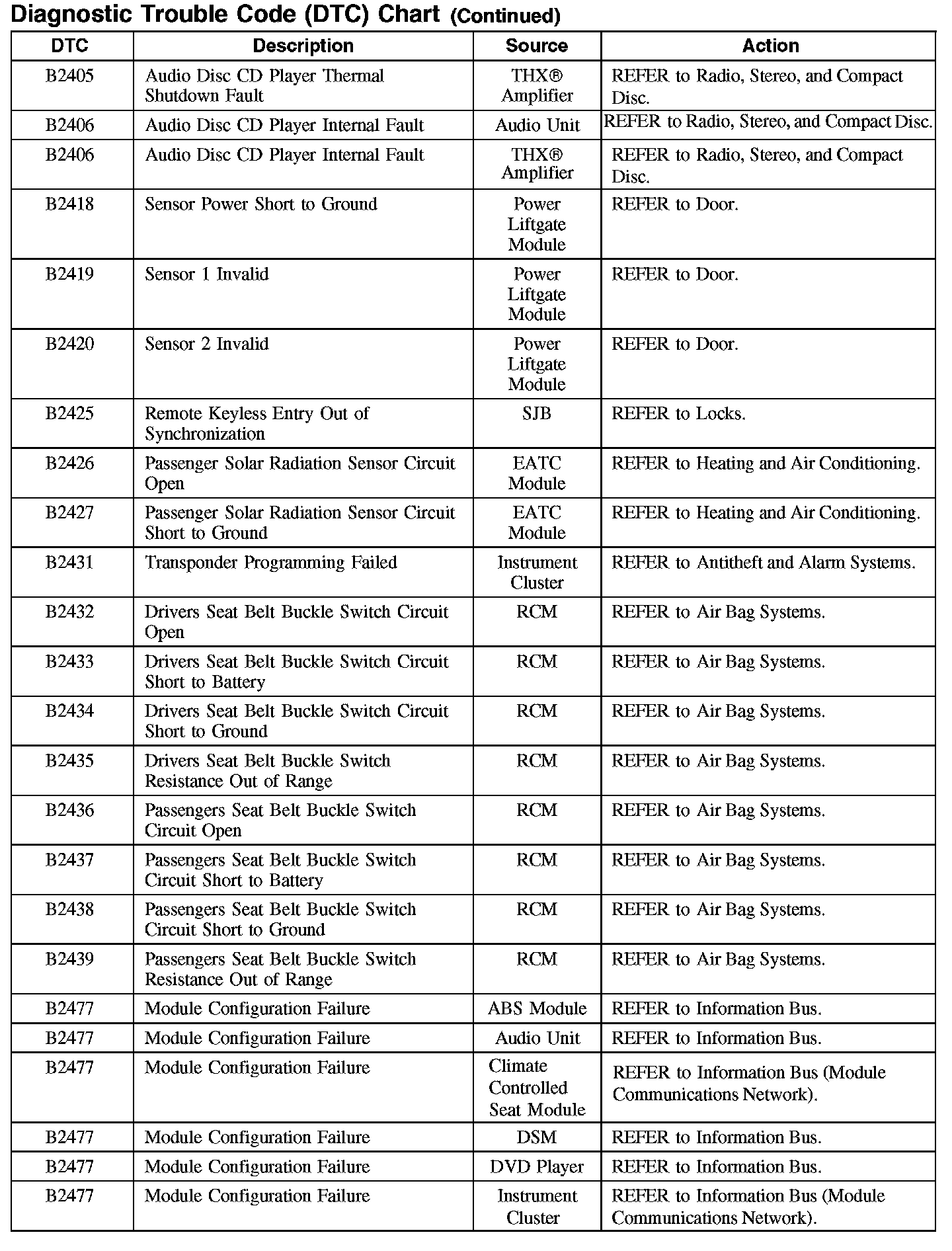

B2405-B2477:

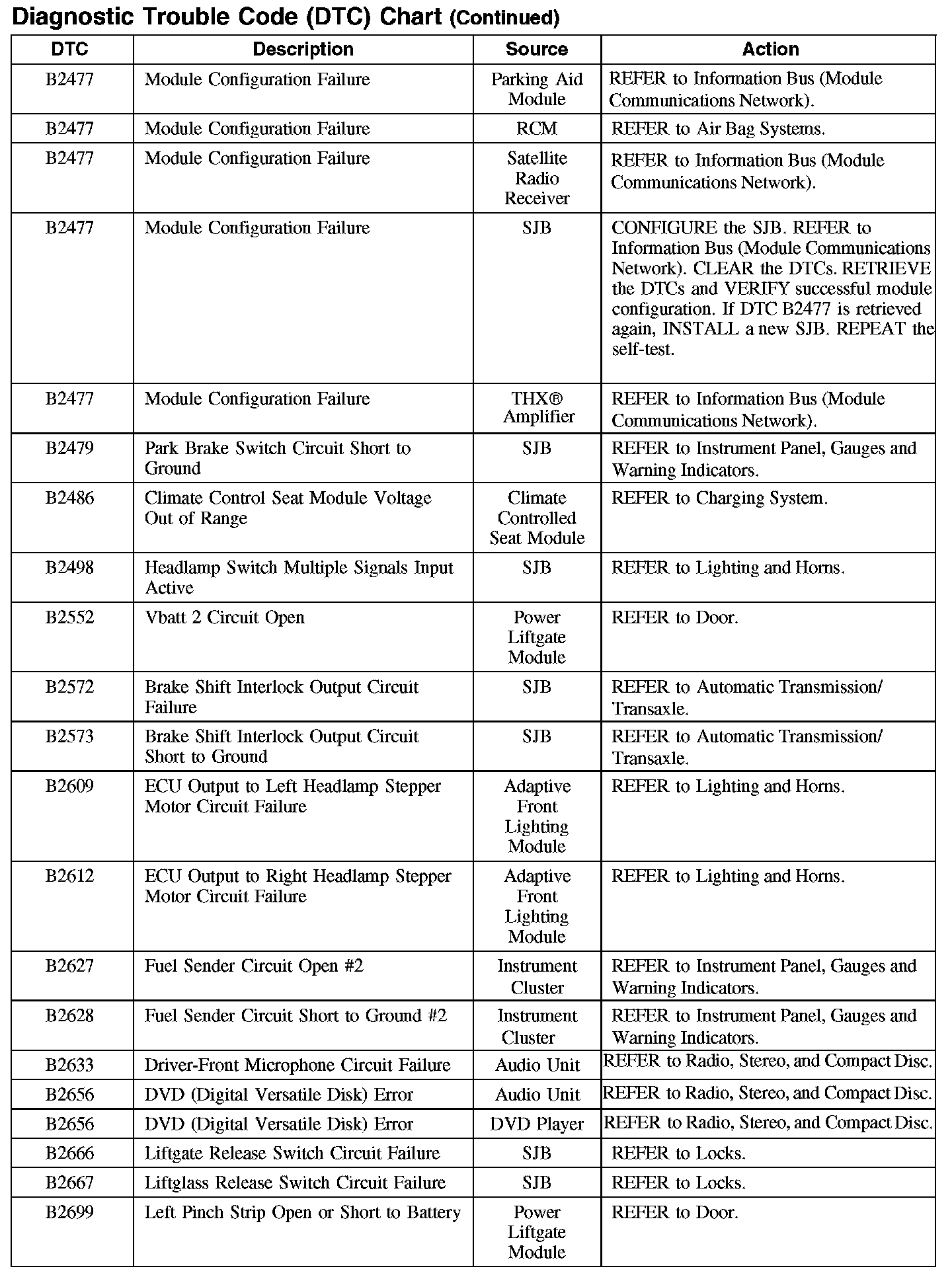

B2477-B2699:

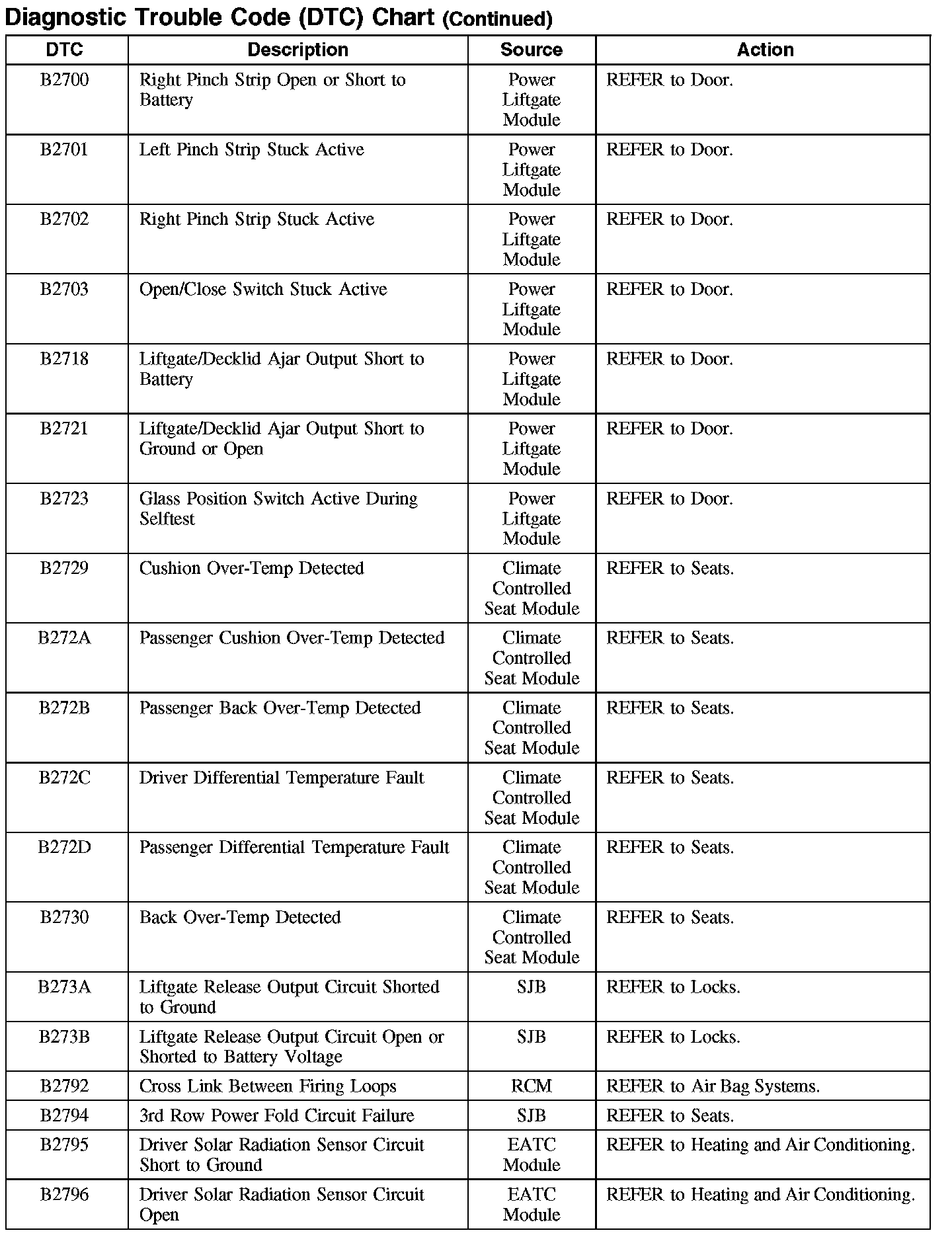

B2700-B2796:

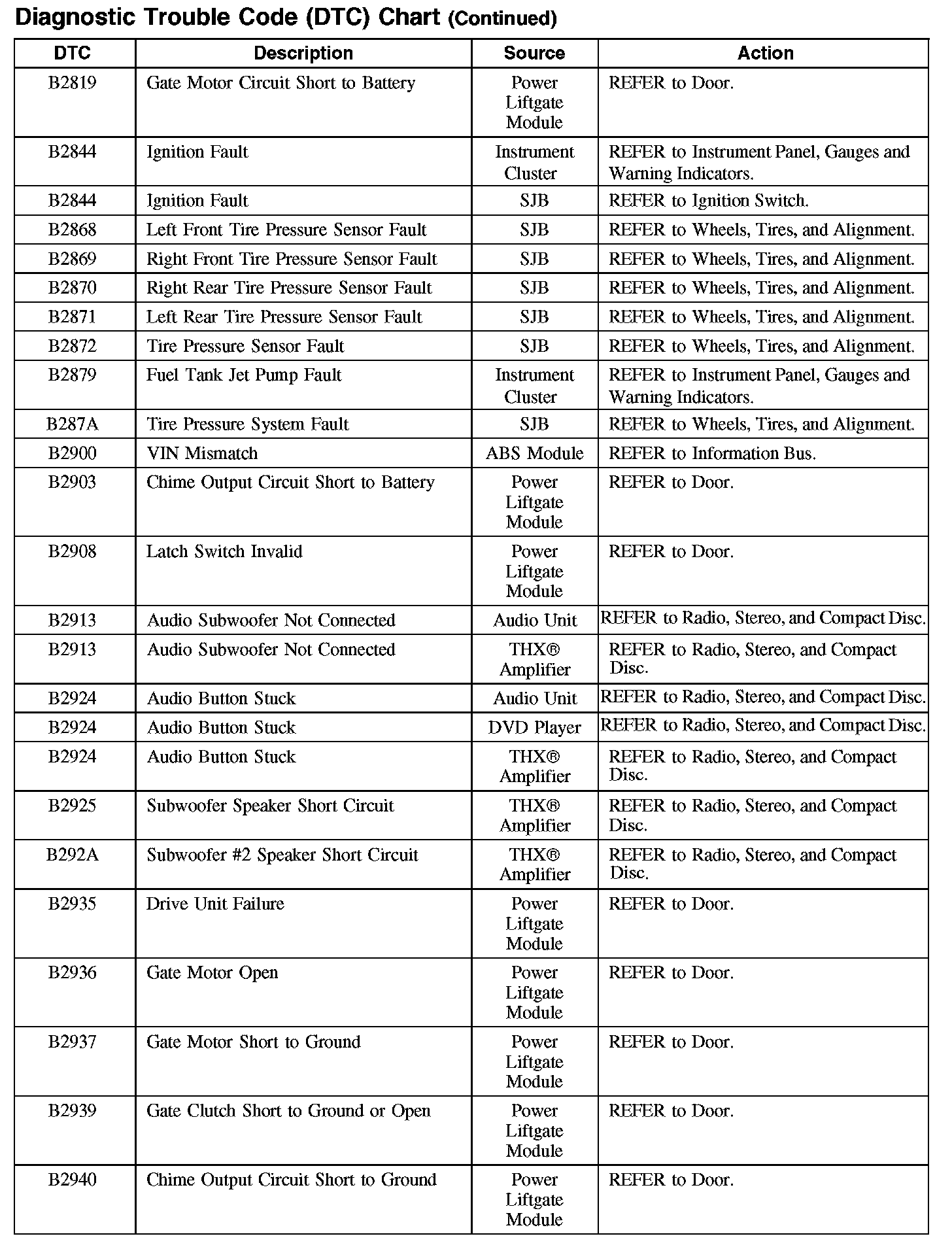

B2819-B2940:

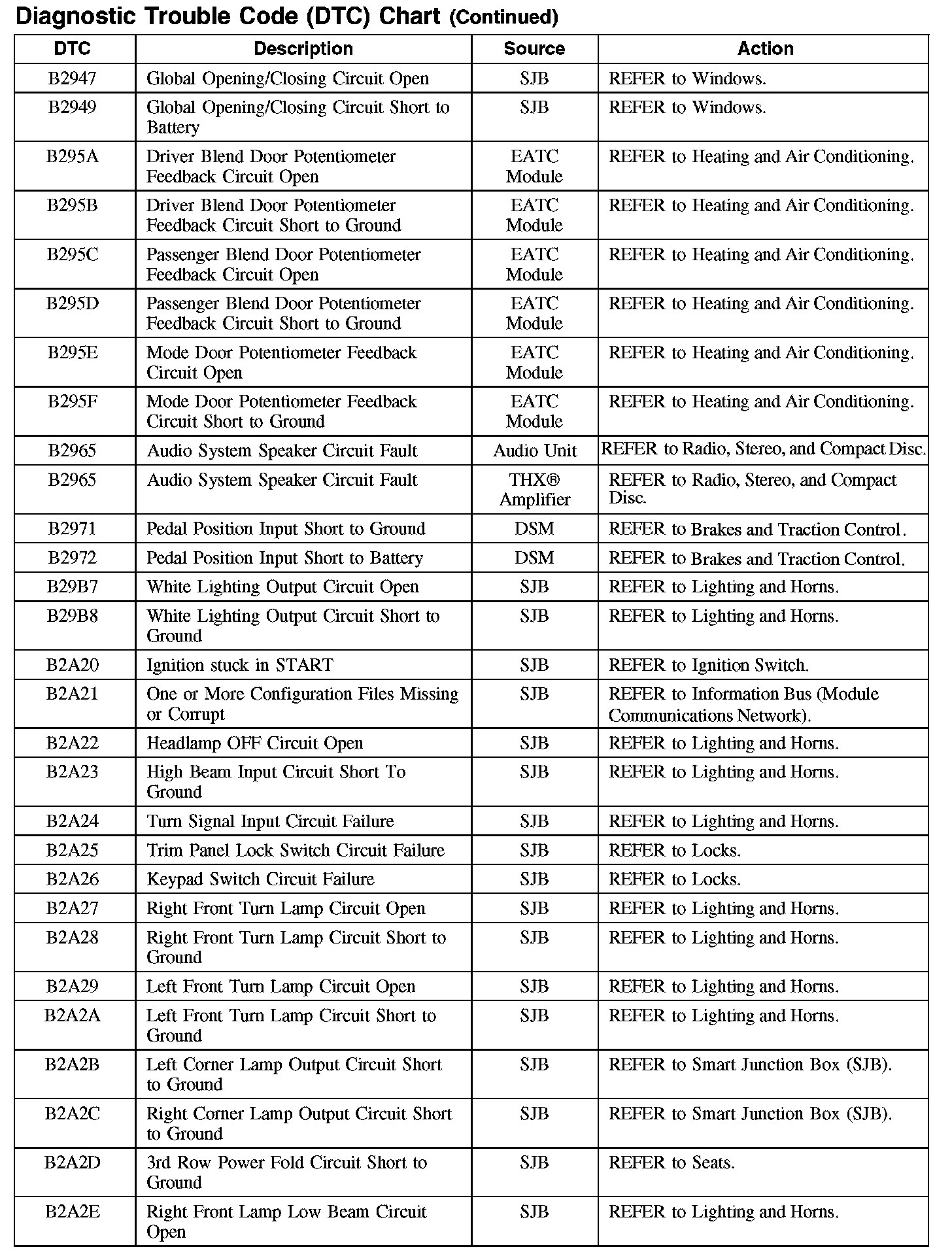

B2947-B2A2E:

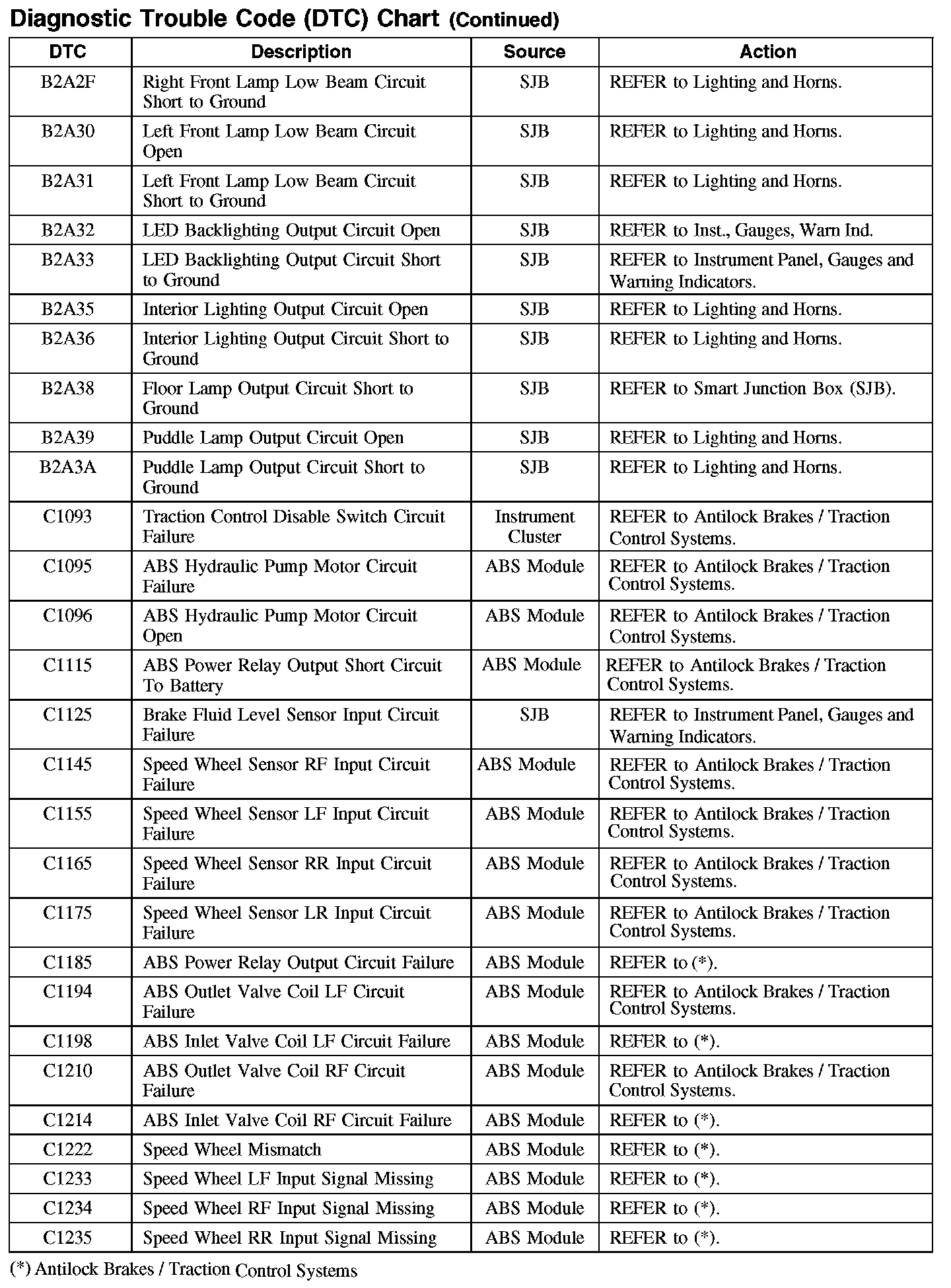

B2A2F-B2A3A / C1093-C1235:

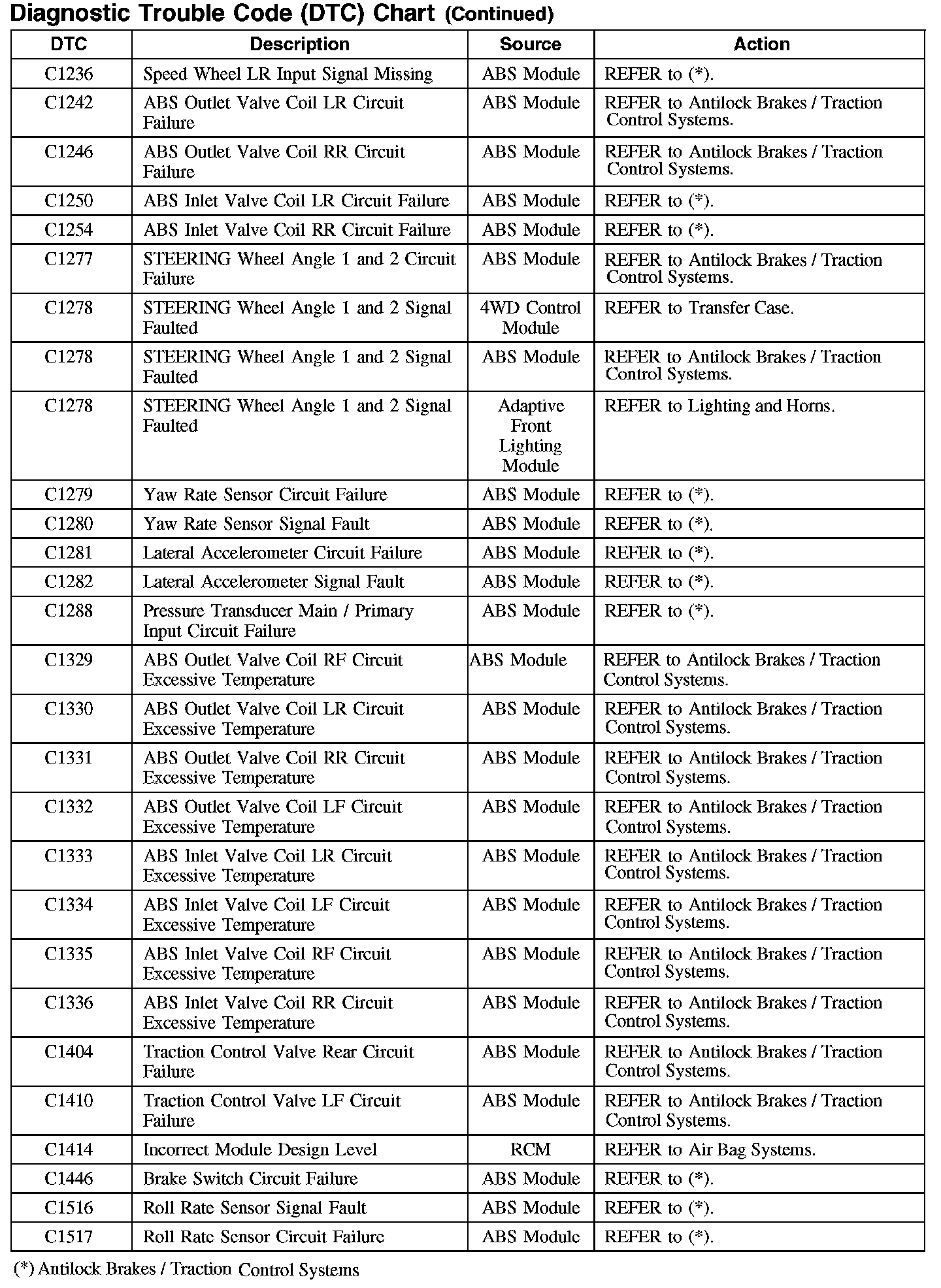

C1236-C1517:

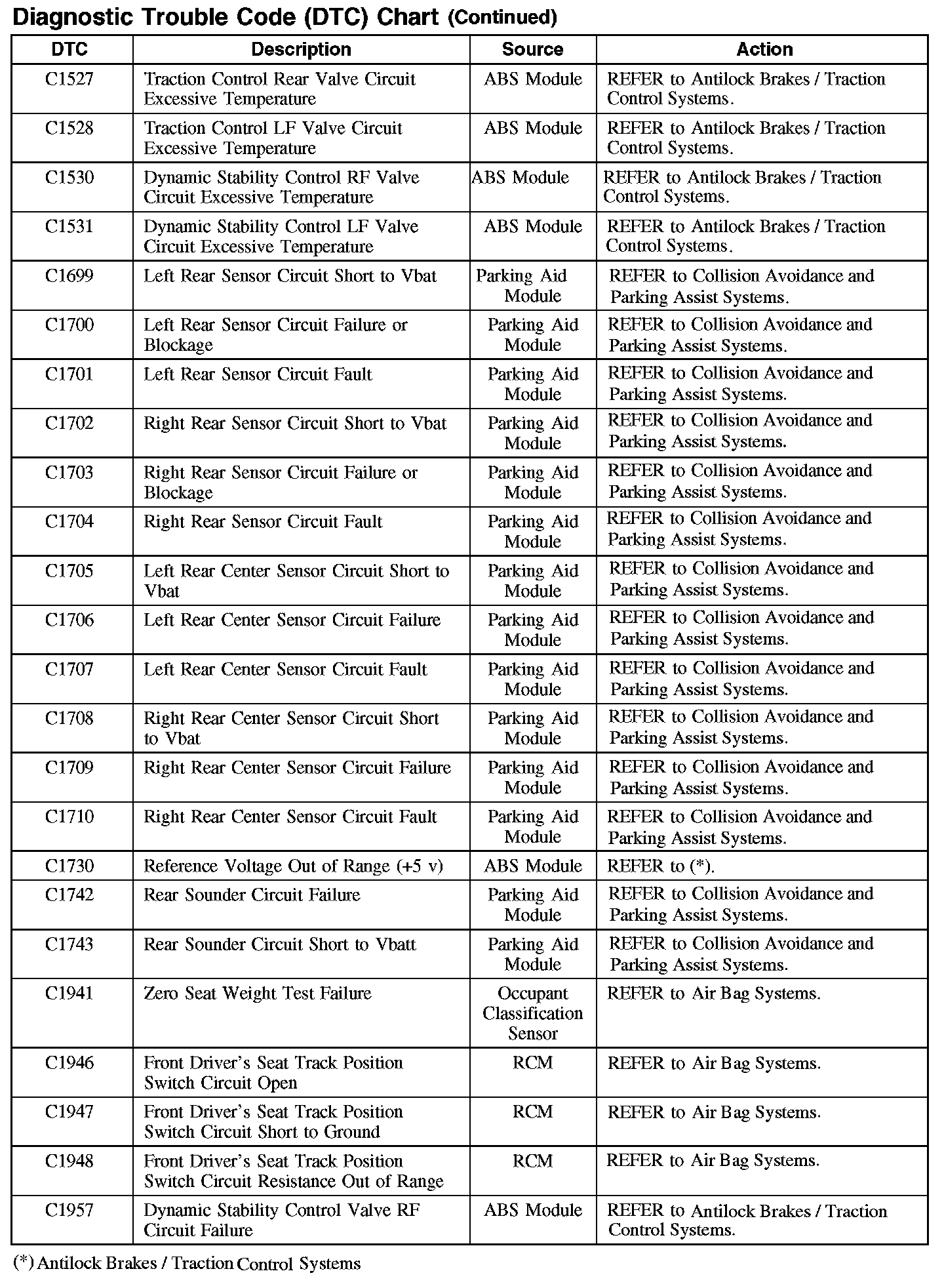

C1527-C1957:

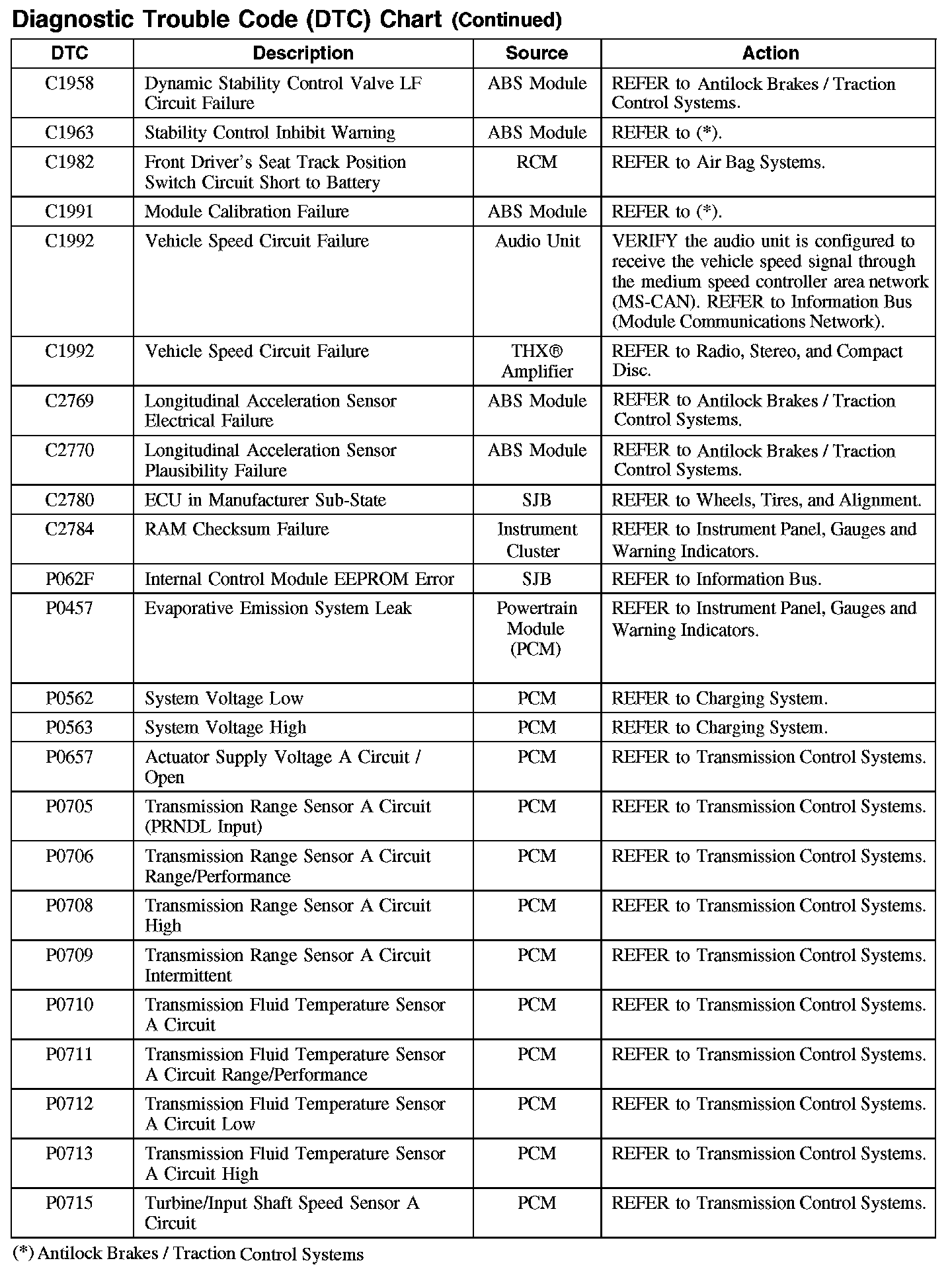

C1958-C2784 / P062F-P0715:
P0717-P0763:

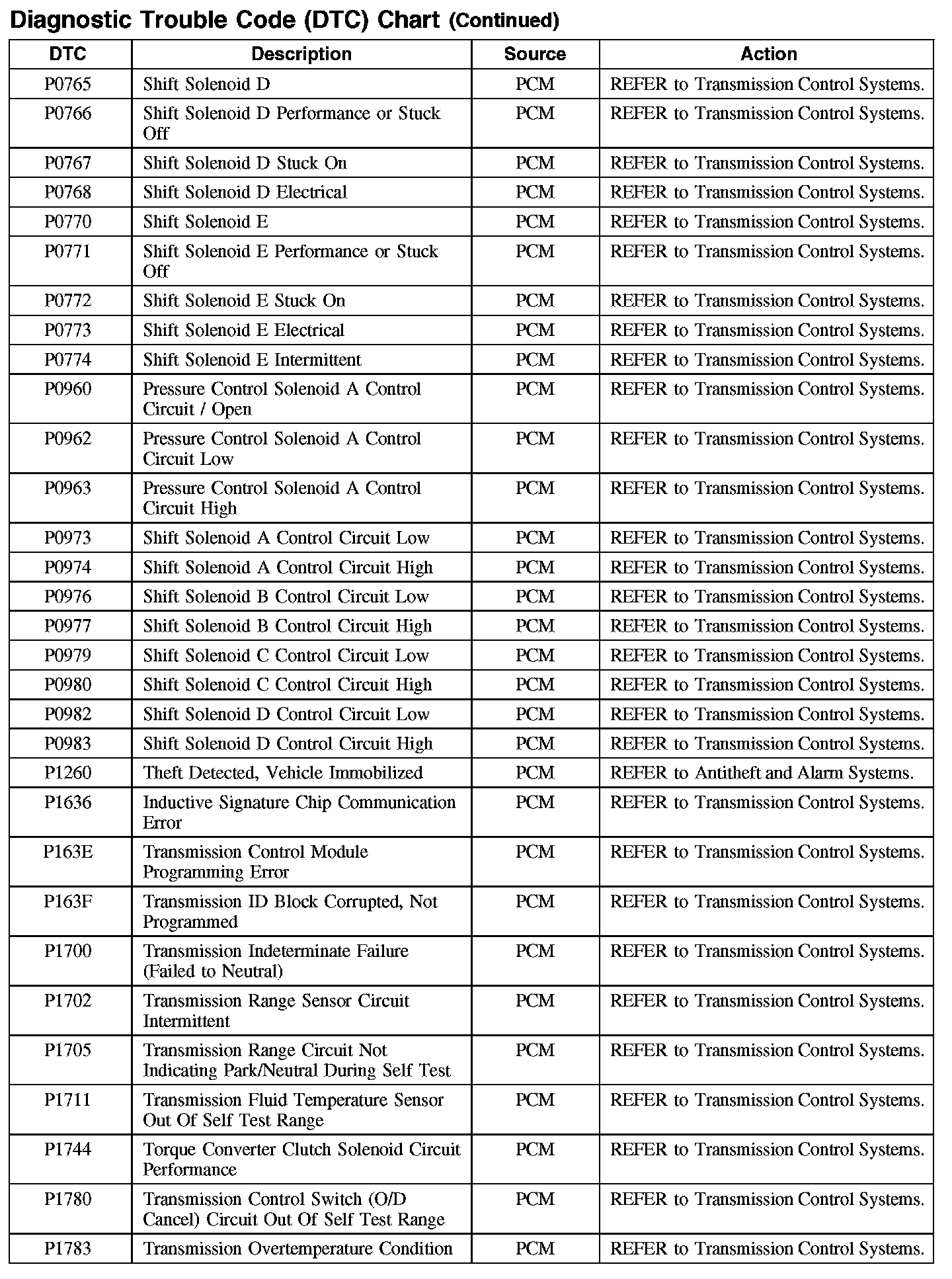

P0765-P1783:

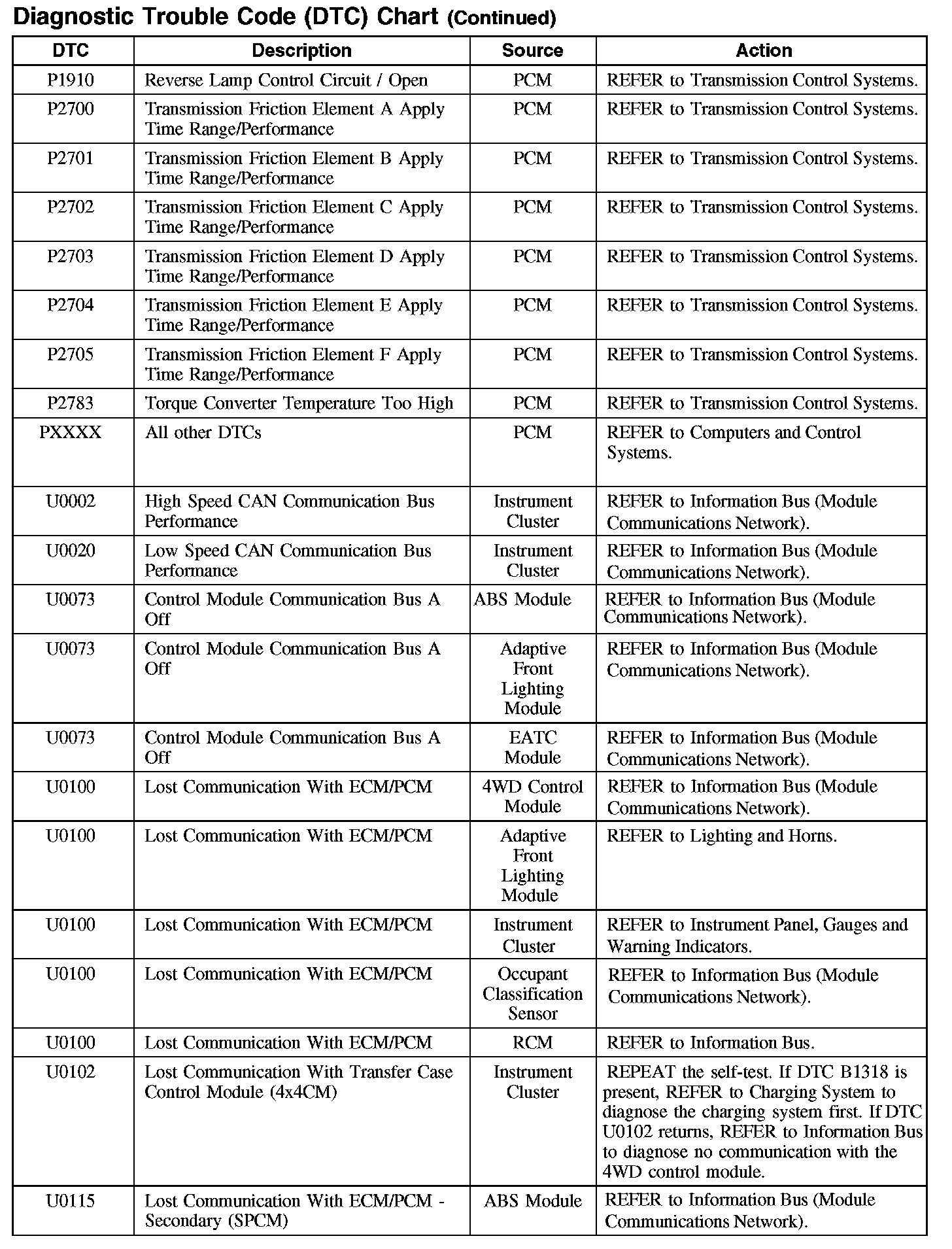

P1910-PXXXX / U0002-U0115:

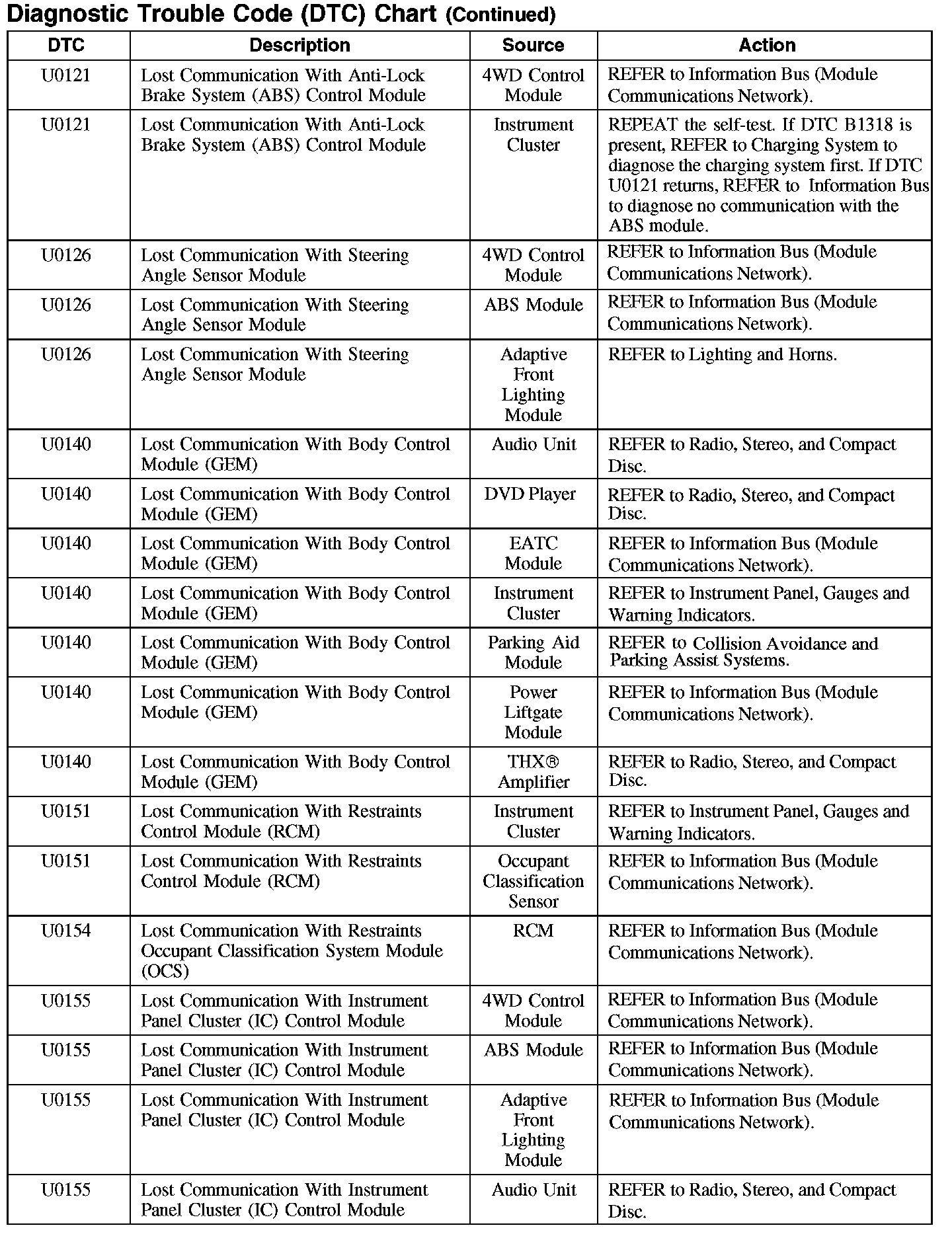

U0121-U0155:
U0155-U0197:

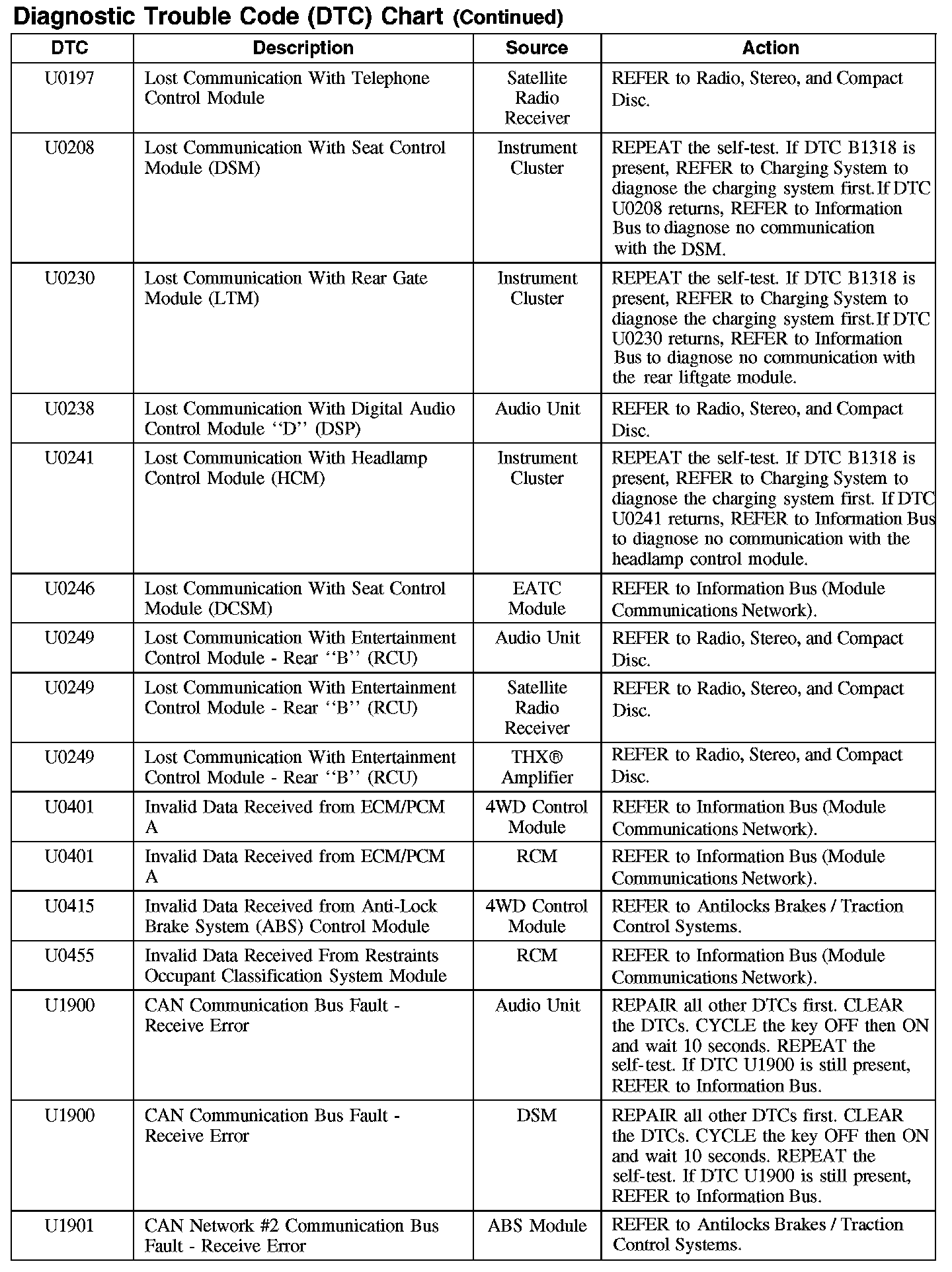

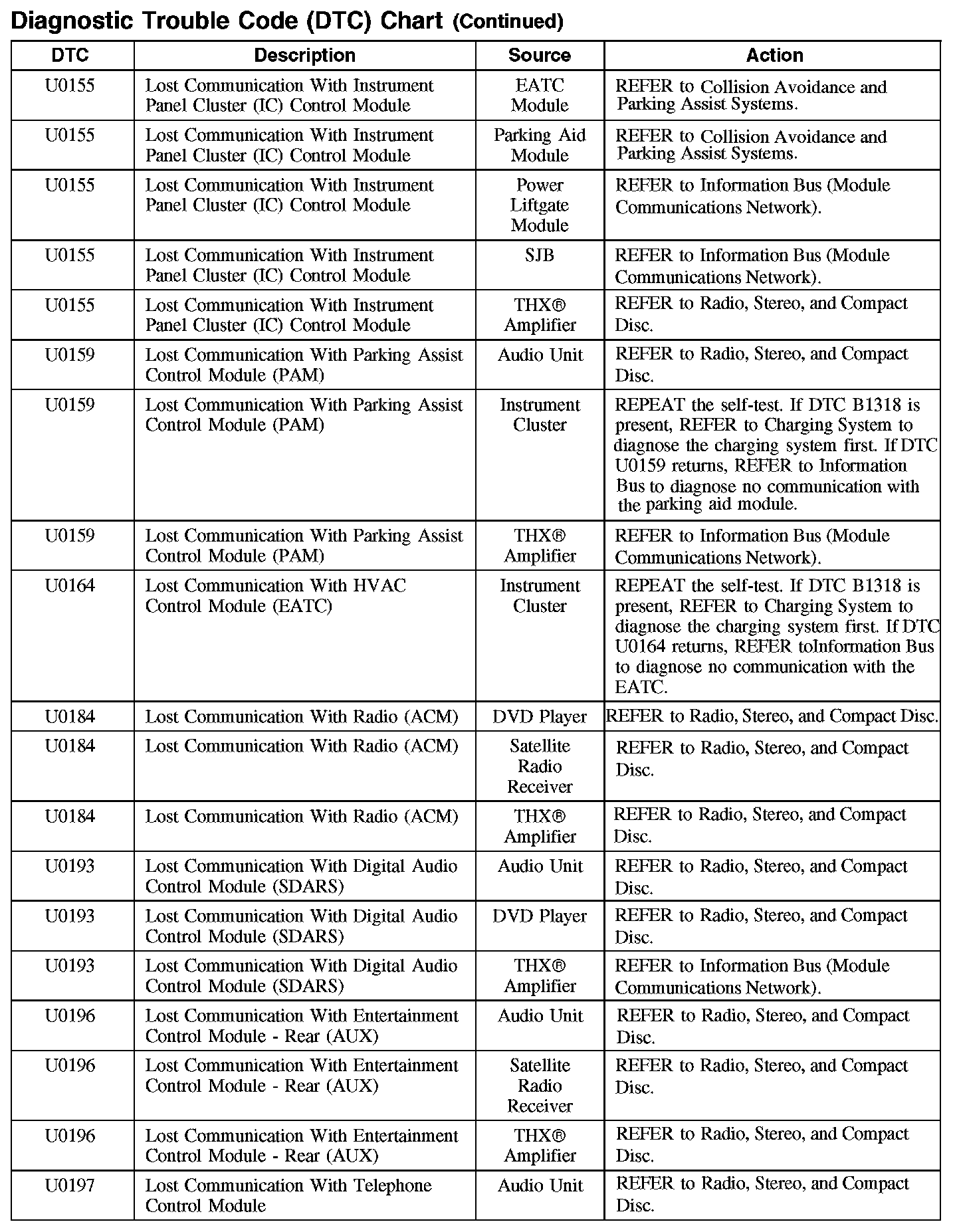

U0197-U1901:

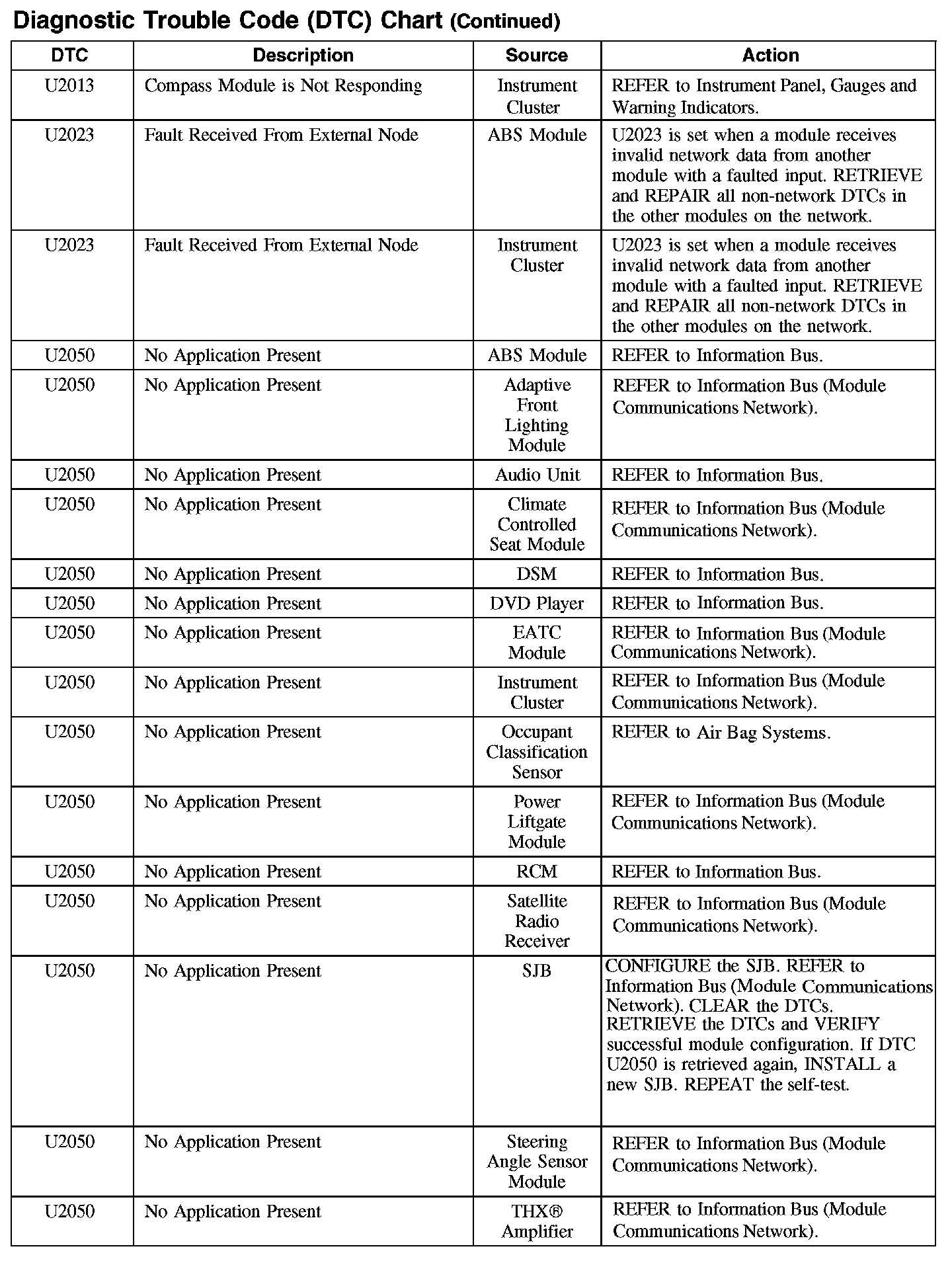

U2013-U2050:

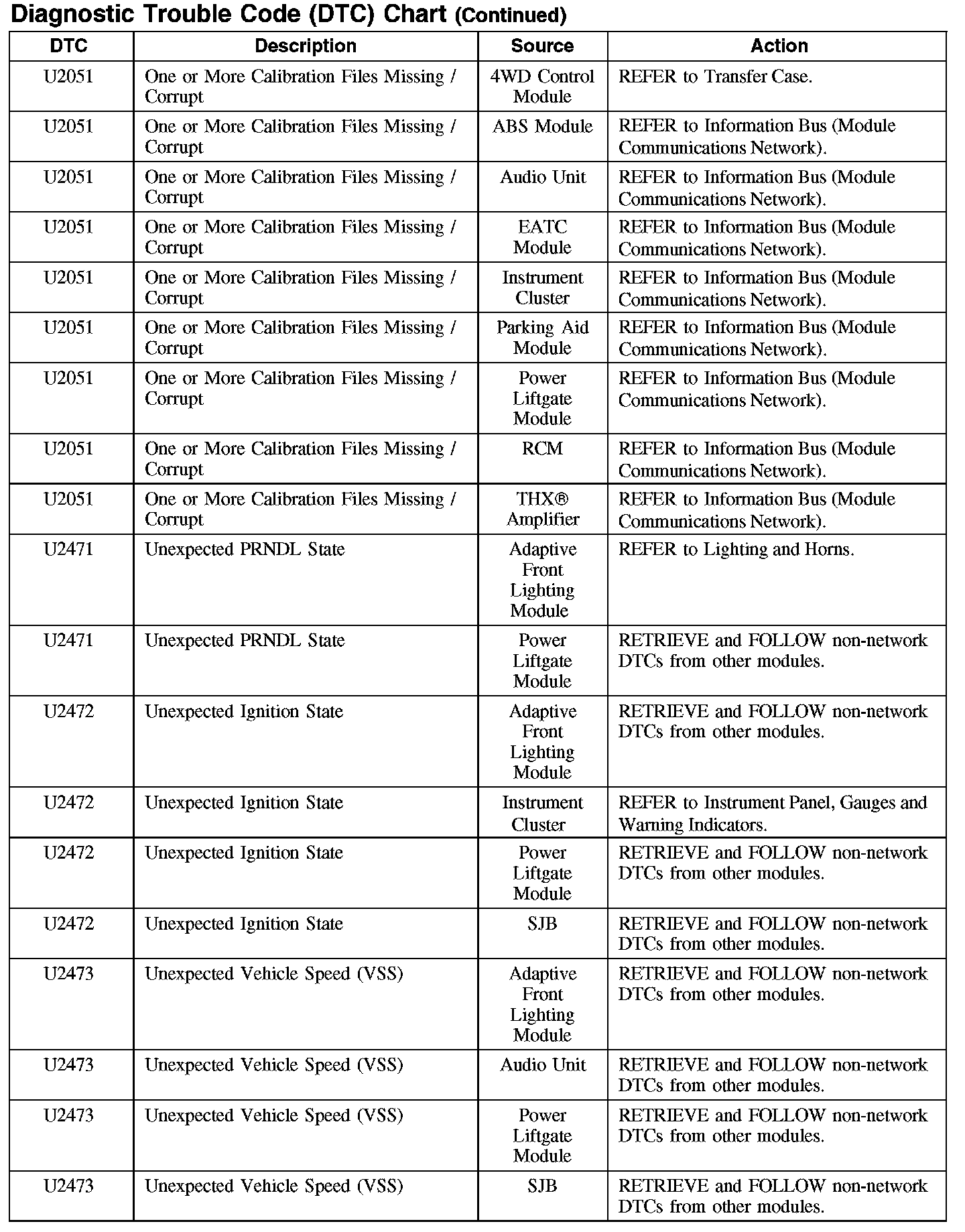

U2051-U2473:

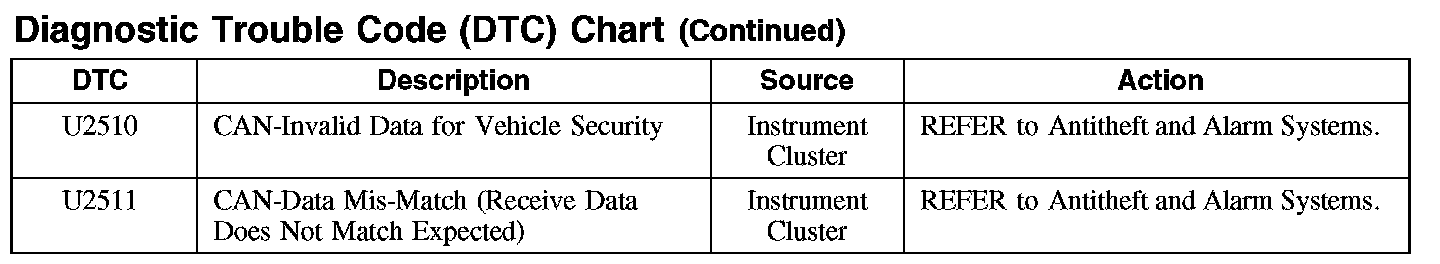

U2510-U2511:
