2006 Ford Freestar BaseFACTORY OEM SERVICE PROCEDURE

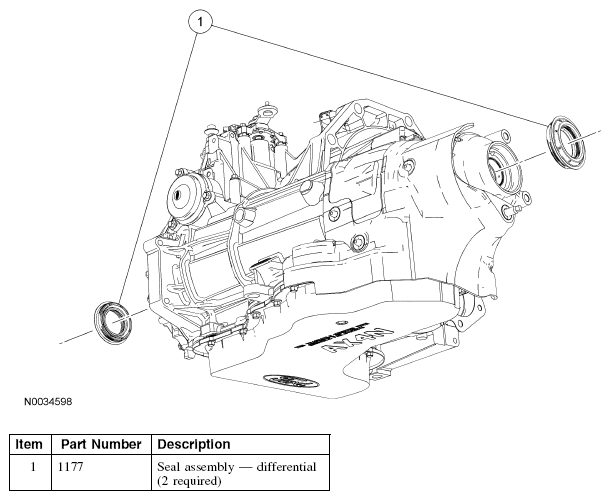

Differential Seals: Notes
SPECIAL TOOL(S)
| Remover, Crankshaft Front Oil Seal 303-107 (T74P-6700-A) |
|
| Installer, Front Cover Oil Seal 303-335 (T88T-6701-A) |
|
| Step Plate 205-D014 (D80L-630-3) (Part of 205-DS011 D80L-630-A) or equivalent |
|
| Installer, Halfshaft Output Fluid Seal 307-157 (T86P-1177-B) |
|
| Aligner, Output Shaft Fluid Seal 307-317 (T94P-77001-JH) |
MATERIALS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) US; CXT-5LM12 (Canada) | MERCON® V |
