2006 Ford Freestar BaseFACTORY OEM SERVICE PROCEDURE

Direct Clutch Cylinder: Notes

SPECIAL TOOL(S)

G04661422Courtesy of FORD MOTOR CO.
Remover, O-Ring Seal
100-010 (T71P-19703-C)
G04661423Courtesy of FORD MOTOR CO.
Dial Indicator Gauge with Holding Fixture
100-D002 (D78P-4201-B)
G04661424Courtesy of FORD MOTOR CO.
Compressor, Clutch Spring
307-015 (T65L-77515-A)
G04661425Courtesy of FORD MOTOR CO.
Protector, Piston Seal
307-168 (T86P-70234-A)

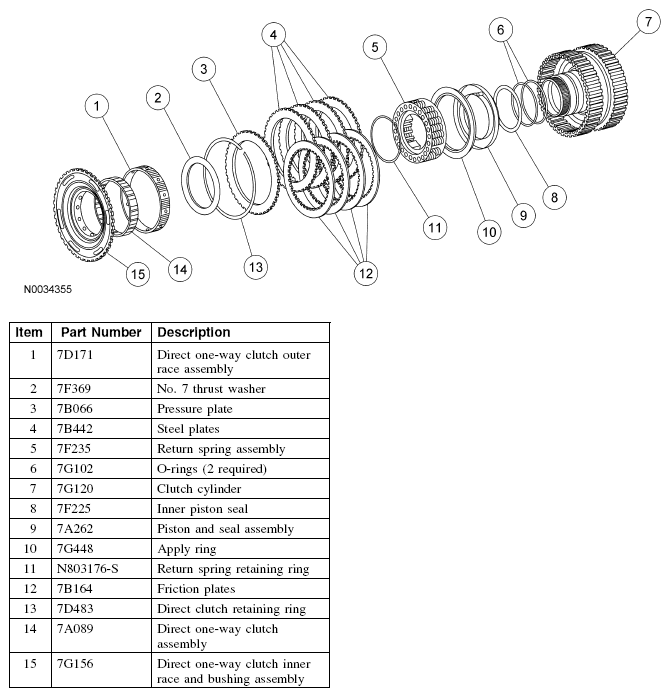

Fig 1: Exploded View Of Direct Clutch Cylinder Components
G04661426Courtesy of FORD MOTOR CO.
