2006 Ford Freestar BaseFACTORY OEM SERVICE PROCEDURE

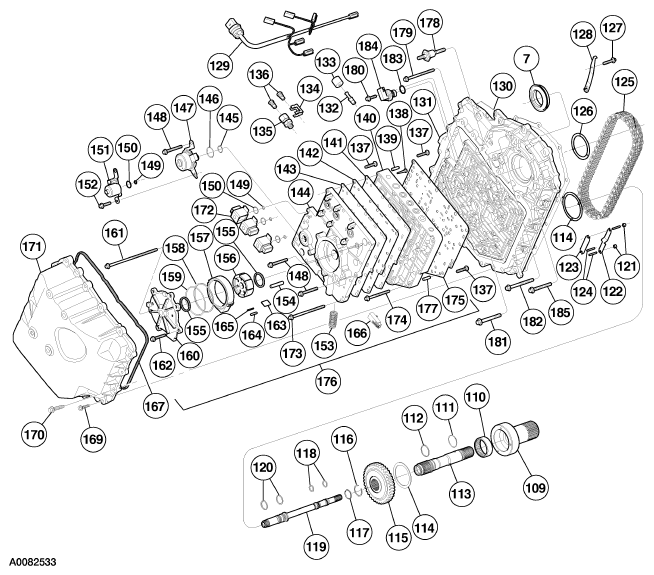

Automatic Transmission: Assembly: Transaxle
SPECIAL TOOL(S)
| Dial Indicator Gauge With Holding Fixture 100-002 (TOOL-4201-C) |
|
| Step Plate 205-D014 (D80L-630-3) |
|
| Installer, Steering Gear Pinion Bearing 211-161 (T90C-3504-DH) |
|
| Depth Micrometer 303-D075 (D92P-4201-A) |
|
| Retaining Ring Pliers 307-343 (T95P-77001-AHR) |
|
| Handle, Torque Converter 307-091 (T81P-7902-C) |
|
| Test Plate Screw Set, Transmission 307-126 (T82P-7006-C) |
|
| Air Test Plate, Transmission 307-312 (T94P-77001-EH) |
|
| Gasket, Transmission Air Test Plate 307-313 (T94P-77001-EH1) |
|
| Installer, Halfshaft Output Fluid Seal 307-157 (T86P-1177-B) |
|
| Gauge, Servo Rod 307-162 (T86P-70023-B) |
|
| Holding Fixture Transmission 307-003 (T57L-500-B) |
|
| Lifting Fixture, Clutch Pack 307-171 (T86P-70389-A) |
|
| Installer, Torque Converter Fluid Seal 307-186 (T87L-77837-AH) |
|
| End Play Gauge 307-187 (T87P-70014-AH) |
|
| Remover/Installer, Servo Piston 307-251 (T92P-70023-A) |
|
| Shim Selection Gauge Bar 307-300 (T94P-77000-Q) |
|
| Remover, Reverse Clutch/Planet 307-314 (T94P-77001-FH) |
|
| Aligner, Output Shaft Fluid Seal 307-317 (T94P-77001-JH) |
|
| Shim Selection Gauge 307-320 (T94P-77001-MH) |
|
| Shim Depth Gauge 307-321 (T94P-77001-NH) |
|
| Alignment Gauge, TR Sensor 307-351 (T97L-70010-A) |
|
| Remover/Installer Bearing Tube 308-025 (T75L-7025-C) |
|
| Remover, Bearing Collet Sleeve 308-049 (T77F-7025-C) |
