2006 Ford Freestar BaseFACTORY OEM SERVICE PROCEDURE
Spark Plugs: Installation

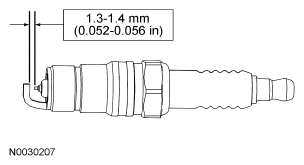

- Adjust the spark plug gap as necessary.
- Install the 6 spark plugs.
- Tighten to 15 Nm (11 lb-ft).
- Apply dielectric grease to the inside of the spark plug wire boots before attaching to the spark plugs.
CAUTION:
Only use hand tools when removing or installing the spark plugs, or damage can occur to the cylinder head or spark plug.
CAUTION:
Spark plug wires must be connected to the correct spark plug.
