2006 Ford Freestar BaseFACTORY OEM SERVICE PROCEDURE

Lower Intake Manifold: Installation

Clean all gasket sealing surfaces with metal surface cleaner.

NOTE: Front seal shown, rear seal similar.

Install the lower intake manifold front and rear seals.
1. Apply a bead of silicone gasket and sealer to the intake manifold front and rear seal mounting points as shown.
2. Install the new lower intake manifold front and rear seals.

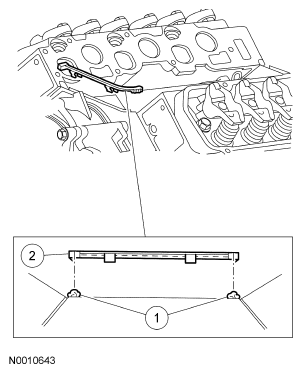

  Fig 1: Identifying Lower Intake Manifold Front And Rear Seals
  Courtesy of FORD MOTOR CO.
Install the new intake manifold gaskets.

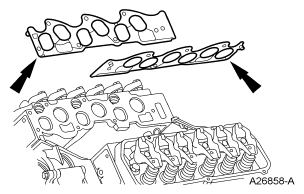

Fig 2: Locating Intake Manifold Gaskets
Courtesy of FORD MOTOR CO.

NOTE: The lower intake manifold must be installed within 4 minutes of applying sealant.

Position the lower intake manifold.
1. Apply a bead of silicone gasket and sealer to the lower intake manifold mounting points (at the front and rear seal).
2. Position the lower intake manifold.

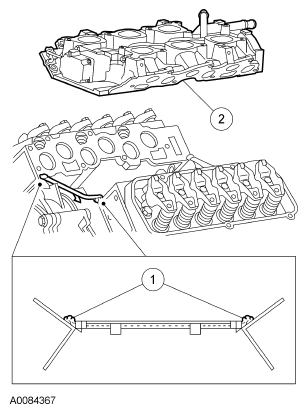

  Fig 3: Identifying Lower Intake Manifold
  Courtesy of FORD MOTOR CO.

NOTE: Make sure the bolts are installed in the correct locations.
