2006 Ford Freestar BaseFACTORY OEM SERVICE PROCEDURE

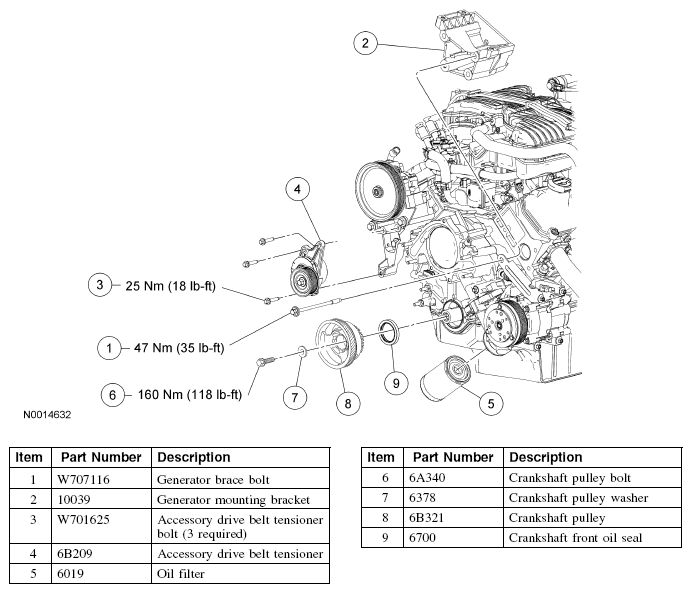

Engine Front Cover: Notes
SPECIAL TOOL(S)
| Remover, Crankshaft Vibration Damper 303-009 (T58P-6316-D) |
|
| Remover, Crankshaft Vibration Damper 303-176 (T82L-6316-B) |
|
| Installer, Crankshaft Vibration Damper 303-175 (T82L-6316-A) |
|
| Remover, Oil Seal 303-409 (T92C-6700-CH) |
|
| Installer, Crankshaft Front Oil Seal 303-335 (T82L-6316-A) |
|
| Installer, Crankshaft Front Oil Seal 303-474 (T94P-6701-AH) |
MATERIALS
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent | WSS-M2C930-A |
| Motorcraft Metal Surface Cleaner ZC-21 | WSE-M5B392-A |
| Thread Sealant with PTFE TA-24 | WSK-M2G350-A2 |
| Silicone Gasket and Sealant TA-30 | WSE-M4G323-A4 |
