2006 Ford Expedition RWDFACTORY OEM SERVICE PROCEDURE

Engine Support Insulators: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Engine Support Bar, Heavy Duty 303-F070
Courtesy of FORD MOTOR CO.	Support Hook 303-F071
Courtesy of FORD MOTOR CO.	Engine Support Bracket 303-639

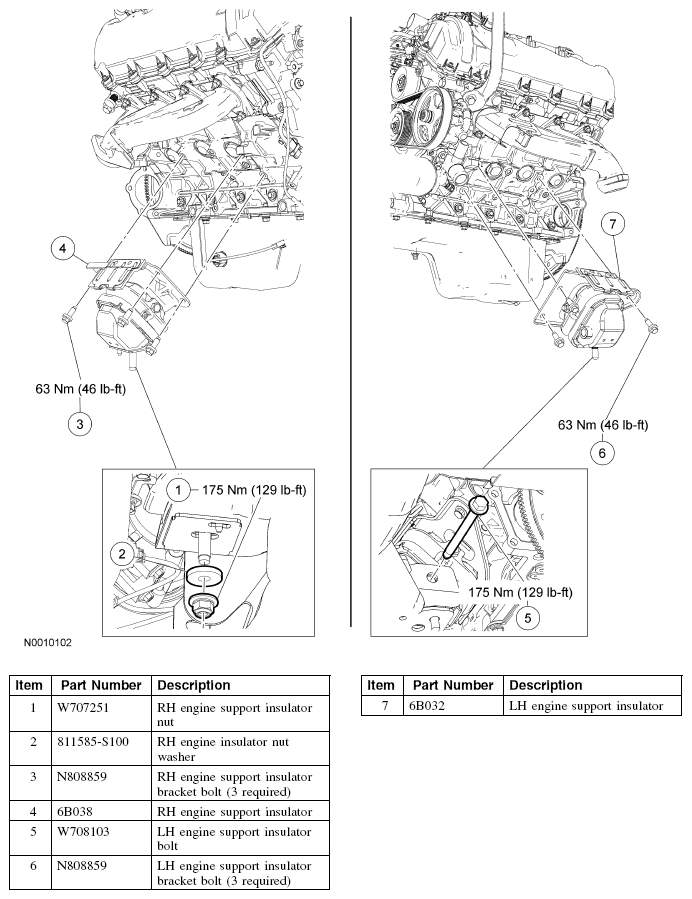

Fig 1: Location Of Engine Support Insulators Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
