2005 Ford ThunderbirdFACTORY OEM SERVICE PROCEDURE
Bearing Inspection
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

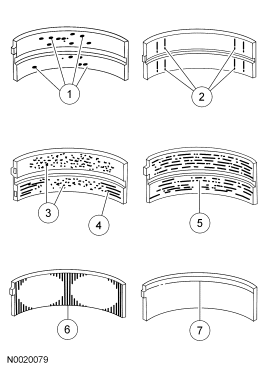

- Inspect bearings for the following defects:
- Cratering - fatigue failure
- Spot polishing - incorrect seating
- Imbedded dirty engine oil
- Scratching - dirty engine oil
- Base exposed - poor lubrication
- Both edges worn - journal damaged
- One edge worn - journal tapered or bearing not seated
