2005 Ford Freestar BaseFACTORY OEM SERVICE PROCEDURE

Sun and Shell Assembly - Disassembly: Disassembly

Remove the front sun shell.

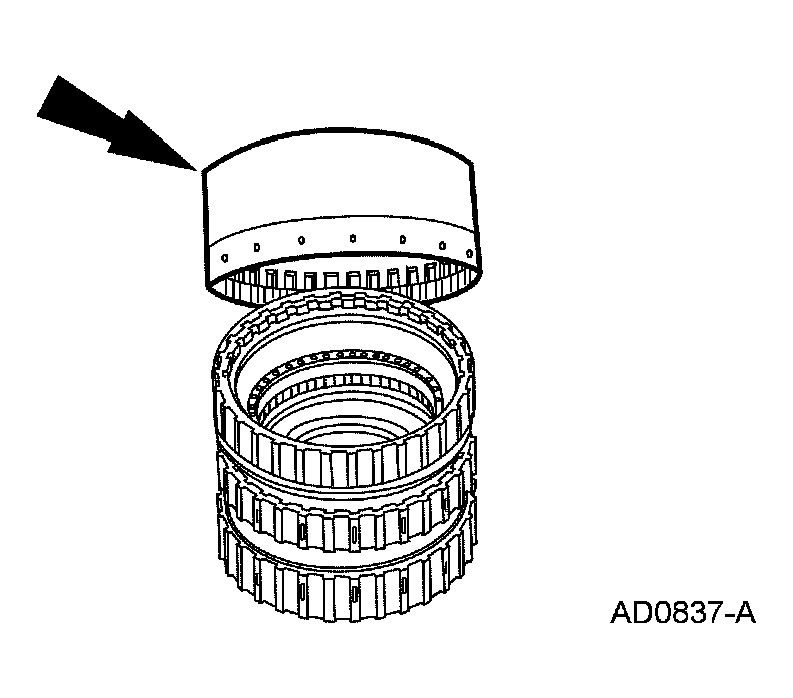

Fig 1: Removing Front Sun Shell
Courtesy of FORD MOTOR CO.
Remove the No. 11 needle bearing.

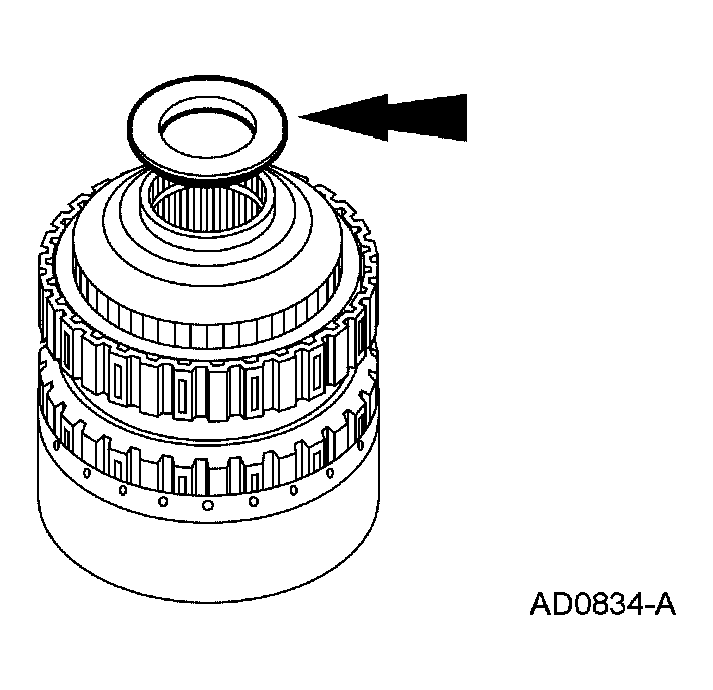

Fig 2: Removing No. 11 Needle Bearing
Courtesy of FORD MOTOR CO.
Remove the intermediate clutch hub.

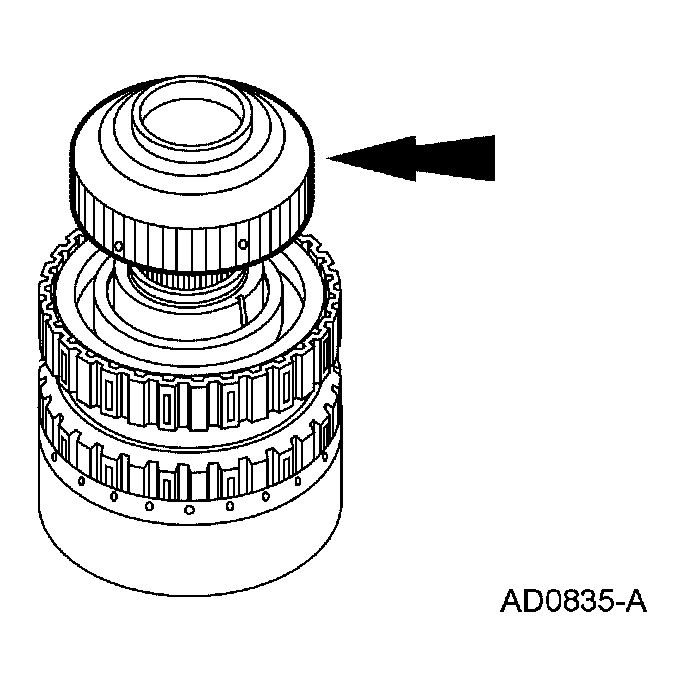

Fig 3: Removing Intermediate Clutch Hub
Courtesy of FORD MOTOR CO.
Remove the No. 10 thrust bearing.

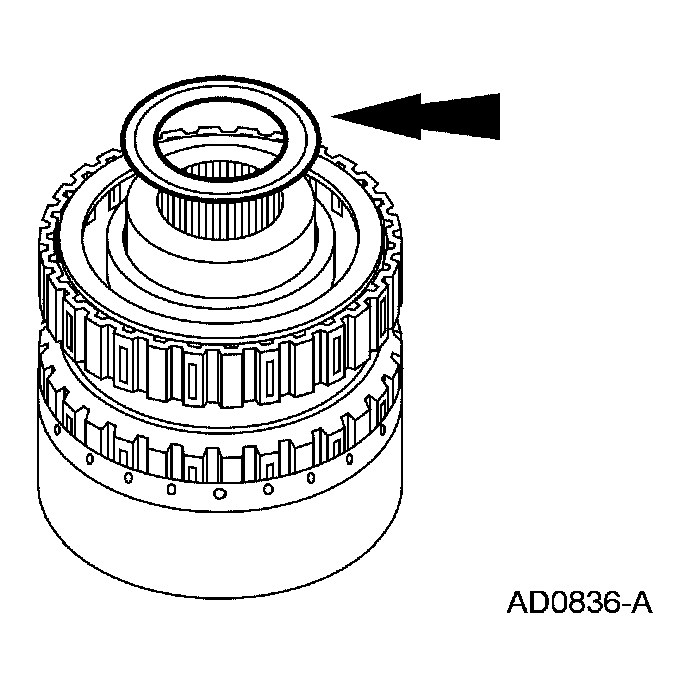

Fig 4: Removing No. 10 Thrust Bearing
Courtesy of FORD MOTOR CO.
Remove the overdrive drum.

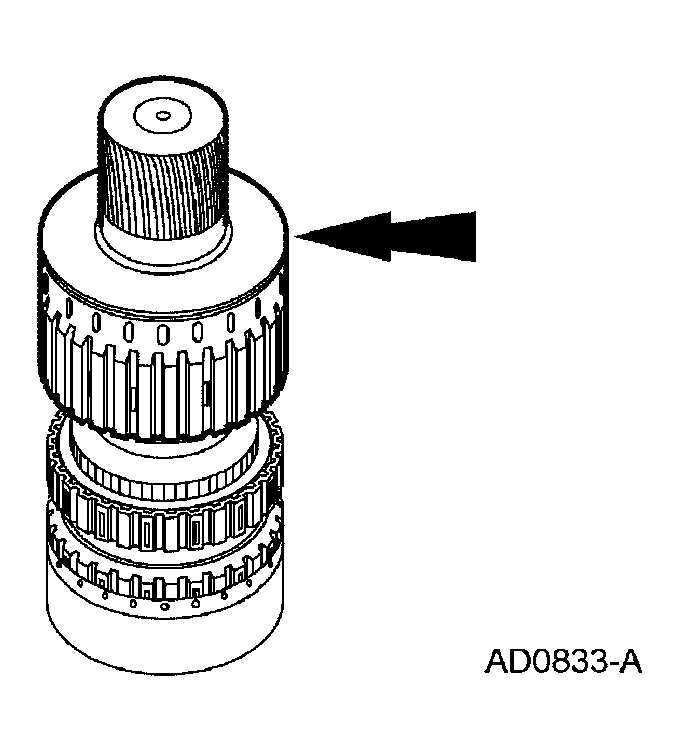

Fig 5: Removing Overdrive Drum
Courtesy of FORD MOTOR CO.
Remove the one-way clutch assembly.
1. Remove the one-way clutch assembly.
2. Remove the top cap.
3. Remove the one-way clutch.
4. Remove the bottom cap.

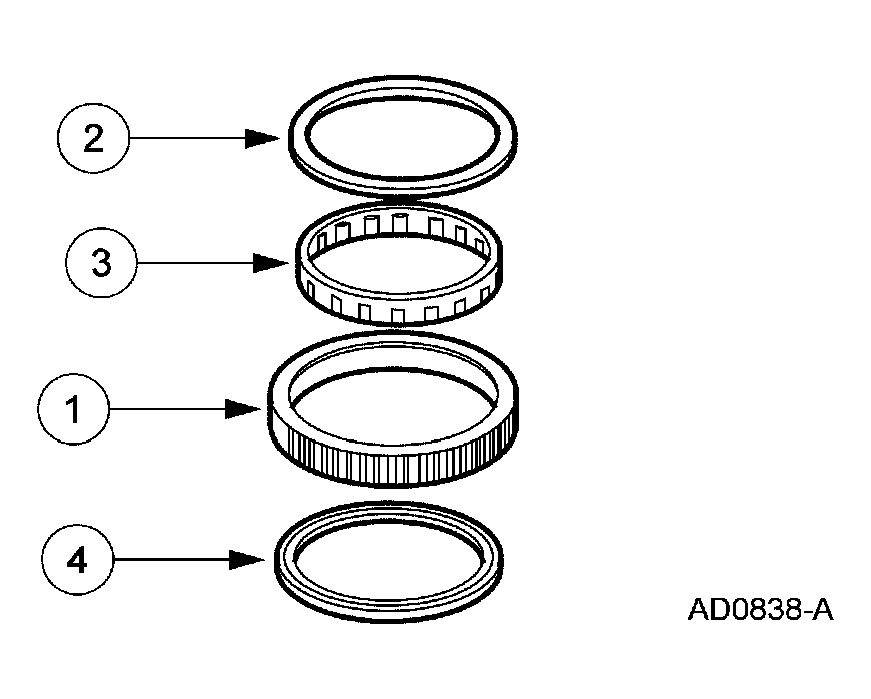

Fig 6: Removing One-Way Clutch Assembly
Courtesy of FORD MOTOR CO.
