2005 Ford Freestar BaseFACTORY OEM SERVICE PROCEDURE
Chain Cover: Assembly

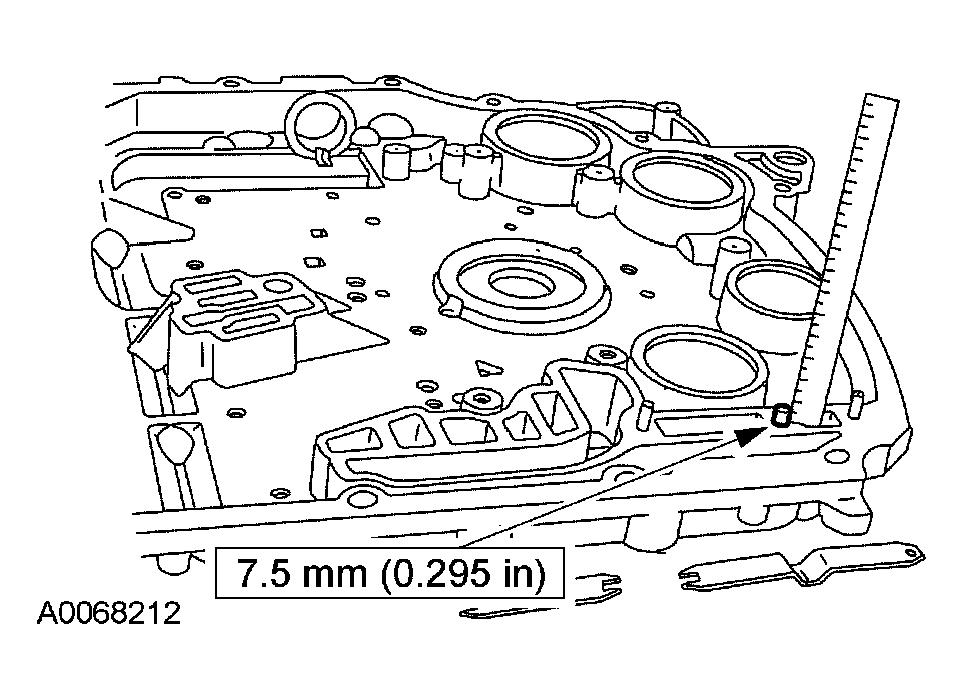

- Measure the distance that the center bimetal element pin protrudes from the chain cover.

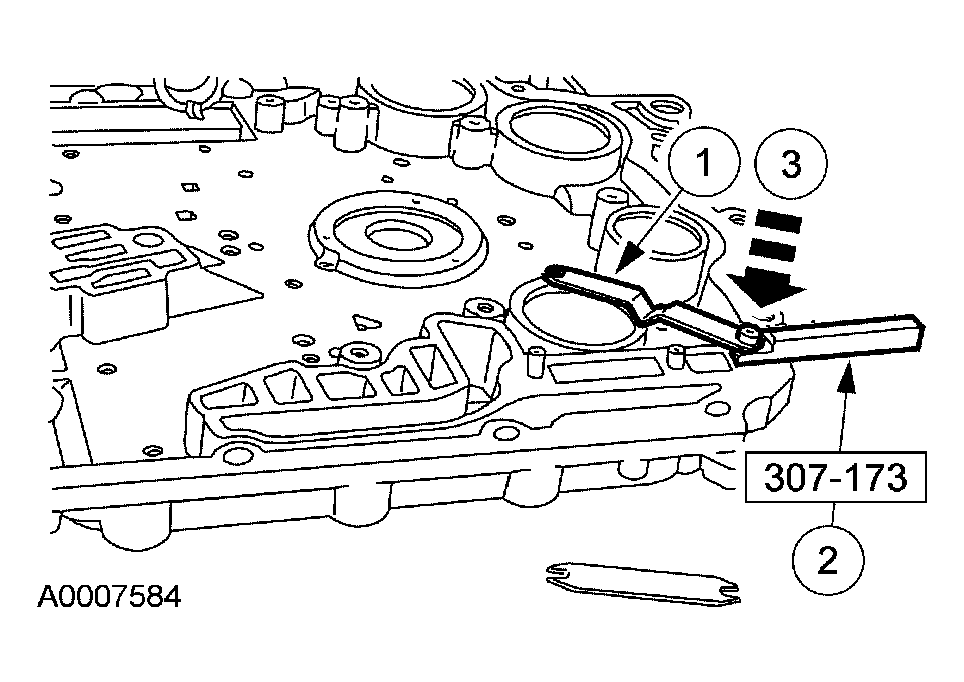

- Using the special tool, install the bimetal element.
- Position the bimetal strip onto the end of the pin.
- Install the special tool under the bimetal element.
- Tap the retaining collar onto the pin until it seats against the tool edge.

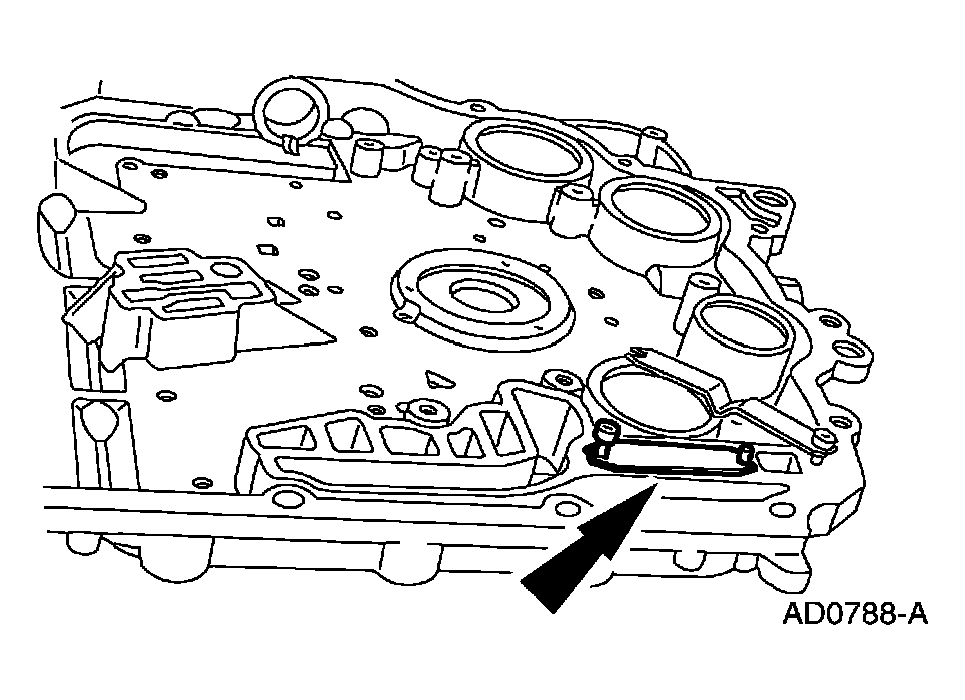

- Remove the slotted end of the bimetal element and install the thermostat plate over the end and middle pins.

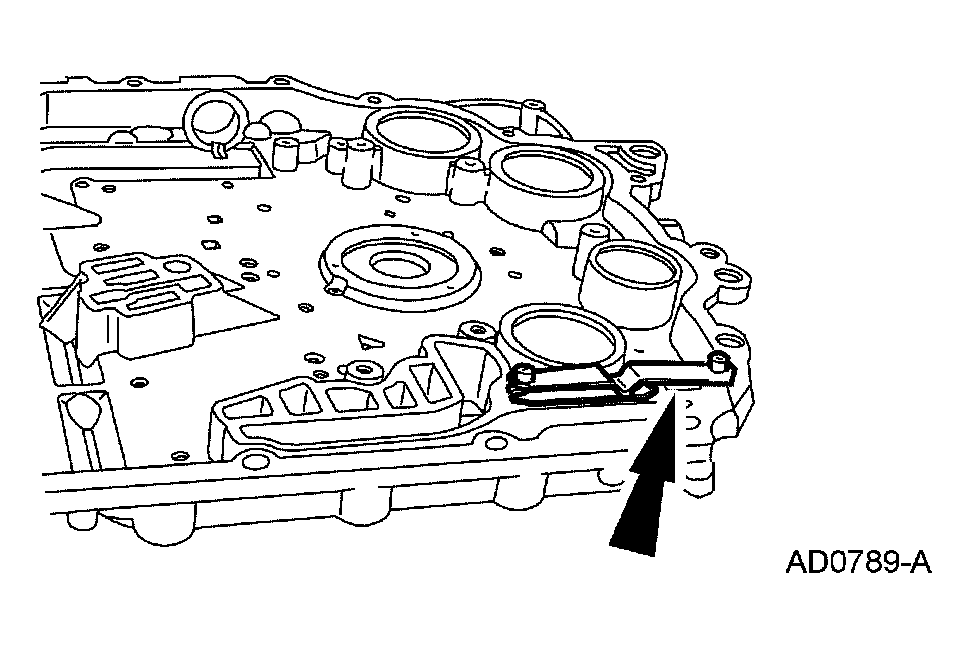

- Install the slotted end of the bimetal element under the retaining ring.
CAUTION:
Do not allow the pistons to cock in their bores or damage to the seals may result.
