2005 Ford Freestar BaseFACTORY OEM SERVICE PROCEDURE
Spring Lock Couplings: Connect

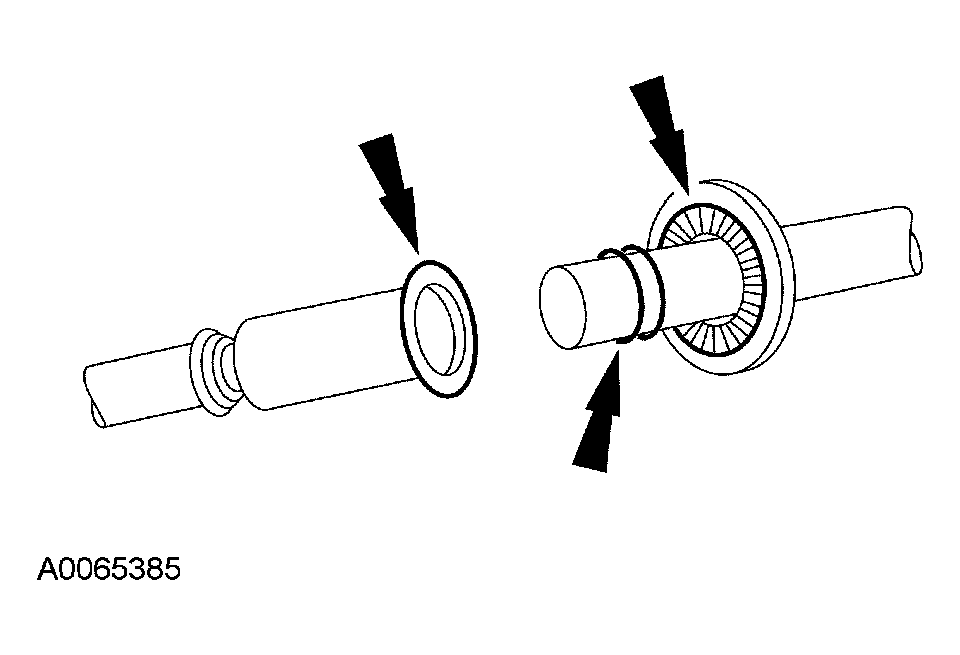

- Inspect and clean both coupling ends. Install new O-rings and garter springs if necessary.
- Lubricate the O-rings with clean engine oil.

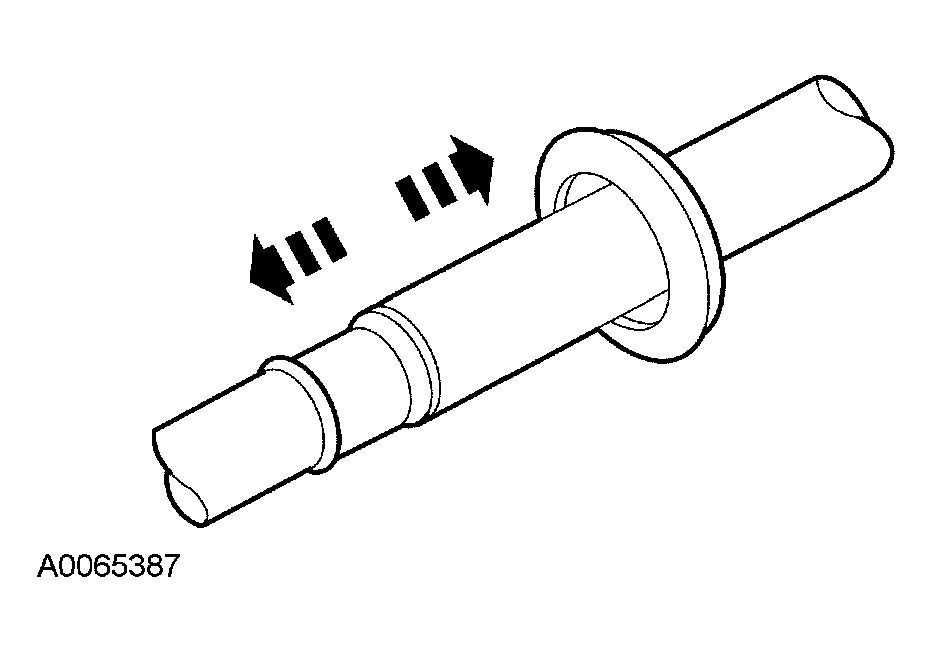

- Fit the male fitting into the female end and push until the garter spring snaps over the flared end of the female fitting.
- Make sure the coupling is engaged by pulling on the tubes.

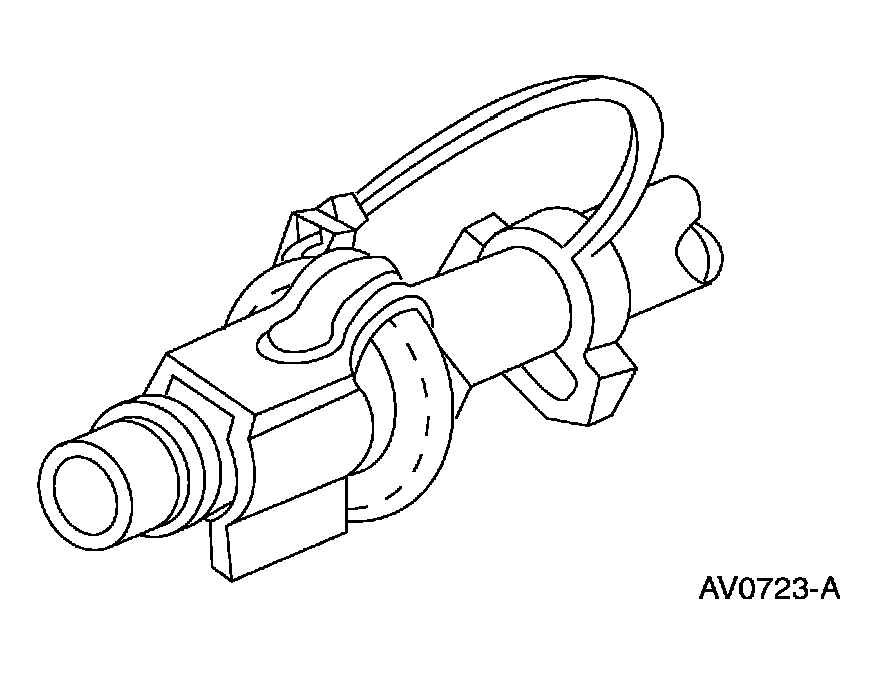

- Install the safety clip.
