2005 Ford Freestar BaseFACTORY OEM SERVICE PROCEDURE
Upper Intake Manifold: Installation
- Install new intake manifold gaskets and the intake manifold.

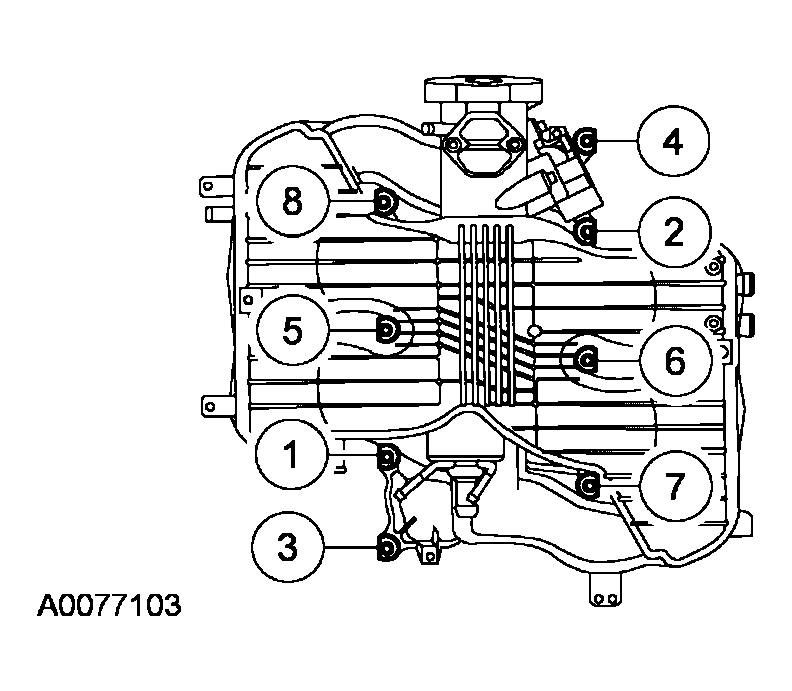

- Install the 8 intake manifold bolts and tighten the upper intake manifold bolts in 2 stages in the sequence shown in illustration.
- Stage 1: Tighten to 6 Nm (53 lb-in).
- Stage 2: Tighten to 10 Nm (89 lb-in).

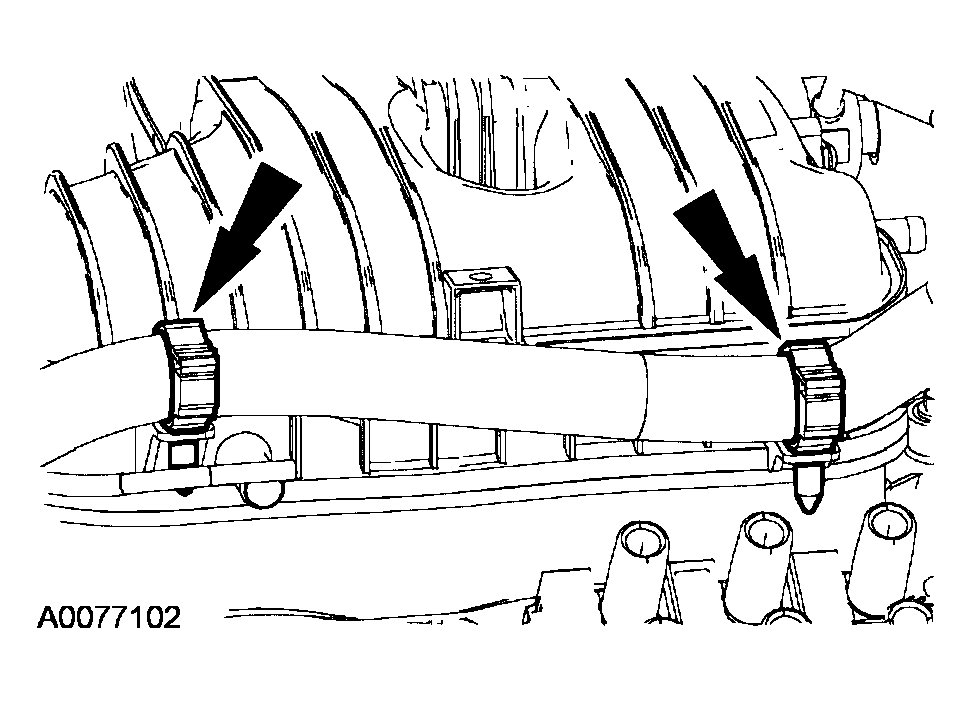

- Connect the 2 engine harness pin-type retainers.

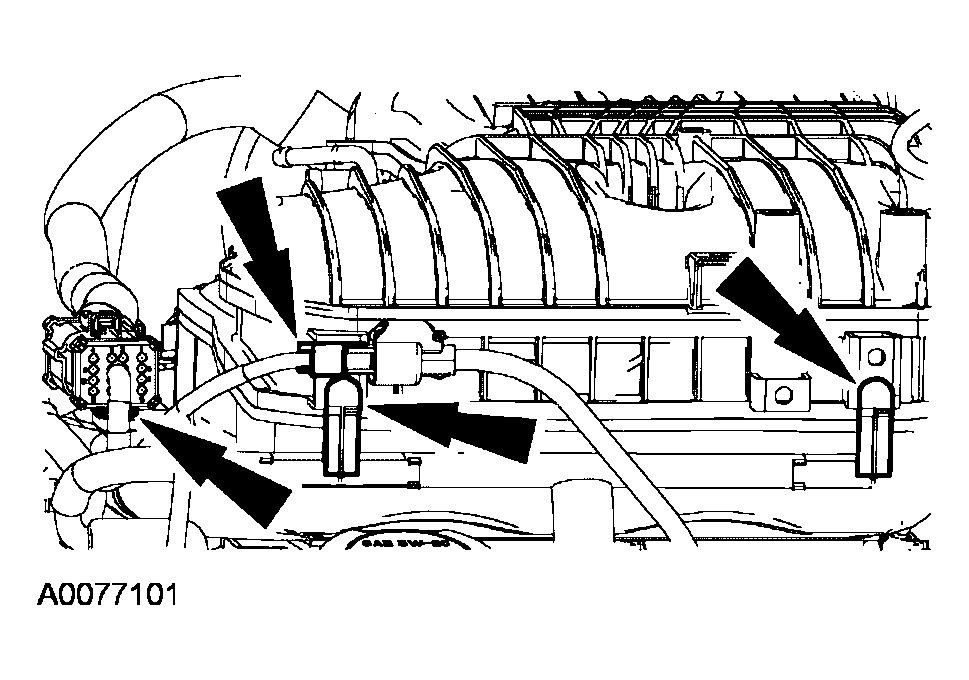

- Connect the 4 engine harness pin-type retainers.
- Connect the coolant outlet hose to the intake manifold.
- Connect the coolant inlet hose to the intake manifold.
- Connect the vacuum tube connector to the upper intake manifold.
CAUTION:
Make sure the spark plug boots are positioned so the spark plug wires do not contact the exhaust manifold.
