2005 Ford Freestar BaseFACTORY OEM SERVICE PROCEDURE

Timing Drive Components: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .
Remove the synchronizer drive gear.
1. Remove the bolt.
2. Remove the synchronizer drive gear.

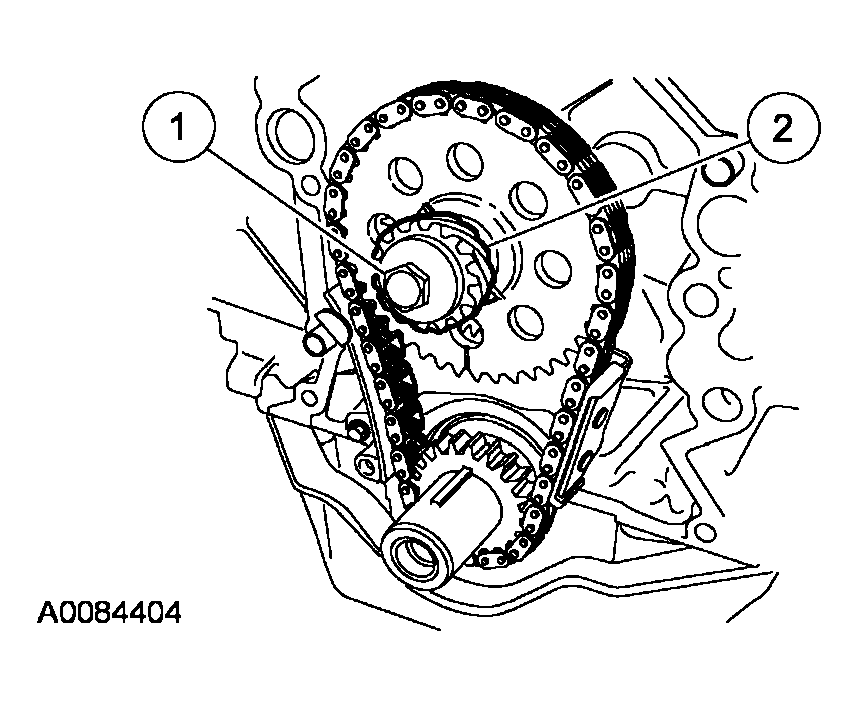

Fig 1: Removing Synchronizer Drive Gear
Courtesy of FORD MOTOR CO.
Rotate the crankshaft until the timing marks and keyways align.

Fig 2: Identifying Timing Marks And Keyways Position
Courtesy of FORD MOTOR CO.
Compress and install a retaining pin to hold the timing chain tensioner.

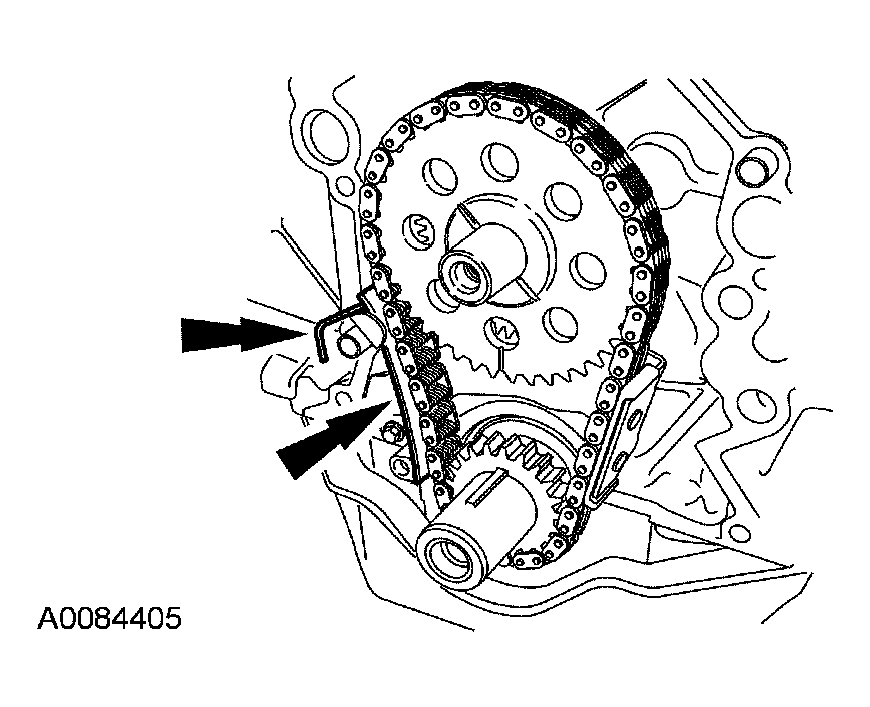

Fig 3: Installing Retaining Pin To Hold Timing Chain Tensioner
Courtesy of FORD MOTOR CO.
Remove the camshaft gear, crankshaft gear and the timing chain as an assembly.

Fig 4: Identifying Timing Chain And Sprockets
Courtesy of FORD MOTOR CO.
Remove the bolts and the timing chain tensioner.

Fig 5: Identifying Timing Chain Tensioner And Mounting Bolts
Courtesy of FORD MOTOR CO.
