2005 Ford Freestar BaseFACTORY OEM SERVICE PROCEDURE
Universal Transmitter Programming: Notes
WARNING:
A garage door opening system that cannot stop or reverse itself after detecting an object in its path does not meet current Federal safety standards. To decrease the risk of serious injury or death, do not use this HomeLink(R) universal transmitter with a door opening system that lacks stop and reverse features as required by Federal standards. This includes any garage door opening system manufactured before April 1, 1982. For more information, call HomeLink(R) customer assistance.
- Verify the hand-held transmitter is operative.

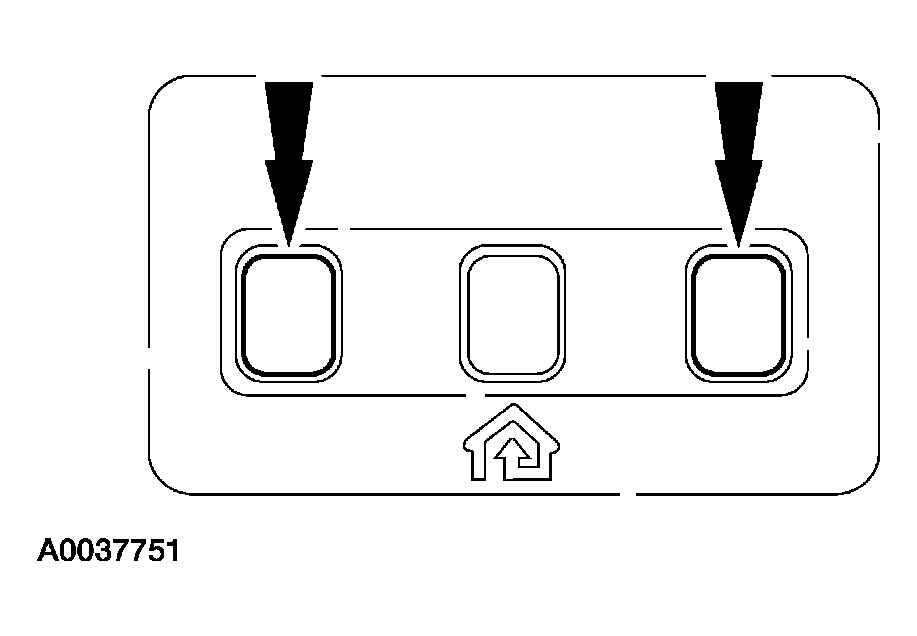

- To prepare for programming the universal transmitter, erase all 3 channels by holding down the 2 outside buttons until the red light begins to flash (20-30 seconds), then release both buttons.
- Select 1 of the 3 universal transmitter channels to be programmed by pressing the desired button.
- Hold the end of the hand-held transmitter 25-51 mm (1-2 inches) from the front surface of the universal transmitter so that the red light can still be seen.
CAUTION:
During this procedure, the system that you are programming will be made to operate. Make sure that people or objects are clear of the garage door or gate being programmed.
NOTE:
For Canadian vehicles only: during programming, the hand-held transmitter may automatically stop transmitting after 2 seconds, which may not be long enough to program the universal transmitter. If programming this type of hand-held transmitter, continue to hold the button on the universal transmitter while pressing the hand-held transmitter button every 2 seconds.
