2005 Ford Five Hundred 2WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Tests AH: LFC 15/DTC C1414 - Incorrect Module Design Level
PINPOINT TEST AH: LFC 15/DTC C1414 - INCORRECT MODULE DESIGN LEVEL
Normal Operation
The RCM monitors the communication condition and circuits of the OCS sensor for an embedded vehicle ID. If the RCM detects an unexpected condition or code from the OCS, it will store diagnostic trouble code (DTC) C1414 in memory and flash lamp fault code (LFC) 15 (or higher priority code if one exists) on the air bag indicator.
Possible Causes
An incorrect vehicle identification code can be caused by:
- damaged wiring, terminals or connectors.
- incorrect OCS system for vehicle.
- incorrect RCM for vehicle.
AH1-AH3:

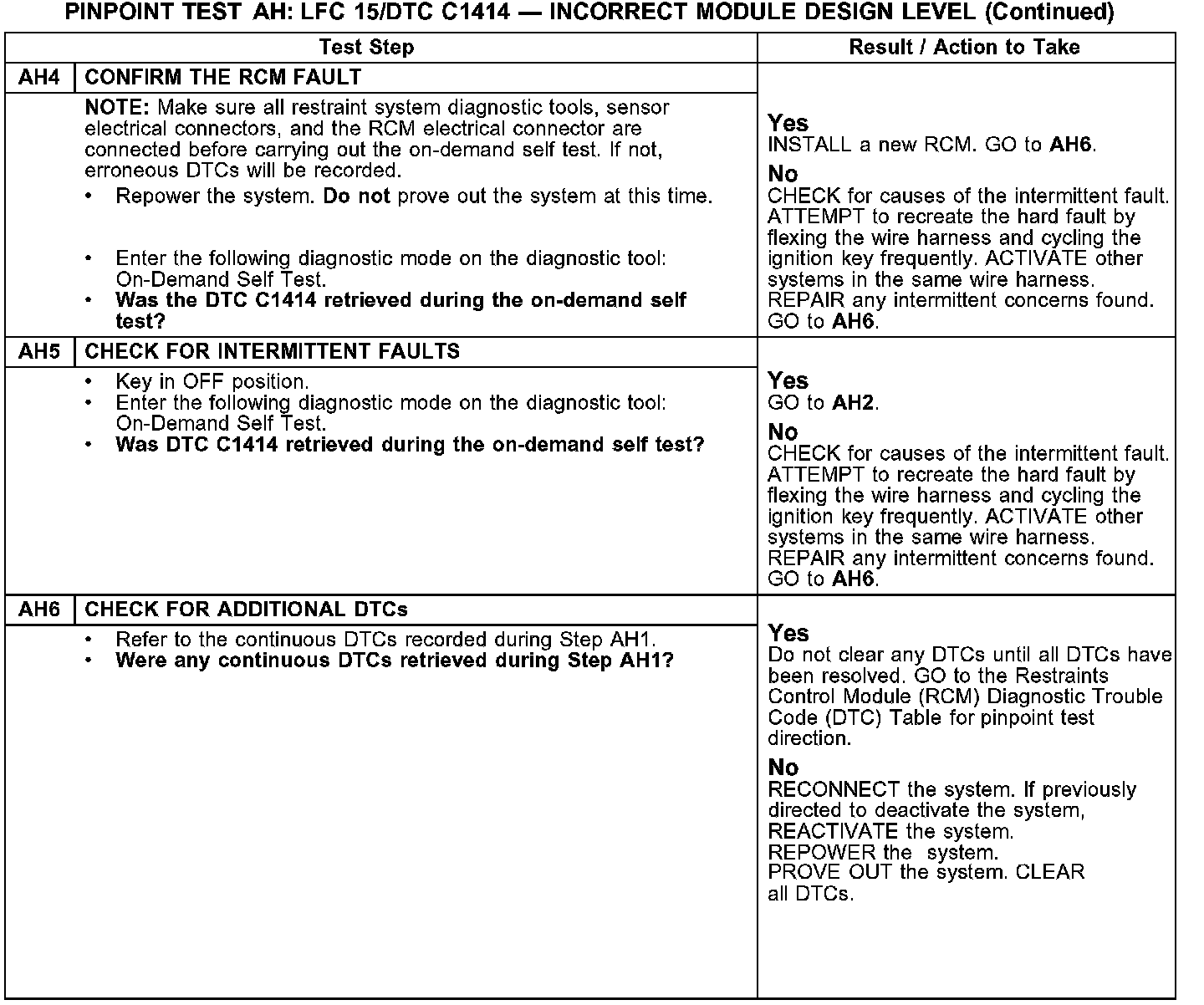

AH4-AH6:
Normal Operation
The RCM monitors the communication condition and circuits of the OCS sensor for an embedded vehicle ID. If the RCM detects an unexpected condition or code from the OCS, it will store diagnostic trouble code (DTC) C1414 in memory and flash lamp fault code (LFC) 15 (or higher priority code if one exists) on the air bag indicator.
Possible Causes
An incorrect vehicle identification code can be caused by:
- damaged wiring, terminals or connectors.
- incorrect OCS system for vehicle.
- incorrect RCM for vehicle.
