2005 Ford Five Hundred 2WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Tests HH: Exhaust Gas Recirculation System Module (ESM)
PINPOINT TEST HH: EXHAUST GAS RECIRCULATION SYSTEM MODULE (ESM)

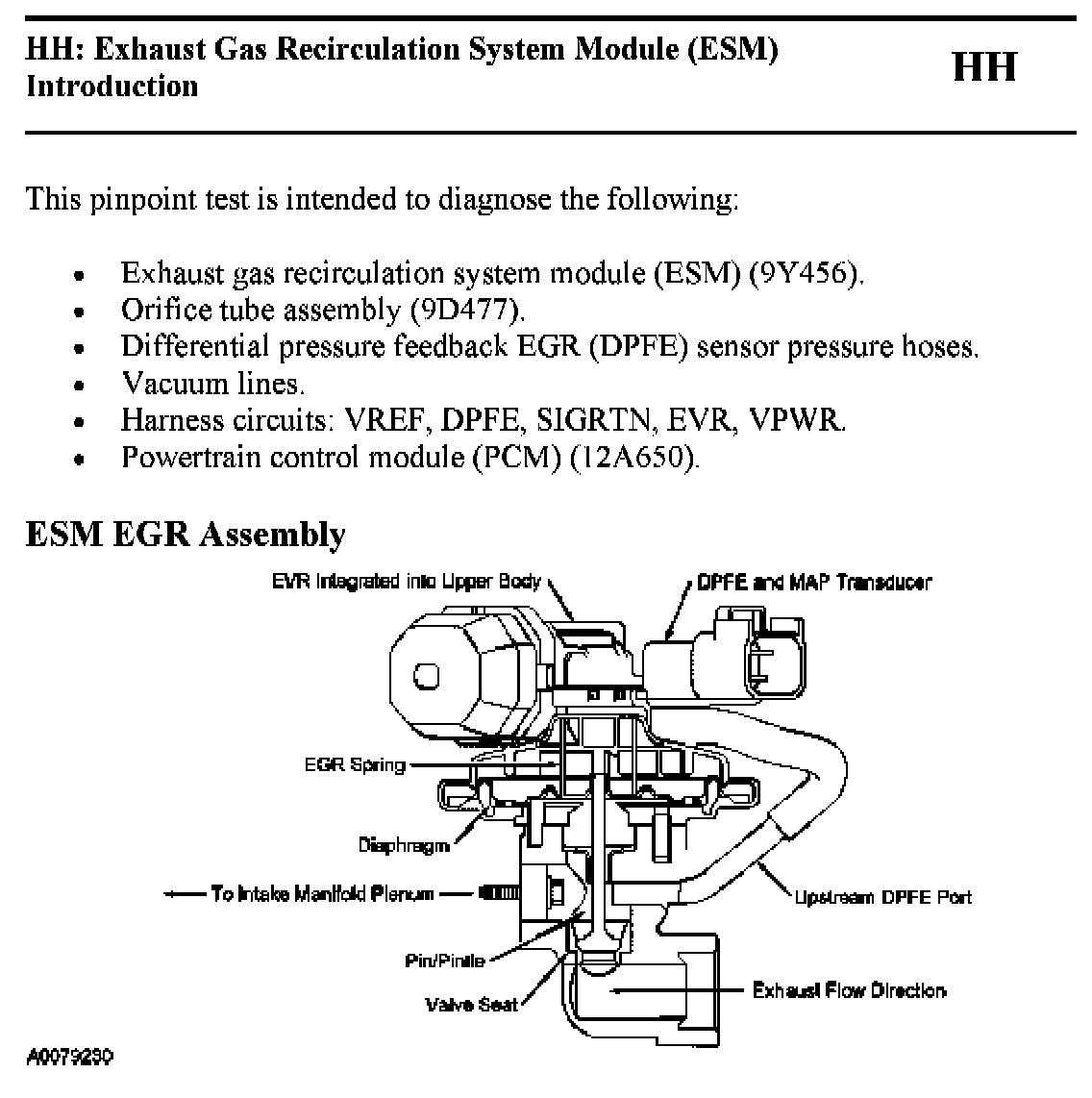

HH Introduction:
HH Introduction:
HH Introduction:
HH Introduction:
HH1 - HH2:

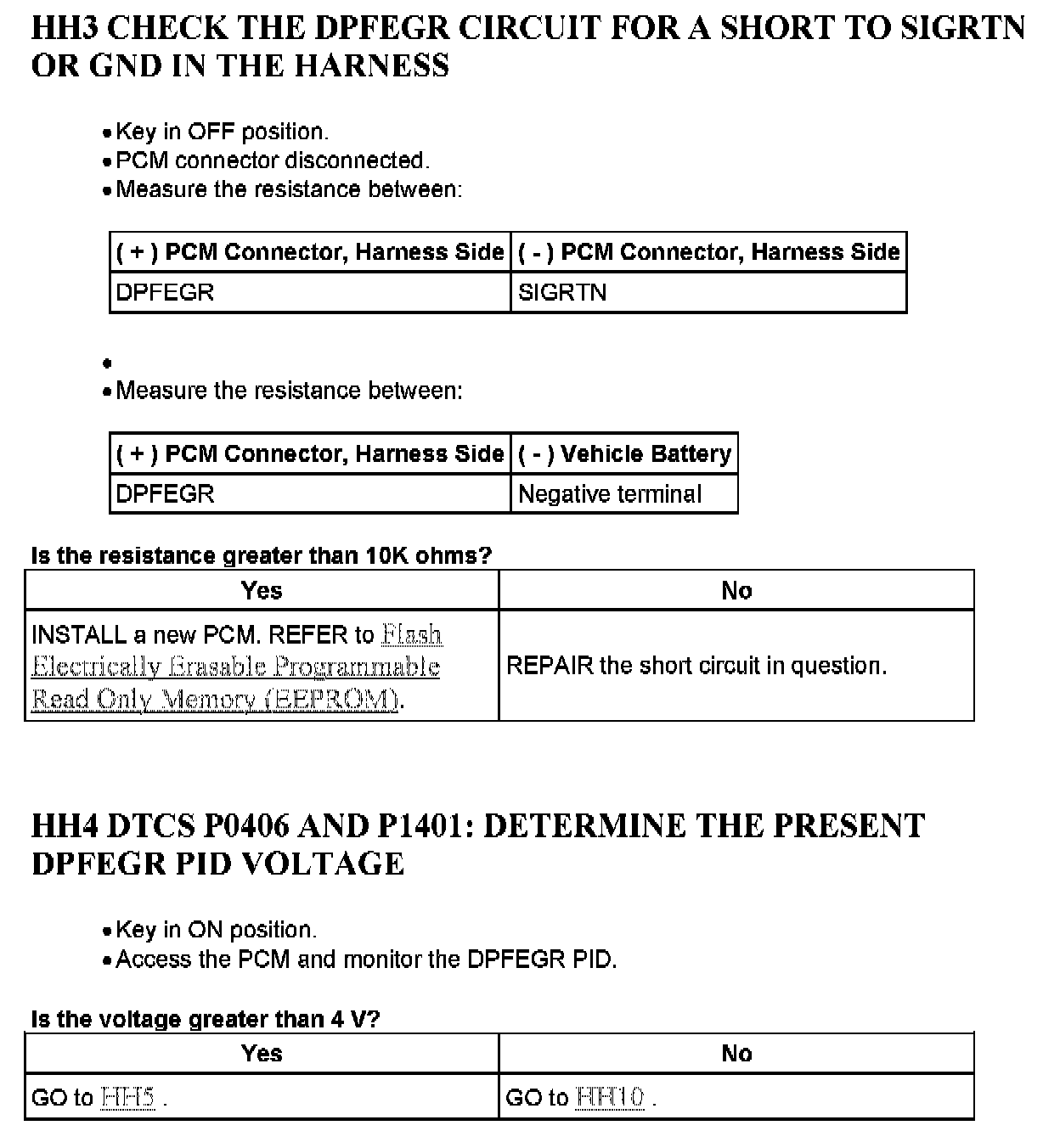

HH3 - HH4:

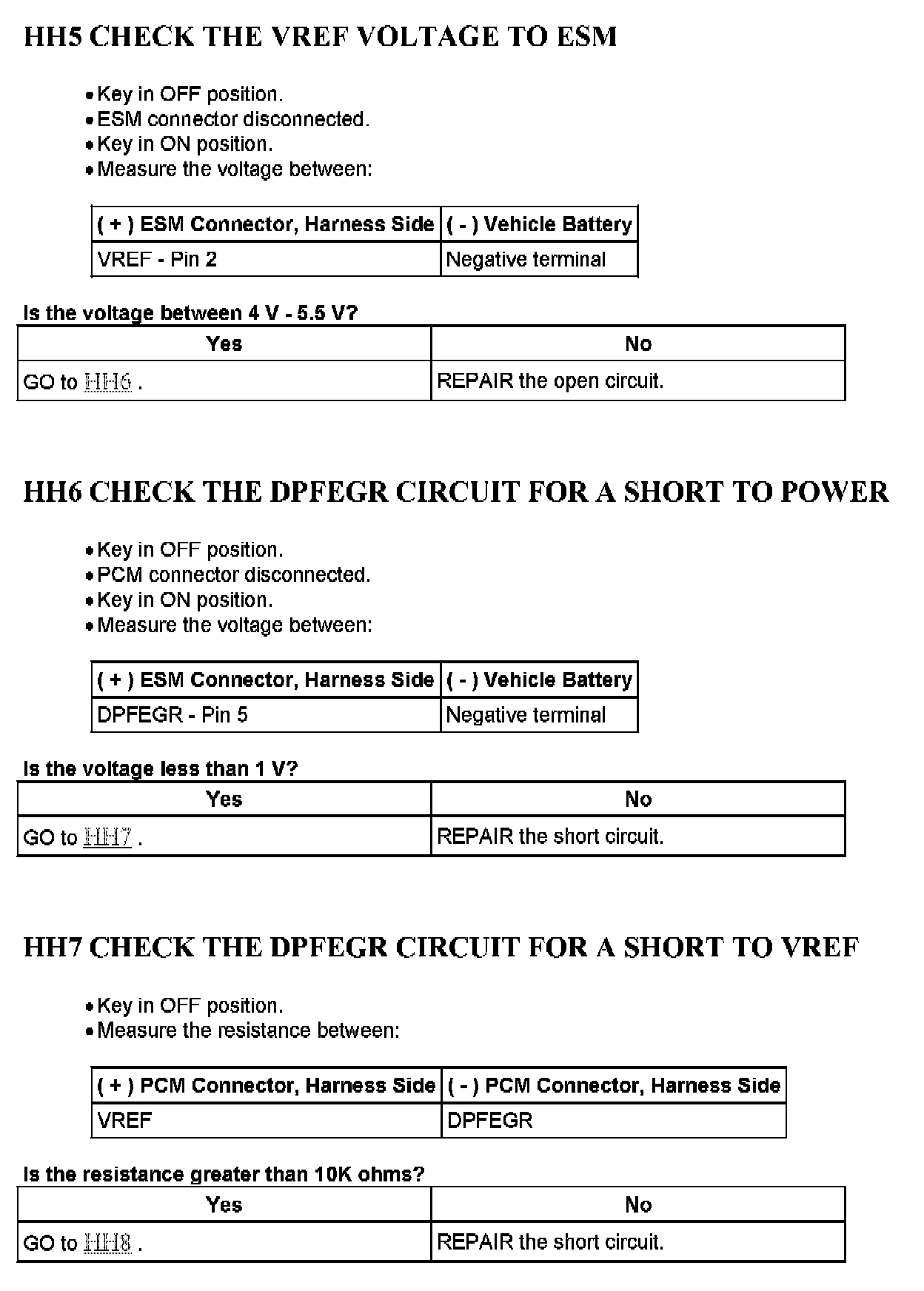

HH5 - HH7:
HH8 - HH9:
HH10 - HH11:
HH12 - HH13:
HH14 - HH16:
HH17 - HH18:

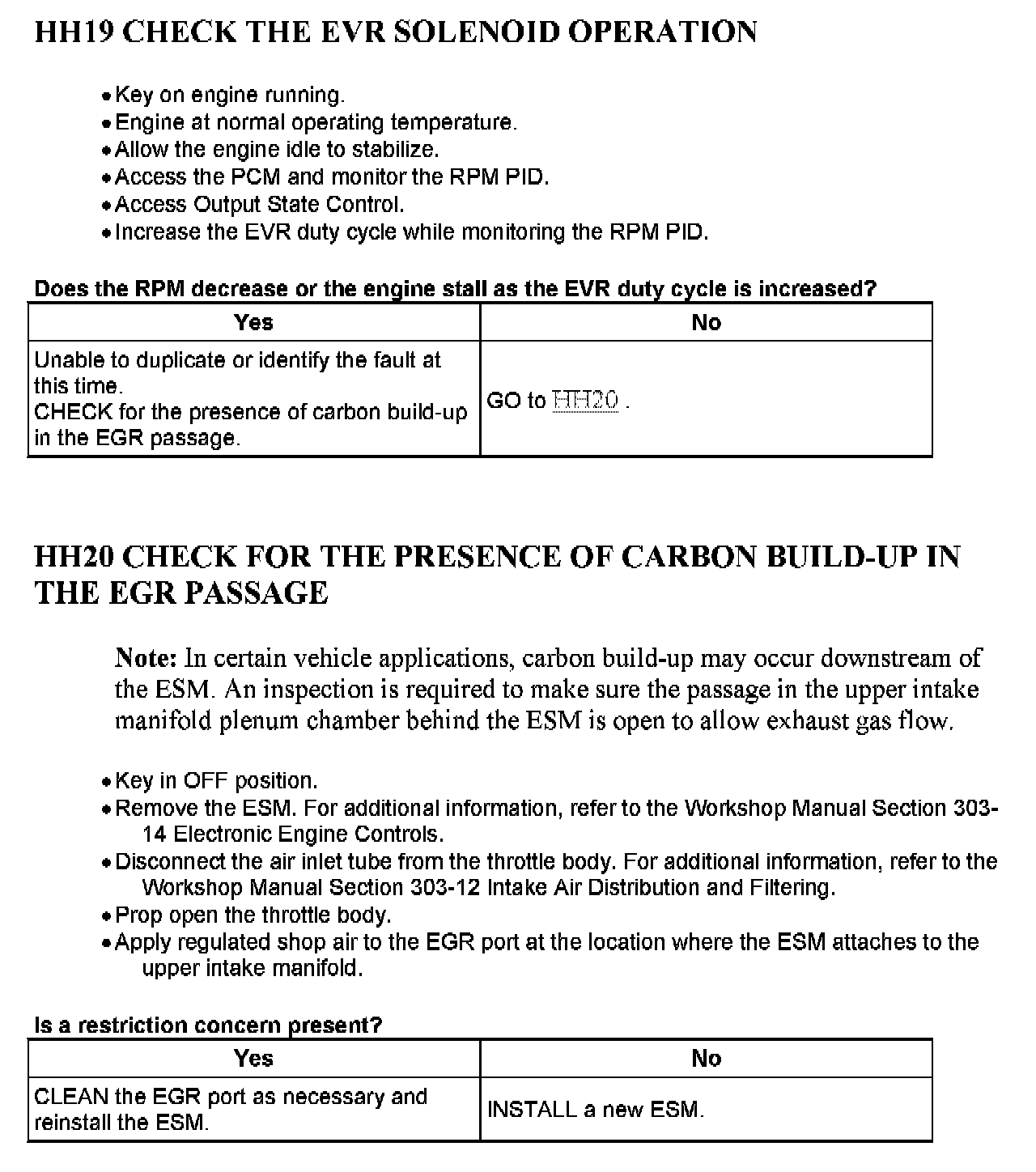

HH19 - HH20:
HH21 - HH23:
HH24 - HH26:
HH27:
