2005 Ford Five Hundred 2WD V6-3.0L VIN 1FACTORY OEM SERVICE PROCEDURE
Smart Junction Box (SJB)
SMART JUNCTION BOX (SJB)
Removal and Installation
CAUTION:
- If the smart junction box (SJB) is dropped, damage to the internal components may occur. A new SJB must be installed.
- Prior to the removal of the module, it is necessary to upload module configuration information to the appropriate diagnostic equipment. This information needs to be downloaded into the new module once installed.
- Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
1. Disconnect the battery.
2. Remove the steering column cover.
3. Disconnect the SJB electrical connectors.

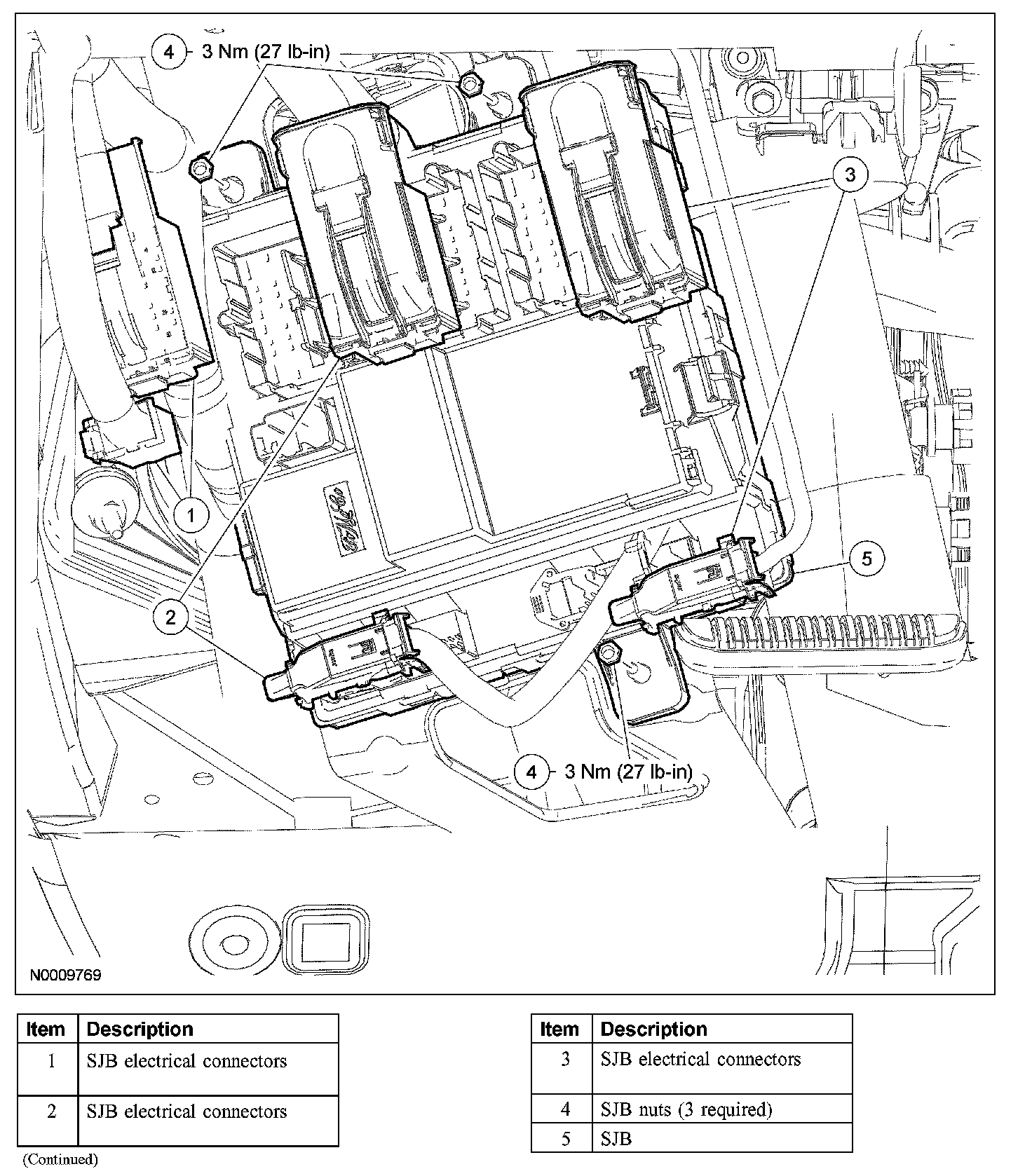

4. Remove the 3 nuts and the SJB.
- To install, tighten to 3 Nm (27 lb-in).
5. To install, reverse the removal procedure.
Removal and Installation
CAUTION:
- If the smart junction box (SJB) is dropped, damage to the internal components may occur. A new SJB must be installed.
- Prior to the removal of the module, it is necessary to upload module configuration information to the appropriate diagnostic equipment. This information needs to be downloaded into the new module once installed.
- Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
1. Disconnect the battery.
2. Remove the steering column cover.
3. Disconnect the SJB electrical connectors.
4. Remove the 3 nuts and the SJB.
- To install, tighten to 3 Nm (27 lb-in).
5. To install, reverse the removal procedure.
