2005 Ford Excursion 5.4 L, RWDFACTORY OEM SERVICE PROCEDURE

Identification Codes: Notes

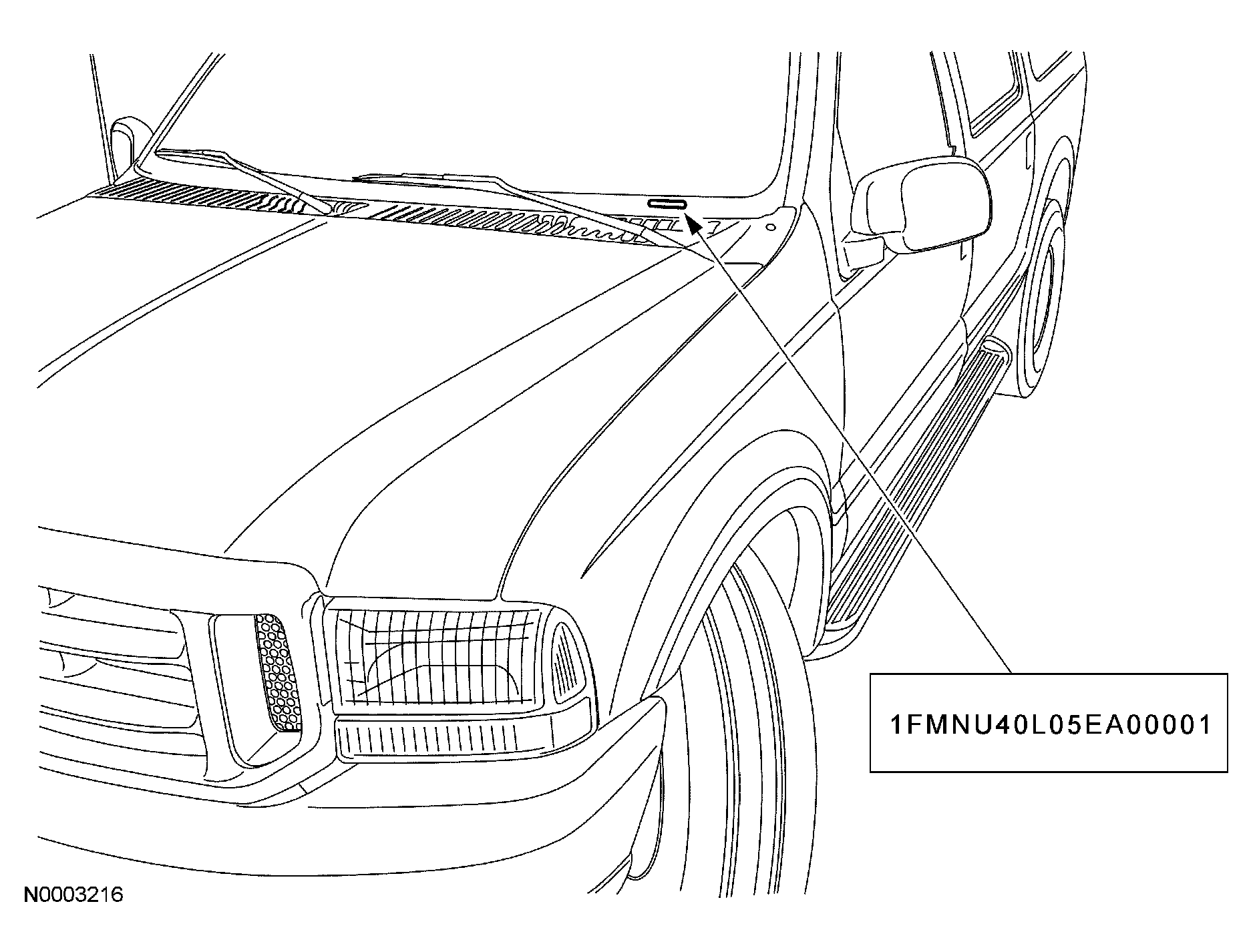

Fig 1: Identifying Vehicle Identification Number (VIN) Location
G03903924Courtesy of FORD MOTOR CO.

The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label.

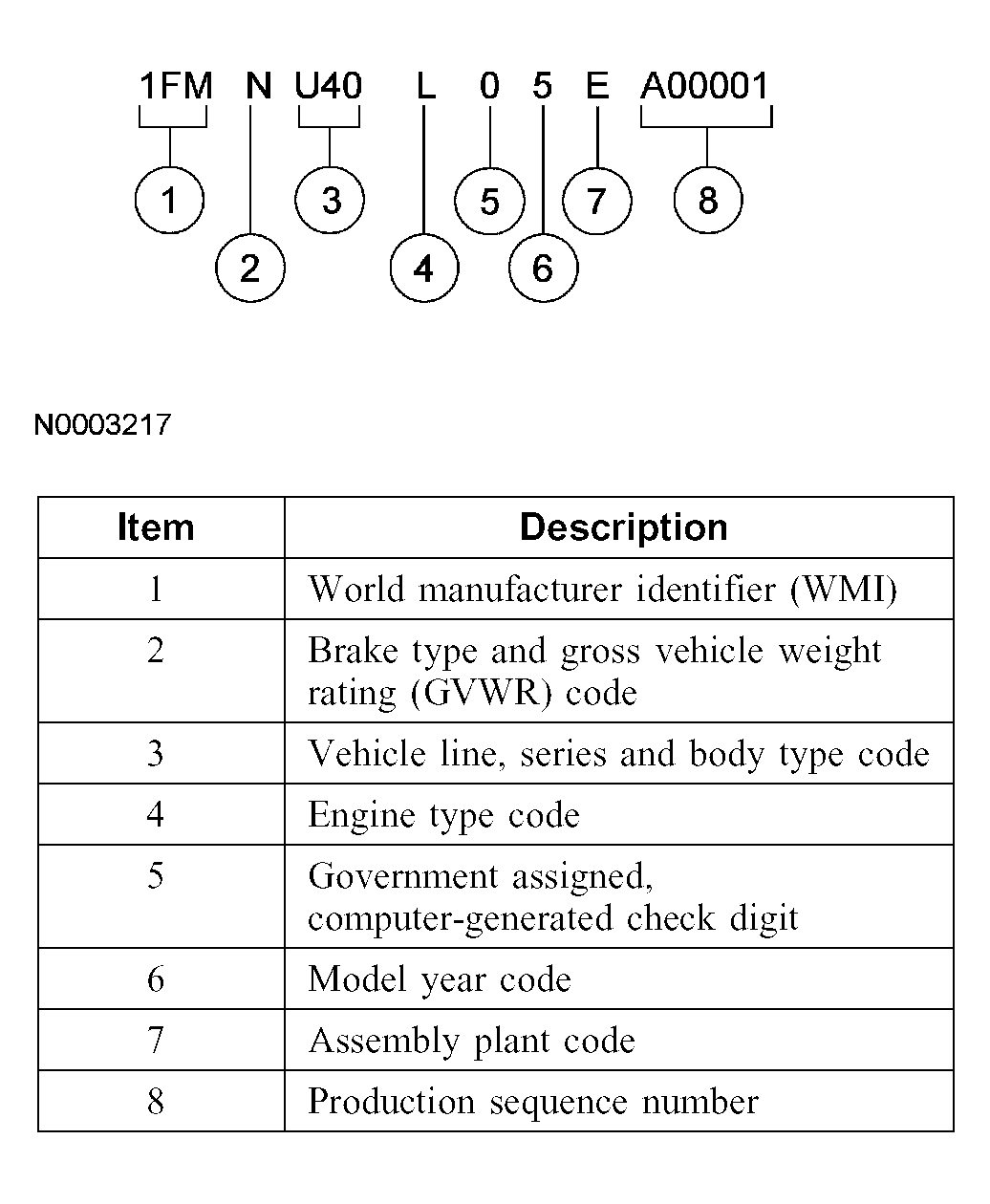

Fig 2: Identifying Vehicle Identification Number (VIN)
G03903925Courtesy of FORD MOTOR CO.
