2005 Ford Econoline E150, Van Cargo, 5.4 LFACTORY OEM SERVICE PROCEDURE

Removal and Installation

NOTE: Non-commercial chassis is shown; commercial chassis is similar.

    All vehicles

    CAUTION: Do not allow the steering wheel to rotate while the steering column intermediate shaft is disconnected, or damage to the clockspring can occur. If there is evidence that the steering column shaft has rotated, the clockspring must be removed and recentered. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
  1. Turn the steering wheel to the straight-ahead position and turn the ignition switch to the OFF position.

    2. Non-commercial chassis

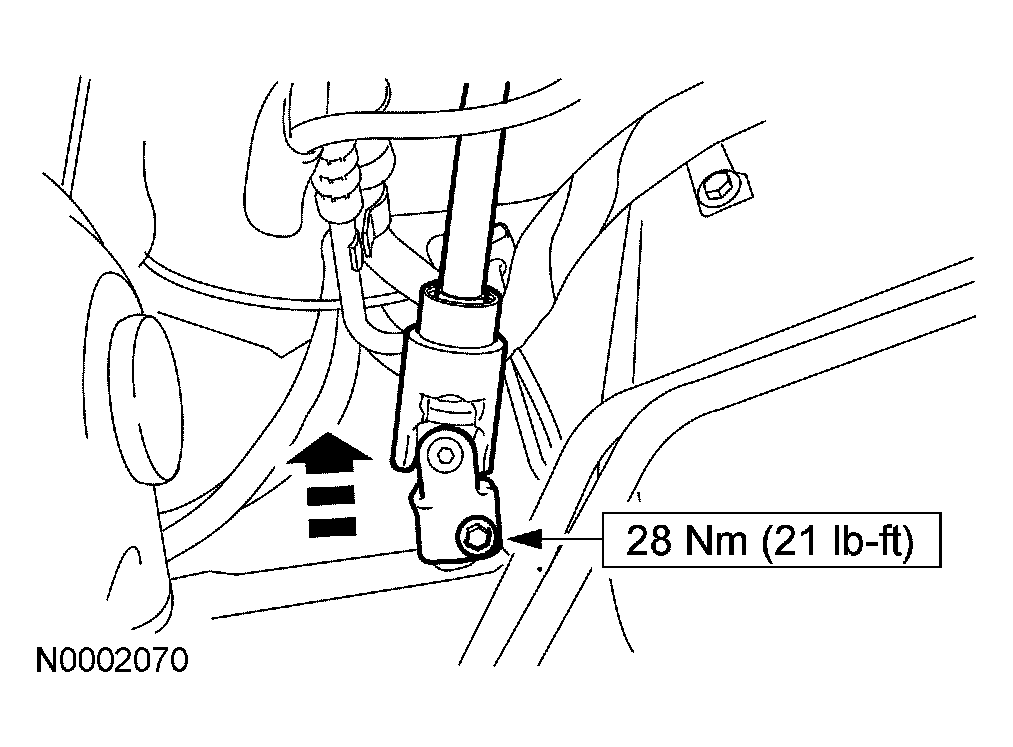

  2. Remove the coupler-to-steering gear pinch bolt and disconnect the steering column shaft from the steering gear.
    Fig 1: Removing Coupler-To-Steering Gear Pinch Bolt
    G03884907Courtesy of FORD MOTOR CO.

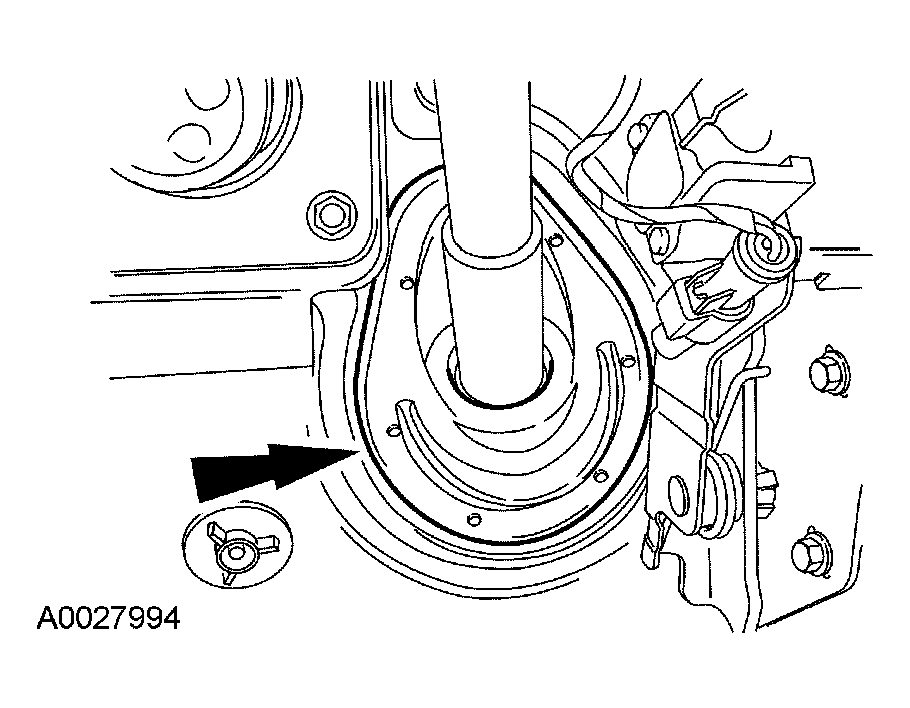

  3. Disconnect the steering column shaft seal from the dash panel.
    Fig 2: Disconnecting Steering Column Shaft Seal From Dash Panel
    G03884908Courtesy of FORD MOTOR CO.

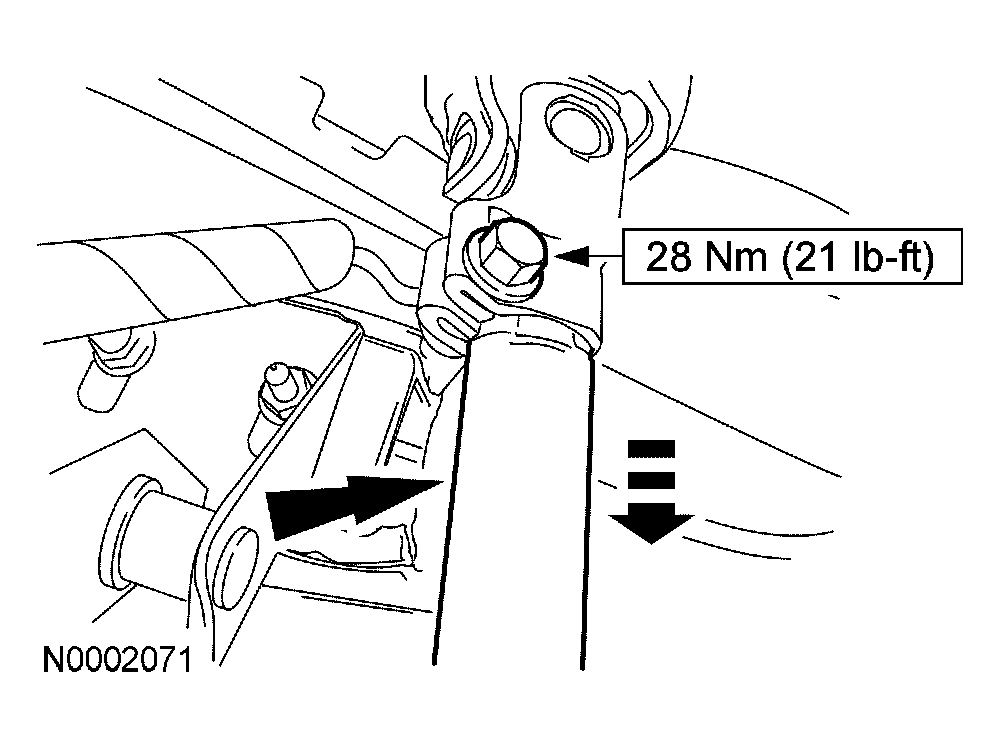

  4. Remove the steering column shaft-to-steering column coupler pinch bolt and disconnect the intermediate shaft from the coupler.
    • Compress the steering column shaft.
      Fig 3: Removing Steering Column Shaft-To-Steering Column Coupler Pinch Bolt
      G03884909Courtesy of FORD MOTOR CO.

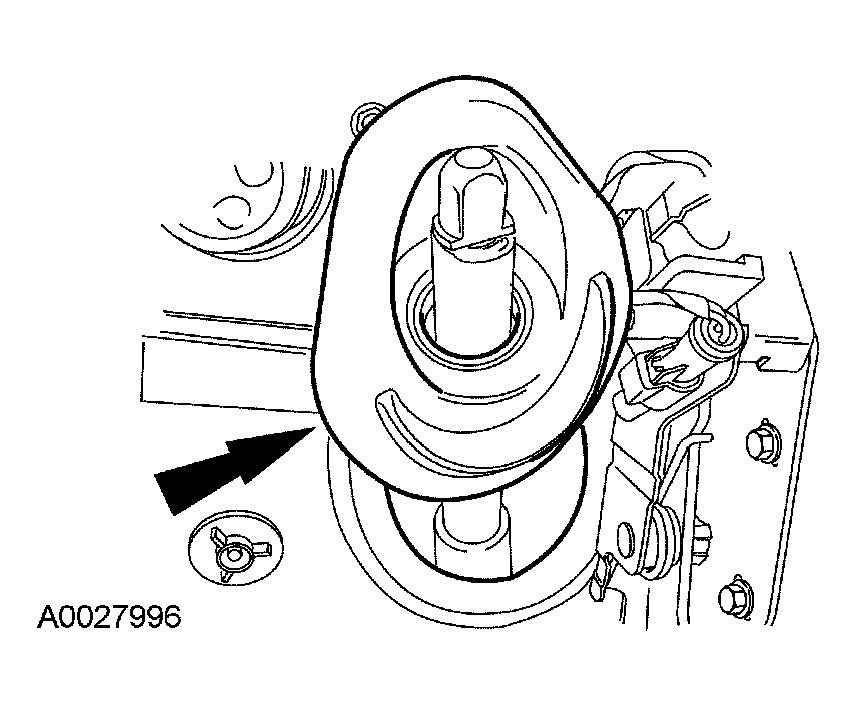

  5. Remove the steering column shaft dash panel seal.
    Fig 4: Removing Steering Column Shaft Dash Panel Seal
    G03884910Courtesy of FORD MOTOR CO.

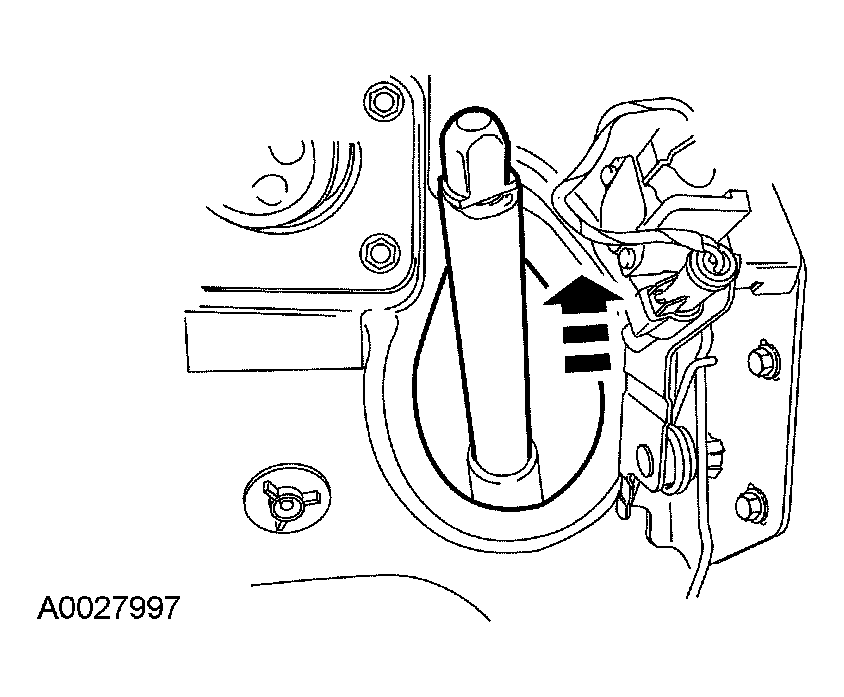

  6. Remove the steering column shaft.
    Fig 5: Removing Steering Column Shaft
    G03884911Courtesy of FORD MOTOR CO.

    7. Commercial chassis

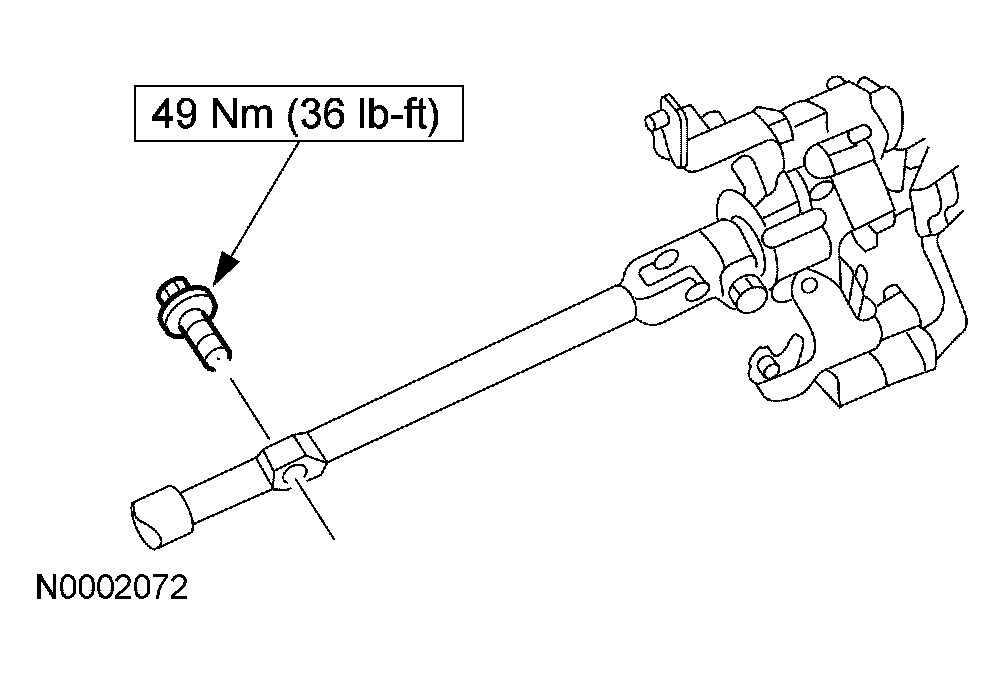

  7. Remove the steering column shaft-to-steering gear shaft bolt.
    Fig 6: Removing Steering Column Shaft-To-Steering Gear Shaft Bolt
    G03884912Courtesy of FORD MOTOR CO.

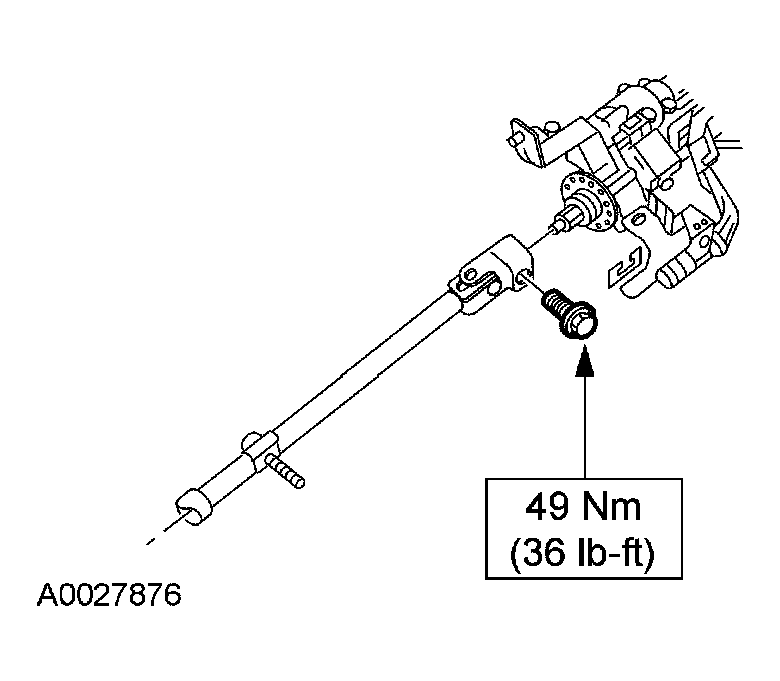

  8. Remove the steering column shaft-to-steering column pinch bolt and disconnect the steering column shaft from the steering column.
    Fig 7: Removing Steering Column Shaft-To-Steering Column Pinch Bolt
    G03884903Courtesy of FORD MOTOR CO.
  9. Remove the steering column shaft.

    10. All vehicles

  10. To install, reverse the removal procedure.
