2005 Ford Econoline E150, Van Cargo, 5.4 LFACTORY OEM SERVICE PROCEDURE

Steering Gear: Disassembly

NOTE: The steering gear input shaft and seals cannot be repaired or installed separately. New gear installation may be necessary.
  1. Secure the steering gear in a vise with the indexing flat pointed down. Use protective caps on the vise jaws.

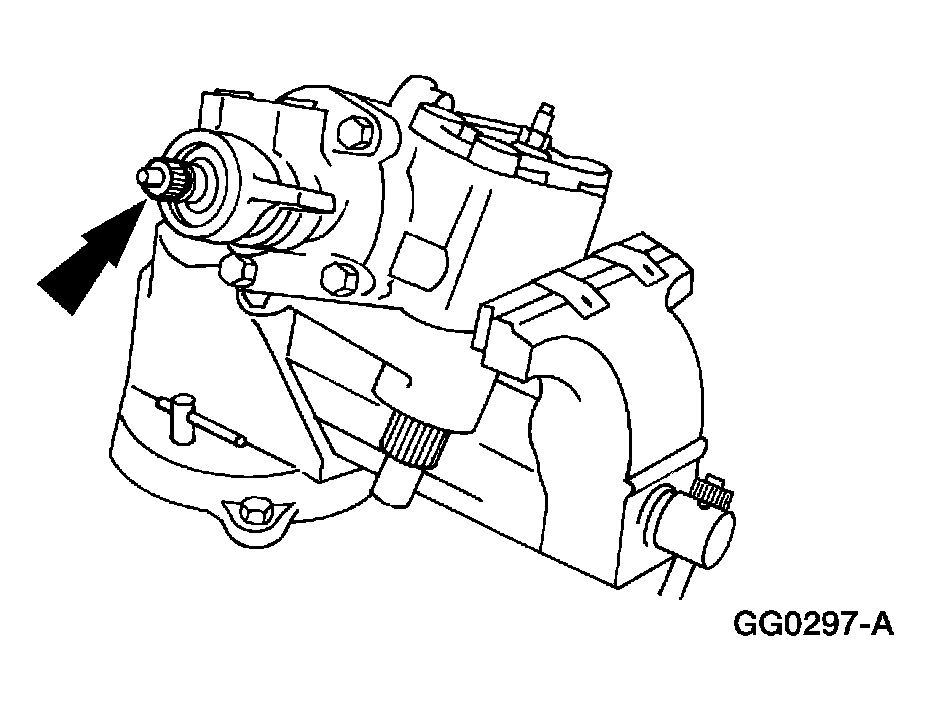

    Fig 1: Securing Steering Gear
    G03884806Courtesy of FORD MOTOR CO.
  2. Rotate the power steering gear input shaft and control from stop-to-stop and then center the gear.

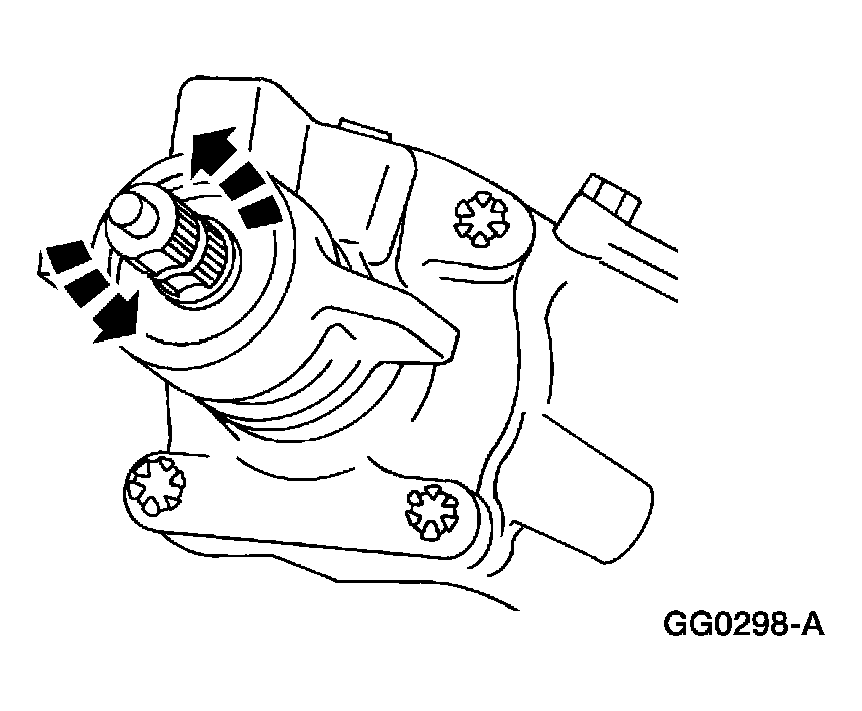

    Fig 2: Rotating Power Steering Gear Input Shaft
    G03884807Courtesy of FORD MOTOR CO.
  3. Remove the steering gear sector shaft housing cover bolts.

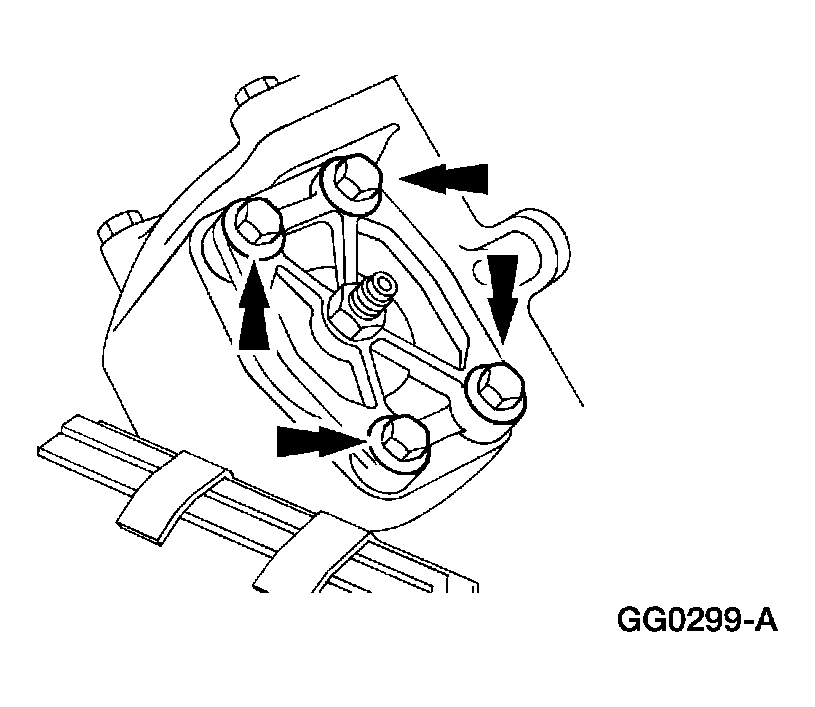

    Fig 3: Removing Steering Gear Sector Shaft Housing Cover Bolts
    G03884808Courtesy of FORD MOTOR CO.
  4. Tap on the lower end of the steering gear sector shaft.

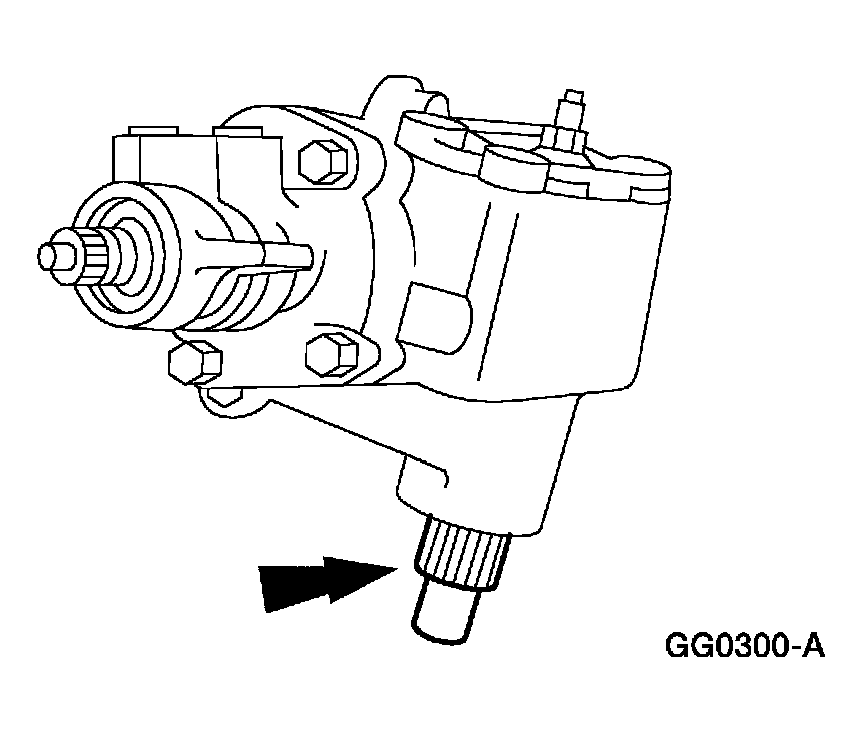

    Fig 4: Identifying Steering Gear Sector Shaft
    G03884809Courtesy of FORD MOTOR CO.
