2005 Ford Econoline E150, Van Cargo, 5.4 LFACTORY OEM SERVICE PROCEDURE

Pinpoint Test F: DTC C1185: Testing

NOTE: Repair all other DTCs before proceeding.
  1. F1 CHECK THE ANTI-LOCK BRAKE SYSTEM (ABS) MODULE FOR DTCS
    • Key in OFF position.
    • Connect the diagnostic tool.
    • Retrieve and record the ABS module DTCs.
    • Is DTC C1185 retrieved?
    • Yes  : GO to F2.
    • No  : CLEAR the DTCs. DRIVE the vehicle over a rough road. REPEAT the self-test. TEST the system for normal operation.
  2. F2 CHECK CIRCUIT 532 (OG/YE) FOR POWER
    • Measure the voltage between the ABS module C135 pin 9, circuit 532 (OG/YE), harness side and ground; and between the ABS module C135 pin 25, circuit 532 (OG/YE), harness side and ground.

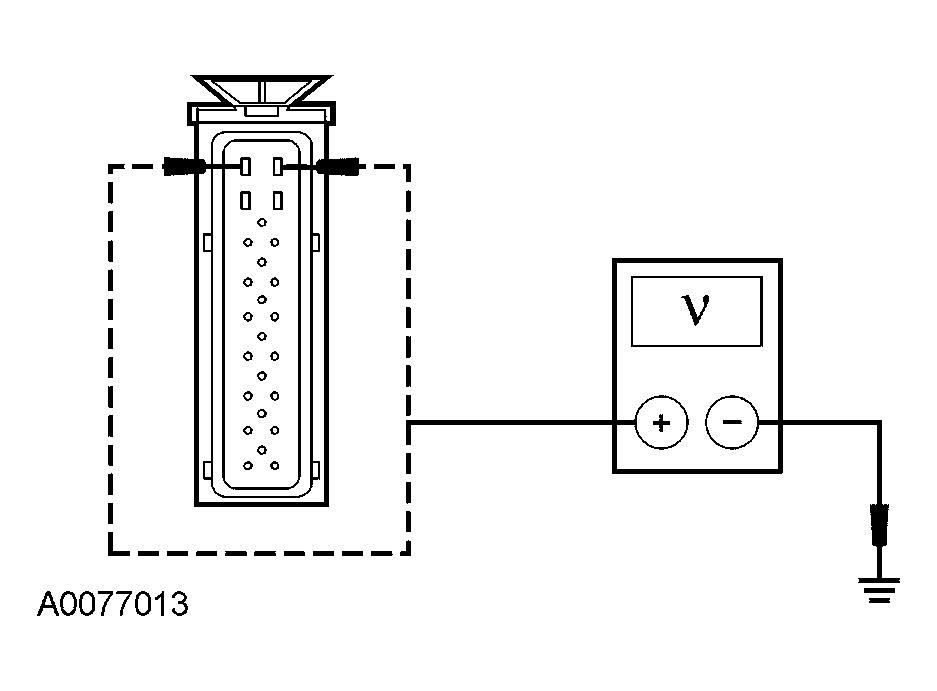

      Fig 1: Measuring Voltage Between ABS Module C135 pin 9, Circuit 532 (OG/YE) & Ground & Between ABS Module C135 Pin 25 & Ground
      G03891577Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : GO to F3.
    • No  : REPAIR the circuit. REPEAT the self-test. TEST the system for normal operation.
  3. F3 CHECK FOR CORRECT ABS MODULE OPERATION
    • Disconnect all ABS connectors.
    • Check for:
      • corrosion
      • pushed-out pins
    • Connect all ABS connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
    • Yes  : INSTALL a new ABS module. REFER to ANTI-LOCK BRAKE SYSTEM (ABS) MODULE . TEST the system for normal operation.
    • No  : The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test. TEST the system for normal operation.
