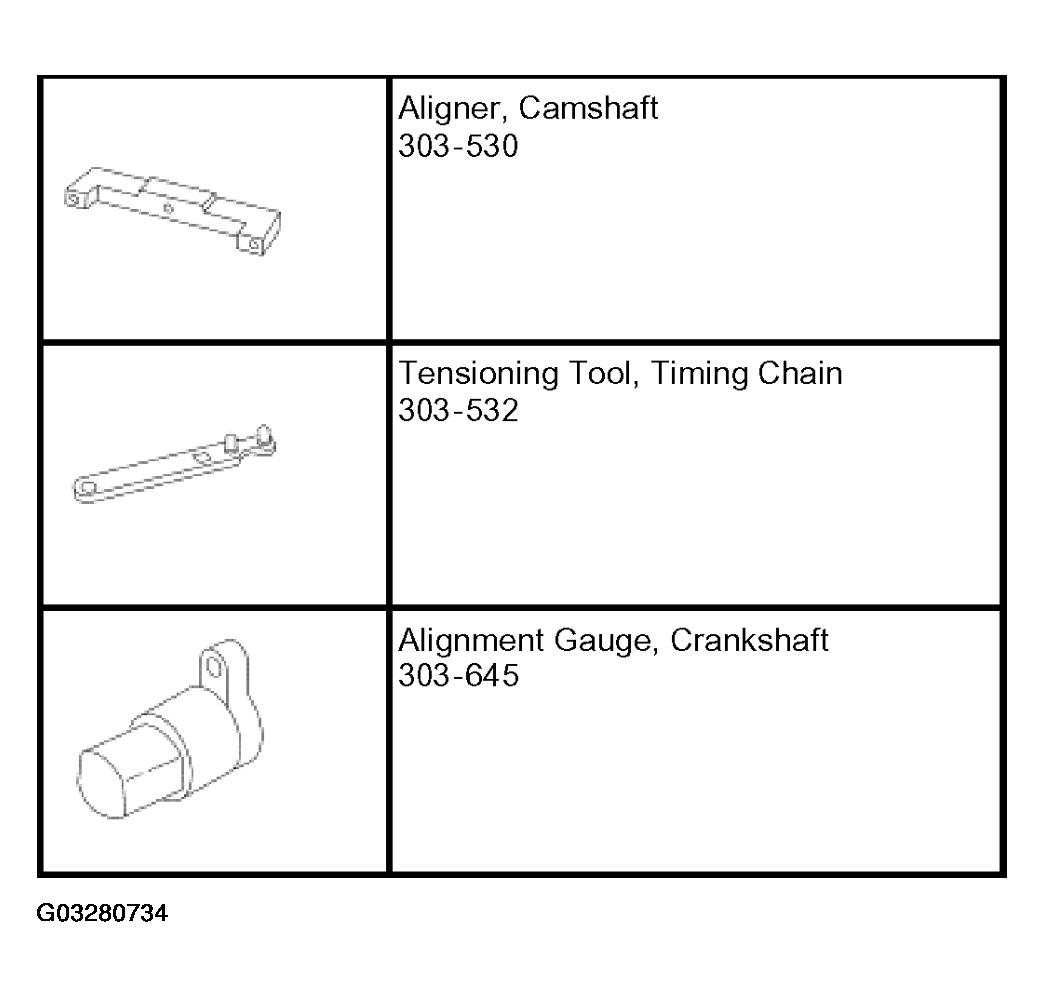

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

MATERIALS

Item	Specification
Super Premium SAE 5W-20 XO-5W20-QSP or equivalent	WSS-M2C153-H

Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .

Remove the components in the order indicated in the following illustration and table. To remove individual components, only carry out the listed steps.

TIMING DRIVE COMPONENT REMOVAL STEPS

Component	Steps
Timing gears, chain and tensioners	1-20
Variable camshaft timing (VCT) bush carriers	1-9
VCT units, exhaust camshaft sprockets, secondary timing chains and tensioners, and crankshaft sprocket	1-35

Remove the components in the order indicated in the following illustration and table.

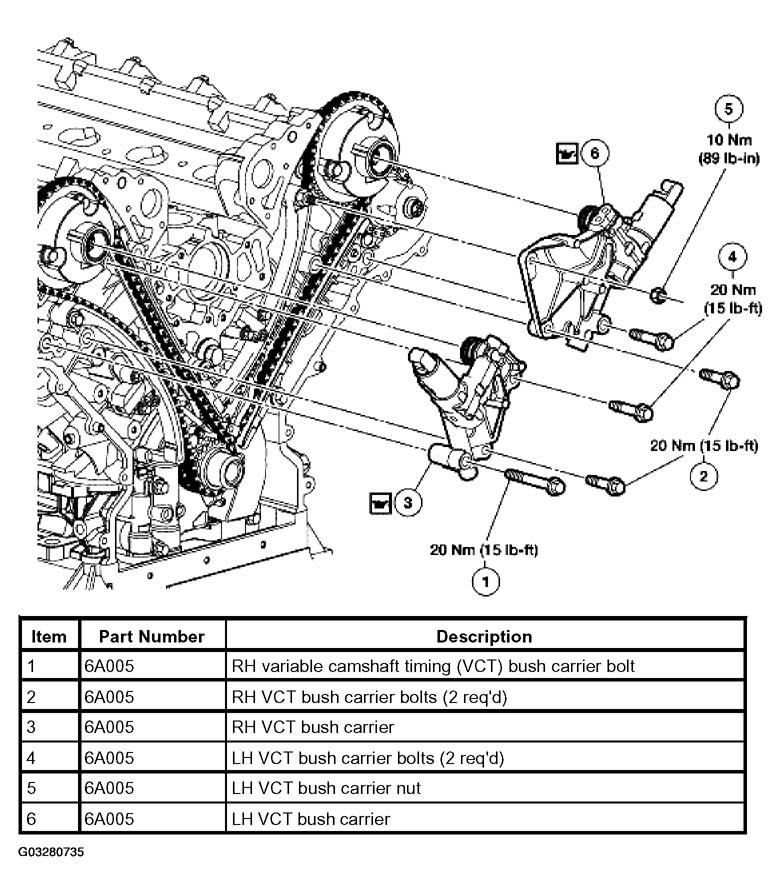

Fig 2: Removing Timing Components (Items 1-6)
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table.

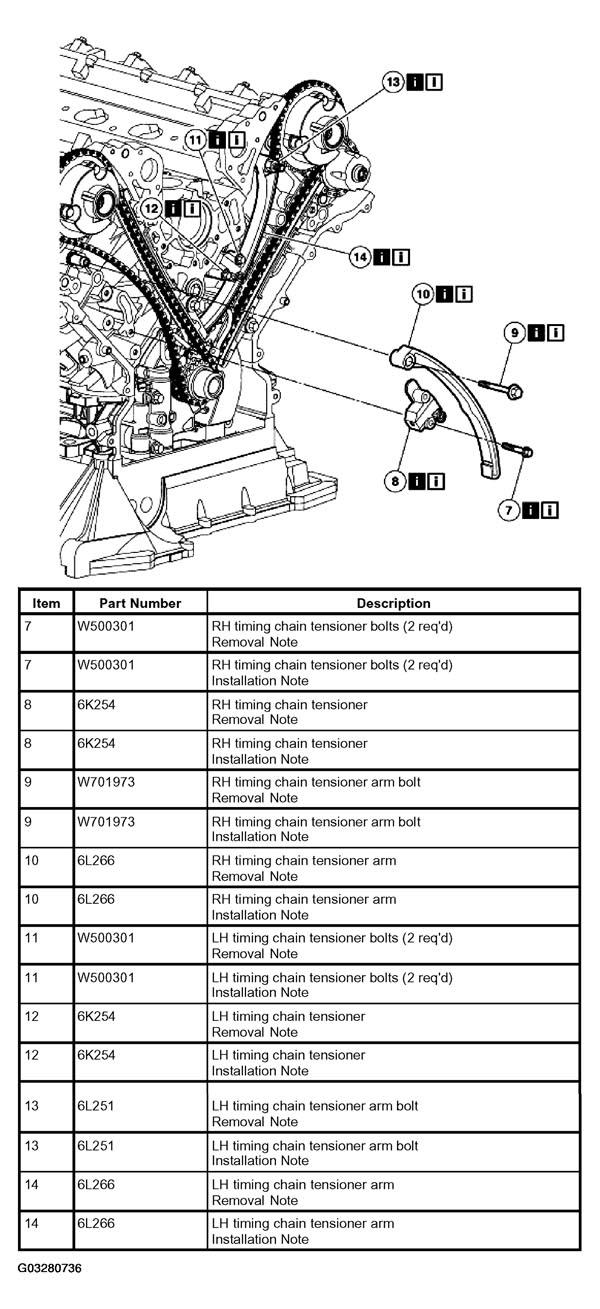

Fig 3: Removing Timing Components (Items 7-14)
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table.

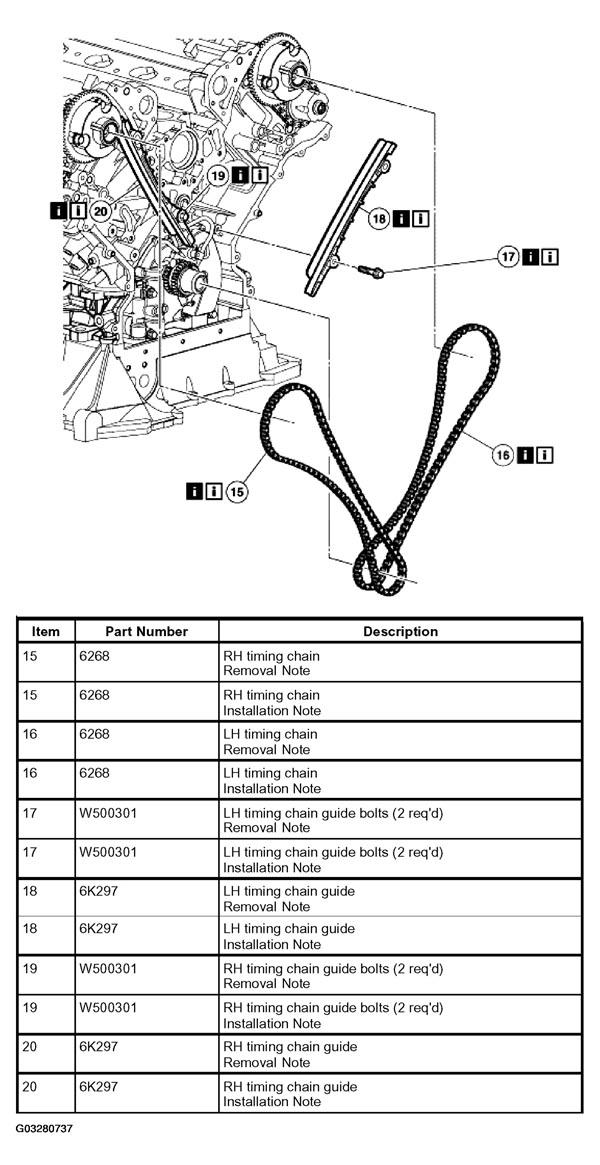

Fig 4: Removing Timing Components (Items 15-20)
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table.

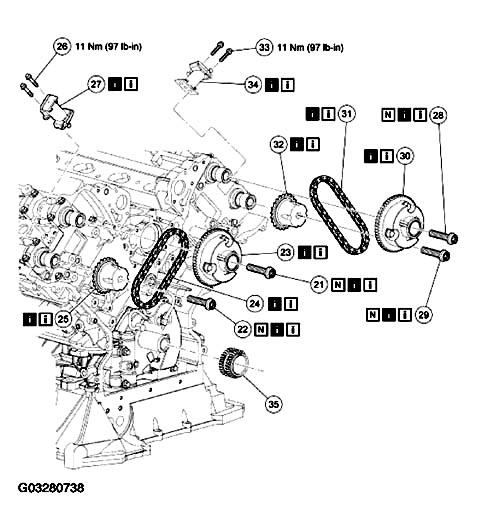

Fig 5: Exploded View Of Timing Components
Courtesy of FORD MOTOR CO.
