Engine Mount

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to GENERAL INFORMATION .
2. Disconnect the battery ground cable.
3. Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS .
4. Remove the upper radiator sight shield.

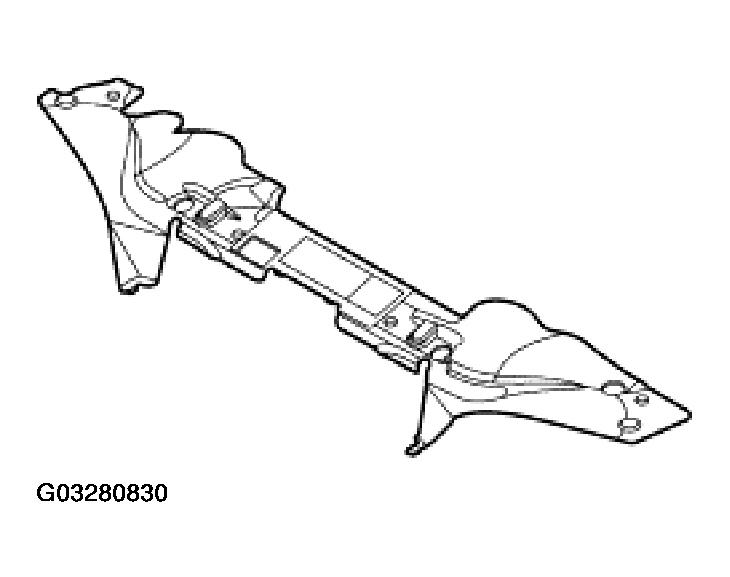

   Fig 2: Removing Upper Radiator Sight Shield

   Courtesy of FORD MOTOR CO.
5. Install the special tools and support the engine.

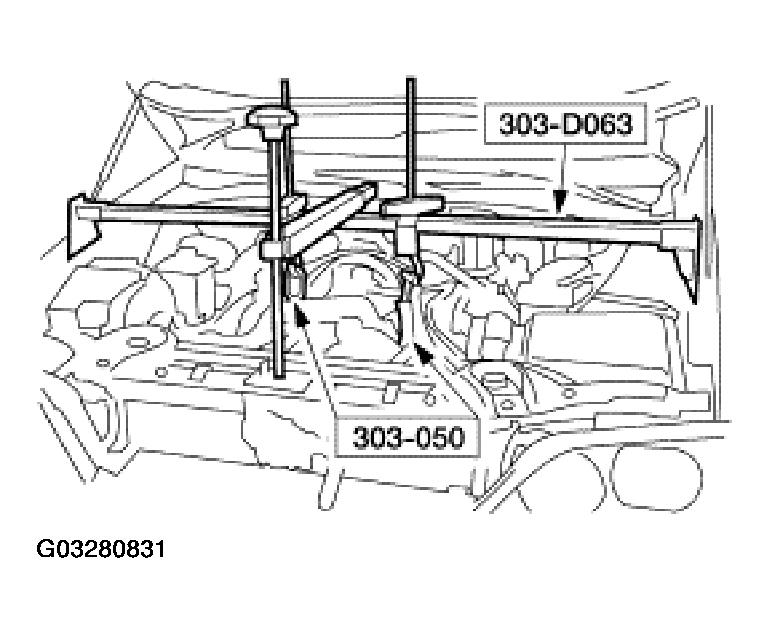

   Fig 3: Installing Special Tools & Support Engine

   Courtesy of FORD MOTOR CO.
6. Remove the LH and the RH lower splash shield.

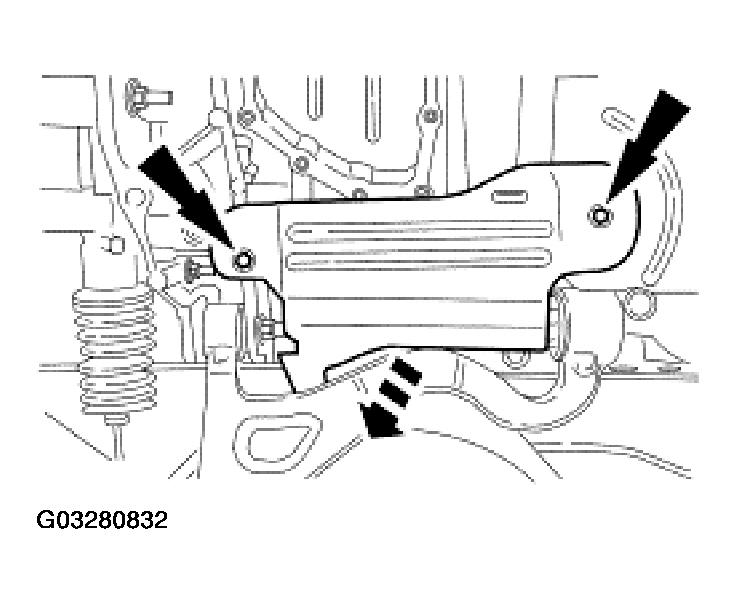

   Fig 4: Removing LH & RH Lower Splash Shield

   Courtesy of FORD MOTOR CO.
7. Remove the components in the order indicated in the following illustration and table. To remove individual components, only carry out the listed steps.
   ENGINE MOUNT REMOVAL STEPS



   Component	Steps
   RH motor mount	1-6
   LH motor mount	7-12

8. To install, reverse the removal procedure.

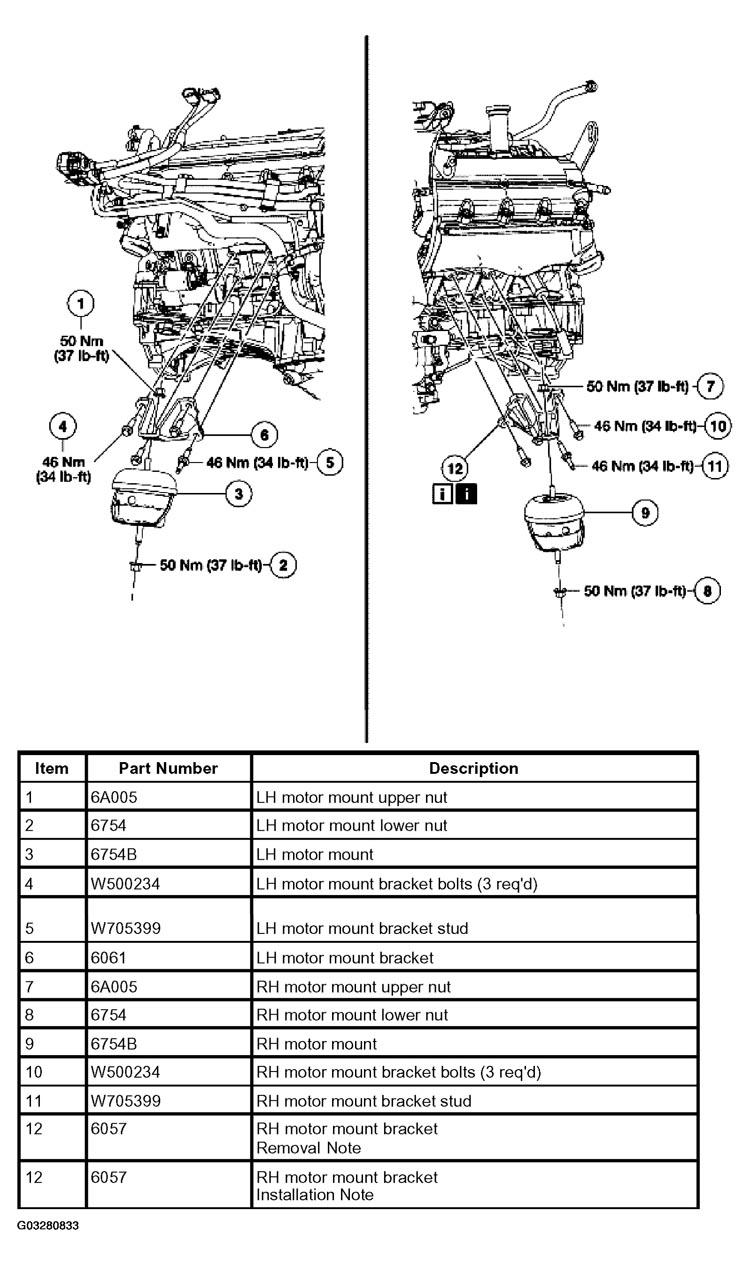

   Fig 5: Removing Motor Mounts

   Courtesy of FORD MOTOR CO.

ITEM 12: RH MOTOR MOUNT BRACKET REMOVAL NOTE

1. Remove the nut and disconnect the starter motor ground cable.

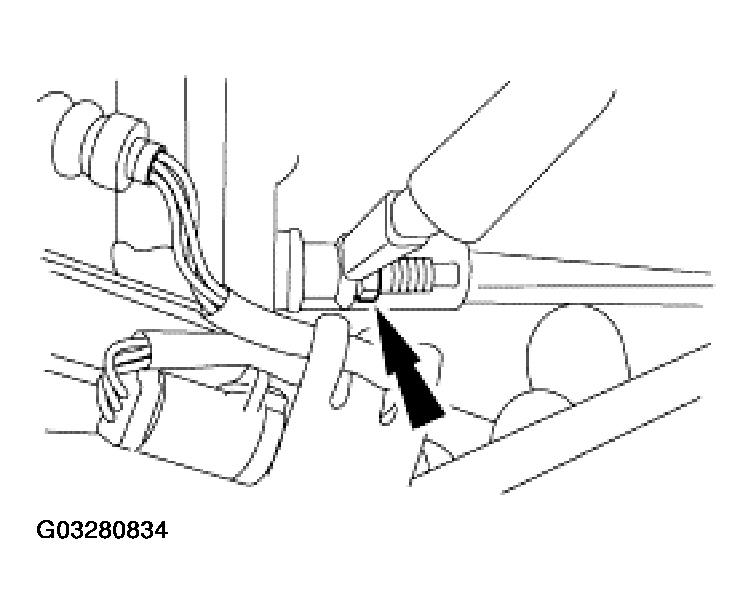

   Fig 6: Removing Nut & Disconnect Starter Motor Ground Cable

   Courtesy of FORD MOTOR CO.
2. Remove the nut and disconnect the wiring harness support bracket from the engine mount bracket.

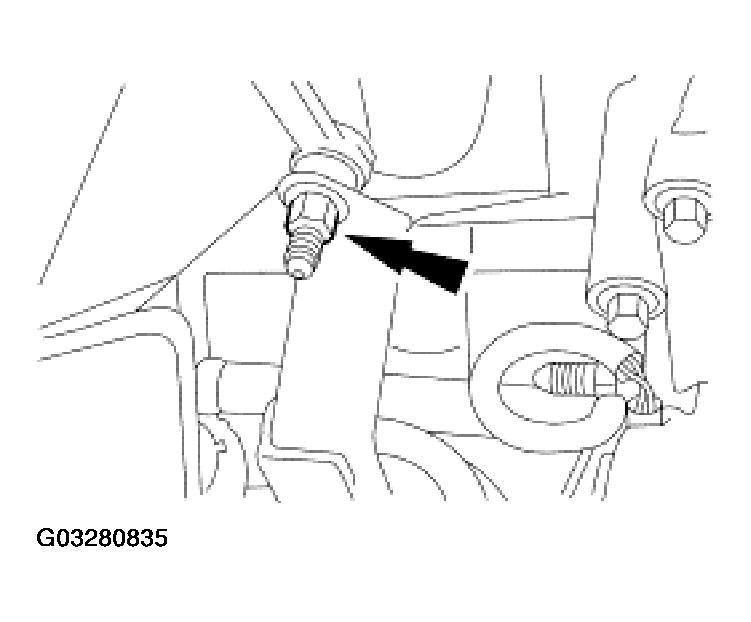

   Fig 7: Disconnecting Wiring Harness Support Bracket From Engine Mount Bracket

   Courtesy of FORD MOTOR CO.

ITEM 12: RH MOTOR MOUNT BRACKET INSTALLATION NOTE

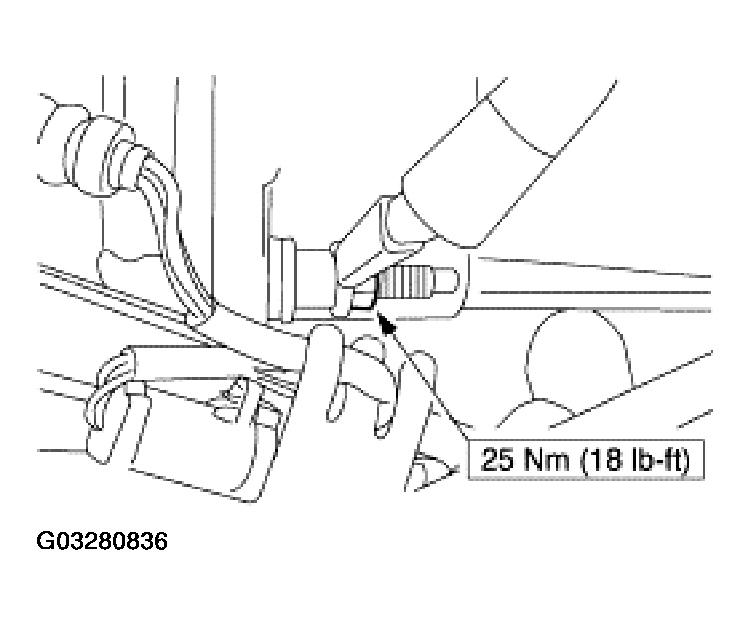

1. Connect the starter motor ground cable and install the nut.
   Fig 8: Connecting Starter Motor Ground Cable

   Courtesy of FORD MOTOR CO.

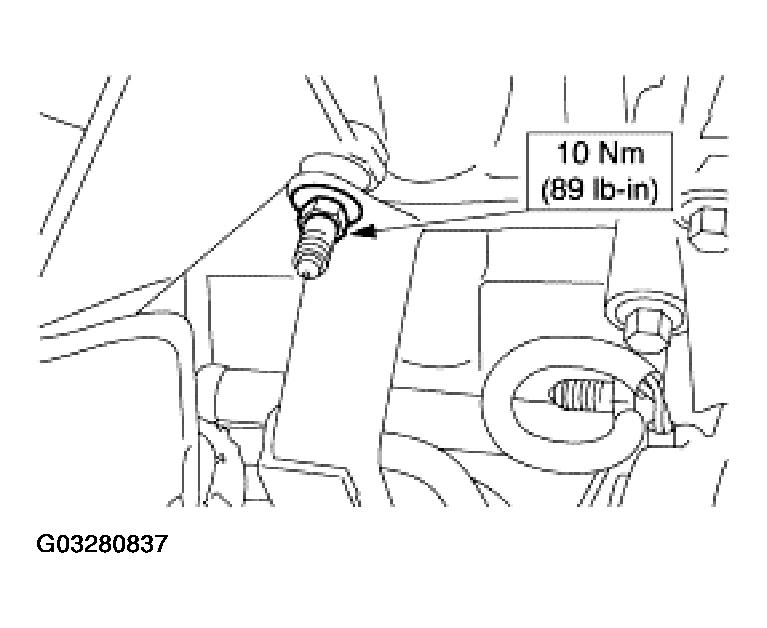

2. Connect the wiring harness support bracket to the engine mount bracket and install the nut.
   Fig 9: Connecting Wiring Harness Support Bracket To Engine Mount Bracket

   Courtesy of FORD MOTOR CO.
