Automatic Transmission: Installation: Transaxle

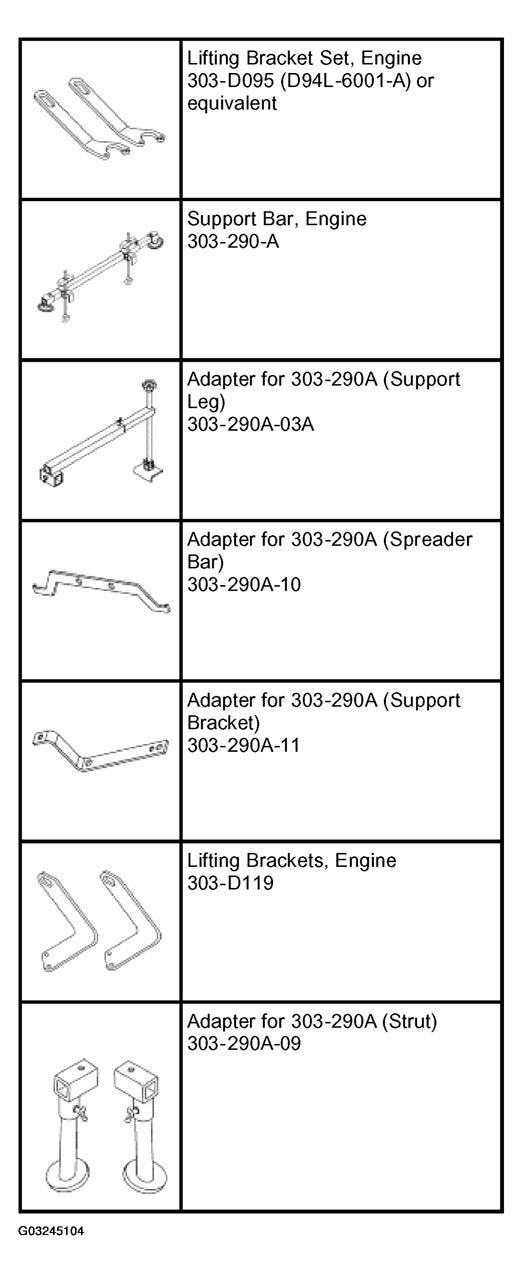

Special Tool(s)

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V
Multi-Purpose Grease D0AZ-19584-AA	ESB-M1C93-B

1. Secure the transaxle on a high lift transmission jack. Apply multi-purpose grease to the torque converter pilot hub.

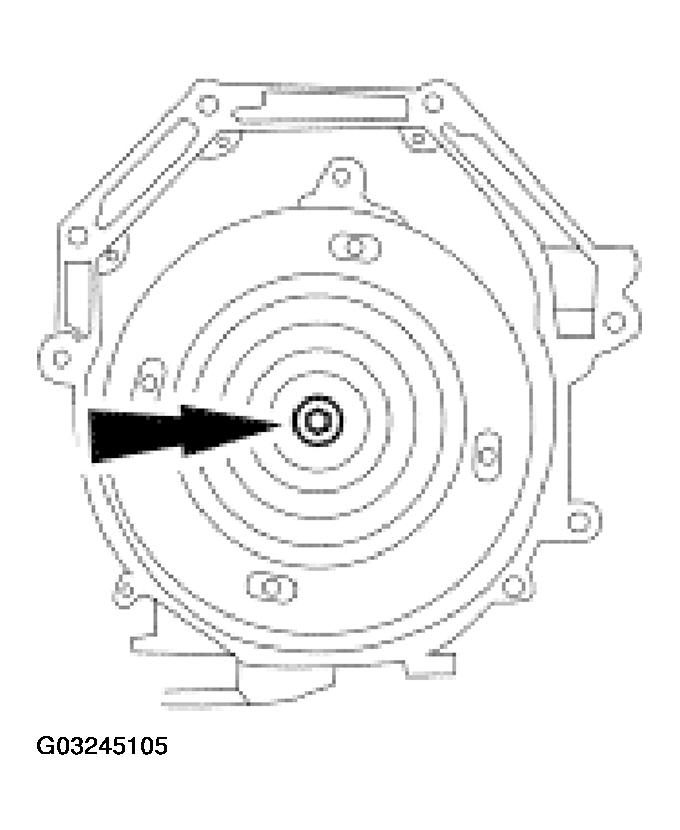

   Fig 2: Applying Multi-Purpose Grease To Torque Converter Pilot Hub

   Courtesy of FORD MOTOR CO.

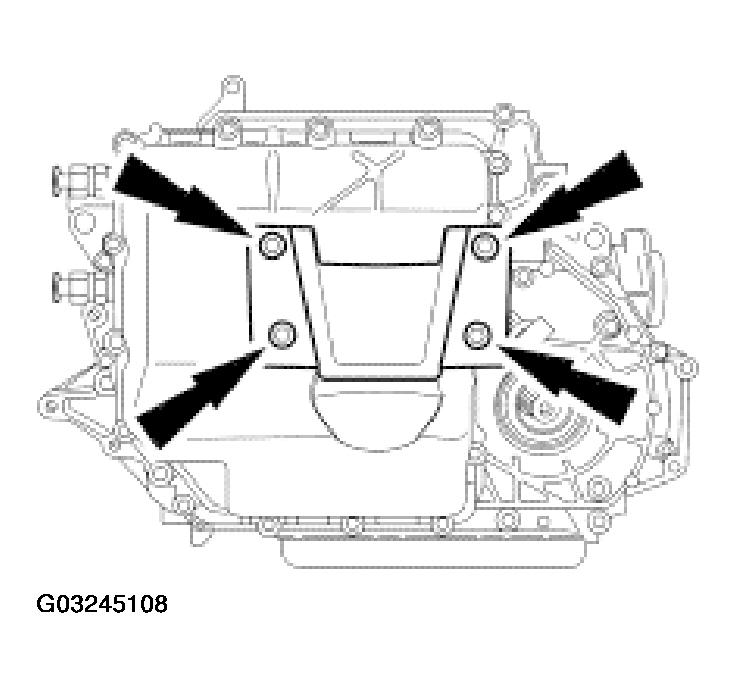

2. Install the shift cable bracket and bolts.
   • Tighten to 23 Nm (17 lb-ft).

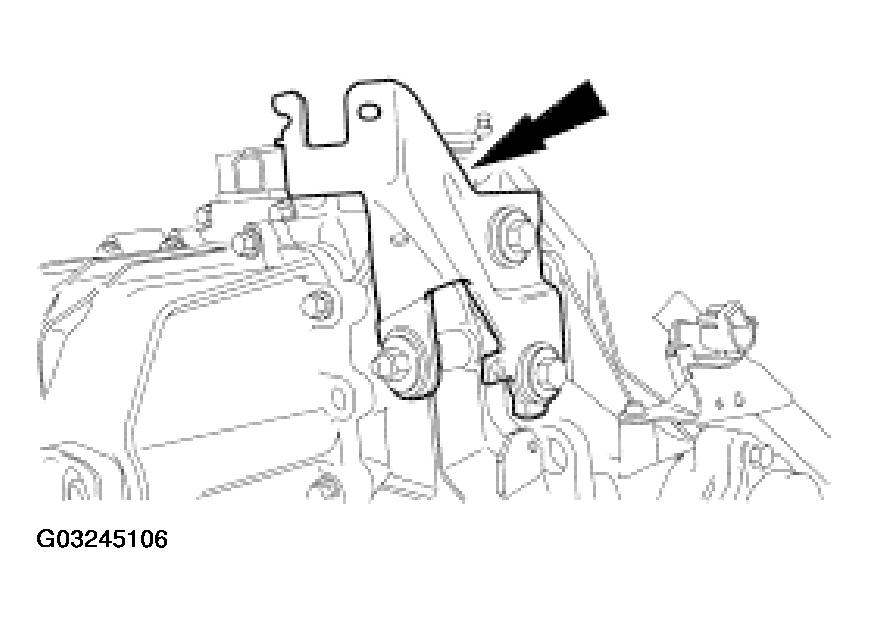

   Fig 3: Installing Shift Cable Bracket And Bolts

   Courtesy of FORD MOTOR CO.
3. If not previously installed, install the heat shield.

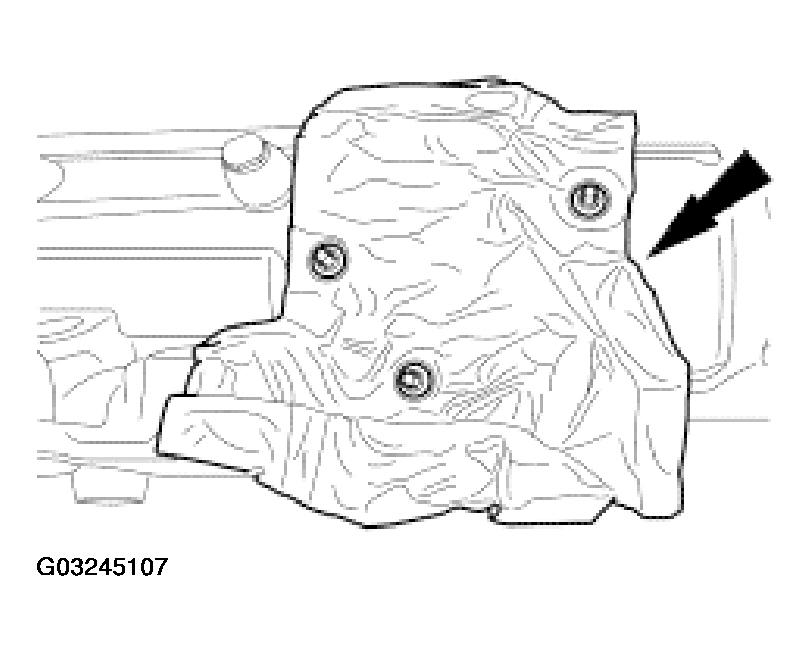

   Fig 4: Installing Heat Shield

   Courtesy of FORD MOTOR CO.
4. If not previously installed, install the rear engine support bracket.
   • Tighten to 62 Nm (46 lb-ft).
   Fig 5: Installing Rear Engine Support Bracket

   Courtesy of FORD MOTOR CO.
5. Verify the position of the special tools.

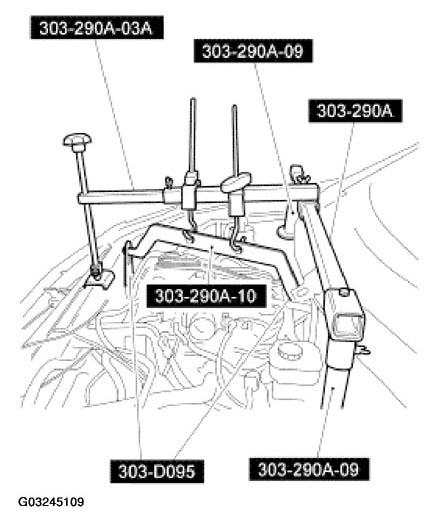

   Fig 6: Verifying Position Of Special Tools

   Courtesy of FORD MOTOR CO.
6. Position the transaxle to the back of the engine.

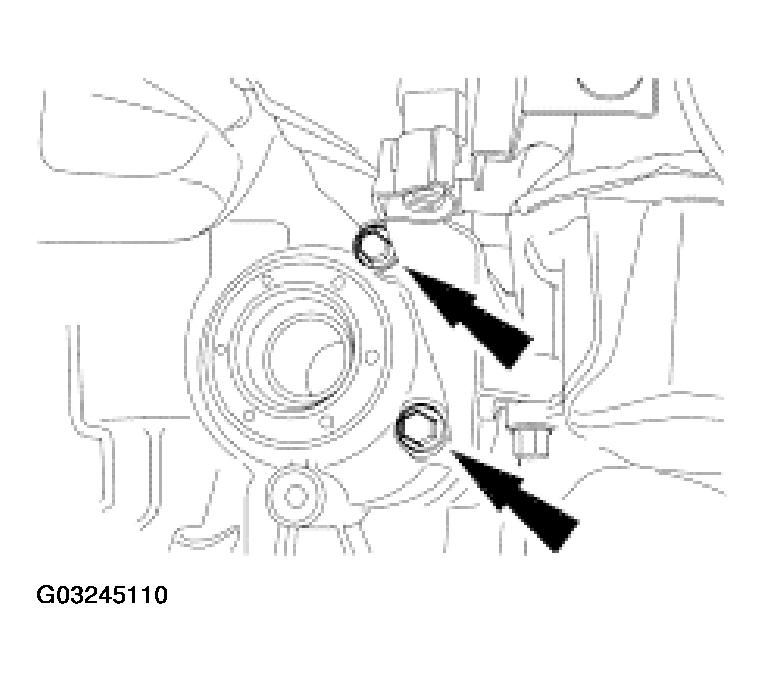

7. Position the transaxle to the engine assembly, and install the transaxle retaining bolts.
   • Tighten to 47 Nm (35 lb-ft).
   Fig 7: Installing Transaxle Retaining Bolts

   Courtesy of FORD MOTOR CO.

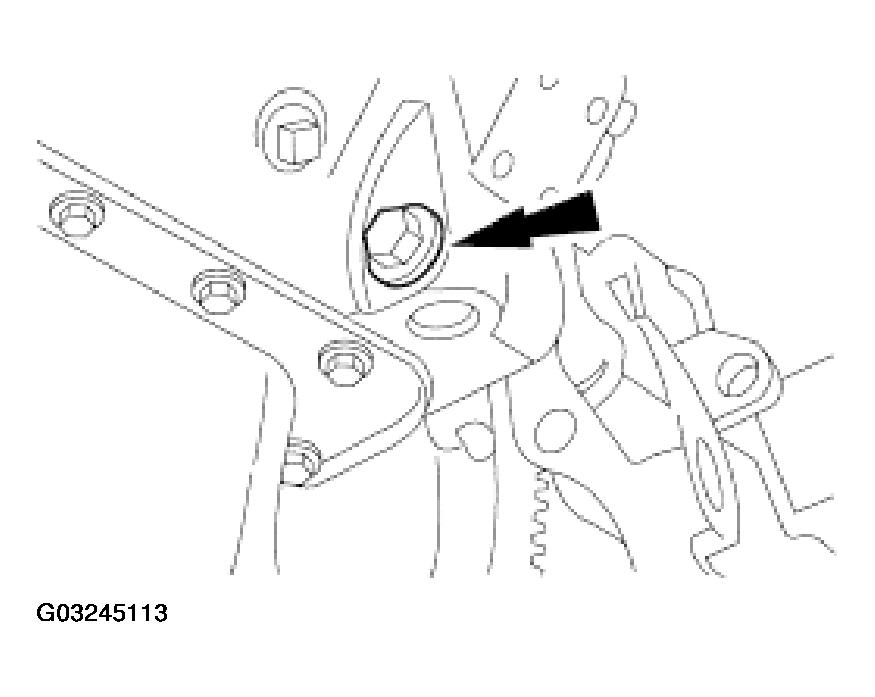

8. Install the oil pan-to-transaxle case bolt.
   • Tighten to 62 Nm (46 lb-ft).
   Fig 8: Installing Oil Pan-To-Transaxle Case Bolt

   Courtesy of FORD MOTOR CO.
9. Install the oil pan-to-transaxle case bolt.
   • Tighten to 62 Nm (46 lb-ft).
   Fig 9: Installing Oil Pan-To-Transaxle Case Bolt

   Courtesy of FORD MOTOR CO.

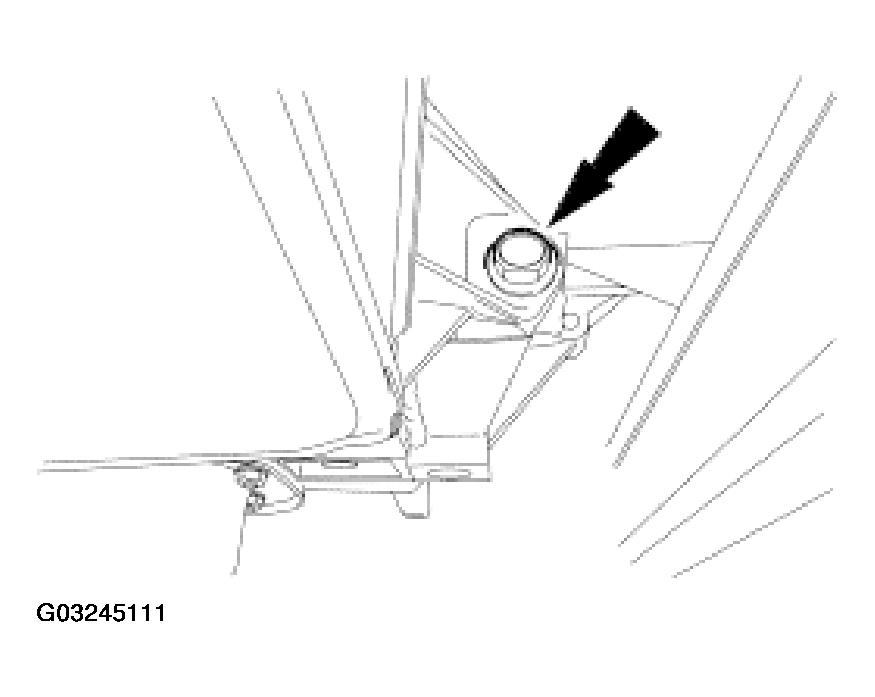

10. Install the front lower retaining bolt.
    • Tighten to 62 Nm (46 lb-ft).

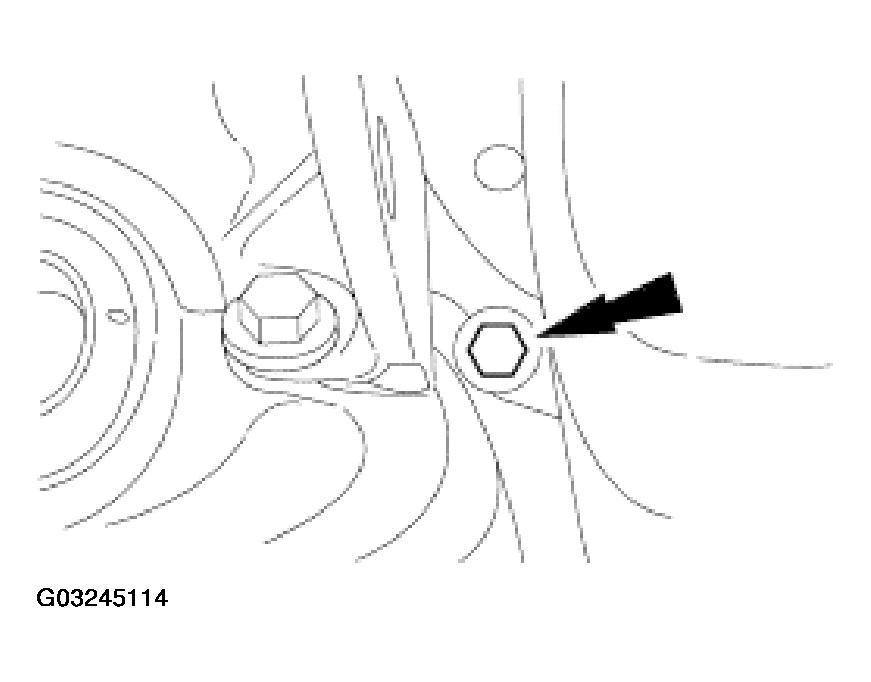

    Fig 10: Installing Front Lower Retaining Bolt

    Courtesy of FORD MOTOR CO.

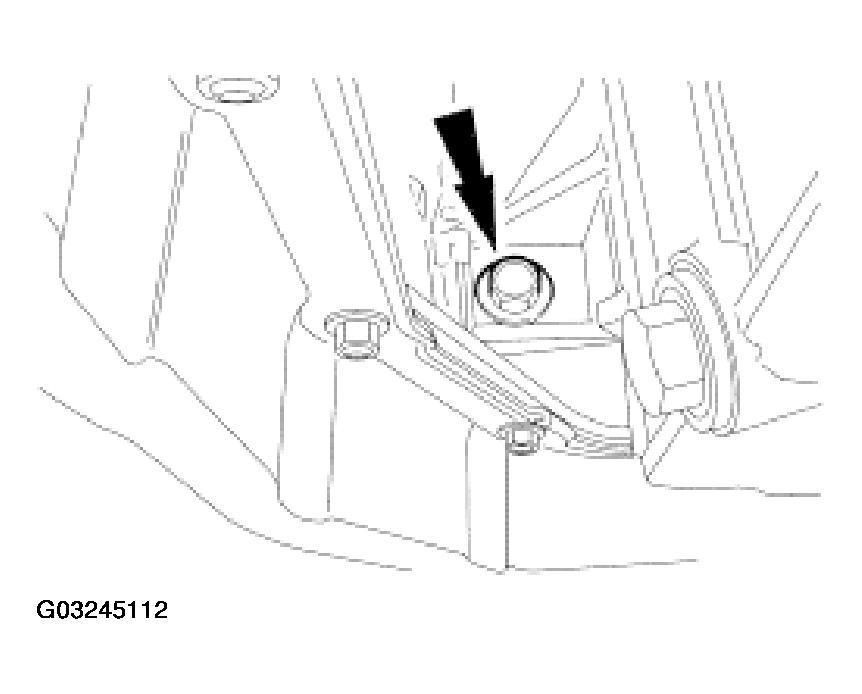

11. Install the rear lower retaining bolt.
    • Tighten to 62 Nm (46 lb-ft).
    Fig 11: Installing Rear Lower Retaining Bolt

    Courtesy of FORD MOTOR CO.
12. Remove the high-lift transmission jack.

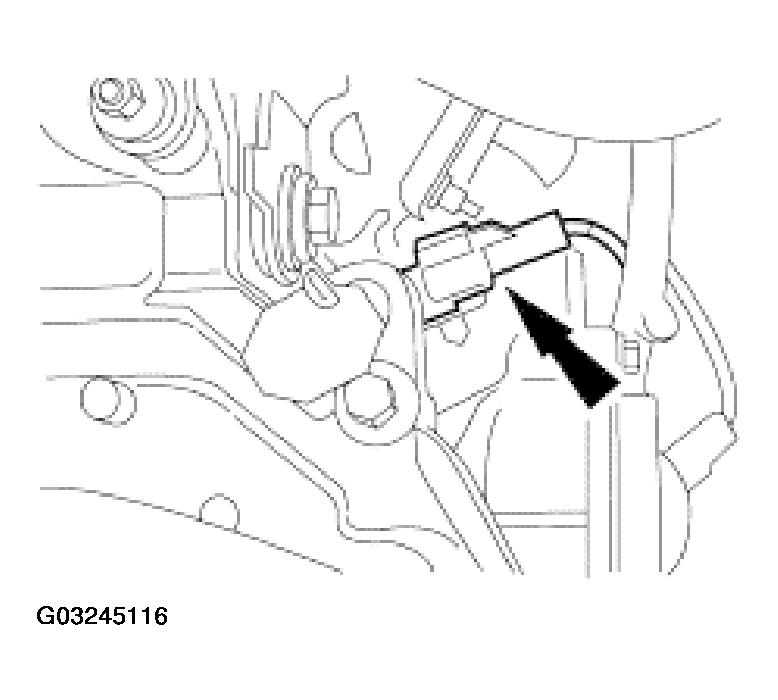

13. Connect the turbine shaft speed (TSS) sensor electrical connector.

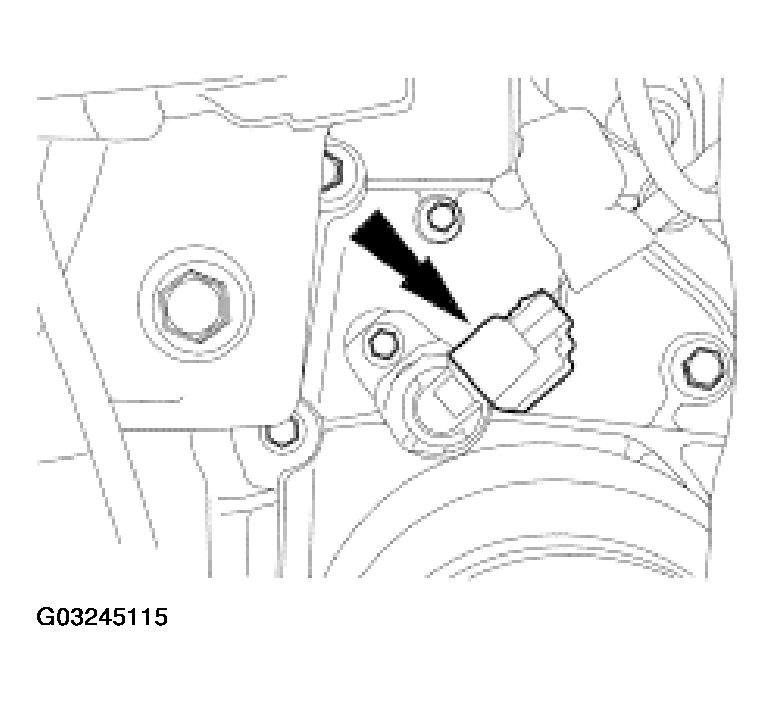

    Fig 12: Connecting Turbine Shaft Speed (TSS) Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
14. Connect the output shaft speed (OSS) sensor electrical connector.
    Fig 13: Connecting Output Shaft Speed (OSS) Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.

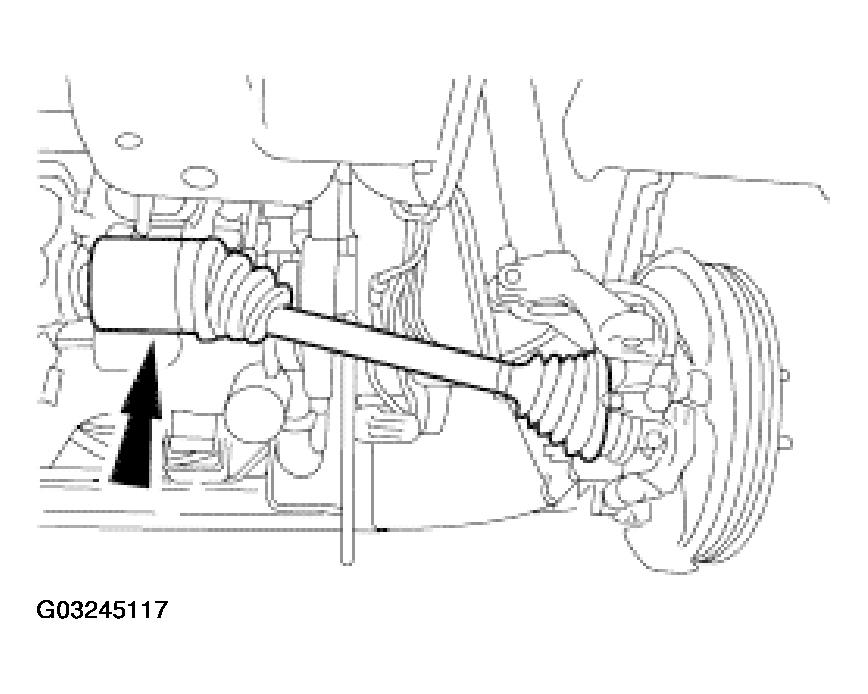

15. Install the RH halfshaft.

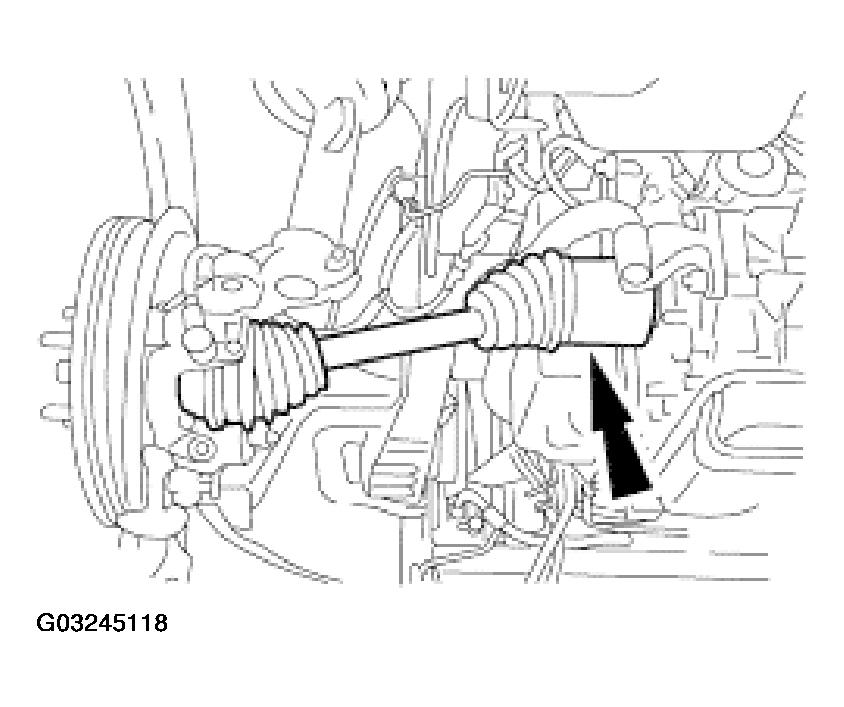

    Fig 14: Installing RH Halfshaft

    Courtesy of FORD MOTOR CO.
16. Install the LH halfshaft.
    Fig 15: Installing LH Halfshaft

    Courtesy of FORD MOTOR CO.
NOTE: Locate and align the orange dot adjacent to the stud on the torque converter with the orange dot on the flexplate.
