2004 Ford Freestar BaseFACTORY OEM SERVICE PROCEDURE

Pump Assembly: Disassembly

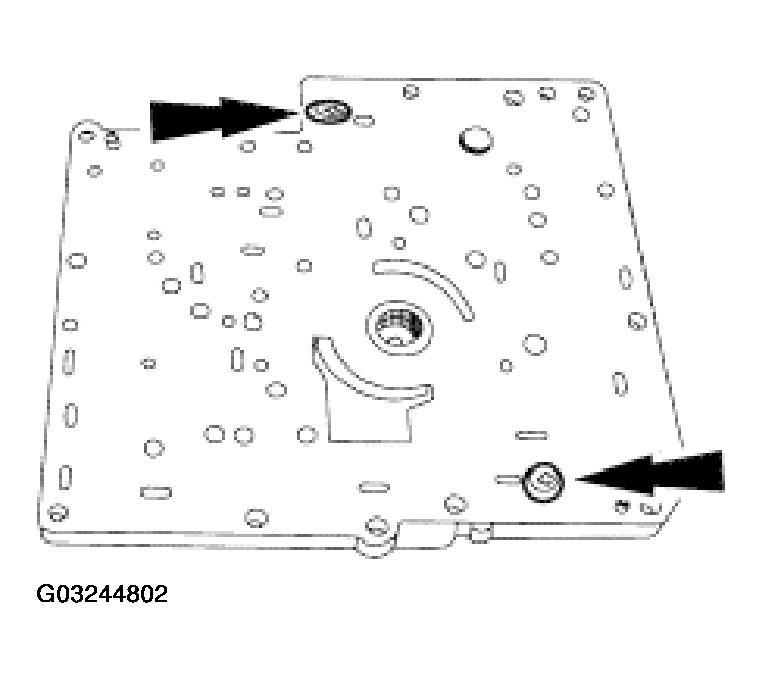

Remove the bolts.

Fig 1: Removing Bolts
Courtesy of FORD MOTOR CO.

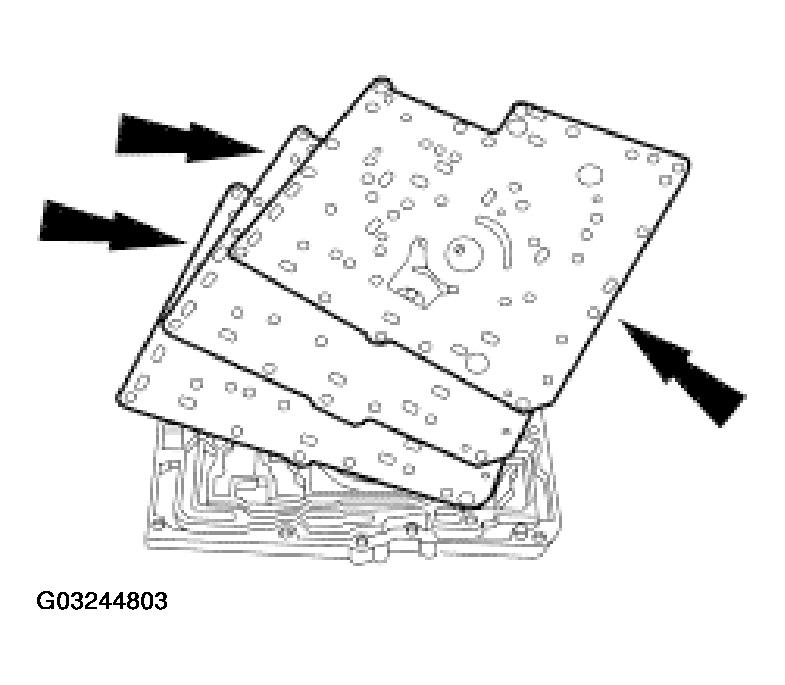

Remove the valve body separator plates and gaskets.

Fig 2: Removing Valve Body Separator Plates And Gaskets
Courtesy of FORD MOTOR CO.

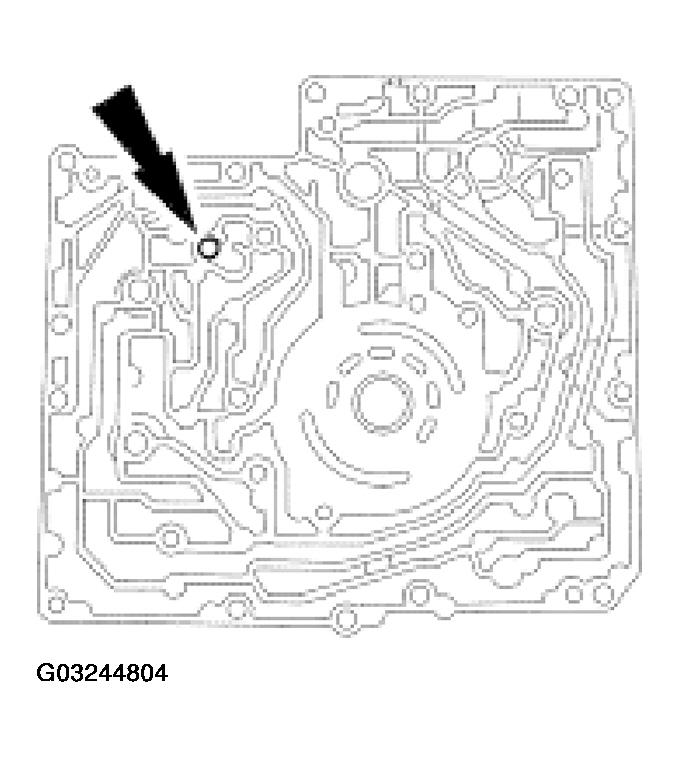

Remove the check ball and note the location.

IDENTIFYING B8 CHECK BALL LOCATION


Item	Check Ball Location
1	B8

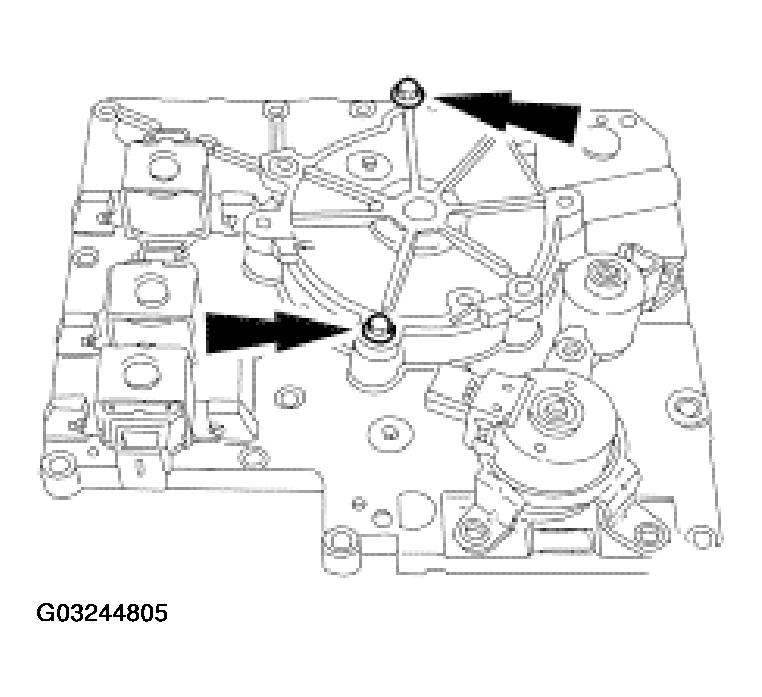

Remove the bolts and the pump cover.

Fig 3: Removing Bolts And Pump Cover
Courtesy of FORD MOTOR CO.

WARNING: Use extreme caution when removing spring to prevent personal injury.
