Engine Mount: Notes

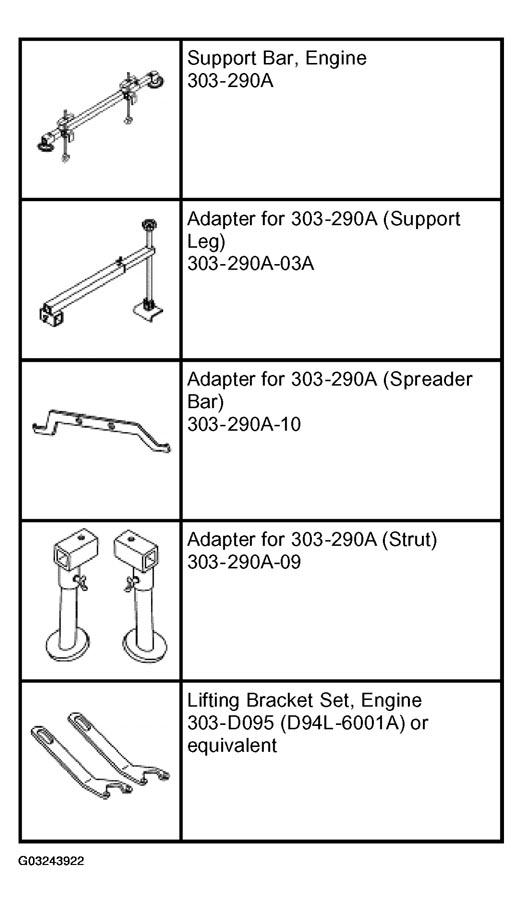

Special Tool(s)
- If removing the RH, LH or rear engine mount, the vehicle must be lifted on a hoist during this procedure. With the vehicle in neutral, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- If removing the RH, LH or rear engine mount, remove the hood.
- If removing the RH, LH or rear engine mount, remove the wiper motor and pivot assembly. For additional information, refer to WINDSHIELD WIPER .

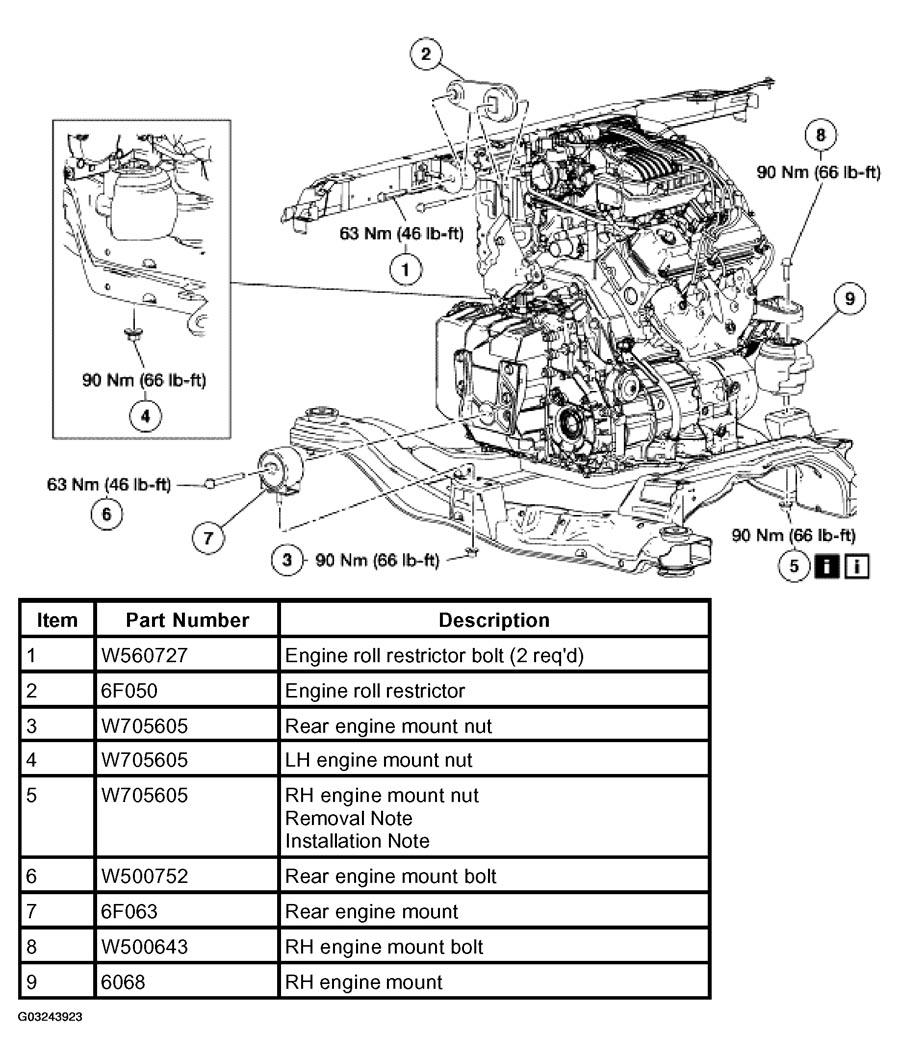

- Remove the parts in the order indicated in the following illustrations.
To remove individual parts, only carry out the listed steps:
Part Steps Engine roll restrictor 1-2 Rear engine mount 1-7 RH engine mount 1-5, 8-9 LH engine mount 1-5, 10-12
