2004 Ford Focus SVT, 2D HatchbackFACTORY OEM SERVICE PROCEDURE
Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | In left rear corner of engine compartment, under master cylinder. See Figure . |
| Driver Air Bag Unit | On steering column. |
| Fuel Pump Driver Module | Under right rear seat. See Figure . |
| Generic Electronic Module (GEM) | On right "A" pillar. See Figure . |
| Heater Control Module | Behind dash. See Figure . |
| Inlet Manifold Runner Control (IMRC) Module (SVT) | On transmission. See Figure . |

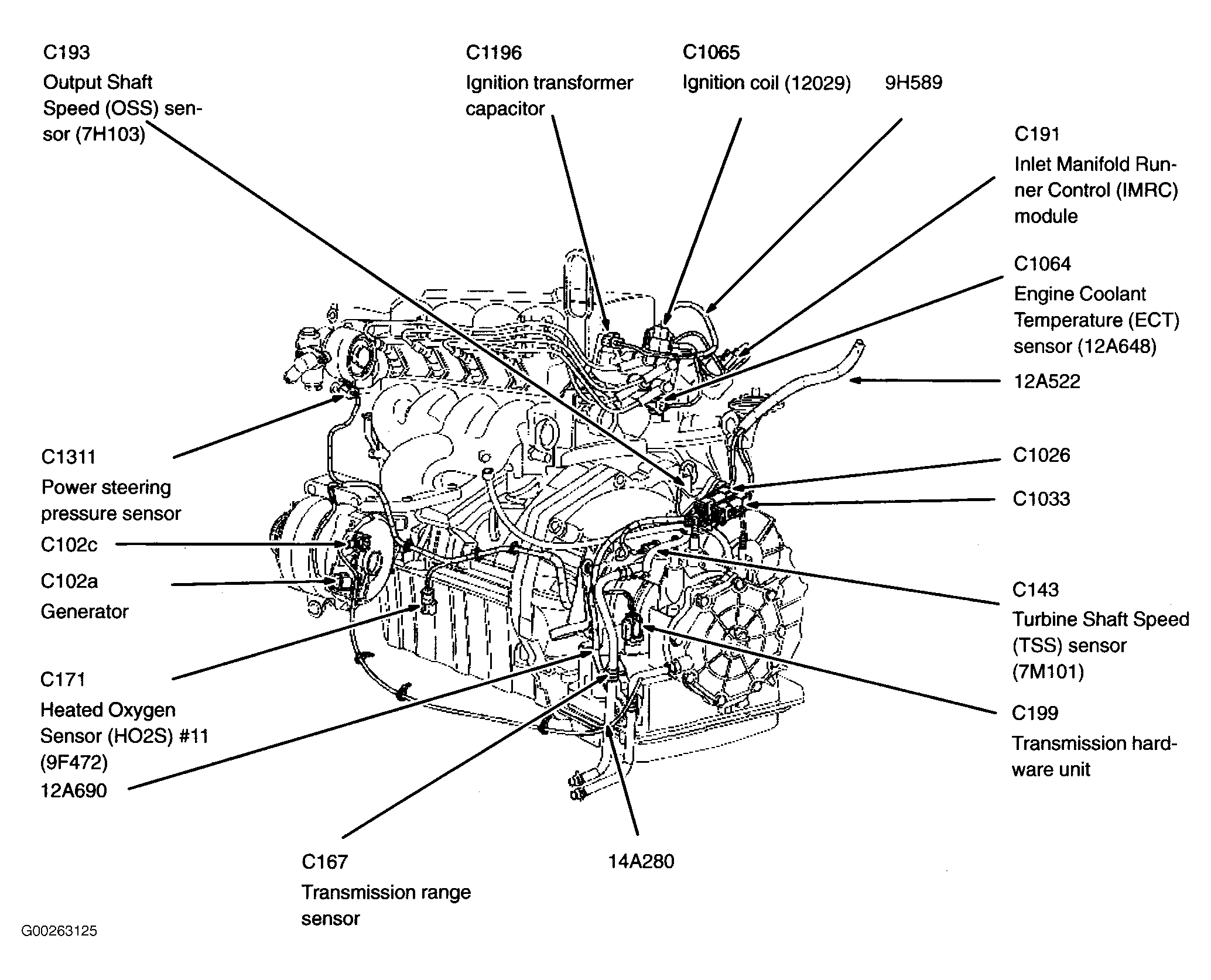

| Inlet Manifold Runner Control (IMRC) Module (2.0L SPI) | On top rear of engine. See Figure . |
| Intake Manifold Runner Control (IMRC) Module (2.3L) | On left rear of engine. See Figure . |
| Passenger Air Bag Module | On passenger side of dash. See Figure . |
| Passive Anti-Theft Transceiver Module | On upper right side of steering column. See Figure . |
| Powertrain Control Module (PCM) | Behind right side of dash, at base of "A" pillar. See Figure . |
| Restraints Control Module | Under center console. See Figure . |
| Roof Opening Panel Unit (Sedan) | At center front of roof. See Figure . |
| Roof Opening Panel Unit (Wagon) | At center front of roof. See Figure . |
| Roof Opening Panel Unit (3-Door, 5-Door) | At center front of roof. See Figure . |
| Side Air Bag Module (Left) | Under left front seat. |
| Side Air Bag Module (Right) | Under right front seat. |
