2004 Ford Focus L4-2.3L VIN ZFACTORY OEM SERVICE PROCEDURE
Tests KB: Fuel Pump Driver Module
PINPOINT TEST KB: FUEL PUMP DRIVER MODULE
KB Introduction 1 Of 8:
KB Introduction 2 Of 8:
KB Introduction 3 Of 8:
KB Introduction 4 Of 8:
KB Introduction 5 Of 8:
KB Introduction 6 Of 8:
KB Introduction 7 Of 8:
KB Introduction 8 Of 8:
KB1 - KB2:

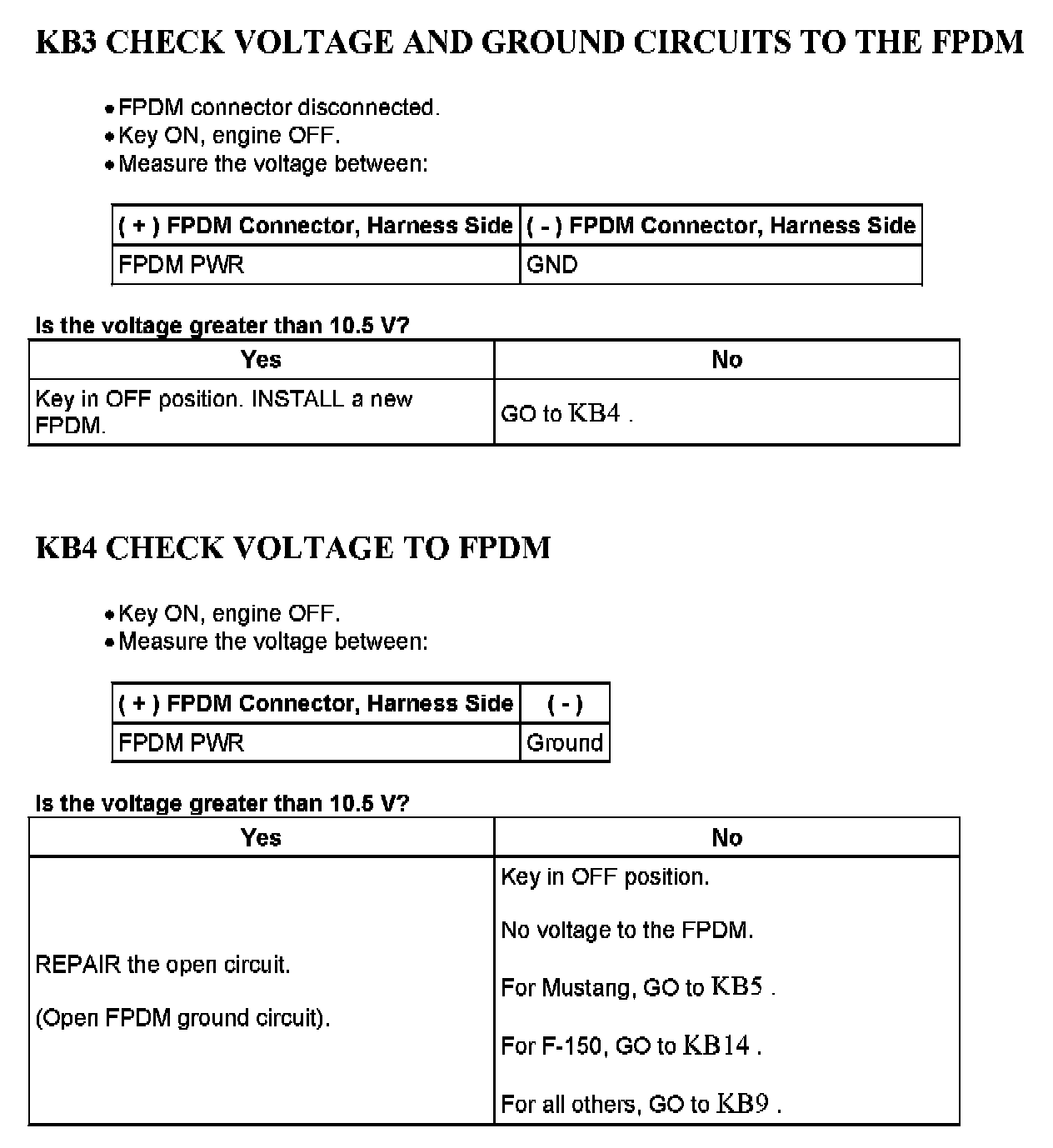

KB3 - KB4:
KB5 - KB7:
KB8 - KB9:

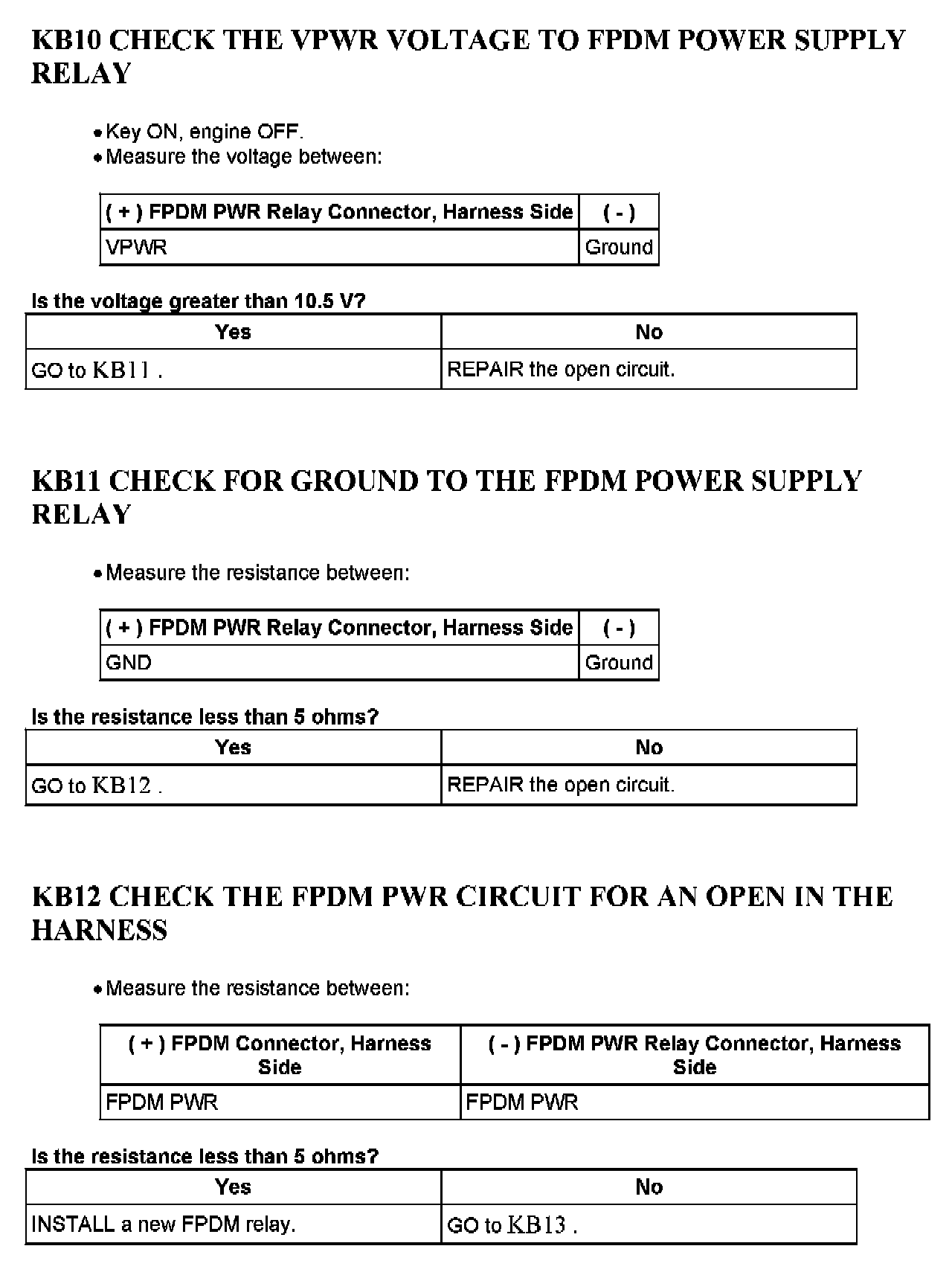

KB10 - KB12:
KB13 - KB14:
KB15 - KB16:
KB17 - KB18:
KB19 - KB20:
KB21:
KB22:

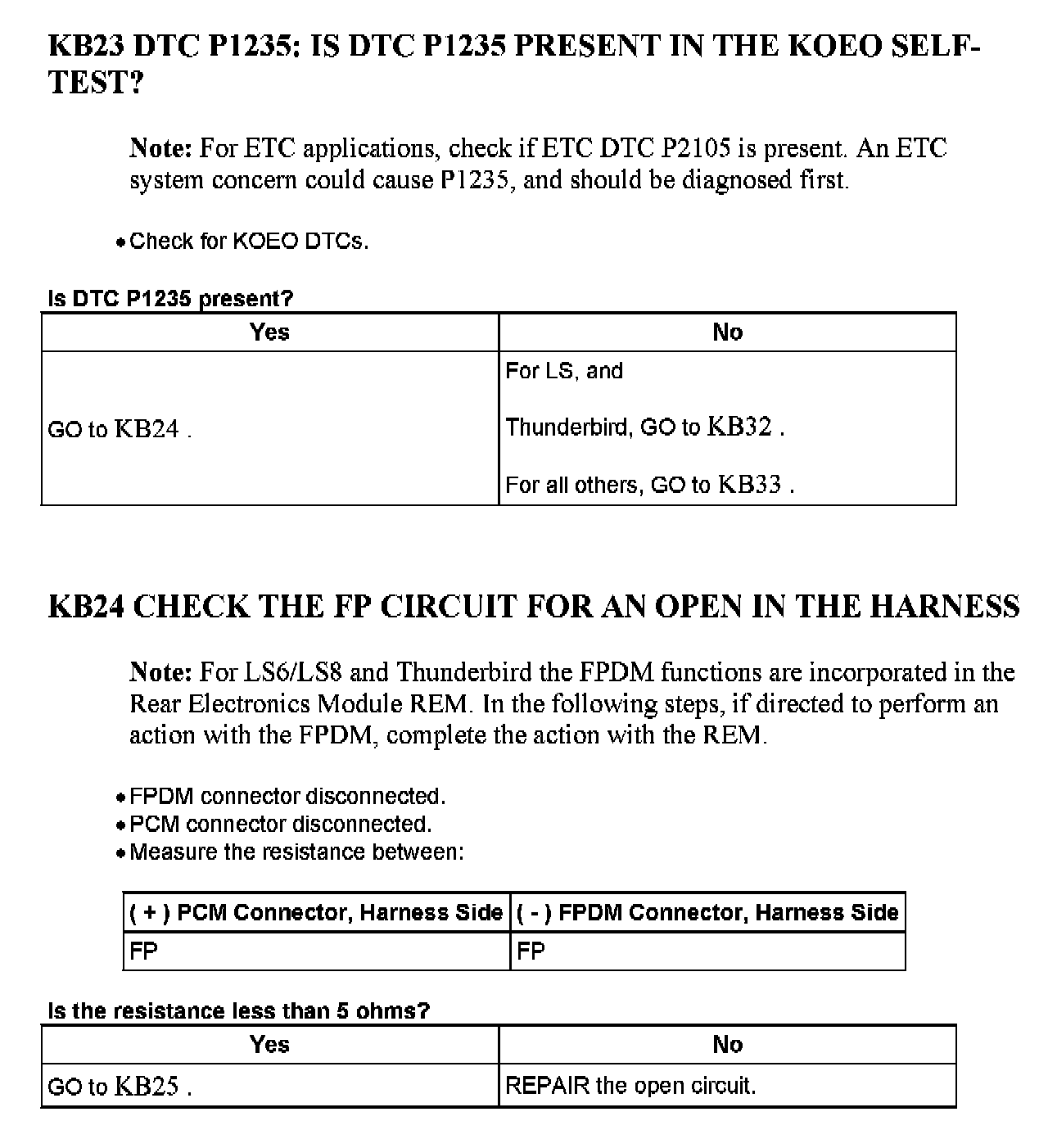

KB23 - KB24:

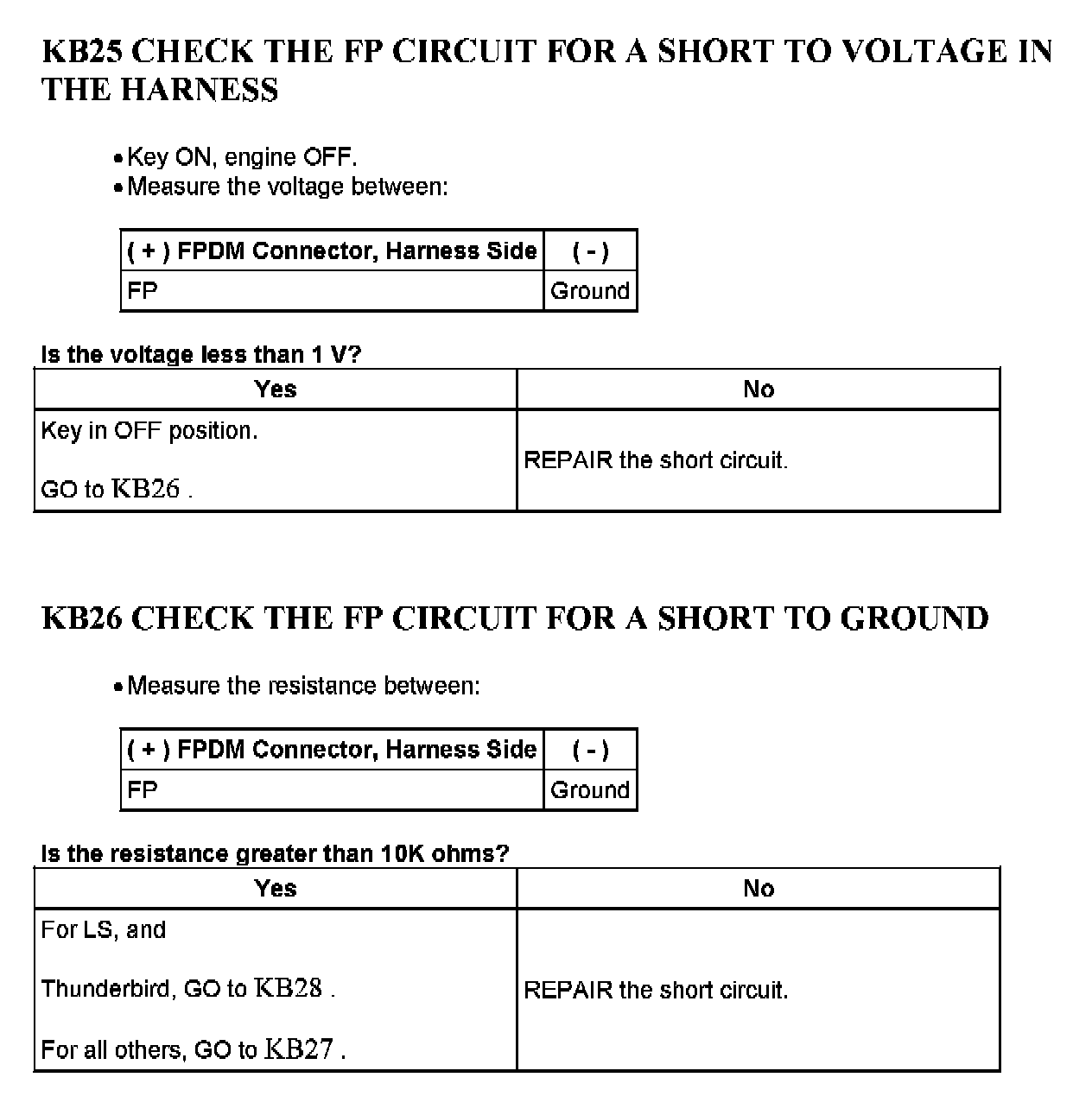

KB25 - KB26:

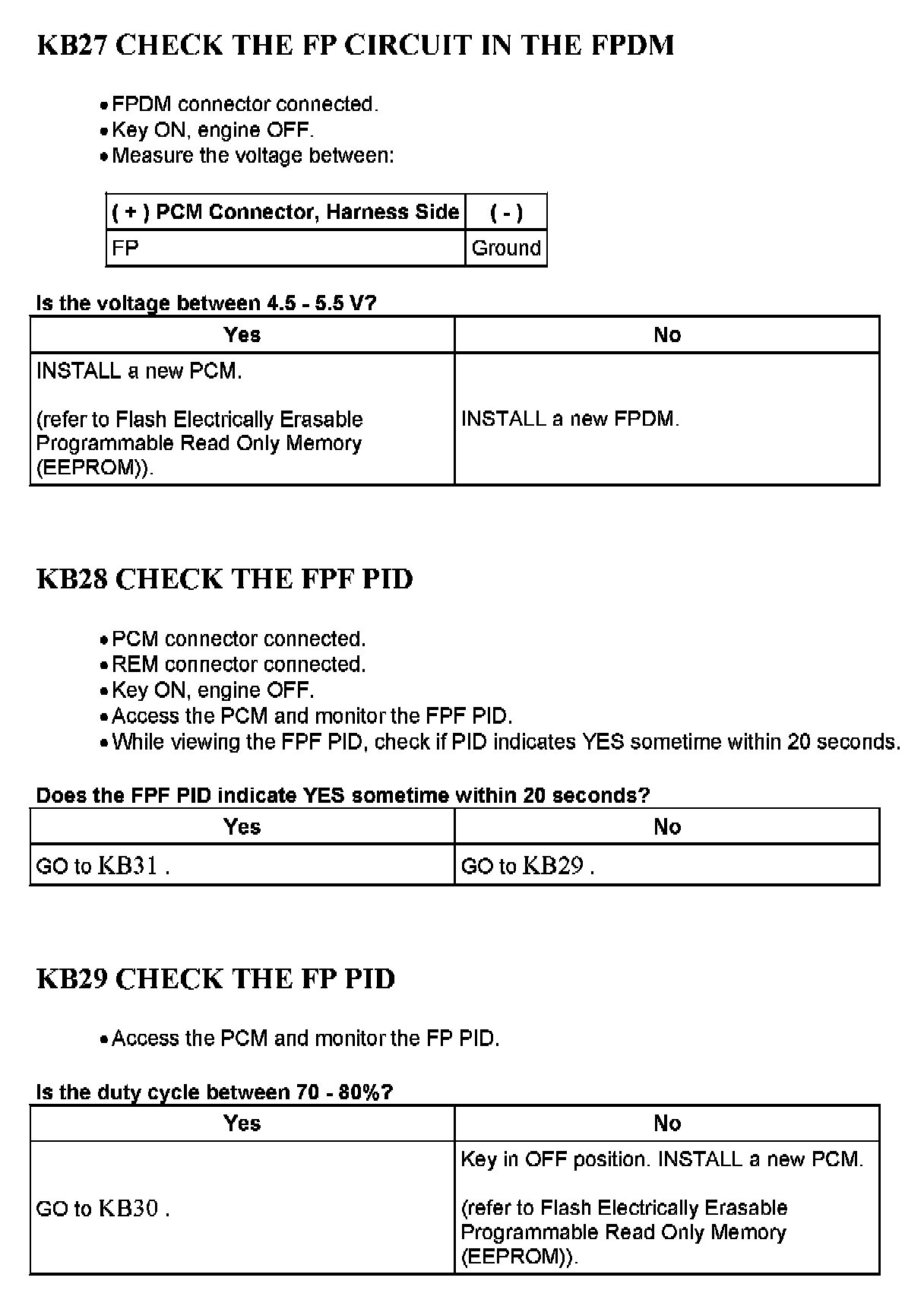

KB27 - KB29:
KB30 - KB31:
KB32 - KB33:
KB34 - KB36:
KB37 - KB38:
KB39:
KB40 - KB41:
KB42 - KB43:
KB44 - KB45:
KB46 - KB47:
KB48 - KB49:
KB50 - KB51:
KB52:
KB53:

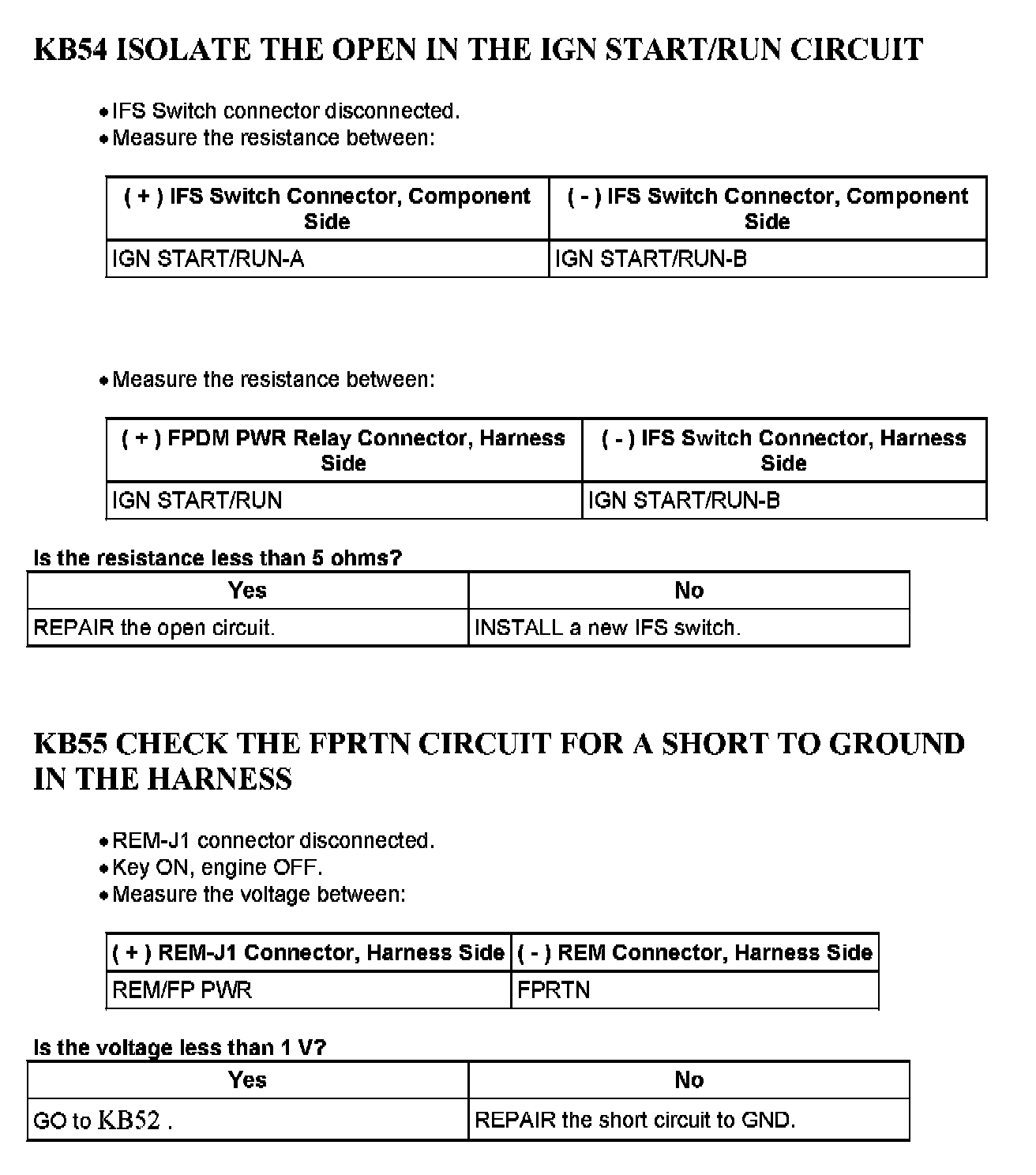

KB54 - KB55:
KB56 - KB57:
