2004 Ford Focus L4-2.3L VIN ZFACTORY OEM SERVICE PROCEDURE
Test X: Constant Control Relay Module (CCRM)
PINPOINT TEST X: CONSTANT CONTROL RELAY MODULE (CCRM)
X Introduction 1 Of 5:
X Introduction 2 Of 5:
X Introduction 3 Of 5:
X Introduction 4 Of 5:
X Introduction 5 Of 5:
X1 - X2:
X3 - X4:

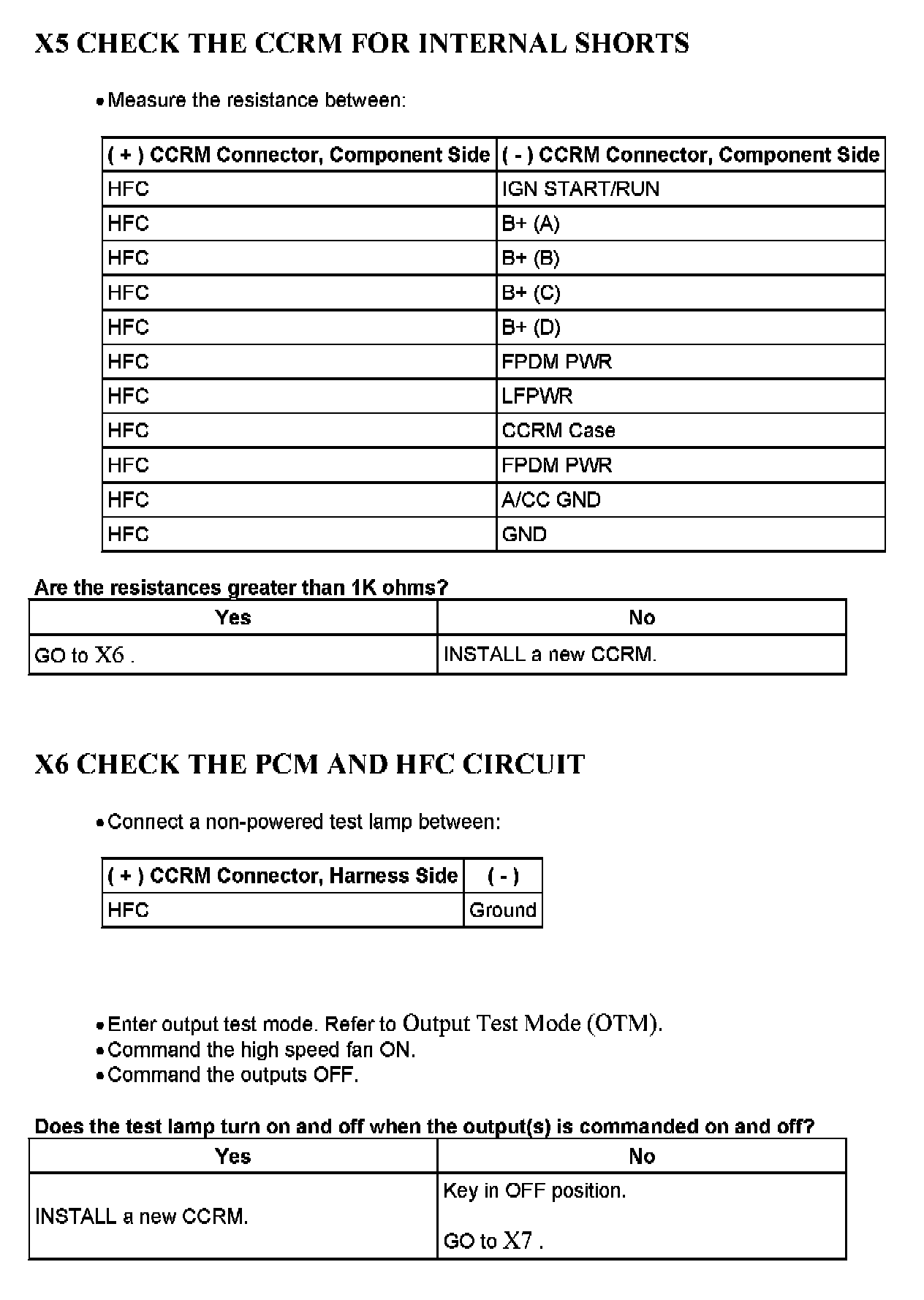

X5 - X6:
X7 - X9:

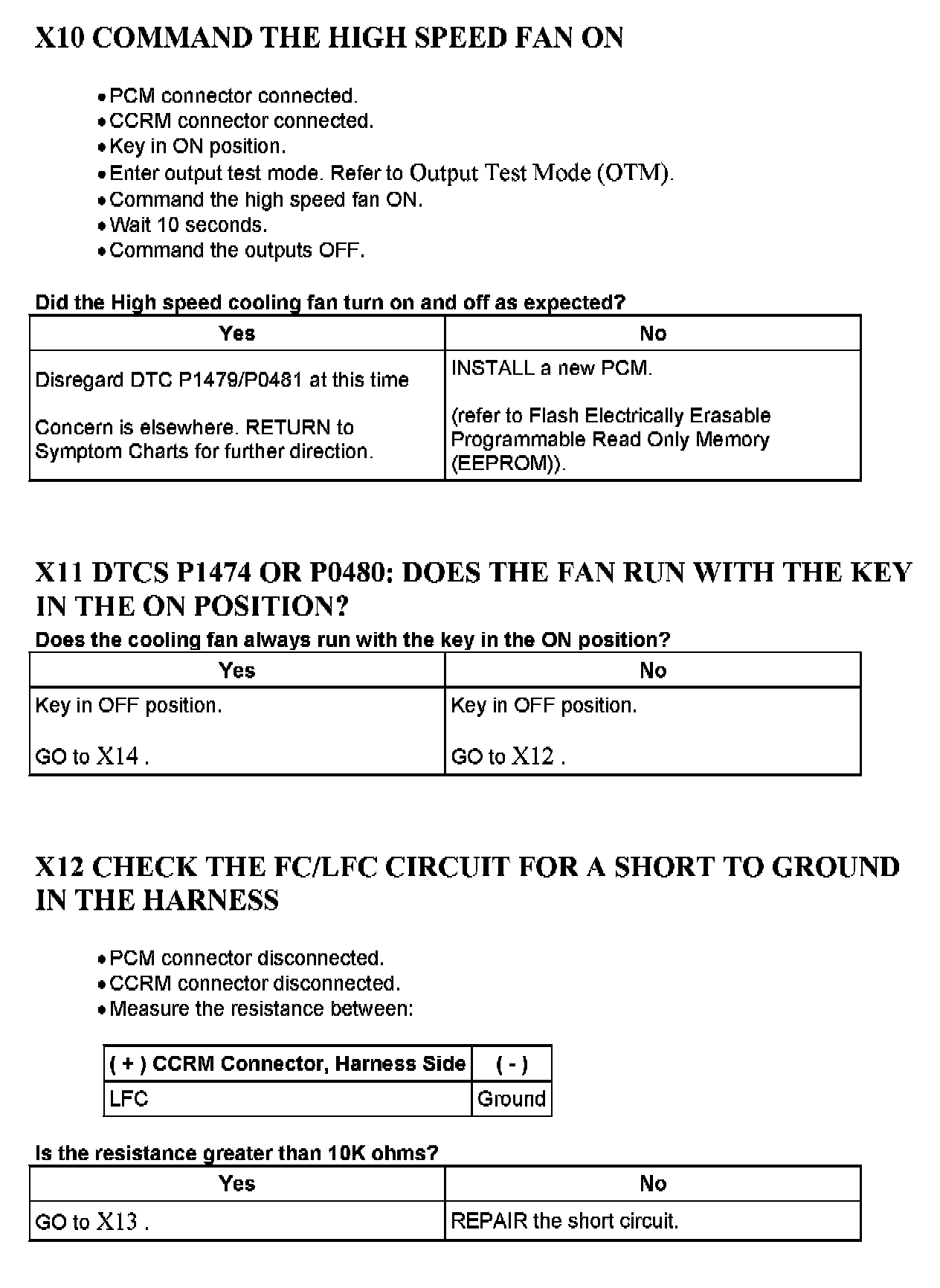

X10 - X12:

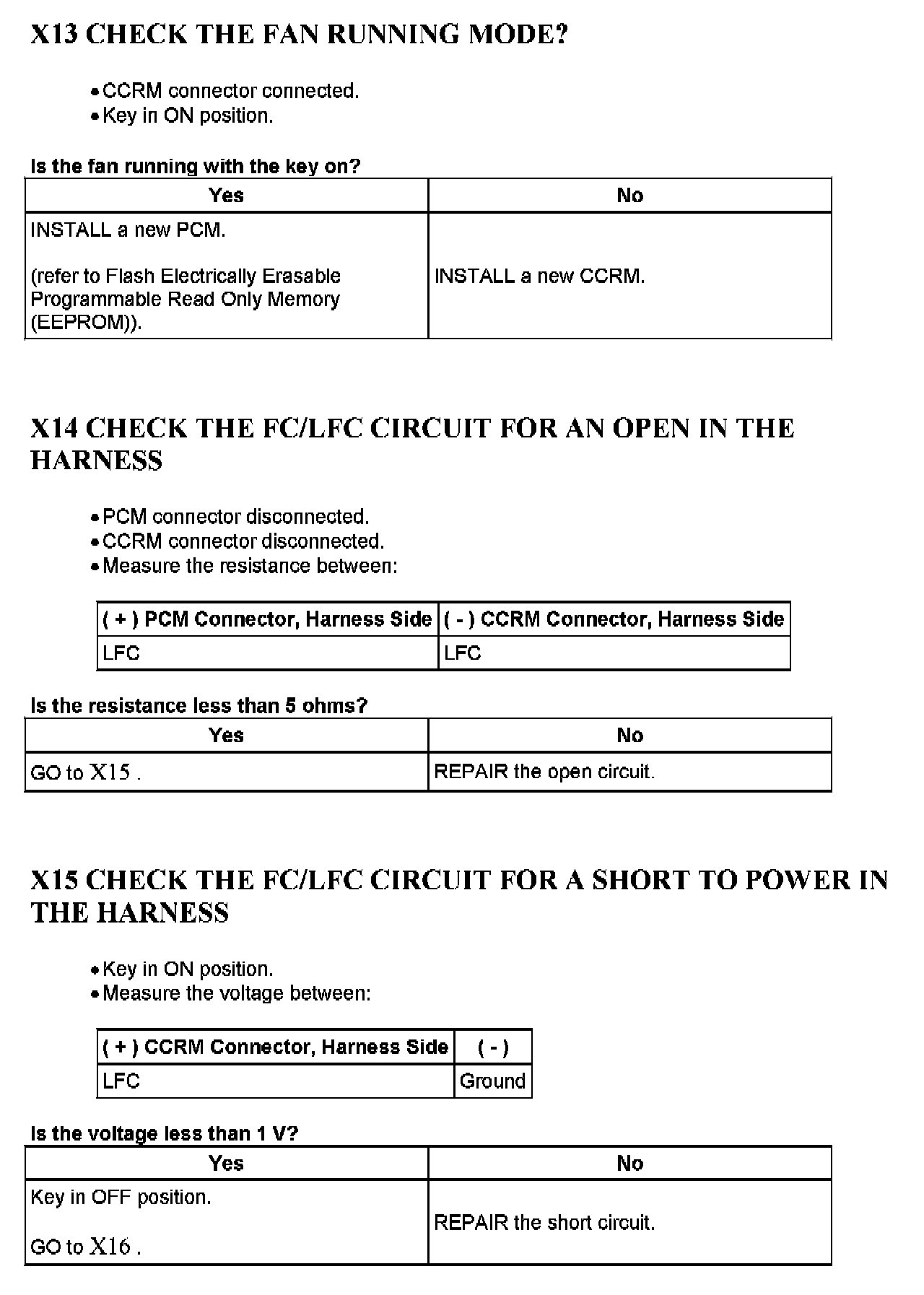

X13 - X15:
X16 - X17:
X18 - X19:
X20 - X21:

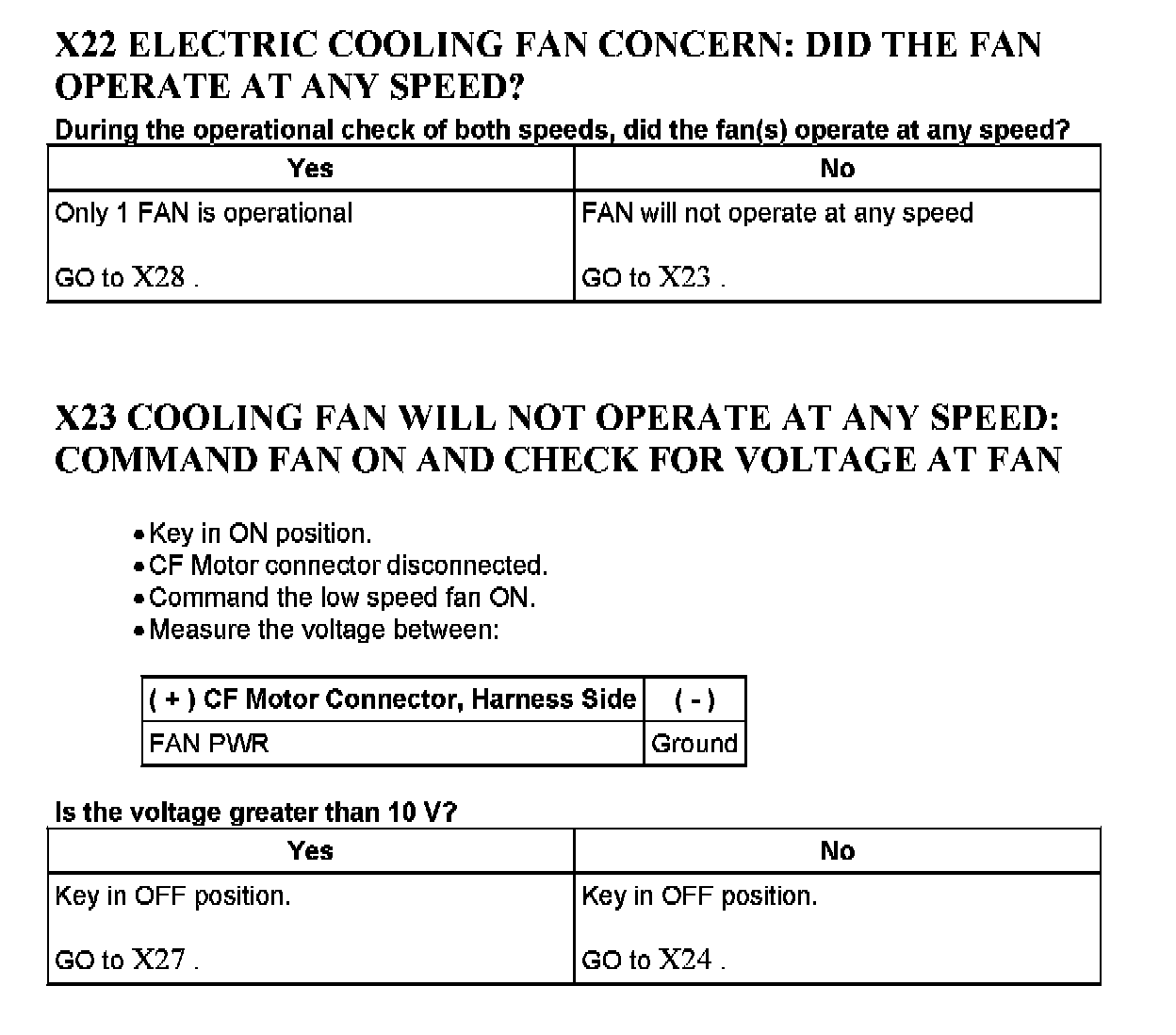

X22 - X23:
X24 - X25:

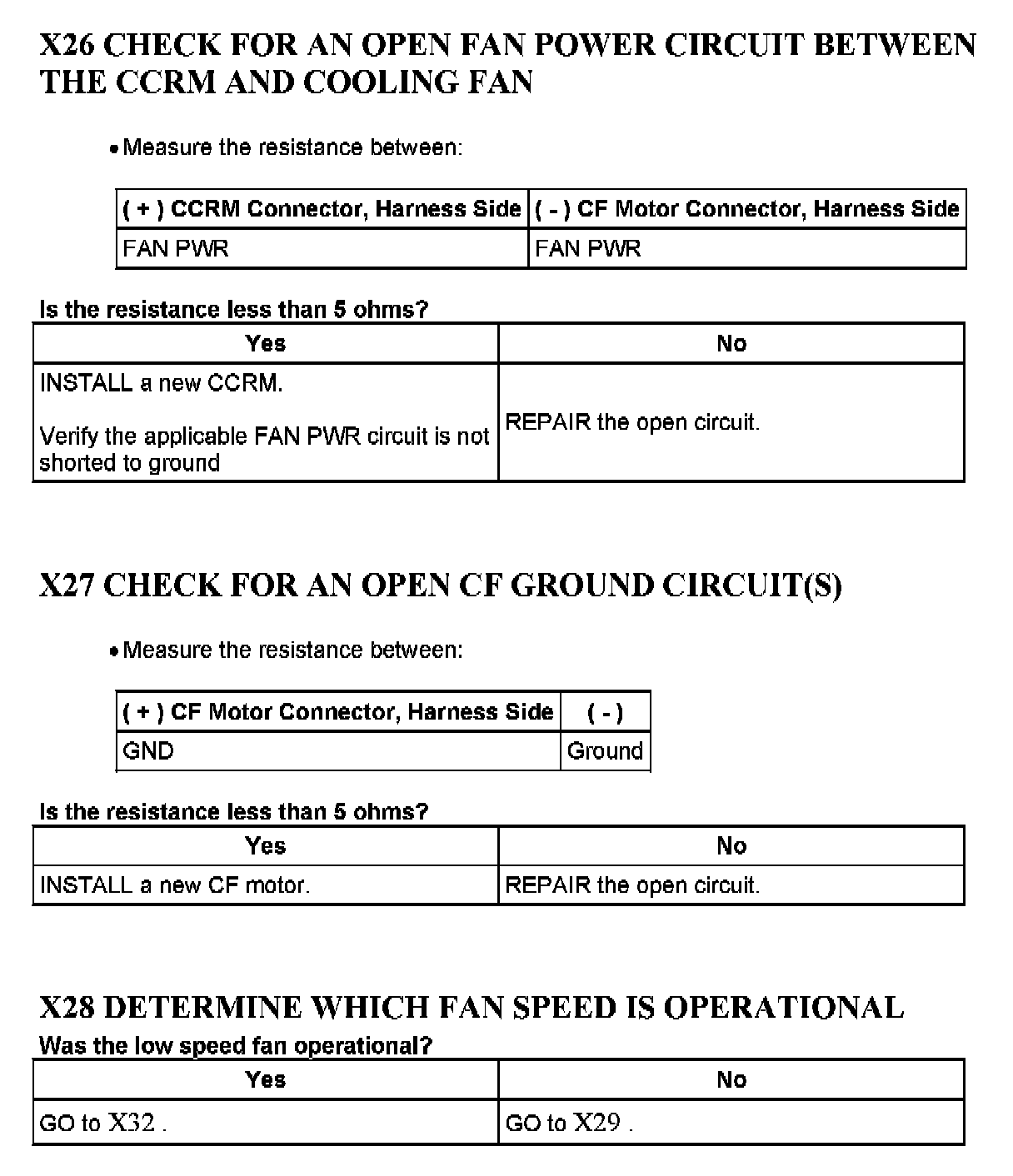

X26 - X28:

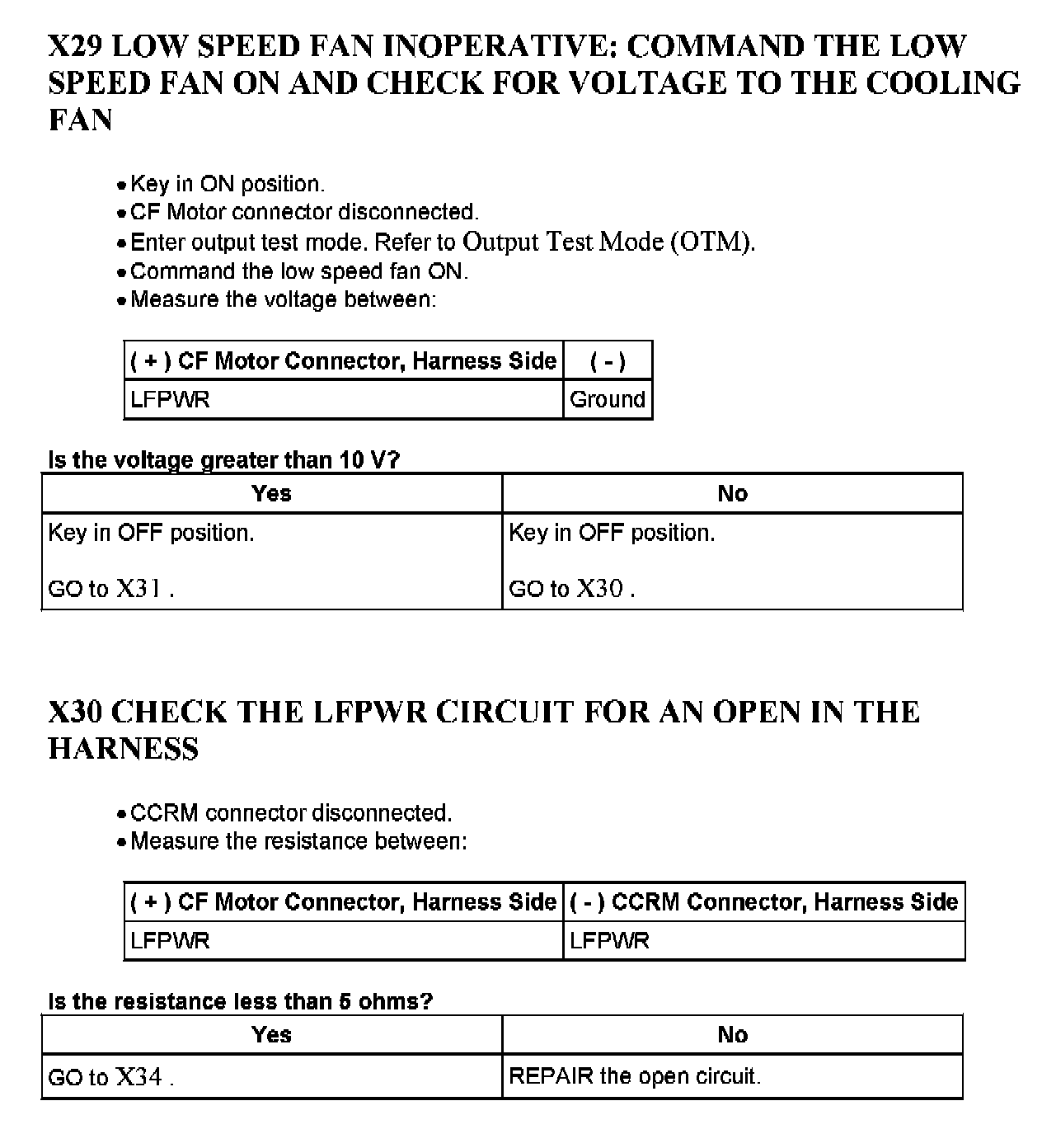

X29 - X30:
X31 - X32:
X33 - X34:
X35:

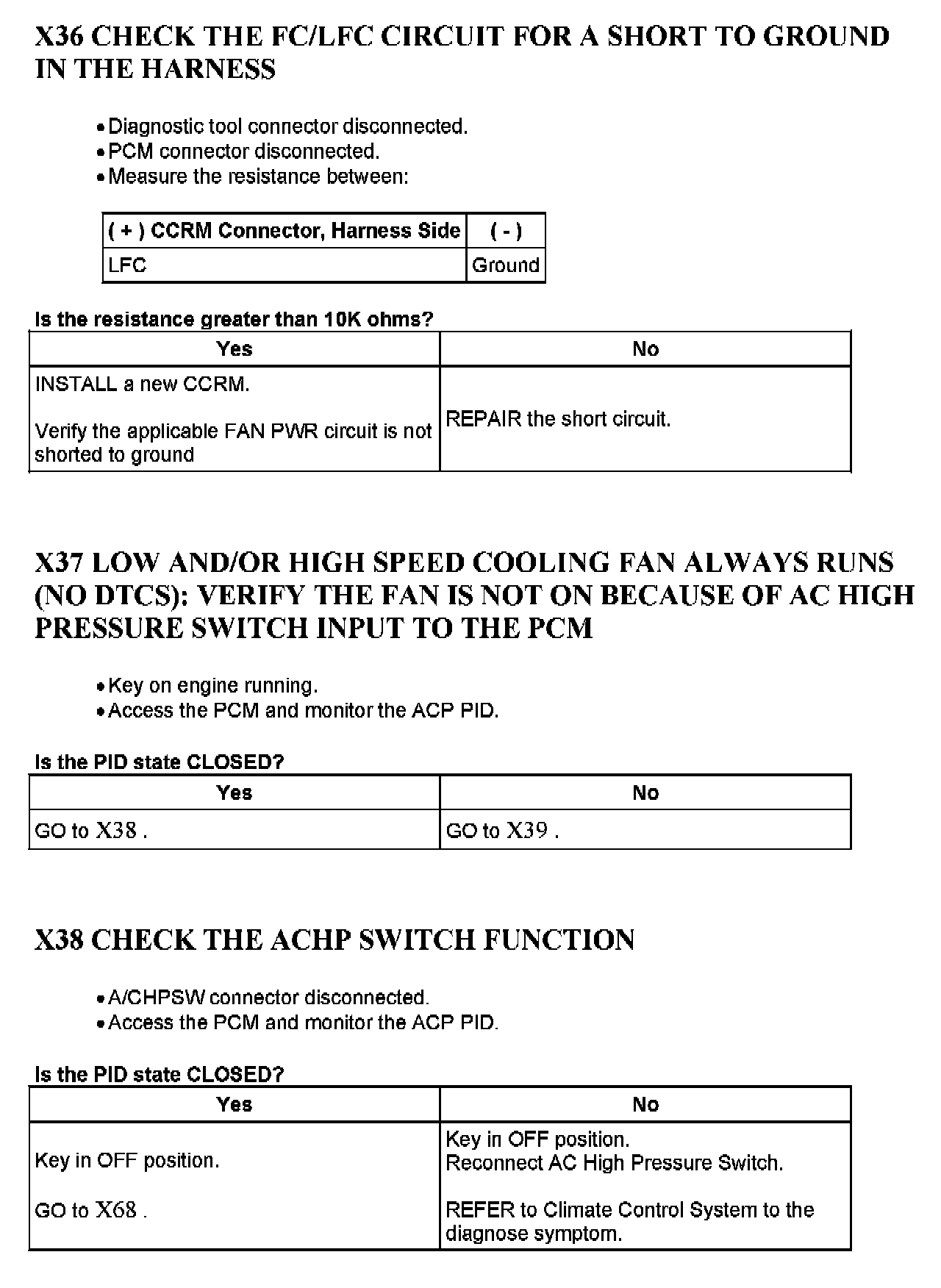

X36 - X38:

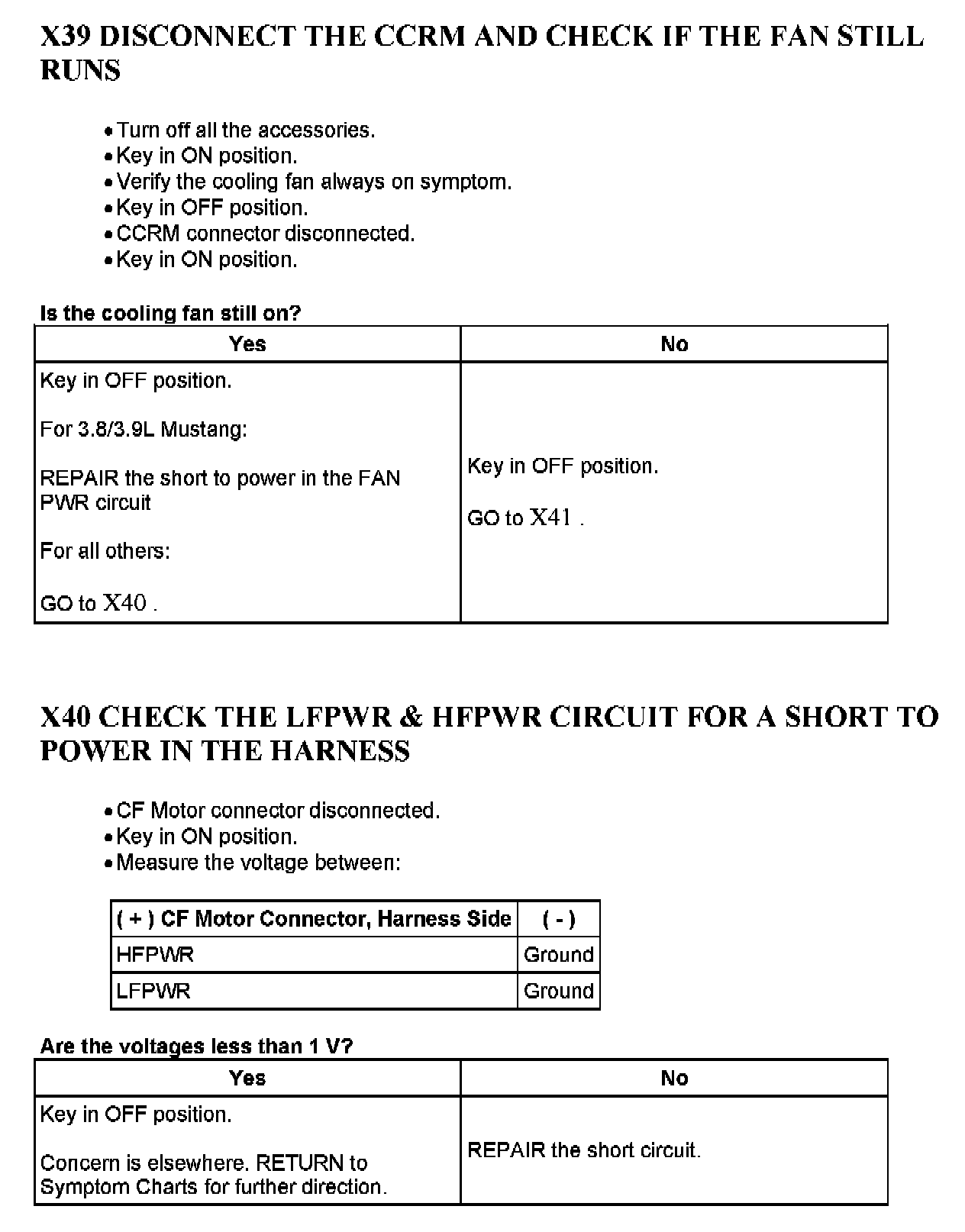

X39 - X40:
X41:
X42:
X43 - X44:
X45 - X46:
X47 - X48:

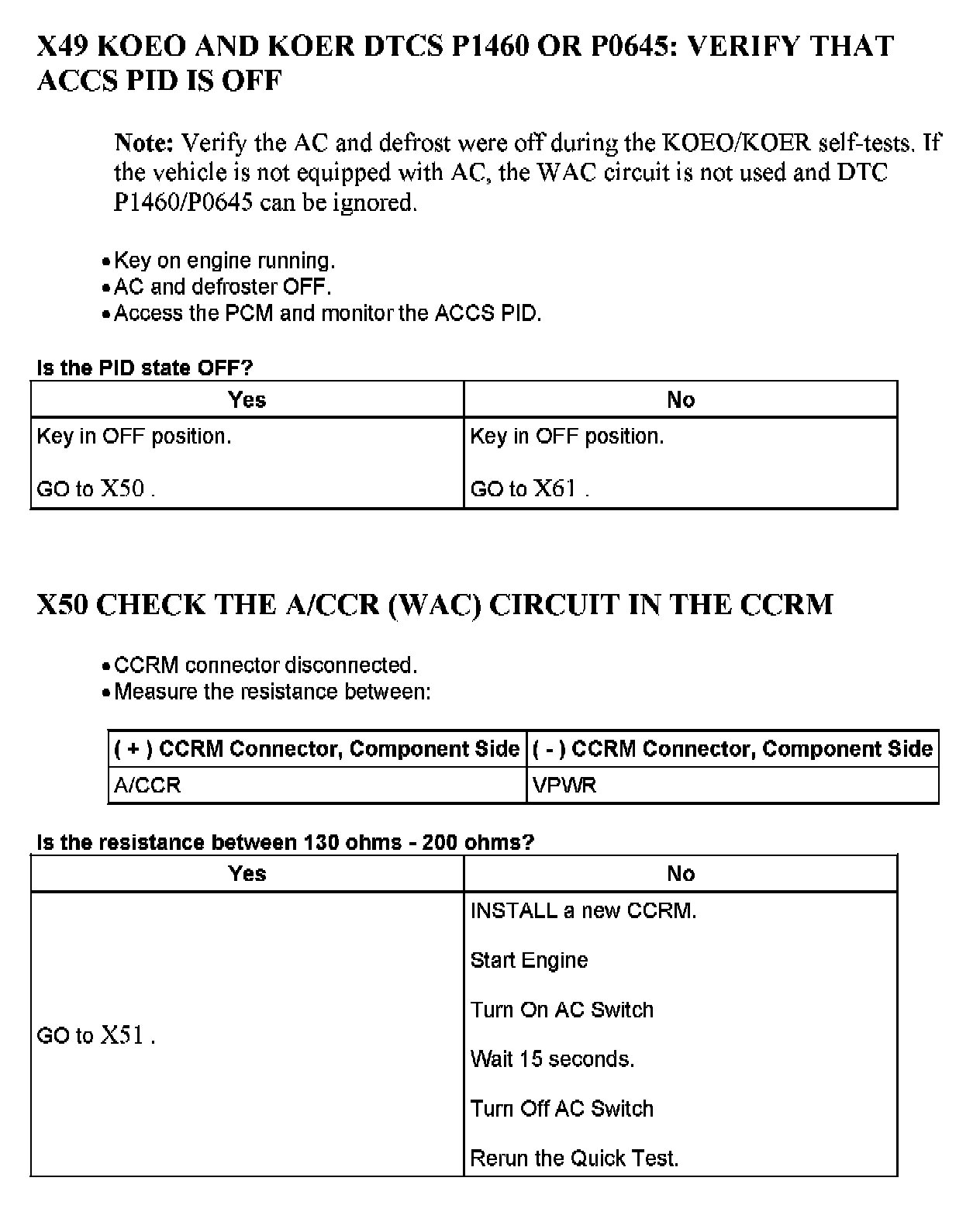

X49 - X50:
X51:

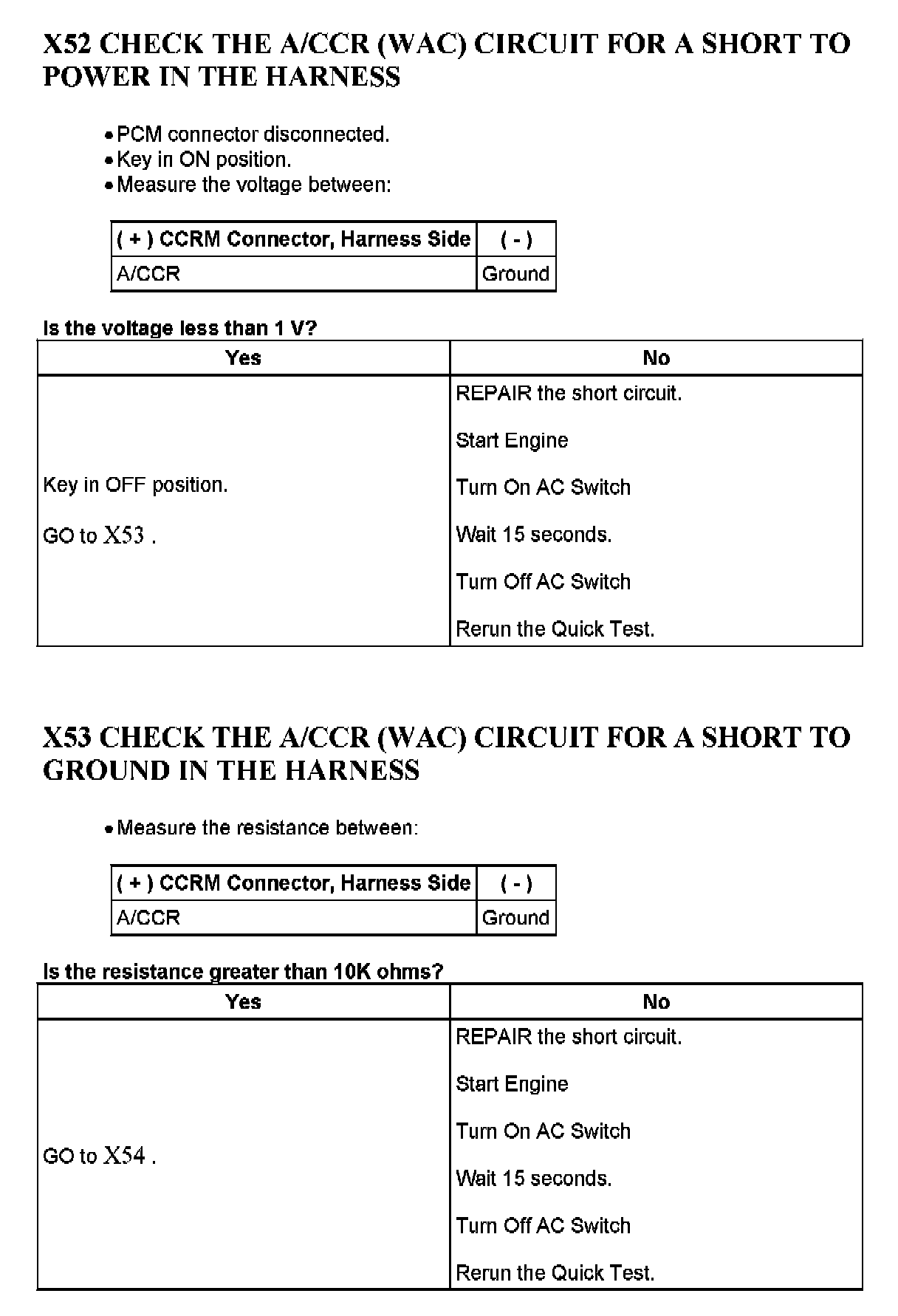

X52 - X53:
X54 - X55:
X56 - X57:
X58:

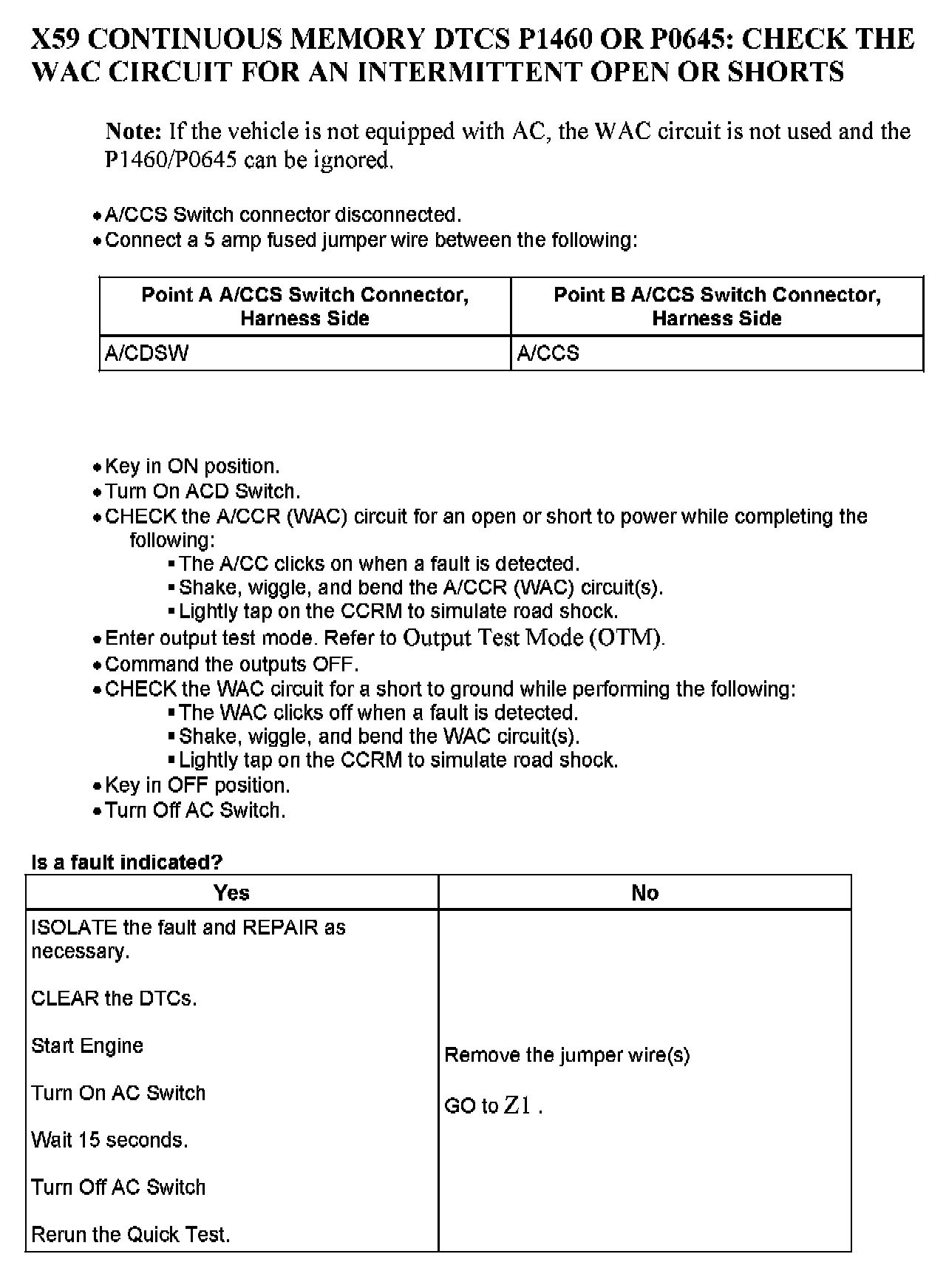

X59:
X60 - X61:
X62 - X63:
X64 - X65:
X66 - X67:

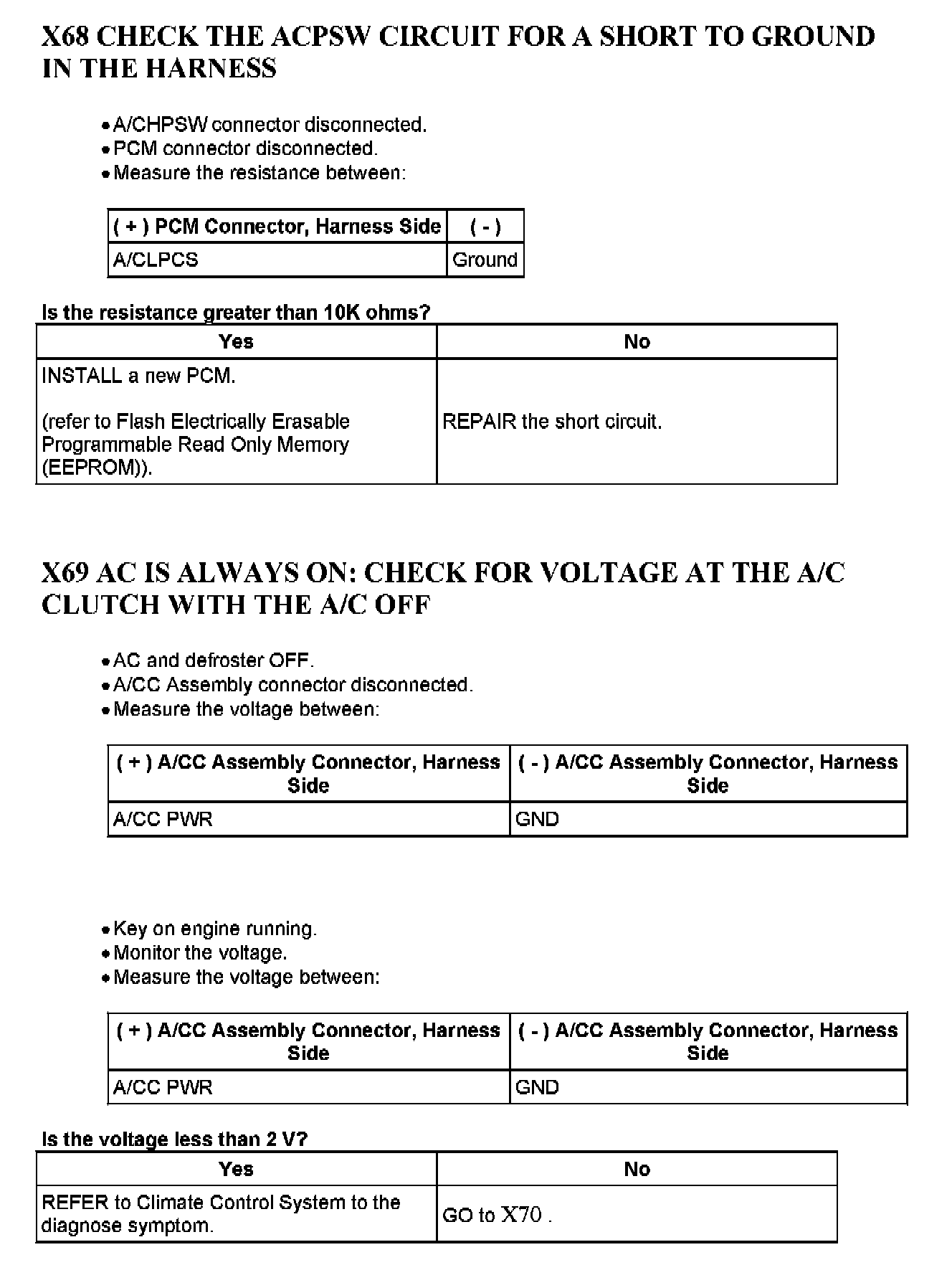

X68 - X69:
X70 - X71:
X72 - X73:
