2004 Ford Focus L4-2.3L VIN ZFACTORY OEM SERVICE PROCEDURE
Body Control Module: Service and Repair
GENERIC ELECTRONIC MODULE (GEM)
SPECIAL TOOL(S)
REMOVAL
1. CAUTION: Prior to removal of the GEM, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. Refer to Module Controlled Functions.

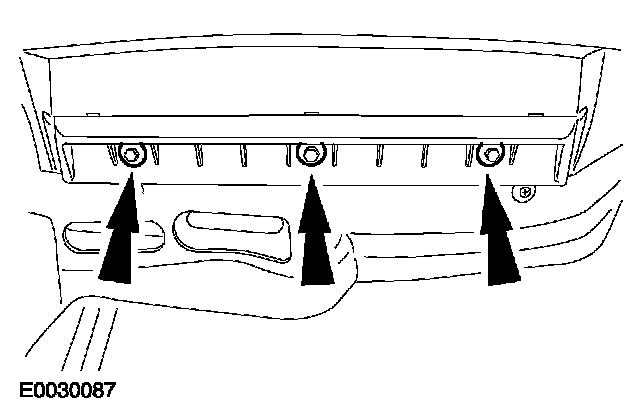

Remove the glove compartment.

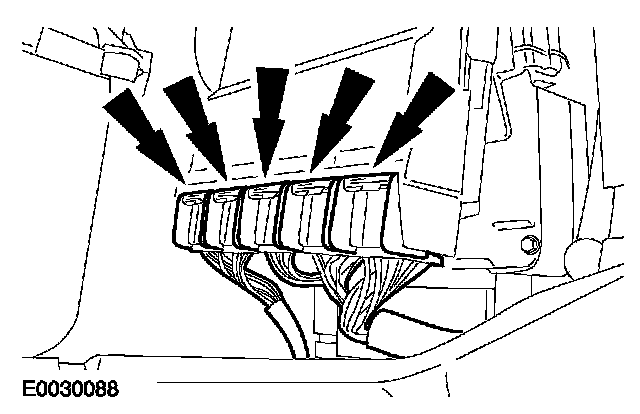

2. Disconnect the GEM electrical connectors.

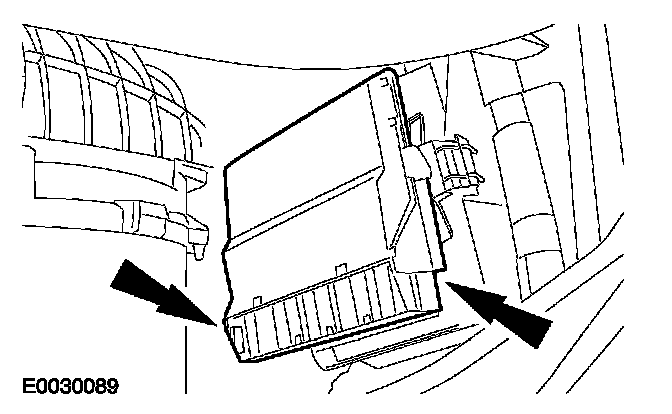

3. Remove the GEM.
INSTALLATION
1. Once the module is installed, it is necessary to download the module configuration information from the diagnostic tool into the new module.
Worldwide Diagnostic System (WDS):
SPECIAL TOOL(S)
REMOVAL
1. CAUTION: Prior to removal of the GEM, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. Refer to Module Controlled Functions.
Remove the glove compartment.
2. Disconnect the GEM electrical connectors.
3. Remove the GEM.
INSTALLATION
1. Once the module is installed, it is necessary to download the module configuration information from the diagnostic tool into the new module.
