2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE

Cable Adjustment - Shift

With the gearshift lever (7210) in the PARK position, loosen the transmission range switch cable nut.

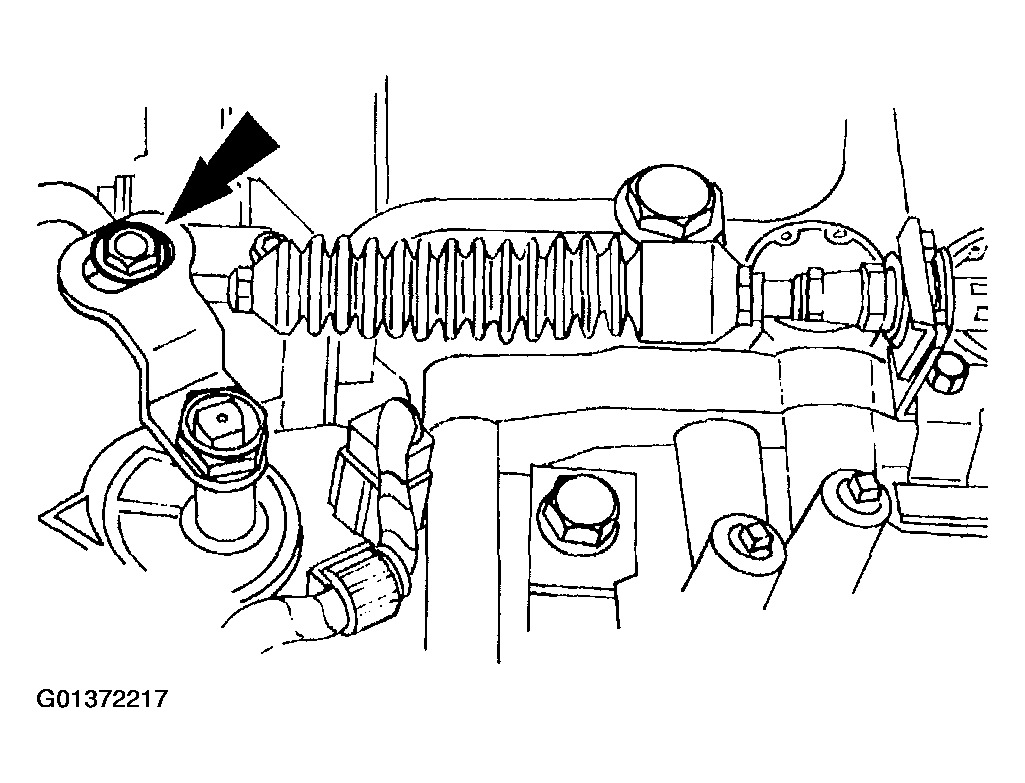

Fig 1: Loosening Transmission Range Switch Cable Nut
Courtesy of FORD MOTOR CO.
Manually move the shift cable rearward as far as possible.

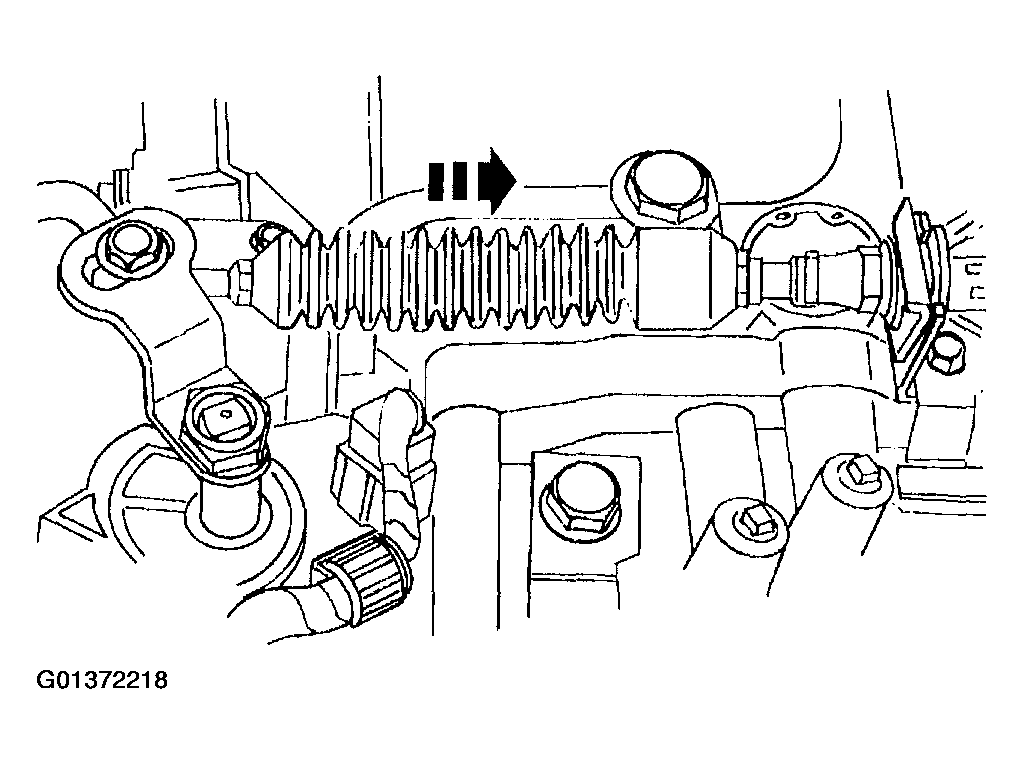

Fig 2: Moving Shift Cable Rearward
Courtesy of FORD MOTOR CO.
Check the cable for any tension or restriction of movement and then tighten the transmission range switch cable nut to specification.

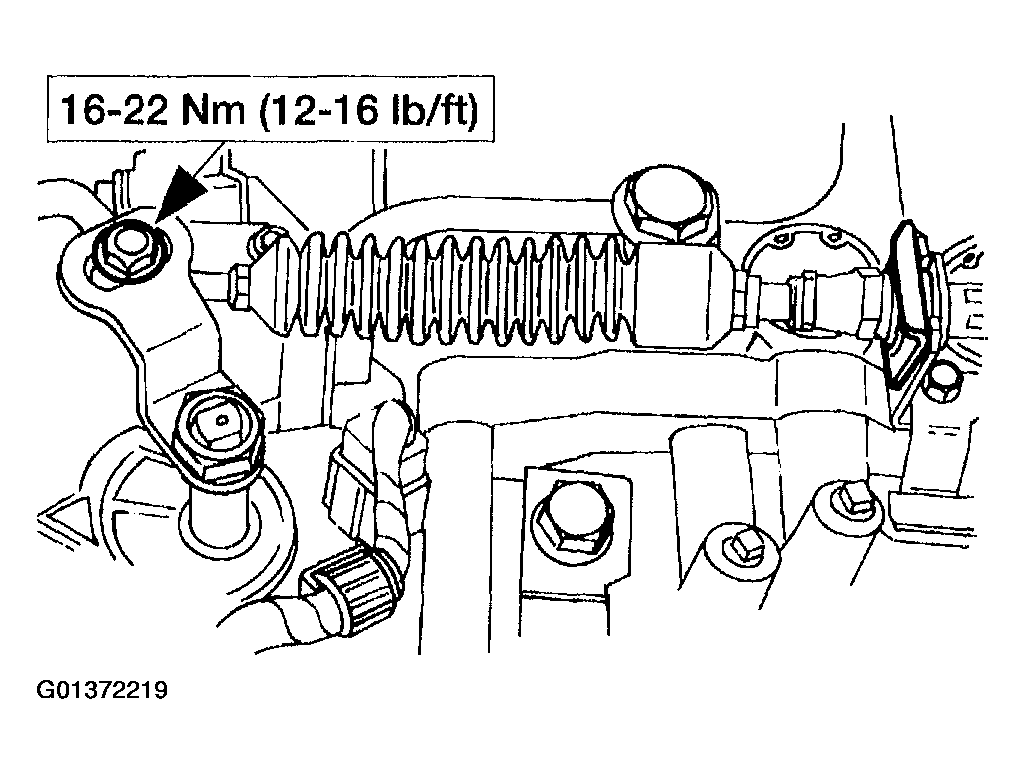

Fig 3: Tightening Transmission Range Switch Cable Nut

Courtesy of FORD MOTOR CO.
