2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
Main Control - Valve Body Assembly: Installation

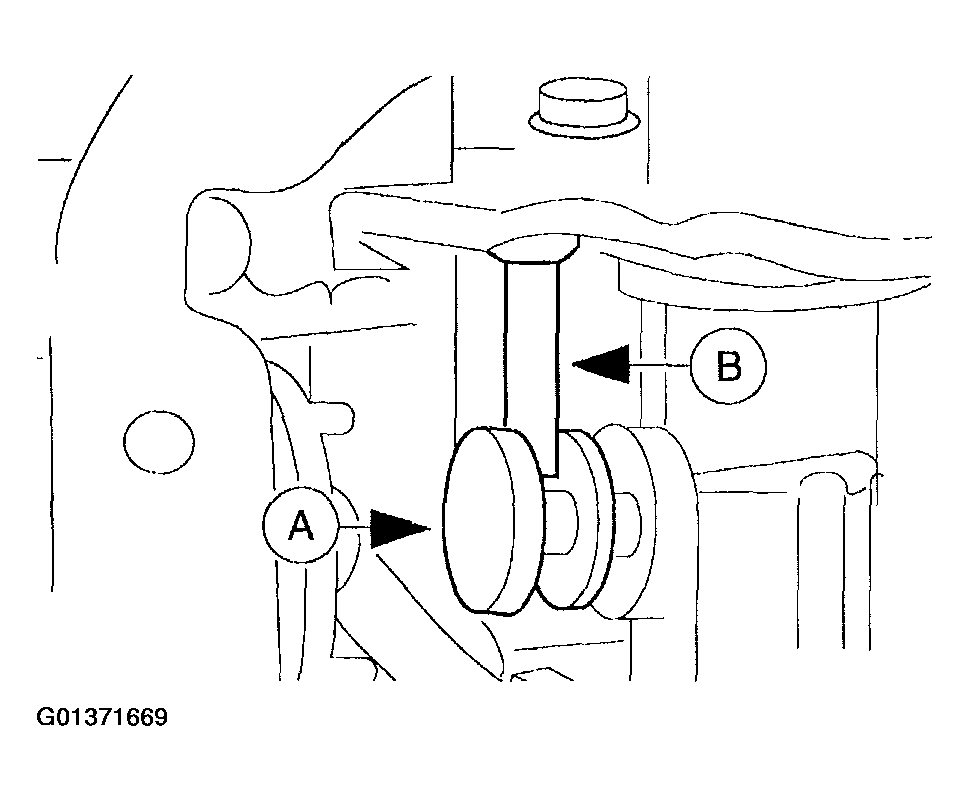

- Position the main control valve body into the transmission case. Align the (A) manual valve with the pin on the (B) manual valve detent lever (7A115).
NOTE:
The main control valve body bolts are two different lengths.
