2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
Output Gear: Assembly
- Clean the components with a suitable solvent and use compressed air to dry all parts. Perform the following before assembly:
- Inspect the output gear for damaged or excessively worn teeth.
- Inspect the output gear splines for damage or wear.

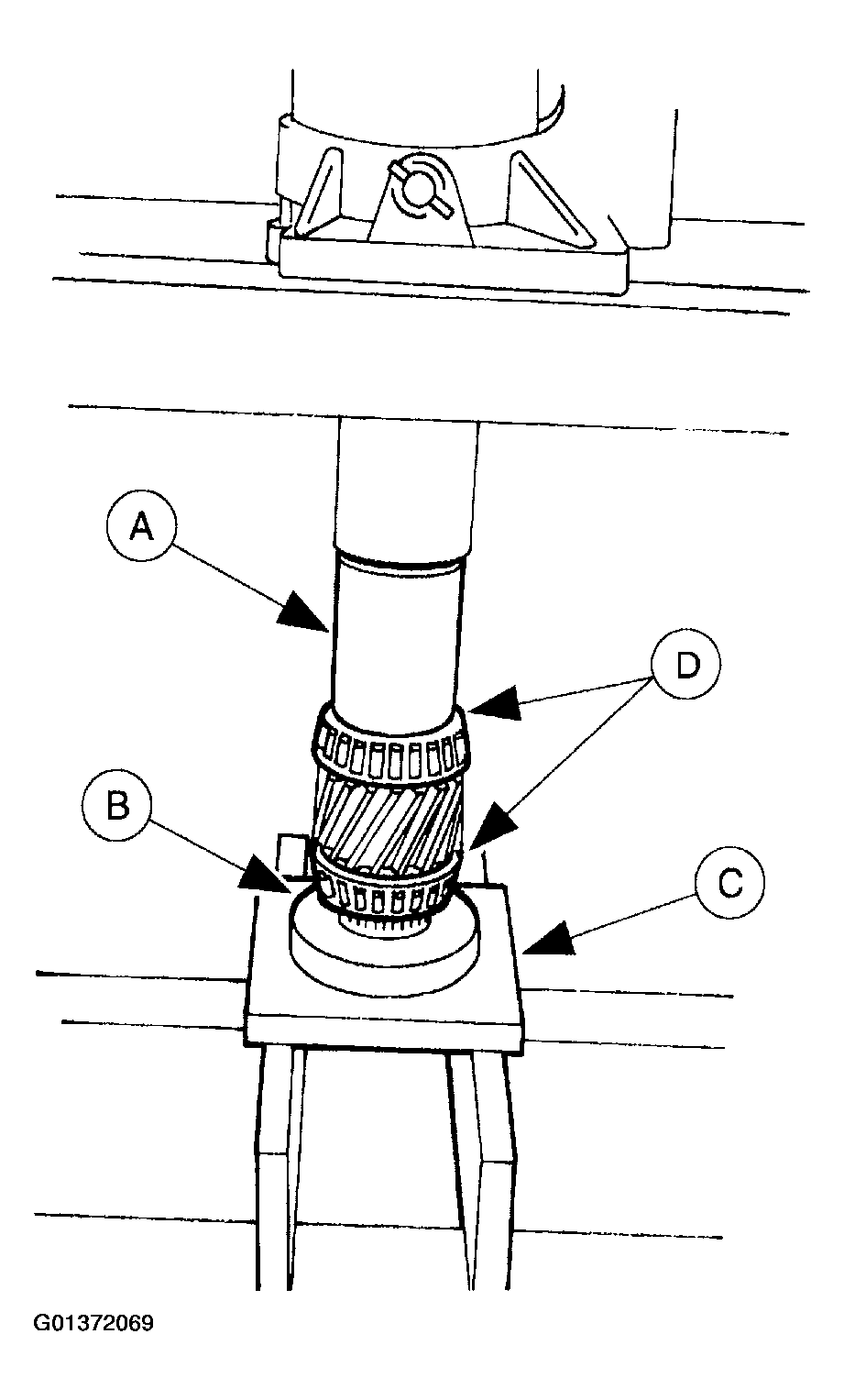

- Use (A) Dust Boot Replacer, (B) Bearing Cone Replacer, and (C) Axle Bearing/Seal Plate to press the (D) output gear bearings onto the output gear.

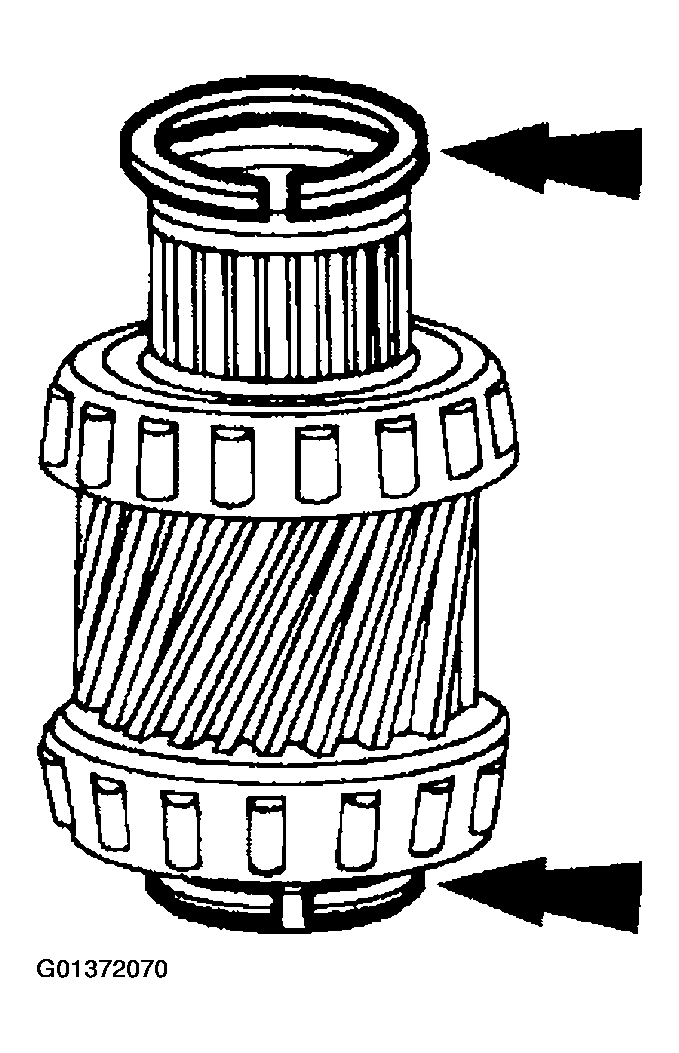

- Apply Motorcraft MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON to the new seal rings and install them on the output gear.
- Seal ring inner diameter: 27.6 mm (1.087 in).
