2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE

Main Control Valve Body - Assembly: Assembly

CAUTION: Handle the main control valve body carefully. If any of the components are damaged, it may become the cause of malfunctions in the transmission.

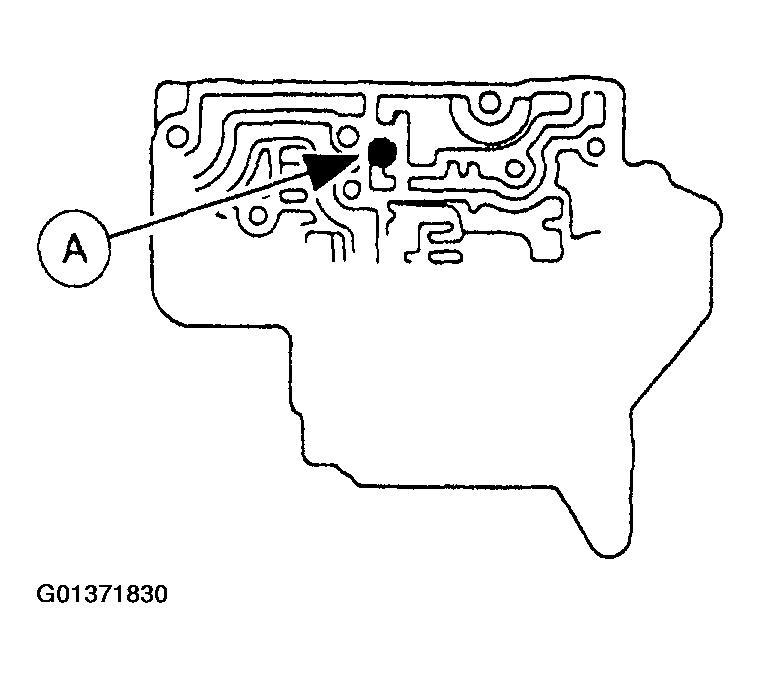

  1. Install the (A) oil strainer into the lower control valve body.
    Fig 1: Installing Oil Strainer Into Lower Control Valve Body
    G01371830Courtesy of FORD MOTOR CO.

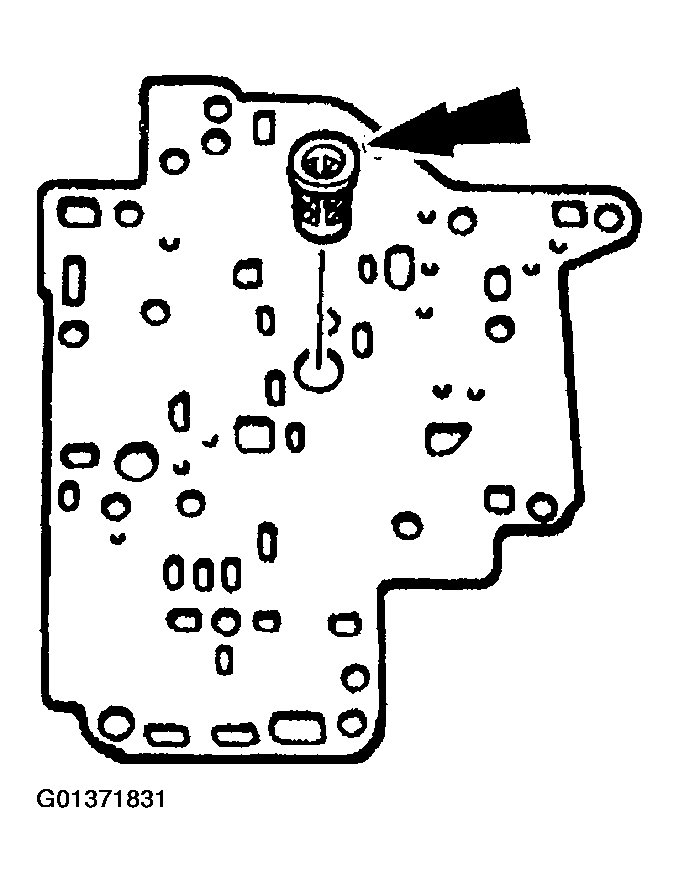

  2. Set the filter into the lower separator plate.
    Fig 2: Setting Filter Into Lower Separator Plate
    G01371831Courtesy of FORD MOTOR CO.

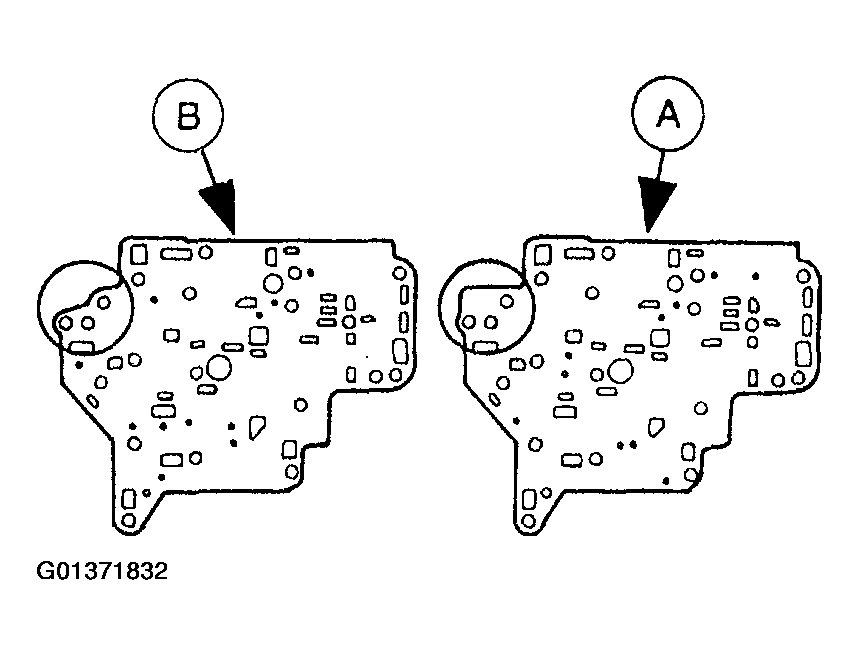

  3. Identify the (A) premain lower gasket and the (B) lower gasket.
    Fig 3: Identifying Premain Lower Gasket And Lower Gasket
    G01371832Courtesy of FORD MOTOR CO.

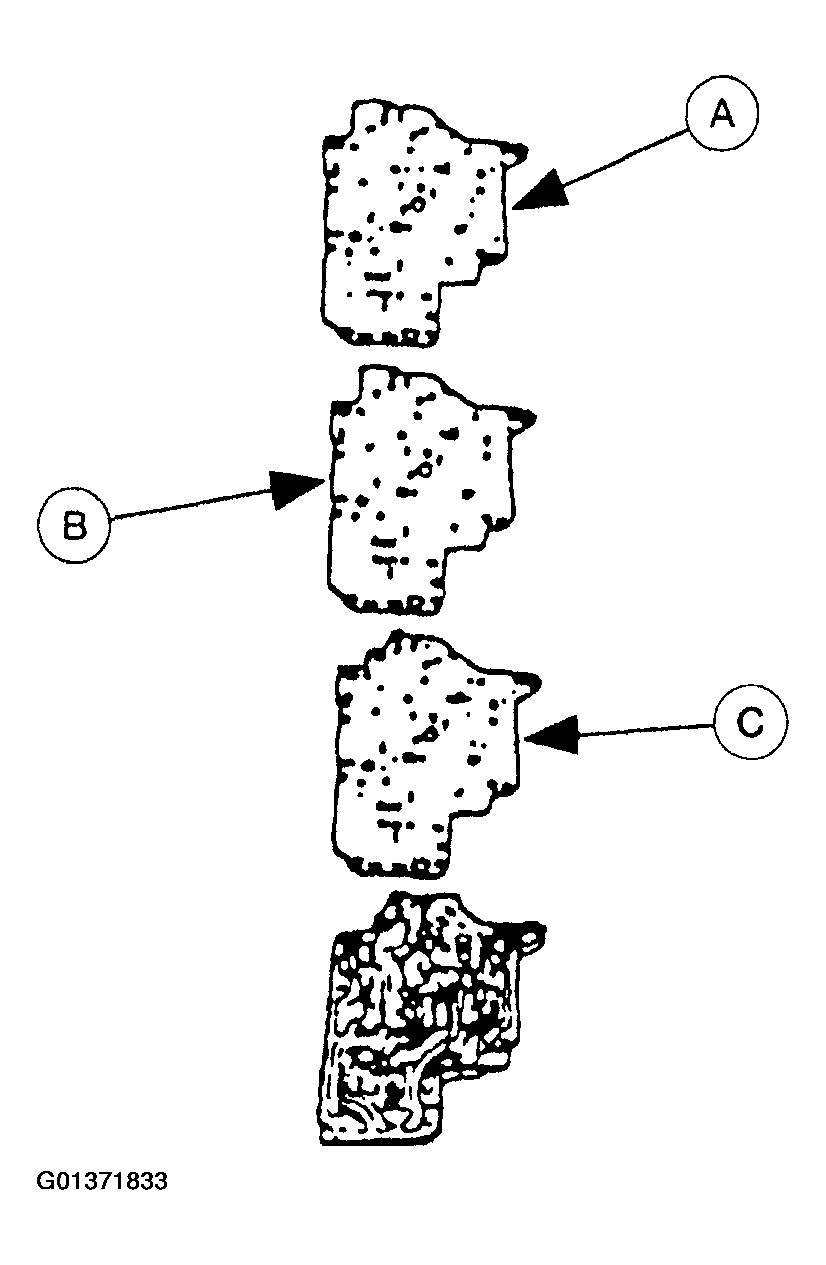

  4. Set the new (C) lower gasket, (B) lower separator plate and a new (A) premain lower gasket onto the lower valve body.
    Fig 4: Setting Lower Gasket, Lower Separator Plate And Premain Lower Gasket
    G01371833Courtesy of FORD MOTOR CO.
  5. Install the (A) premain control valve body onto the (B) lower valve body.

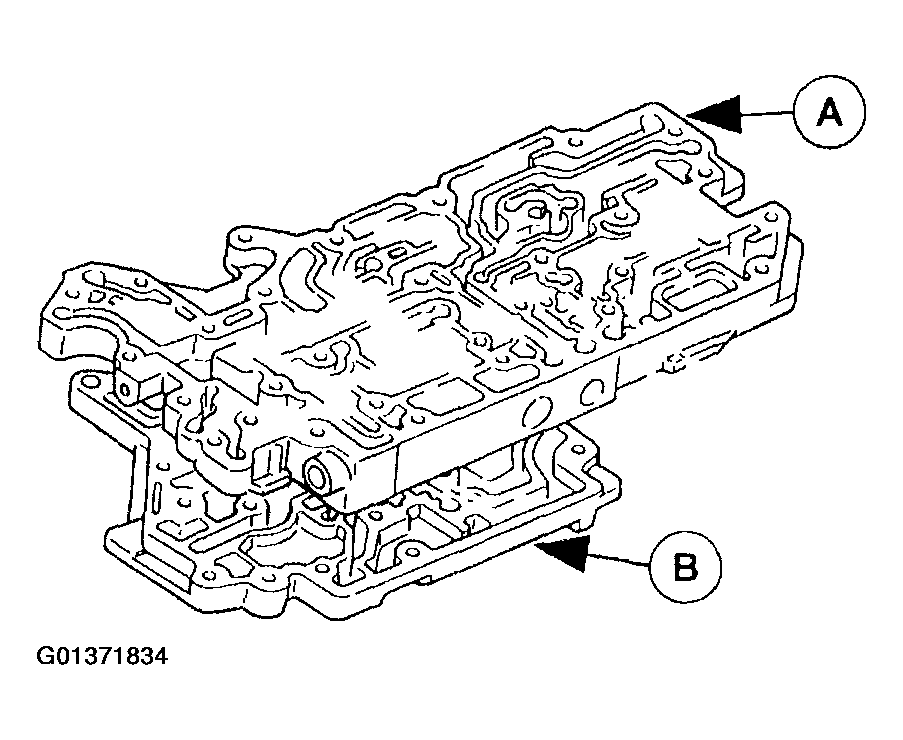

    Fig 5: Installing Premain Control Valve Body
    G01371834Courtesy of FORD MOTOR CO.
  6. Install the rubber check balls and oil strainers in the premain control valve body.
    1. Install the rubber check balls.
    2. Install the oil strainers.

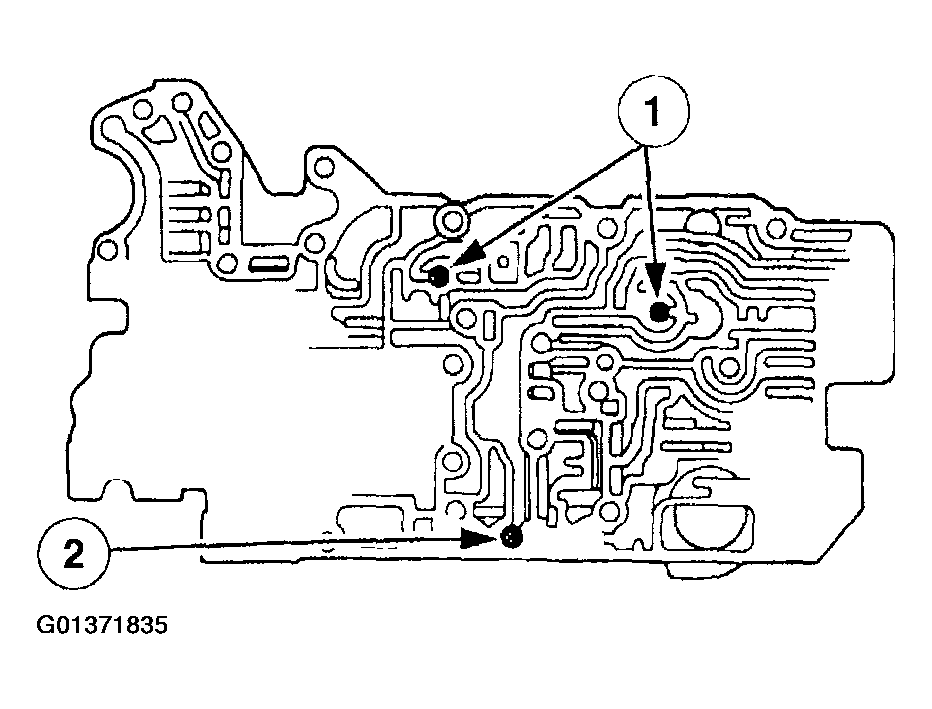

    Fig 6: Installing Rubber Check Balls And Oil Strainers
    G01371835Courtesy of FORD MOTOR CO.
  7. Install the rubber check balls into their proper positions in the main control valve body.

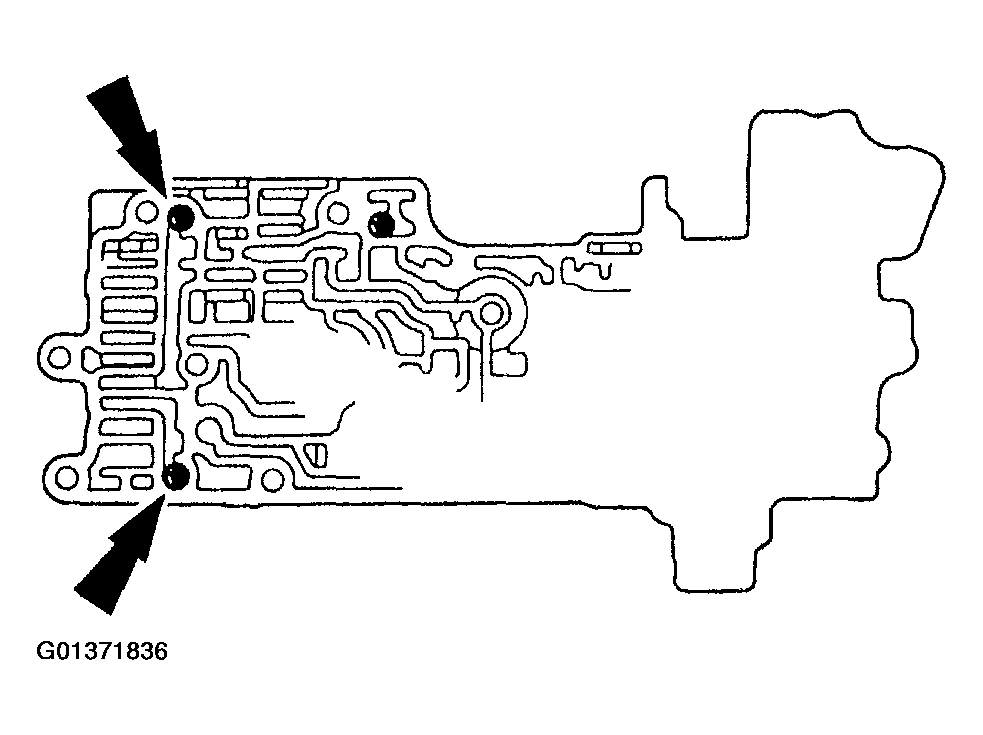

    Fig 7: Installing Rubber Check Balls Into Their Proper Positions In Main Control Valve Body
    G01371836Courtesy of FORD MOTOR CO.

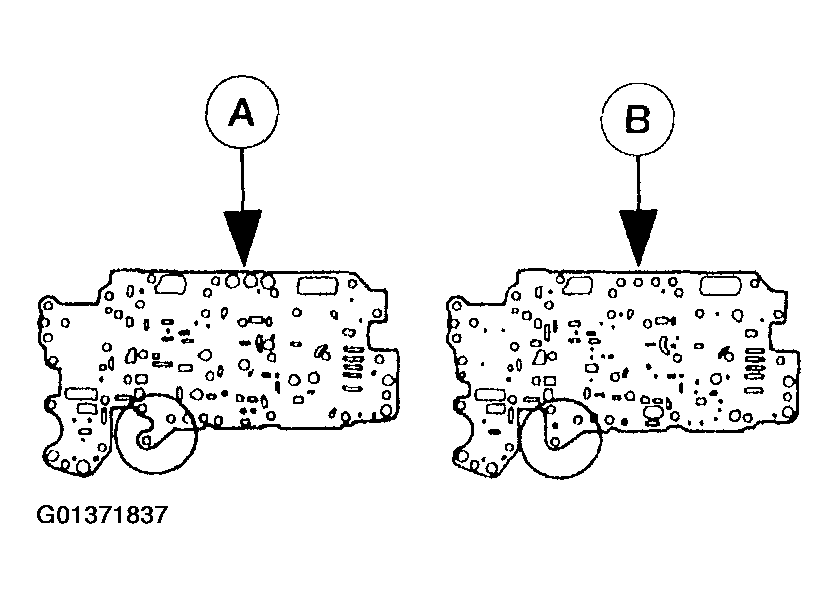

  8. Identify the (A) premain gasket and the (B) main gasket.
    Fig 8: Identifying Premain Gasket And Main Gasket
    G01371837Courtesy of FORD MOTOR CO.

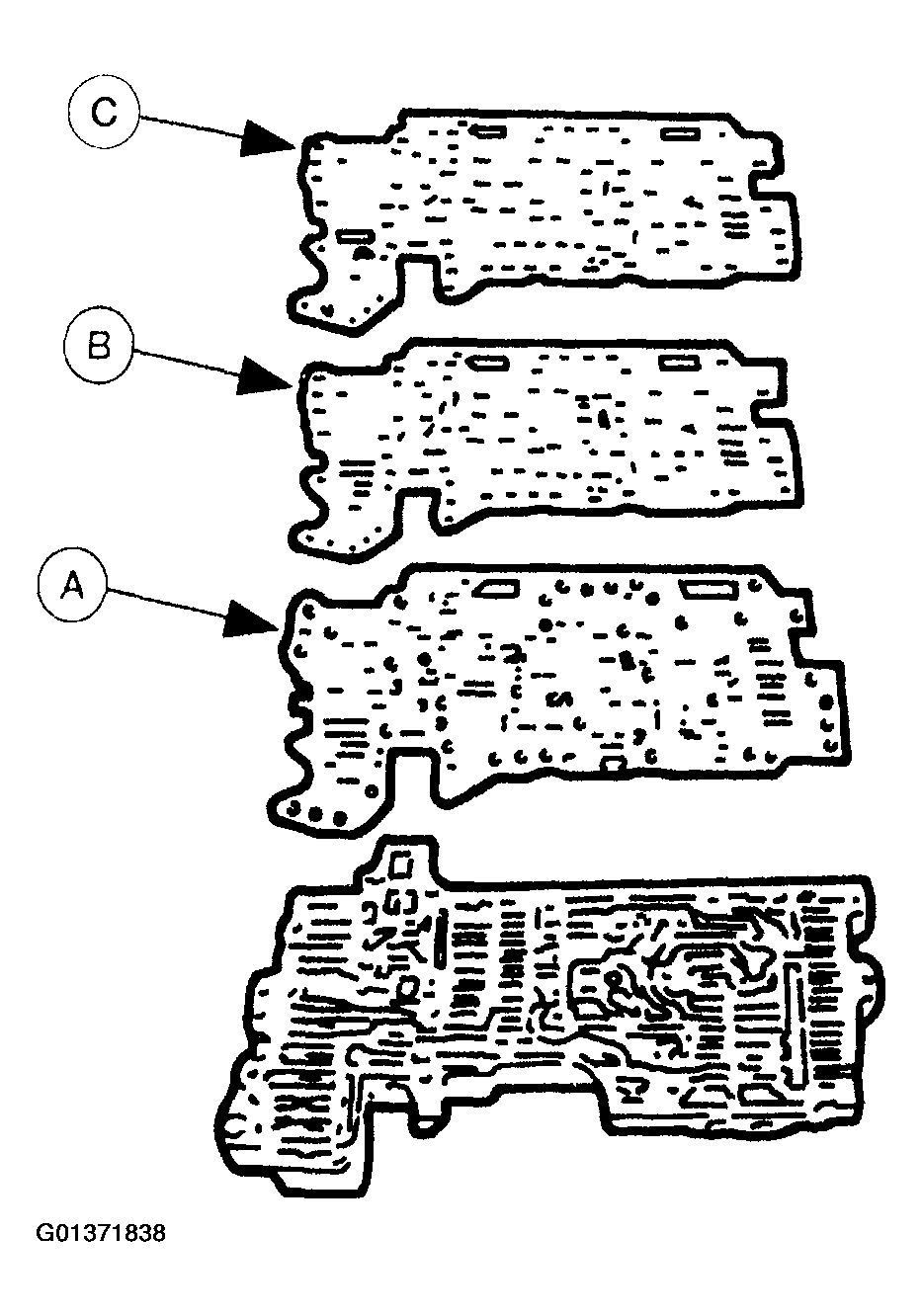

  9. Install the new (A) main gasket, (B) separator plate, and the new (C) premain gasket.
    Fig 9: Installing Main Gasket, Separator Plate And Premain Gasket
    G01371838Courtesy of FORD MOTOR CO.
  10. Install the screws securing the main gasket, main separator plate, and the premain gasket to the main control valve body.

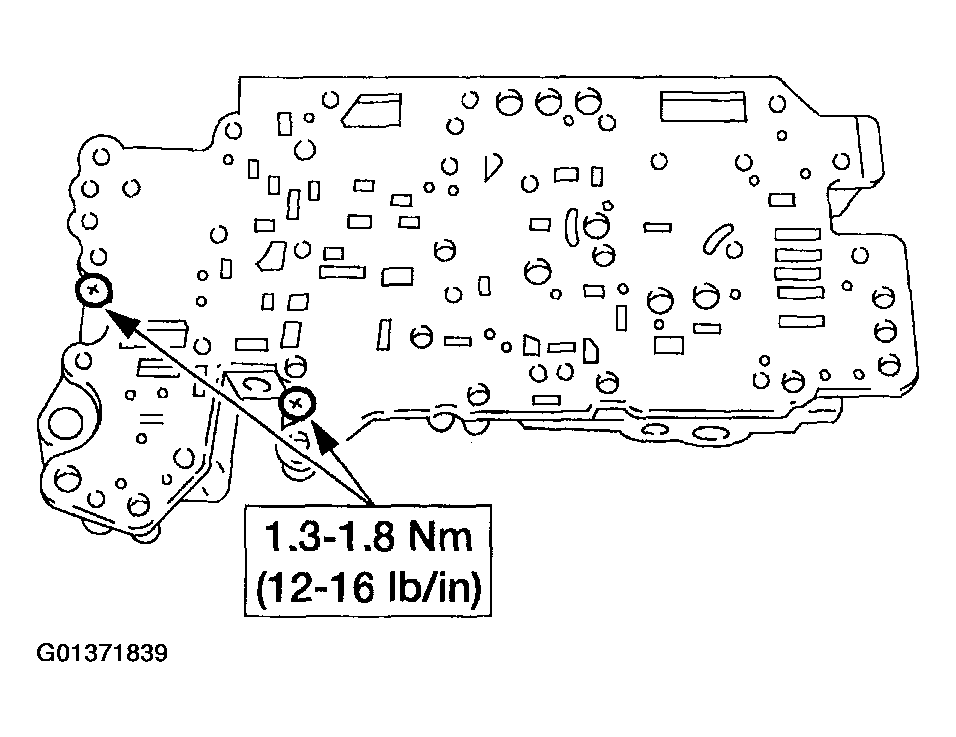

    Fig 10: Installing Screws Securing Main Gasket, Main Separator Plate And Premain Gasket
    G01371839Courtesy of FORD MOTOR CO.
    11. NOTE: If the bolts are difficult to tighten, do not force the bolts in. The gasket may be out of place. Remove the valve body and reset the gasket.
