2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
Fluid Pump Assembly: Assembly
NOTE:
Clean the oil pump with a suitable solvent and blow dry with compressed air to dry all parts and clean fluid passages. Inspect all mating surfaces for burrs and scores. Check all the fluid passages for obstructions.
- Inspect the spool valve. If not as specified, replace the pump assembly.

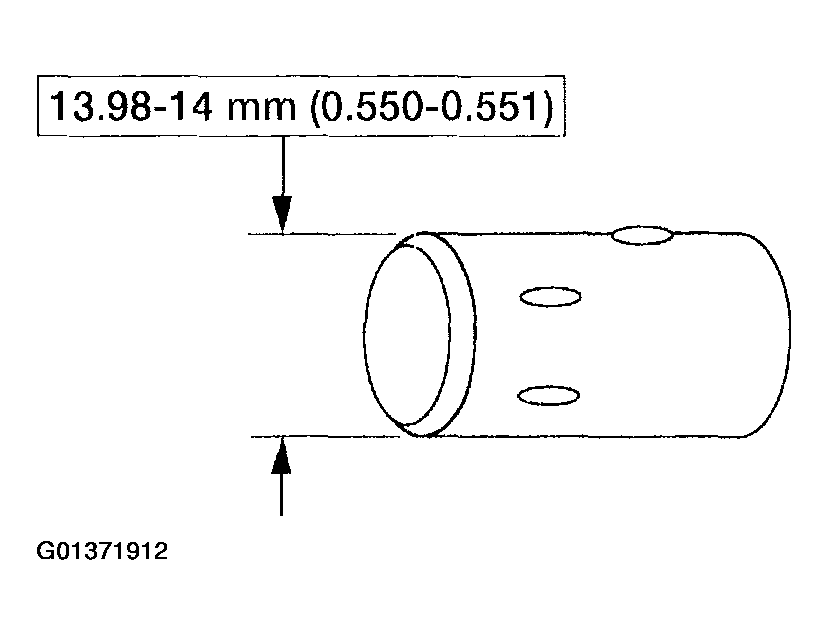

- Measure the spool valve and check for wear.
- Verify the spool valve moves smoothly in the pump housing bore.

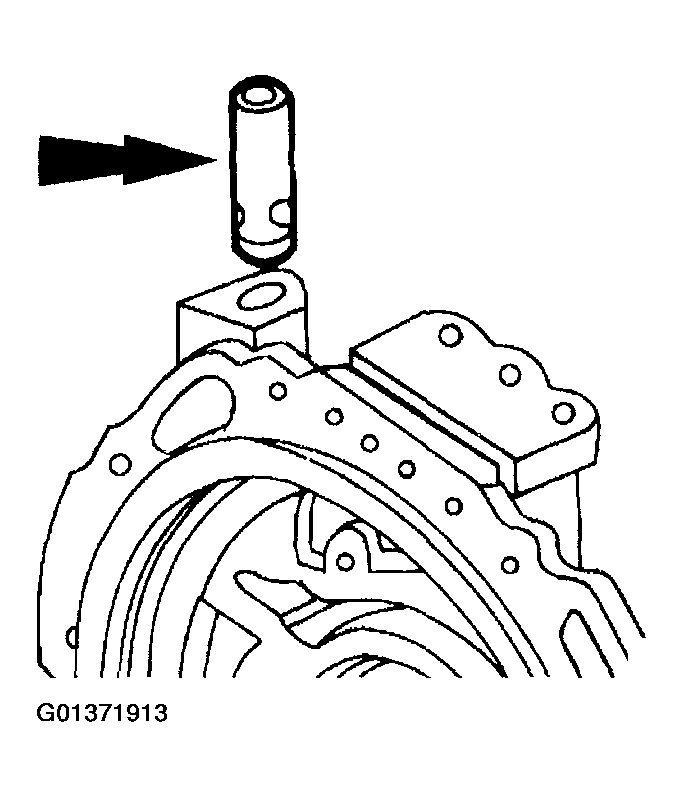

- Install the spool valve.
NOTE:
Do not compress the spool valve spring when measuring with vernier calipers.
