2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE

2-4 Servo: Disassembly

Remove the servo retainer.

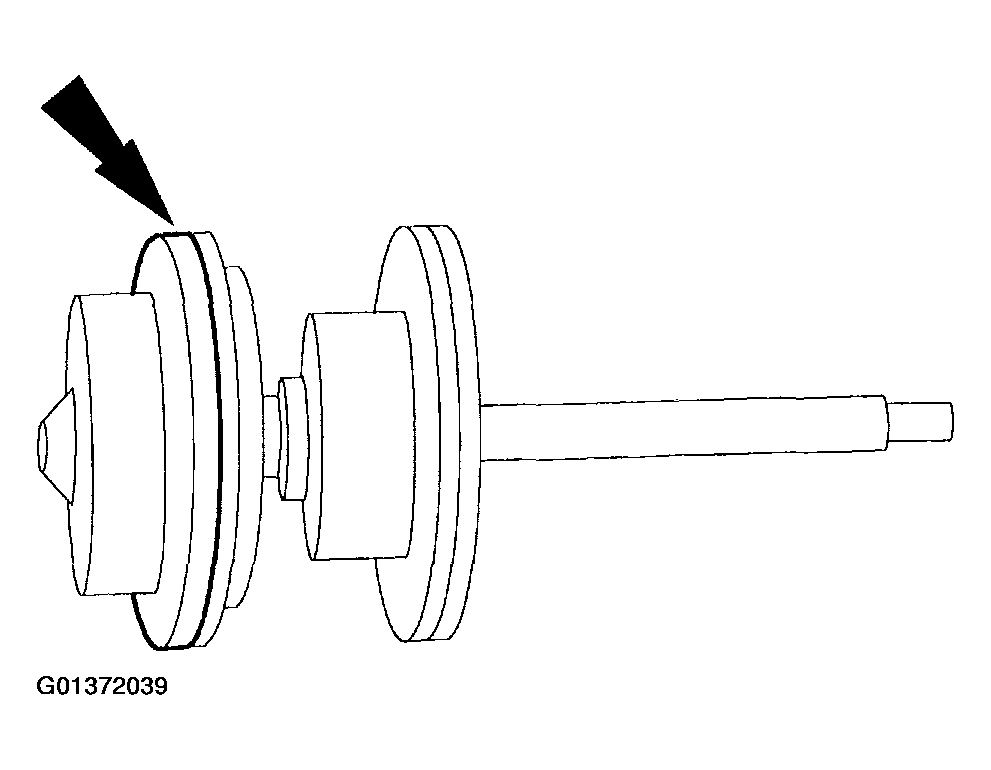

Fig 1: Removing Servo Retainer
Courtesy of FORD MOTOR CO.
Disassemble the servo piston and rod assembly.
1. Remove the clip.
2. Remove the rod and spacer.
3. Remove the spacer.

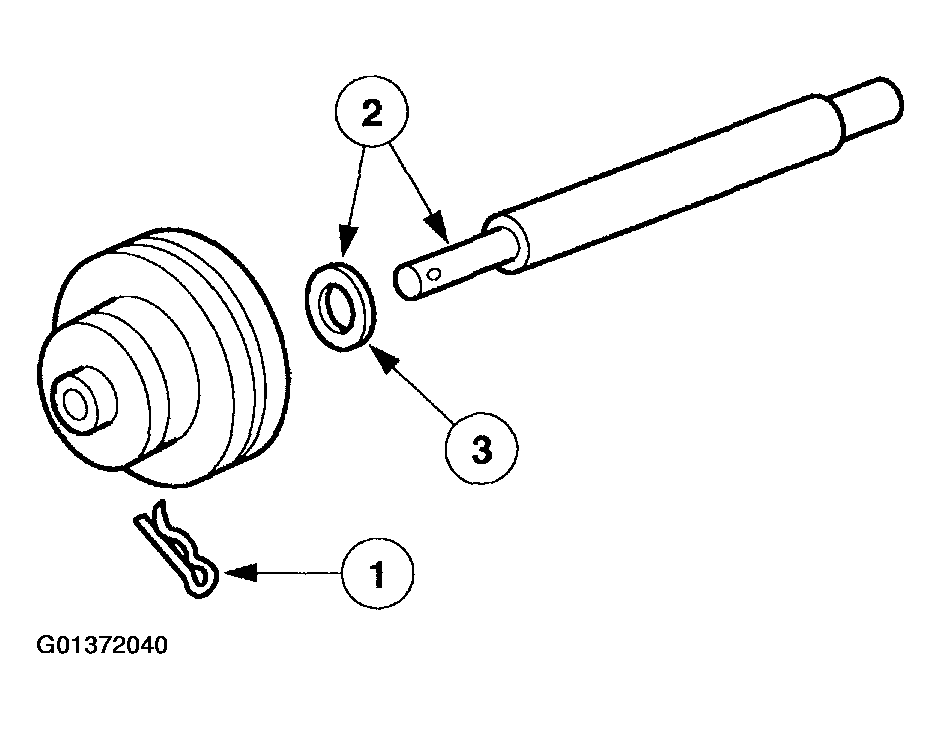

Fig 2: Disassembled View Of Servo Piston And Rod Assembly
Courtesy of FORD MOTOR CO.
Remove and discard the O-ring seals.

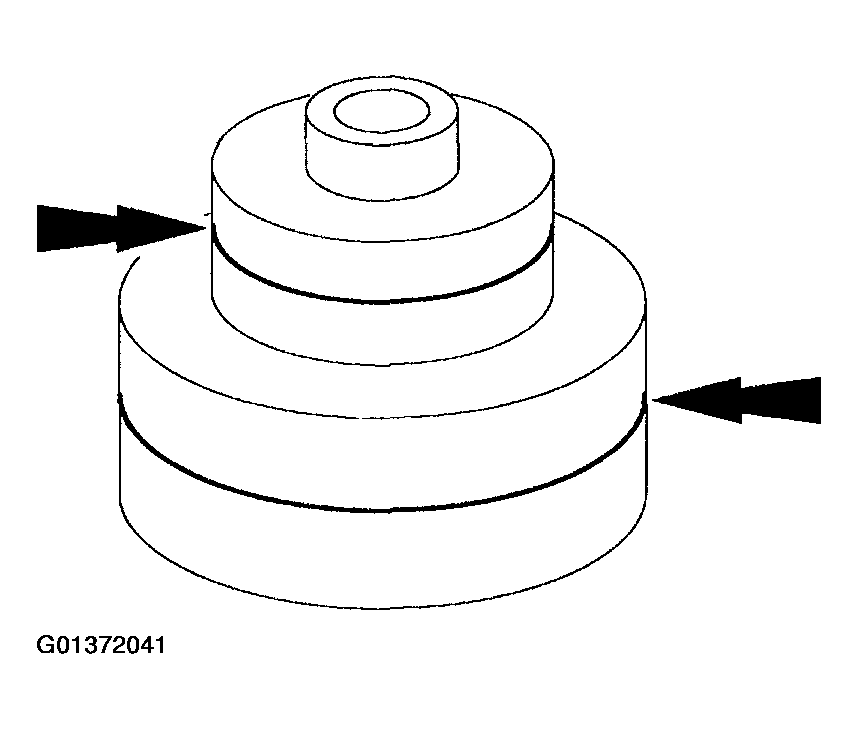

Fig 3: Removing O-Ring Seals
Courtesy of FORD MOTOR CO.
Discard the servo piston cover and seal.

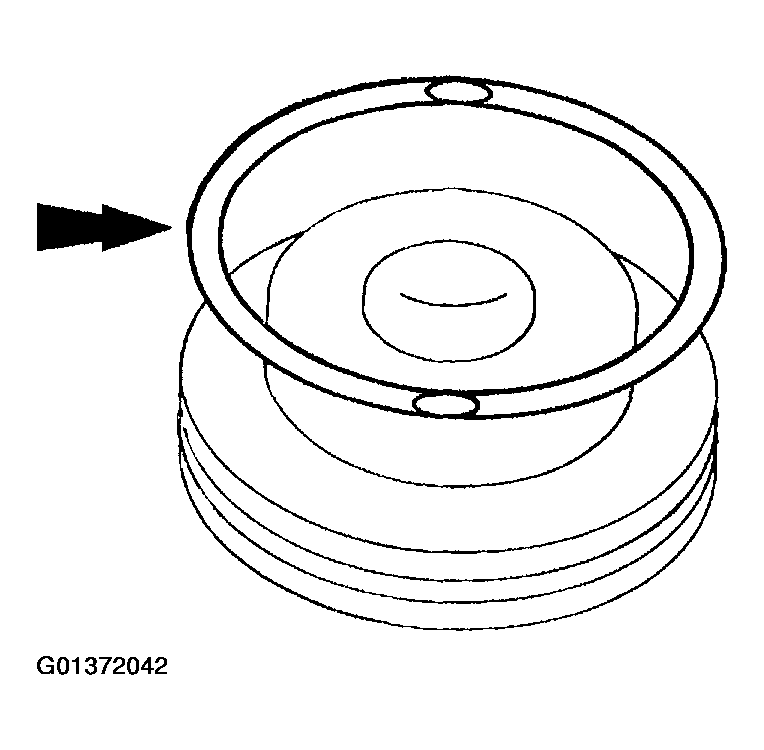

Fig 4: Removing Servo Piston Cover And Seal

Courtesy of FORD MOTOR CO.
