2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
In-Vehicle Repair: Flywheel: Removal
- Remove the clutch disc. For additional information, refer to DISC AND PRESSURE PLATE .

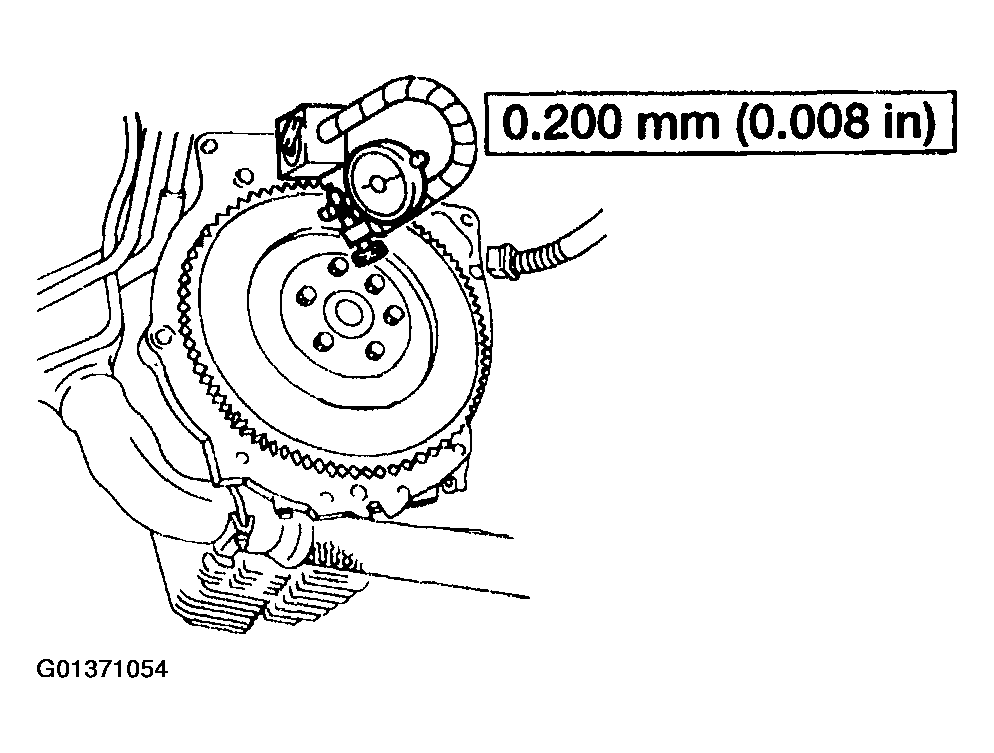

- Use Dial Indicator/Magnetic Base and inspect the flywheel runout. If over specification, machine the flywheel.

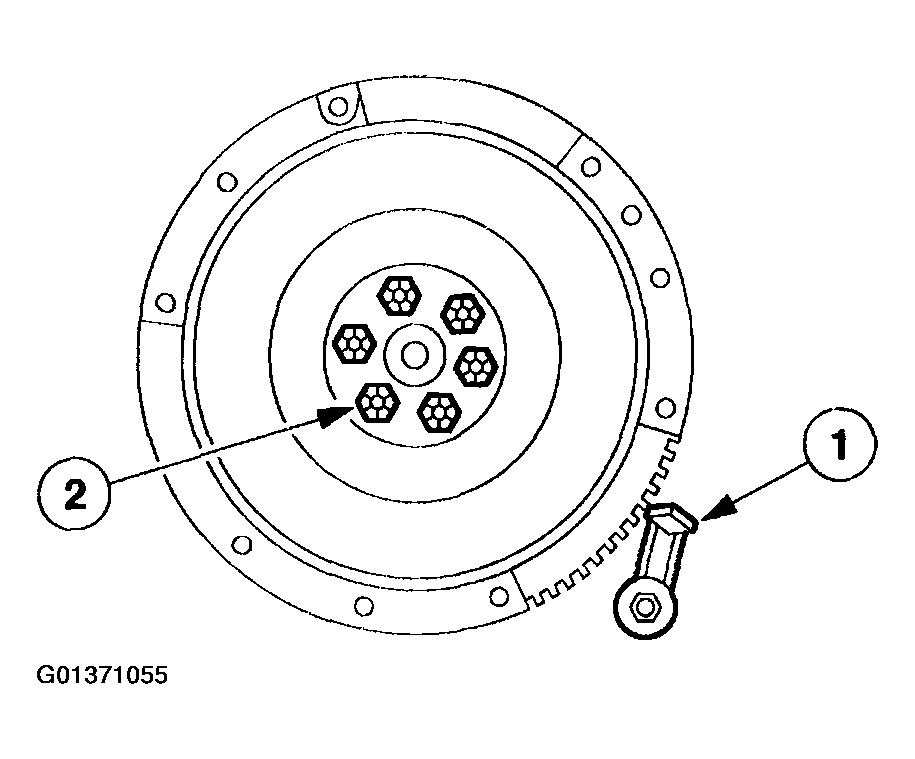

- Install the (1) flywheel holding tool and remove the (2) flywheel-to-crankshaft bolts (6379). Remove the flywheel (6375).
- Inspect the flywheel for cracks, hot spots and scoring. If the flywheel friction surface is damaged, machining is required. If damage is found to the ring gear teeth, install a new ring gear.
