2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
In-Vehicle Repair: Flexplate: Removal
- Remove the transmission/transaxle. For additional information, refer to DISC AND PRESSURE PLATE .

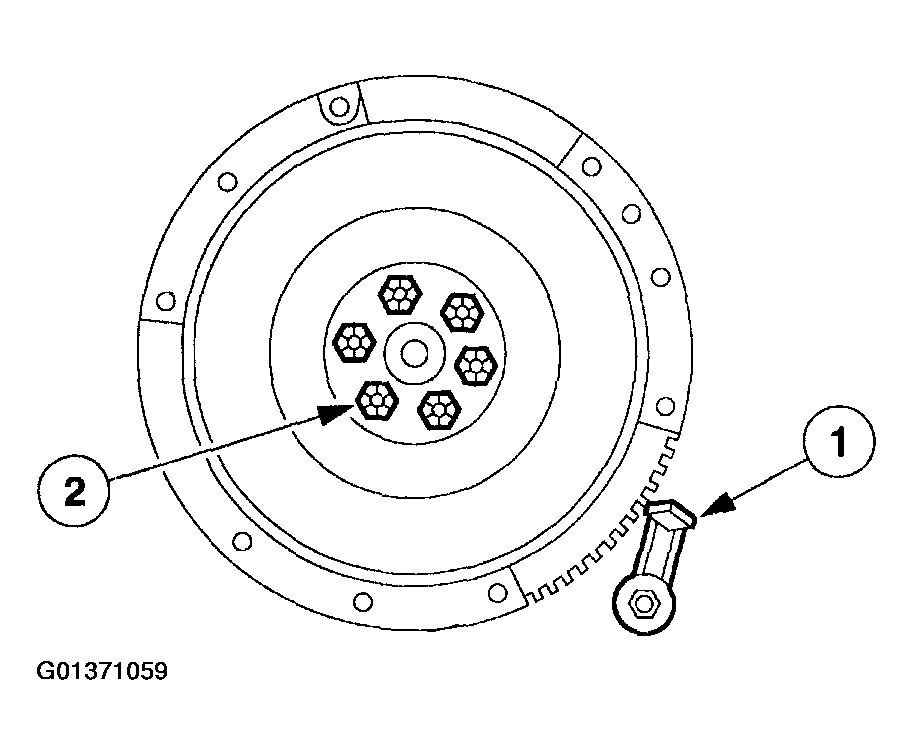

- Install the (1) Flywheel Holding Tool and remove the (2) bolts (6379).
- Remove the flexplate (6375).
- Inspect the flexplate for cracks, or other damage. Install a new flexplate if necessary.
