2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
In-Vehicle Repair: Flexplate: Installation

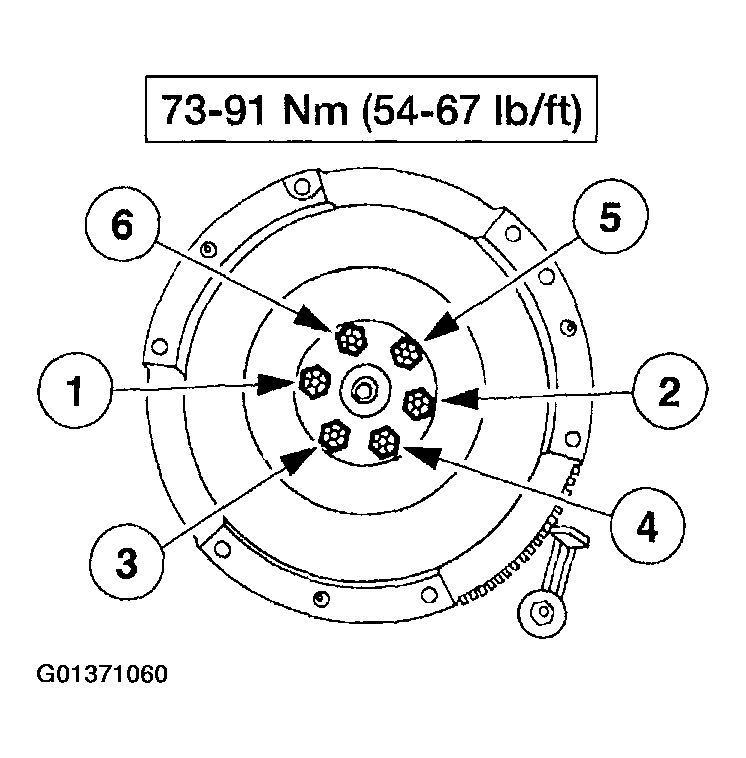

- Position the flexplate onto the crankshaft and install the bolts.
- Tighten the bolts in sequence to specification.
- Install the transmission/transaxle. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
NOTE:
Apply Threadlock and Sealer E0AZ-19554-AA or equivalent meeting Ford specifications WSK-M2G315-A5 to flexplate bolts before installation.
