2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE

Cylinder Block Distortion

Special Tool(s)

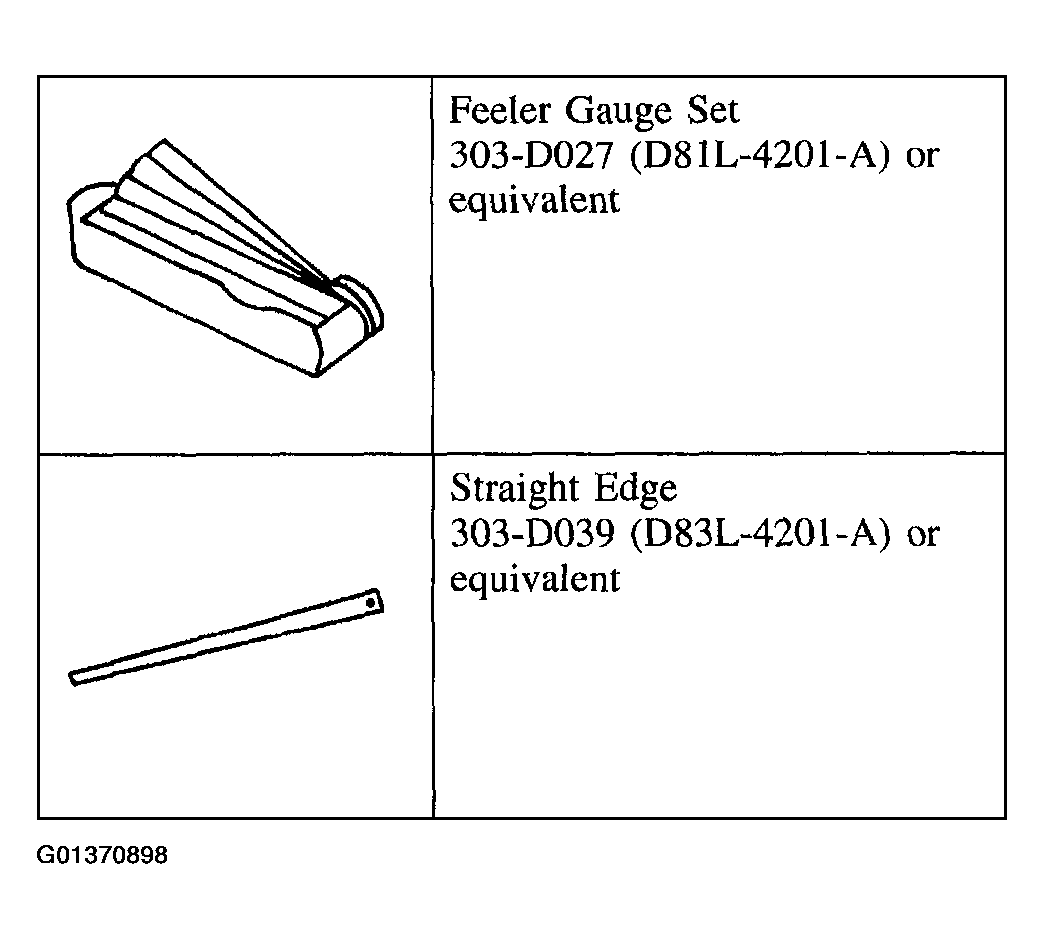

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

Use a straight edge and a feeler gauge to inspect the cylinder block for flatness. If the cylinder block is distorted, install a new cylinder block.

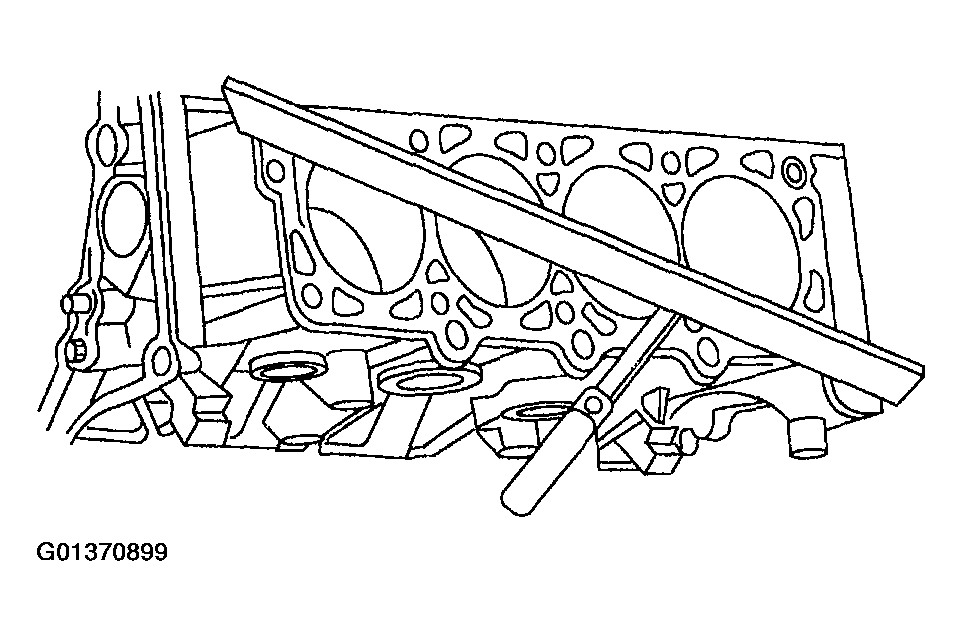

Fig 2: Measuring Cylinder Block Distortion
Courtesy of FORD MOTOR CO.
