2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE

Seat-Rear, 60/40 Split: Disassembly

NOTE: 60 percent portion shown, 40 percent similar.

Remove the rear seat latches; refer to LATCH-REAR SEAT, 60/40 SPLIT .

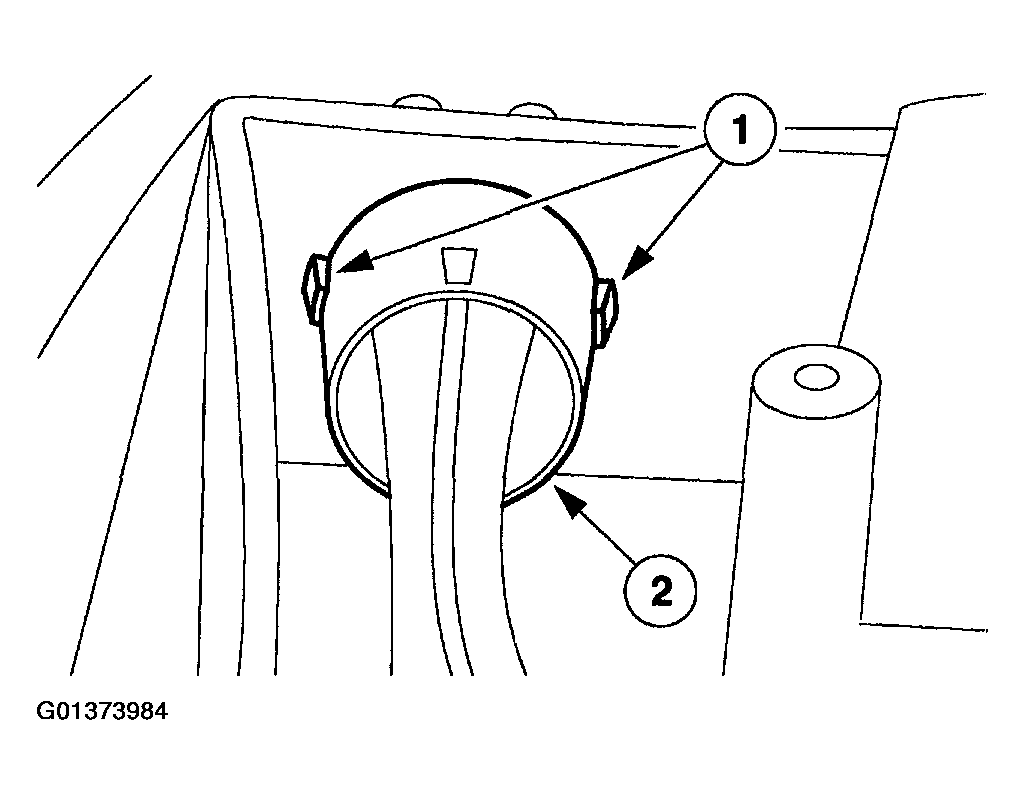

If equipped, remove the seat back release knob guide.
1. Squeeze the tabs.
2. Remove the seat back release knob guide.
Fig 1: Removing Seat Back Release Knob Guide
Courtesy of FORD MOTOR CO.

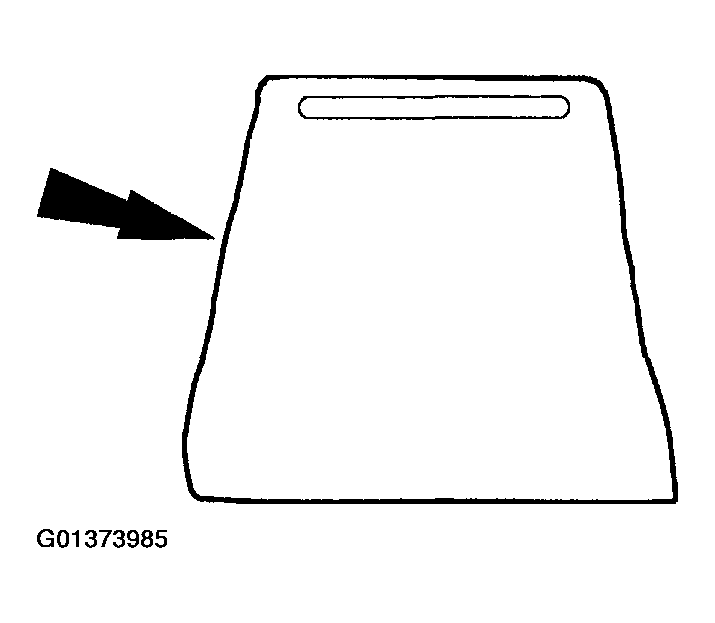

Remove the rear seat back pad.

Fig 2: Removing Rear Seat Back Pad
Courtesy of FORD MOTOR CO.

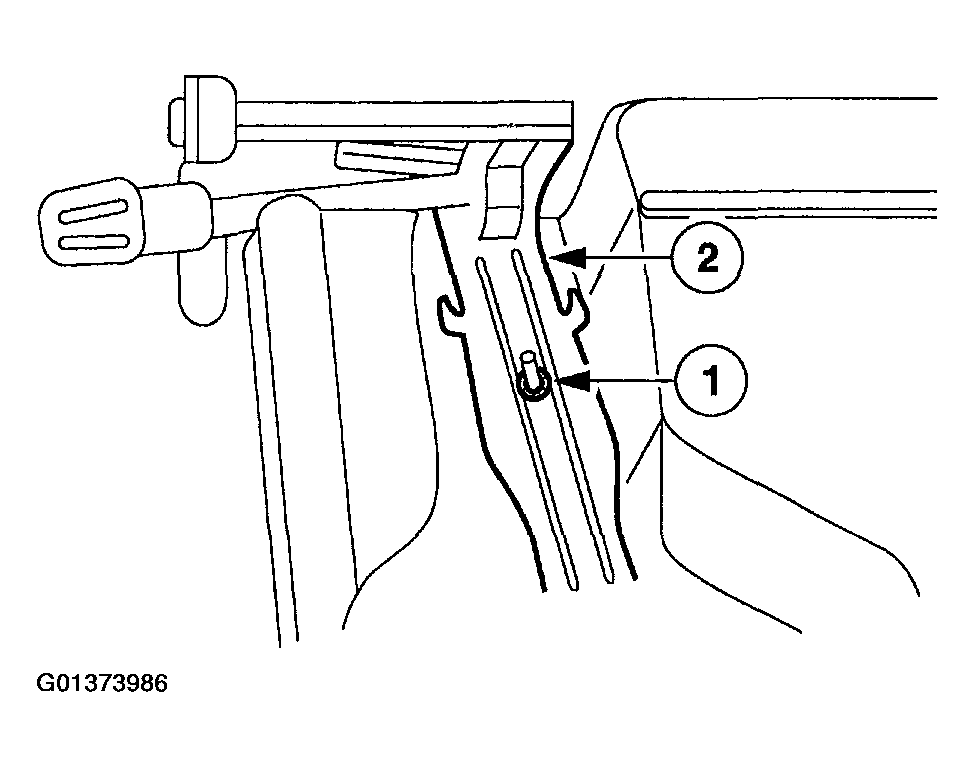

If equipped, remove the seat back release knob.
1. Remove the speed nut.
2. Remove the seat back release knob.
Fig 3: Removing Seat Back Release Knob
Courtesy of FORD MOTOR CO.
