2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE

Cable Adjustment

NOTE: 2.0L Zetec shown, 2.0L SPI similar.

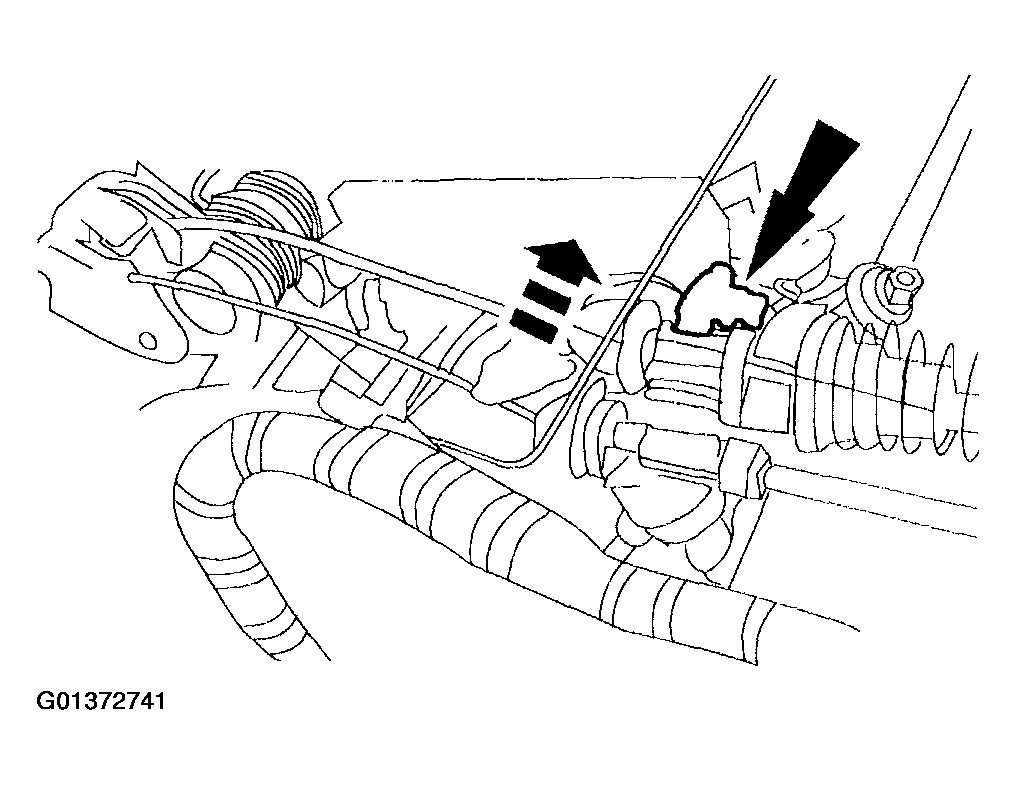

Slide the lock button.

Fig 1: Sliding Lock Button
Courtesy of FORD MOTOR CO.

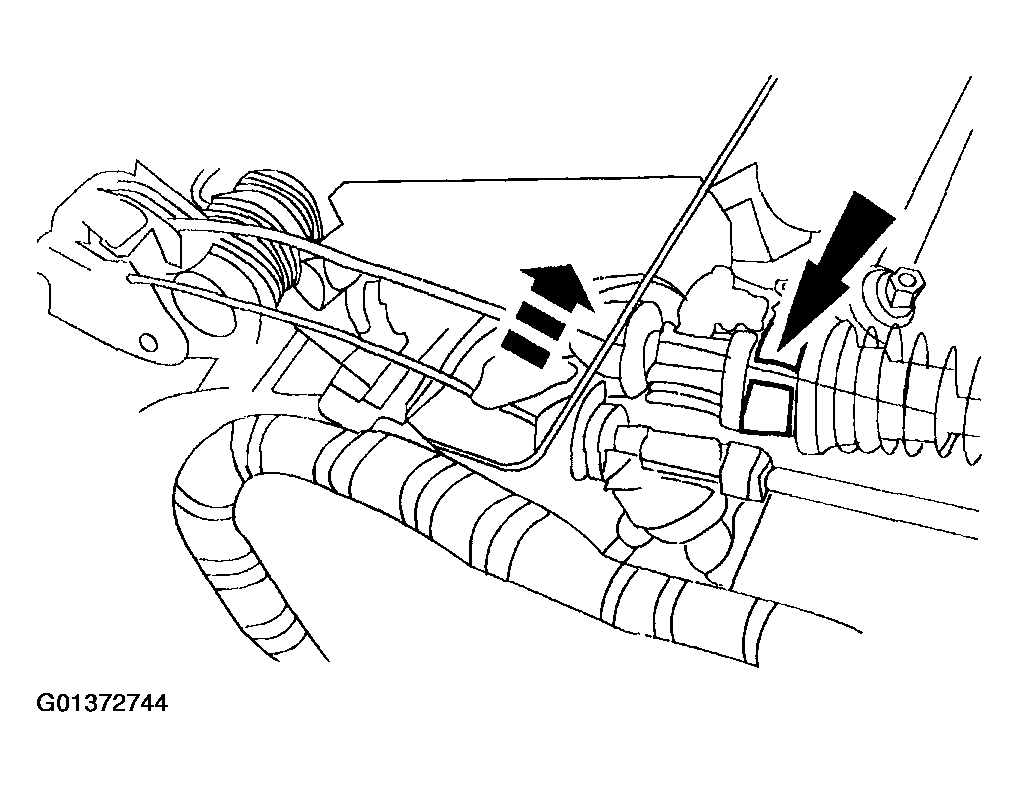

Rotate the cable stopper.

Fig 2: Rotating Cable Stopper
Courtesy of FORD MOTOR CO.
Adjust the accelerator cable free play.
1. Push and hold the spring.
2. Position the accelerator cable free play to specification.
Fig 3: Adjusting Accelerator Cable Free Play
Courtesy of FORD MOTOR CO.

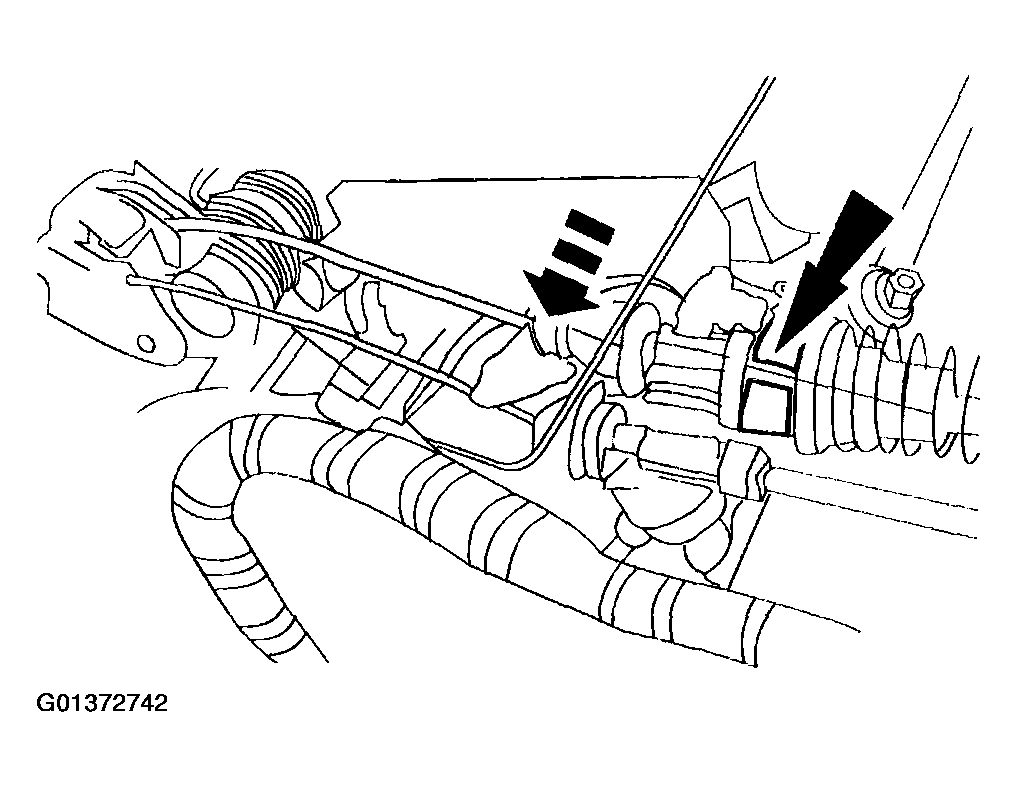

Rotate the cable stopper.

Fig 4: Rotating Cable Stopper
Courtesy of FORD MOTOR CO.

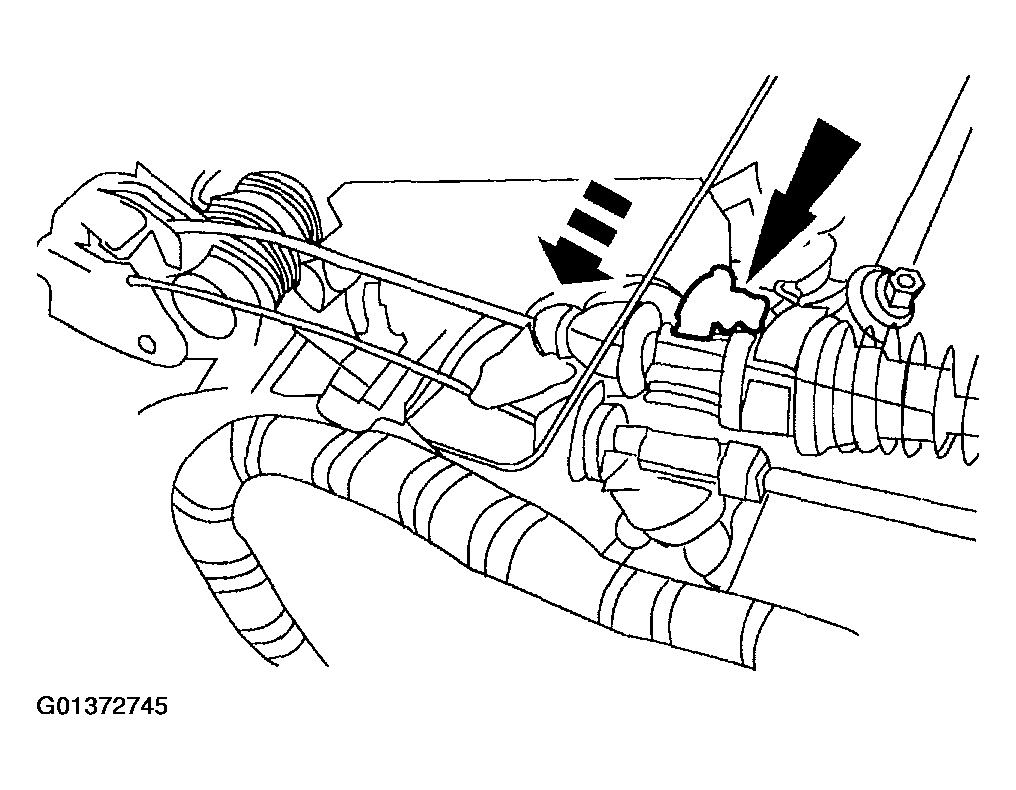

Slide the lock button.

Fig 5: Sliding Lock Button
Courtesy of FORD MOTOR CO.
