2003 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE
Planet Assembly: Disassembly

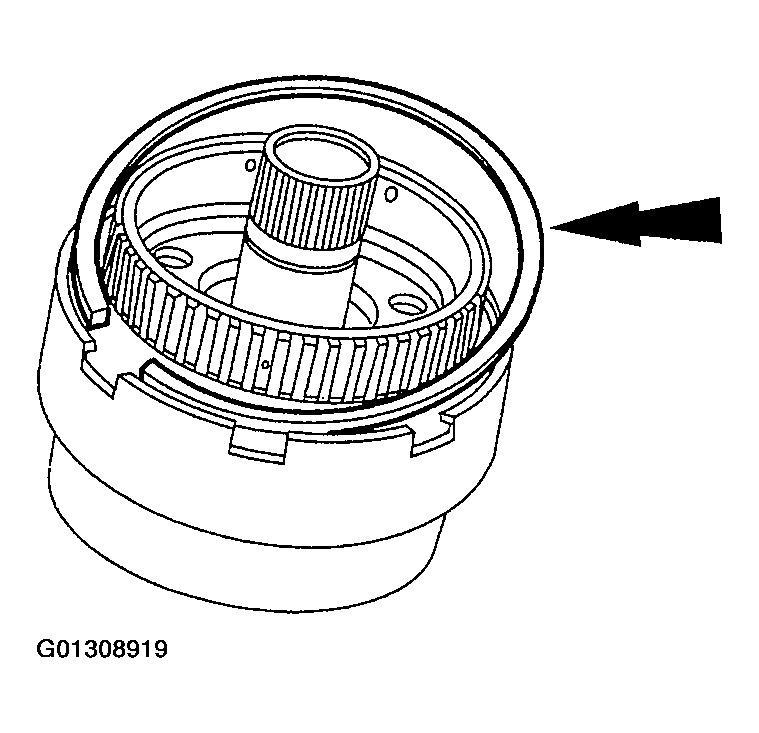

- Remove the retaining ring.

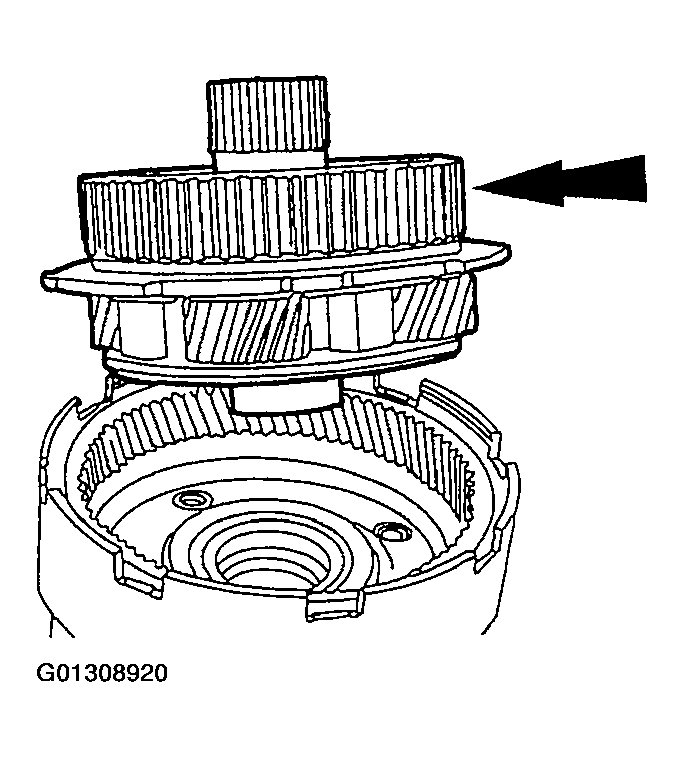

- Remove the front planet gear assembly. Clean and inspect for looseness and discoloration of the pinion gears or wear on the bearings. Repair as required.

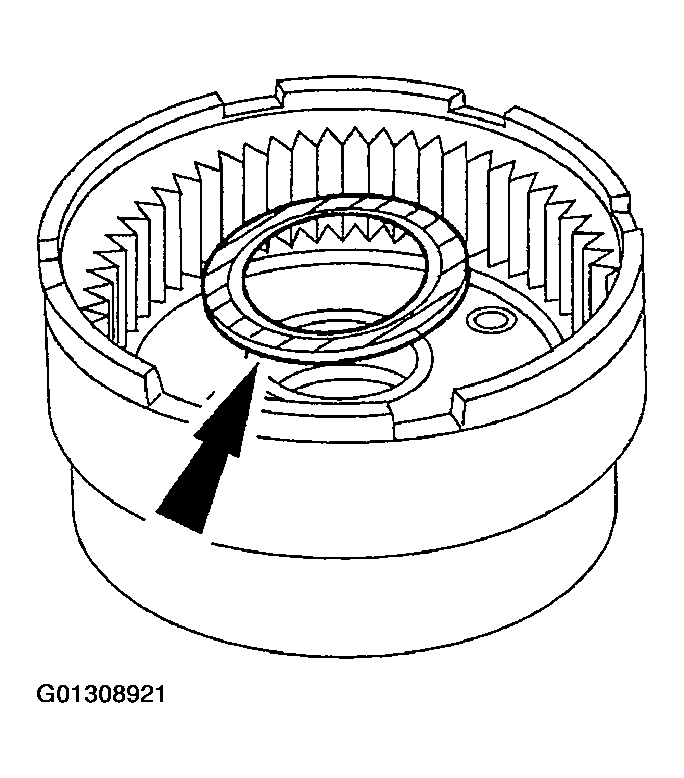

- Remove the No. 13 needle bearing.

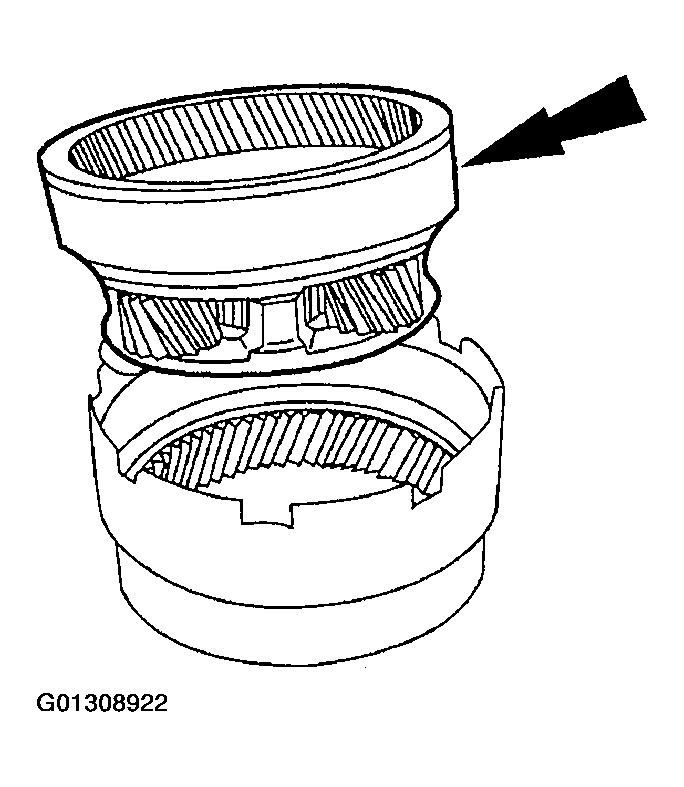

- Remove the reverse planet.

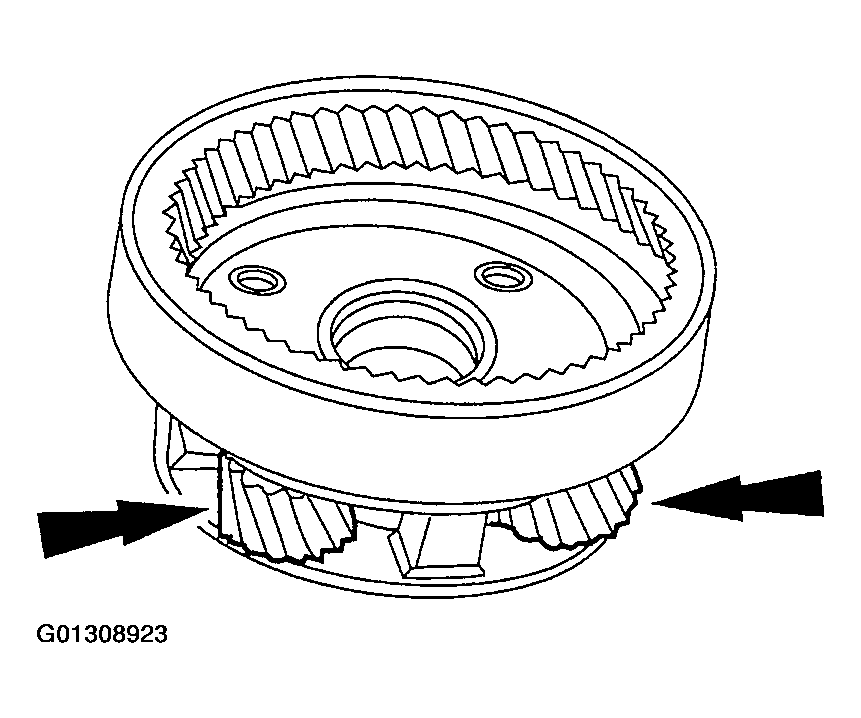

- Clean and inspect the reverse planet for looseness and/or discoloration of the planet gears or wear on the bushings or bearings. Repair as required.
