2003 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE

Overdrive Servo: Disassembly

Remove the overdrive servo piston return spring.

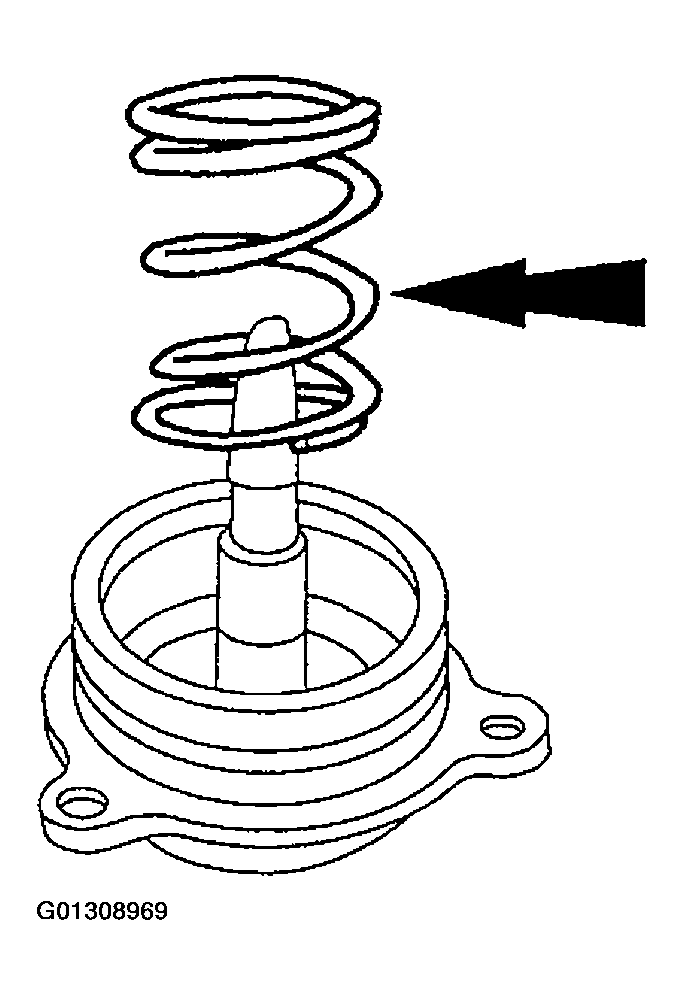

Fig 1: Removing Overdrive Servo Piston Return Spring
Courtesy of FORD MOTOR CO.
Remove the overdrive servo piston and rod assembly.

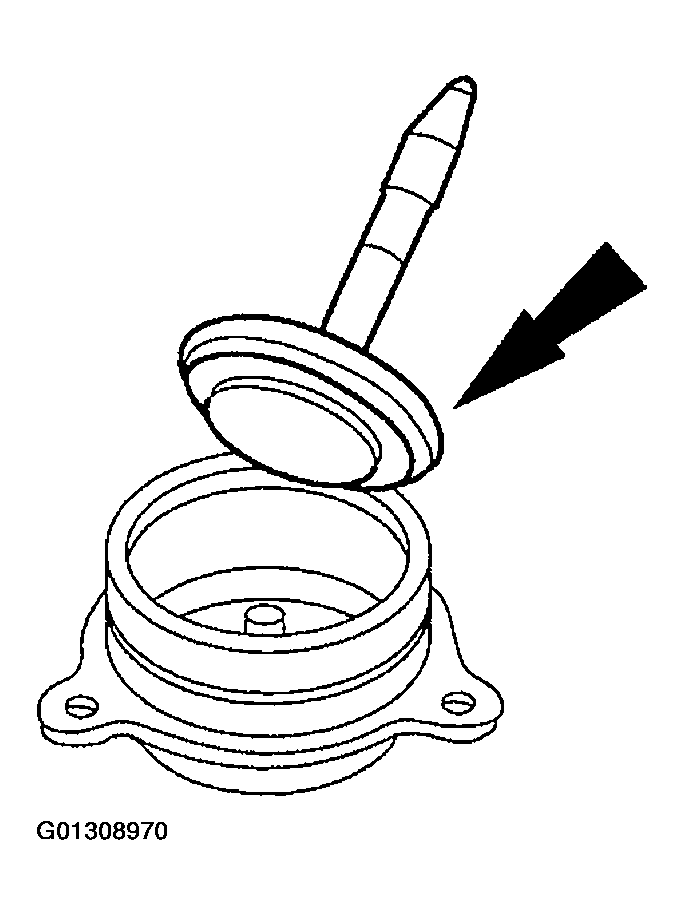

Fig 2: Removing Overdrive Servo Piston And Rod Assembly
Courtesy of FORD MOTOR CO.
Remove the servo piston seal.

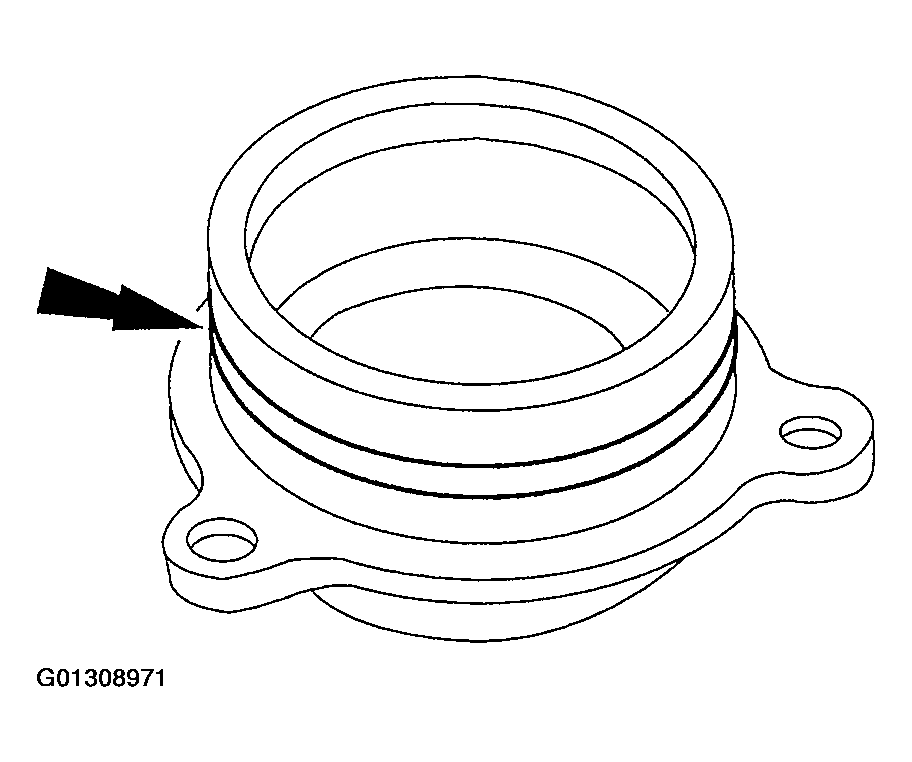

Fig 3: Removing Servo Piston Seal
Courtesy of FORD MOTOR CO.
